User Manual for Nimar Underwater Housing for Nikon D500 Click to enlarge the picture
Contents of the user manual for the Nimar Underwater Housing for Nikon D500
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Underwater Housing for Nikon D500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

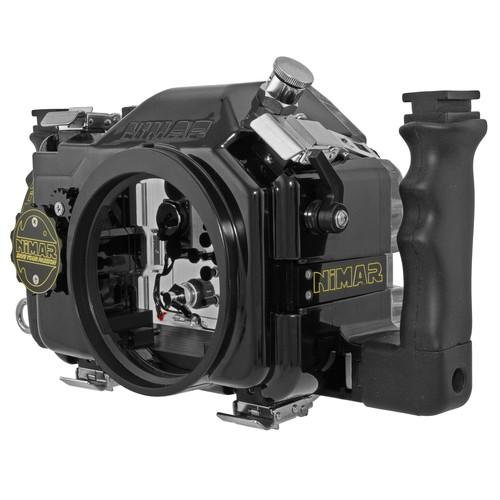

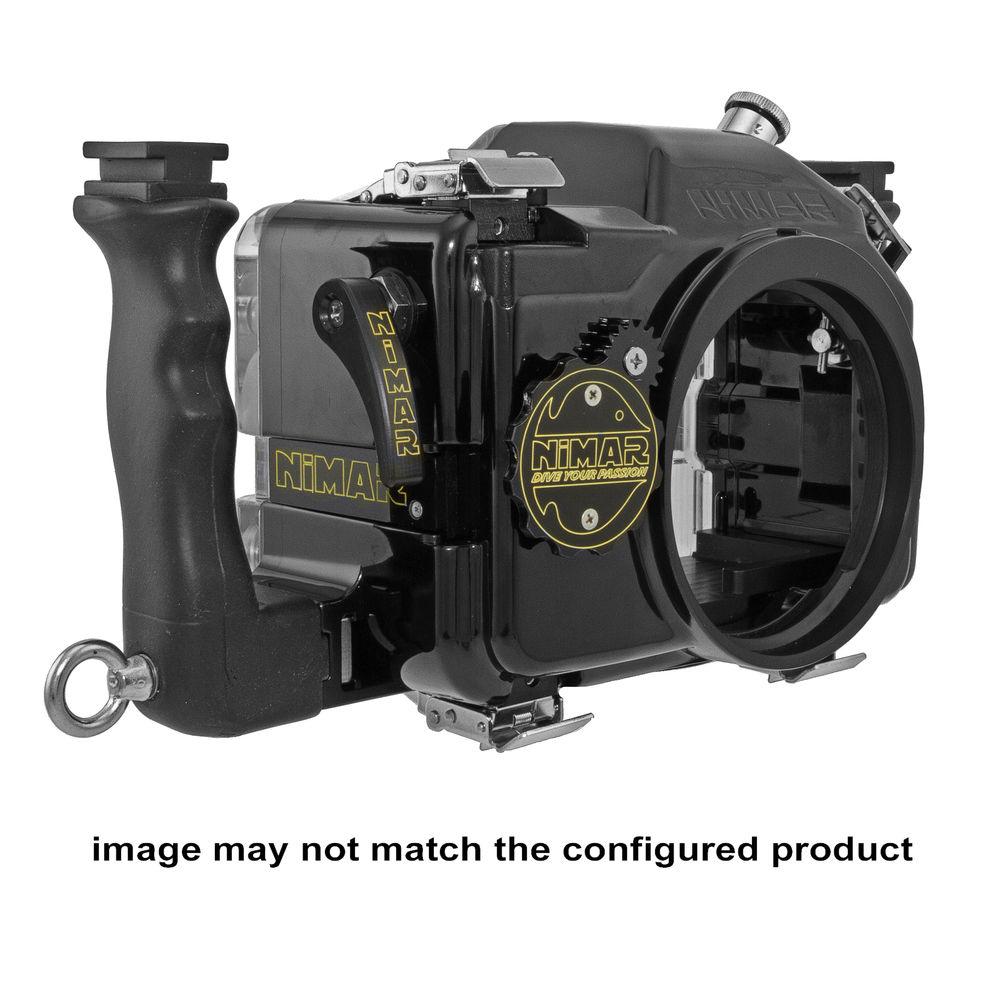

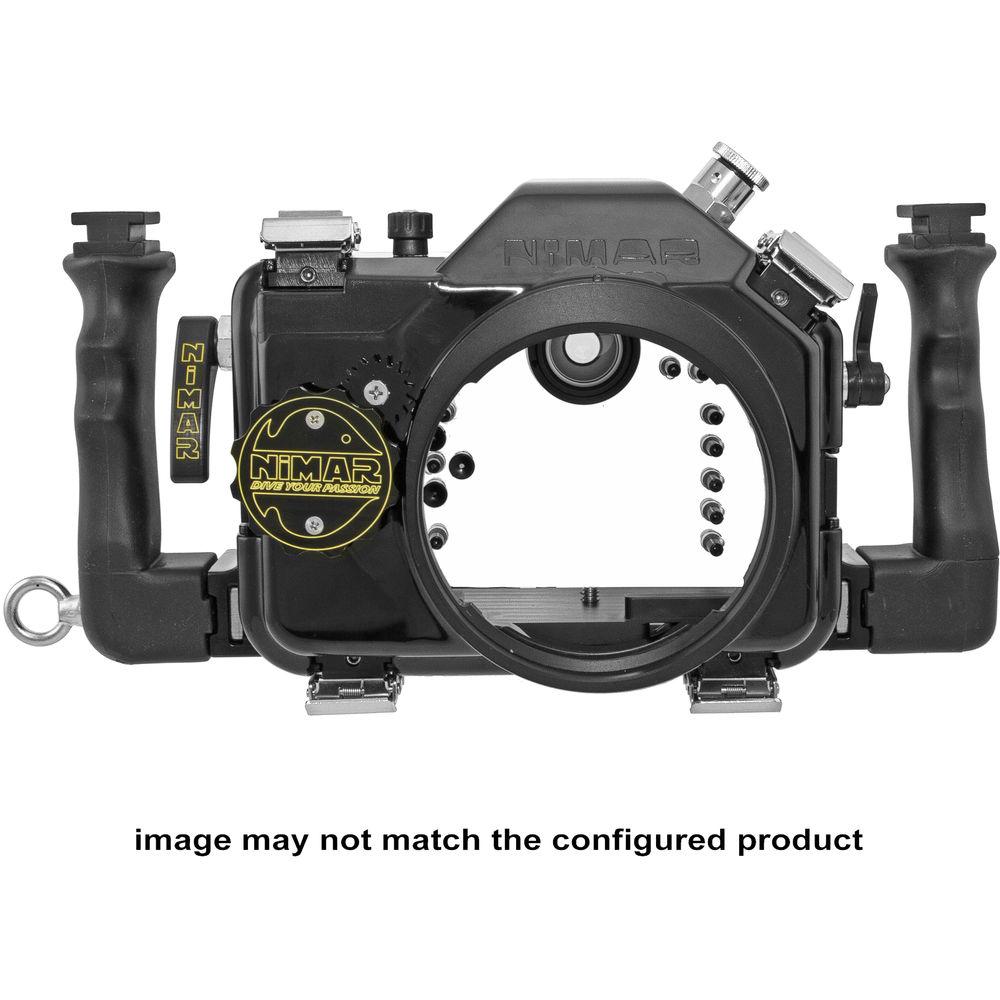

Product description You can capture beautiful photos and videos as far as 197' beneath the surface with your Nikon D500 DSLR camera, thanks to this dedicated Nimar Underwater Housing. It features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead connector enables the attachment of optional, external strobes via sync cords.
Mechanical controls, including push-buttons, dials, and levers, give you access to virtually all camera functions, and an eyepiece with 1.5x magnification offers an enhanced view through the camera's finder. The ergonomic side grips improve balance and handling underwater, while providing T-mounts for optional lighting arms. The enclosure ships without a required lens port, and its bayonet mount accepts optional, interchangeable flat and dome ports for various lenses. For complete compatibility details, check out the list below.
Built for durability, the housing is constructed from shock- and corrosion-resistant Bayer Makrolon polycarbonate. It's black on the front, top, and sides, but clear in the back to allow you to monitor the O-ring seal and camera. It also features stainless steel latches with safety clips to ensure a secure closure. - Construction Details
-
- Depth rating: 197'

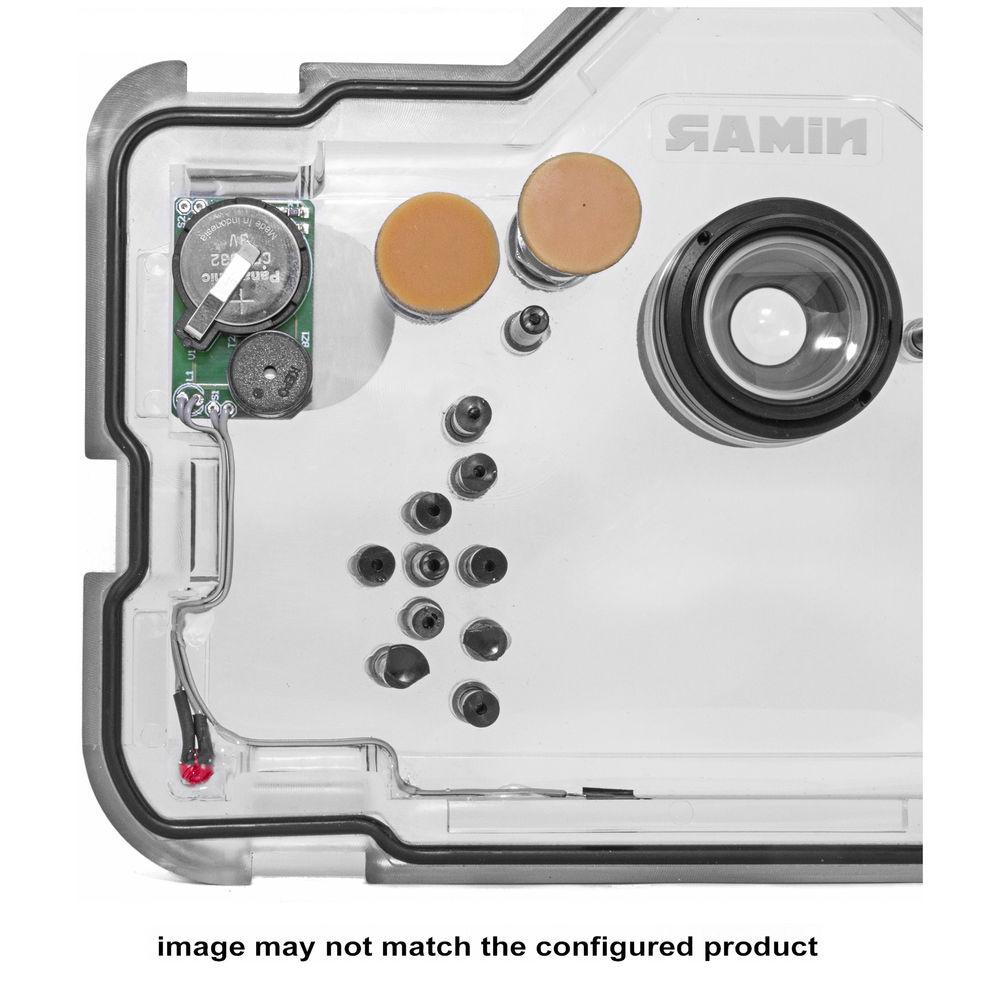

- Moisture alarm alerts you immediately in the unlikely event of a breach in the waterproof seal, giving you time to get to the surface and prevent damage to your camera and lens
- Made from durable, shock- and corrosion-resistant Bayer Makrolon polycarbonate with a thickness of 10mm

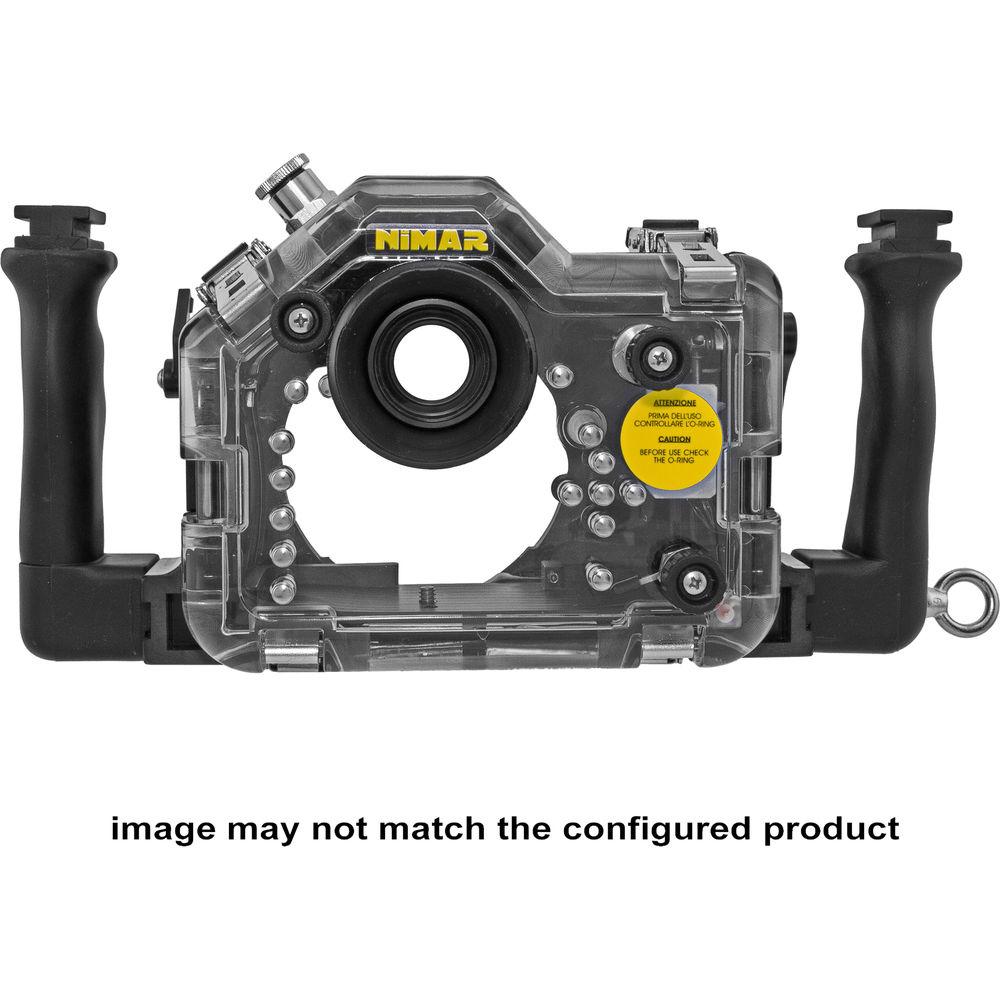

- Black on the front, top, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera
- 4 AISI 316 stainless steel latches ensure a secure closure
- Controls and Handling
-

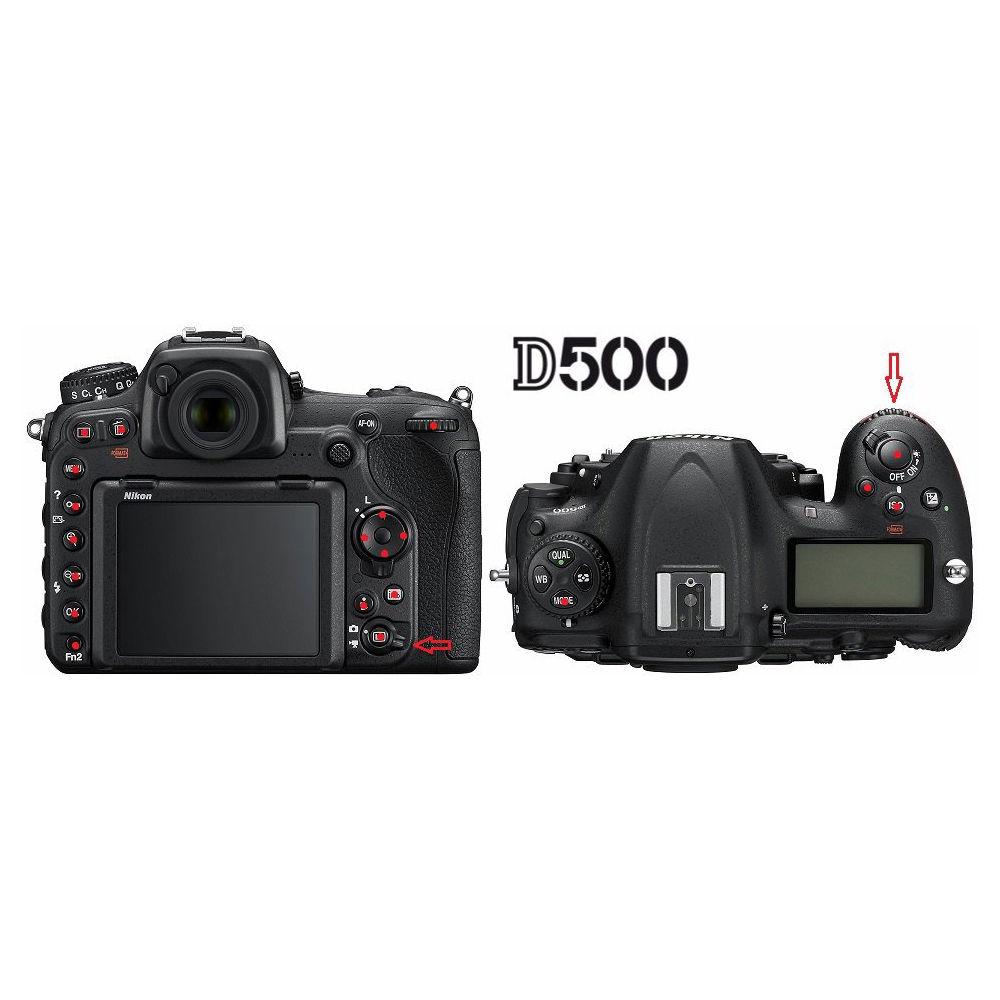

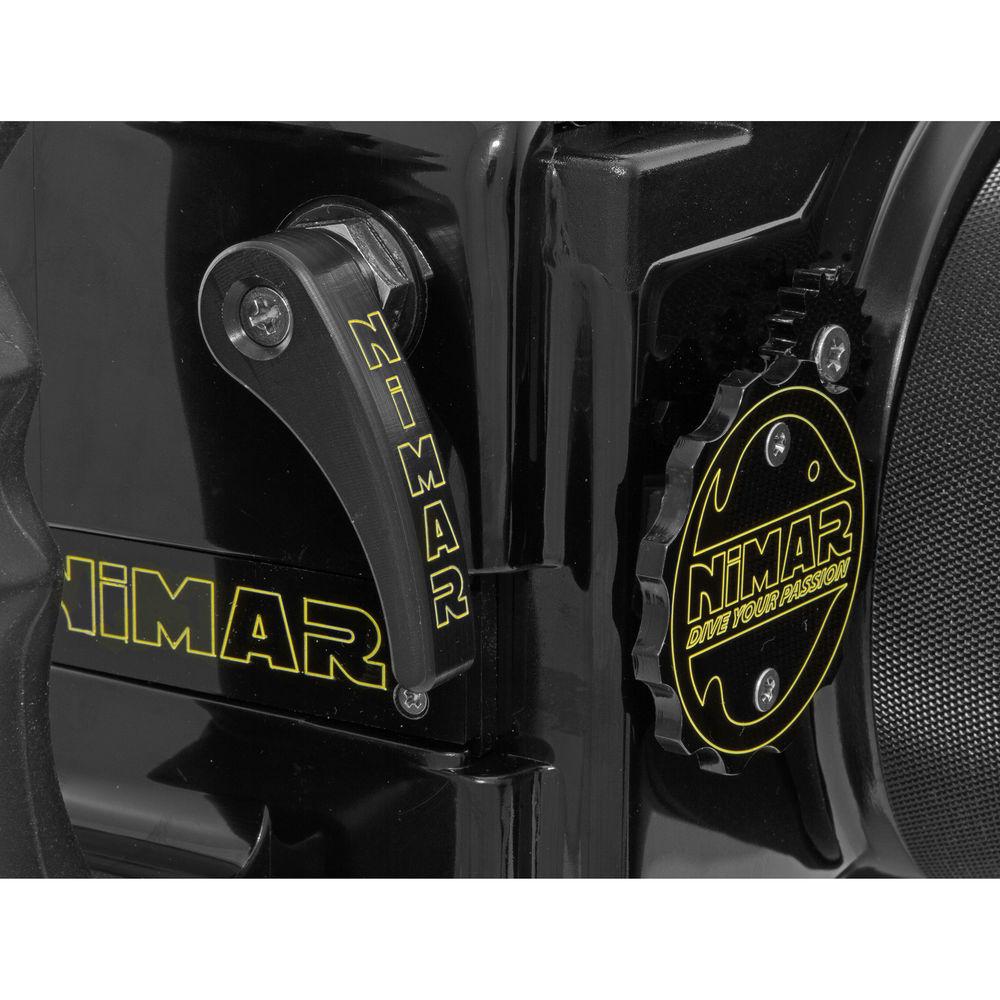

- Mechanical controls, including push-buttons, dials, and levers, give you access to virtually all camera functions: shutter, video recording, live view, live view selector, ISO, mode, main command dial, multi-selector, flash mode, flash compensation, Fn2, playback, zoom in/out during playback, picture controls, thumbnail, info, i button, protect, format, OK, and delete
- Eyepiece with 1.5x magnification offers an enhanced view through the camera's finder
- Dual removable, ergonomic side grips improve balance and handling underwater, while providing T-mounts for optional lighting arms
- Housing alone has slightly positive buoyancy; the buoyancy of the complete system may vary depending on your choice of lens and port
- Lens Port System
-
Ships without a required lens port, and accepts interchangeable, bayonet-mount flat and dome ports for various lenses:- NI320 5" Optical Glass Dome for Nikon AF/AF-S NIKKOR 24mm f/2.8D, 28mm f/2.8D, 35mm f/2D, DX 35mm f/1.8G, 50mm f/1.4 G, and 50mm f/1.8 G
- NI31 Polycarbonate Dome for Nikon AF Fisheye NIKKOR 16mm f/2.8D and DX 10.5mm f/2.8 G ED
- NIMD 4" Glass Dome for Nikon DX AF Fisheye NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI32 Flat Port for Nikon AF/AF-S DC-NIKKOR 105mm f/2D and VR Micro-NIKKOR 105mm f/2.8G IF-E, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI34 Flat Port for Nikon AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- NI35 Flat Port for Nikon AF-S DX NIKKOR 16-85mm f/3.5-5.6G ED VR
- NI35N 5" Optical Glass Dome for Nikon AF-S DX NIKKOR 10-24mm f/3.5-4.5G ED
- NI35N1 Flat Port for Nikon AF-S DX NIKKOR 16-80mm f/2.8-4E ED VR
- NI37N Flat Port for Nikon AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38 Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38A Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38B Flat Port for Nikon AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38N Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38Z Flat Port for Nikon AF-S DX NIKKOR 18-70mm f/3.5-4.5G IF ED
- NI42 Flat Port for Nikon AF-S DX NIKKOR 24-85mm f/3.5-5.6G ED VR
- NI42A Flat Port for Nikon AF-S DX NIKKOR 24-120mm f/3.5-5.6G ED VR
- NI46 5" Optical Glass Dome for Nikon AF-S DX Zoom NIKKOR 12-24mm f/4G IF ED
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105 mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI37C Flat Port for Sigma MACRO 50mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm f/4-5.6 EX DC / HSM
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO HSM
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Nikon DX AF Fisheye-NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm F/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye / NH
- Strobe Connection and Operation
-

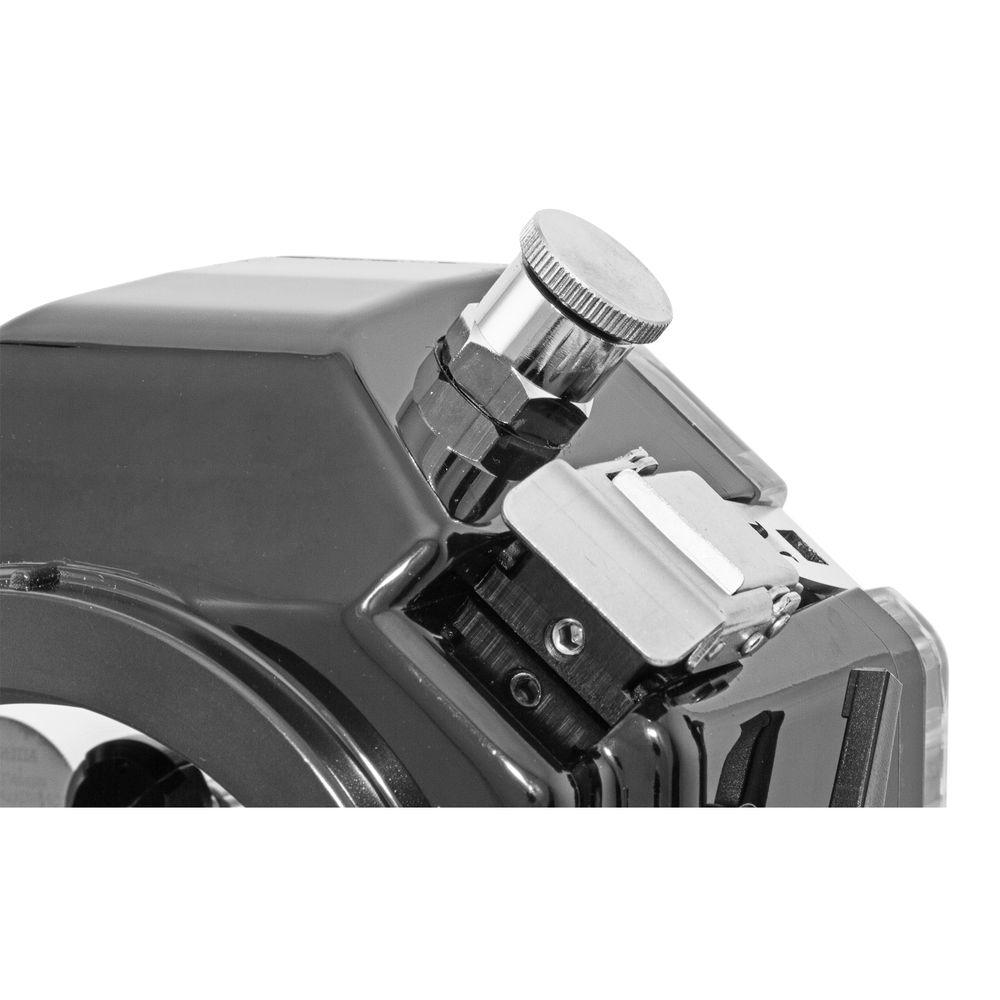

- Manual, 5-pin Nikonos bulkhead connector enables the attachment of optional, external strobes via sync cords
- Sea & Sea YS-D1 strobe and select flash units from Nikon are compatible
- Nimar offers underwater housings for the Nikon SB-700 and SB-900/SB-910 flashes
UPC: 810075021950 In the Box Nimar Underwater Housing for Nikon D500 2 x Removable Grip Handles Spare Main O-Ring Rubber Eyepiece Guard Protective Port Mount Cover Soft Storage Bag Protective Rubber Tips for Controls Tool Kit Silicone Grease Camera Mount Silica Gel Bag Limited 2-Year Warranty Lens port Chart PDF 165.7kbrweaeqtszvfrxxuwcfaw Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Nikon D500 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NID500Q Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Provide access to virtually all camera functions, including shutter, video recording, live view, live view selector, ISO, mode, main command dial, multi-selector, flash mode, flash compensation, Fn2, playback, zoom in/out during playback, picture controls, thumbnail, info, i button, protect, format, OK, and delete | | Material of Construction | Body: Bayer Makrolon polycarbonate
Latches: AISI 316 stainless steel
Grip Handles: ABS plastic | | Lens Port | Ships without a required lens port
Accepts interchangeable, bayonet-mount flat and dome ports for various lenses
See list in overview | | Buoyancy | Housing Only: Slightly positive
Complete System: May vary based on choice of lens and port | | External Flash Connector | Manual, 5-pin Nikonos bulkhead connector for attachment of strobes via sync cords (not included) | | Mounting | 2x T-mounts on grip handles for lighting arms | | Moisture Alarm | Yes | | Dimensions | With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Handles: 5.3 lb / 2.4 kg | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 11.4 x 11.3 x 8.0" |
