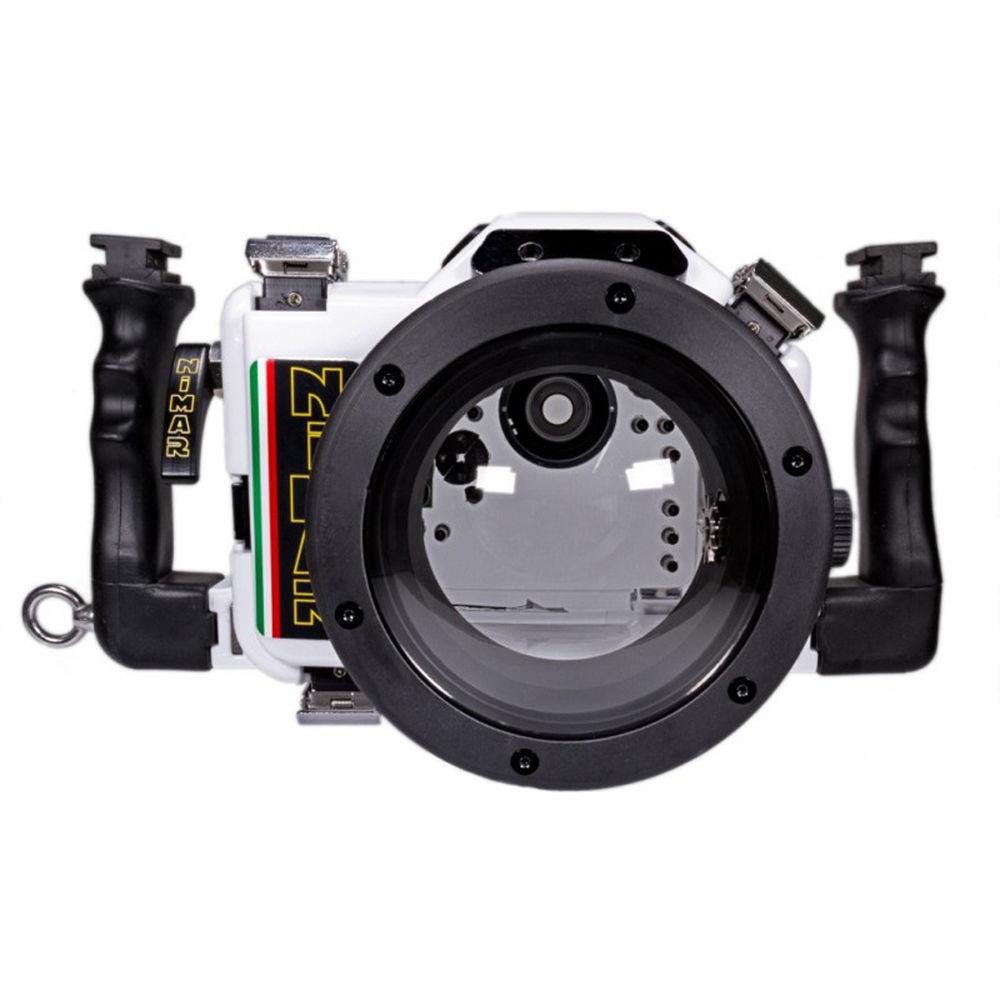

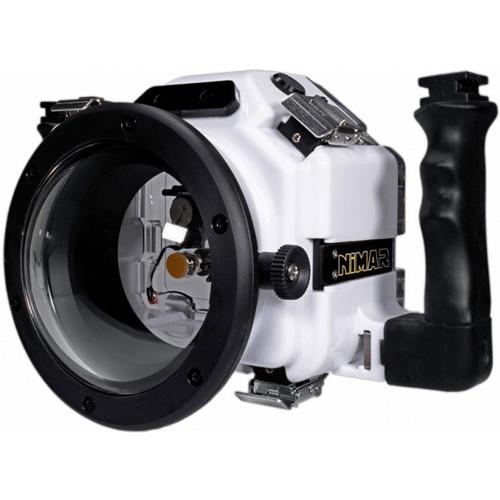

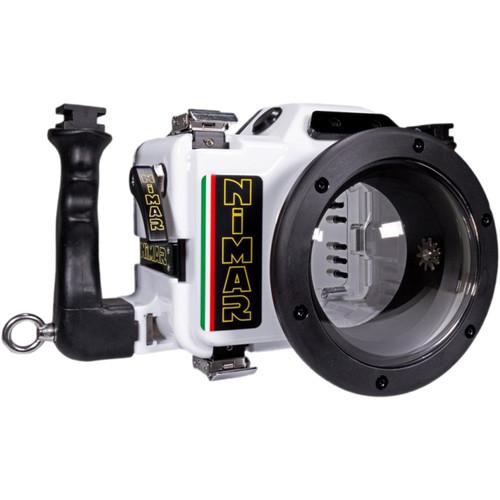

Product description You can capture brilliant images at depths as great as 197' with your Nikon D5100 DSLR camera, thanks to this dedicated Underwater Housing from Nimar. It features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead connector enables the attachment of optional external strobes via sync cords. As an alternative, the camera's built-in flash can trigger strobes via cables connected to the housing's dual fiber-optic ports.
Mechanical push-buttons, dials, and levers afford access to virtually all camera functions, while ergonomic grips improve handling and provide attachment points for optional lighting arms. A removable eyepiece with a magnification of 1.5x helps you compose shots through the camera's viewfinder. The housing ships without a required lens port, and accepts interchangeable ports for a broad array of different lenses. For complete compatibility details, see the list below.
Built for durability, the housing is crafted from corrosion-resistant polycarbonate, which is clear to allow you to maintain a full view of the camera and O-ring seal. Stainless steel latches with safety clips ensure that the enclosure stays shut during your dive. - Construction Details
-
- Depth rating: 197'

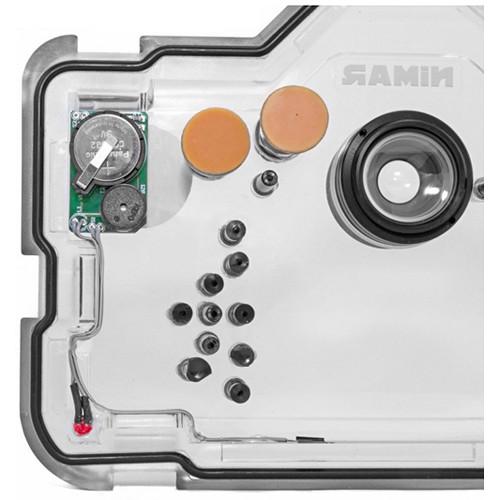

- Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal--giving you time to get to the surface and prevent damage to your camera and lens
- Made from durable, corrosion-resistant Bayer Makrolon polycarbonate

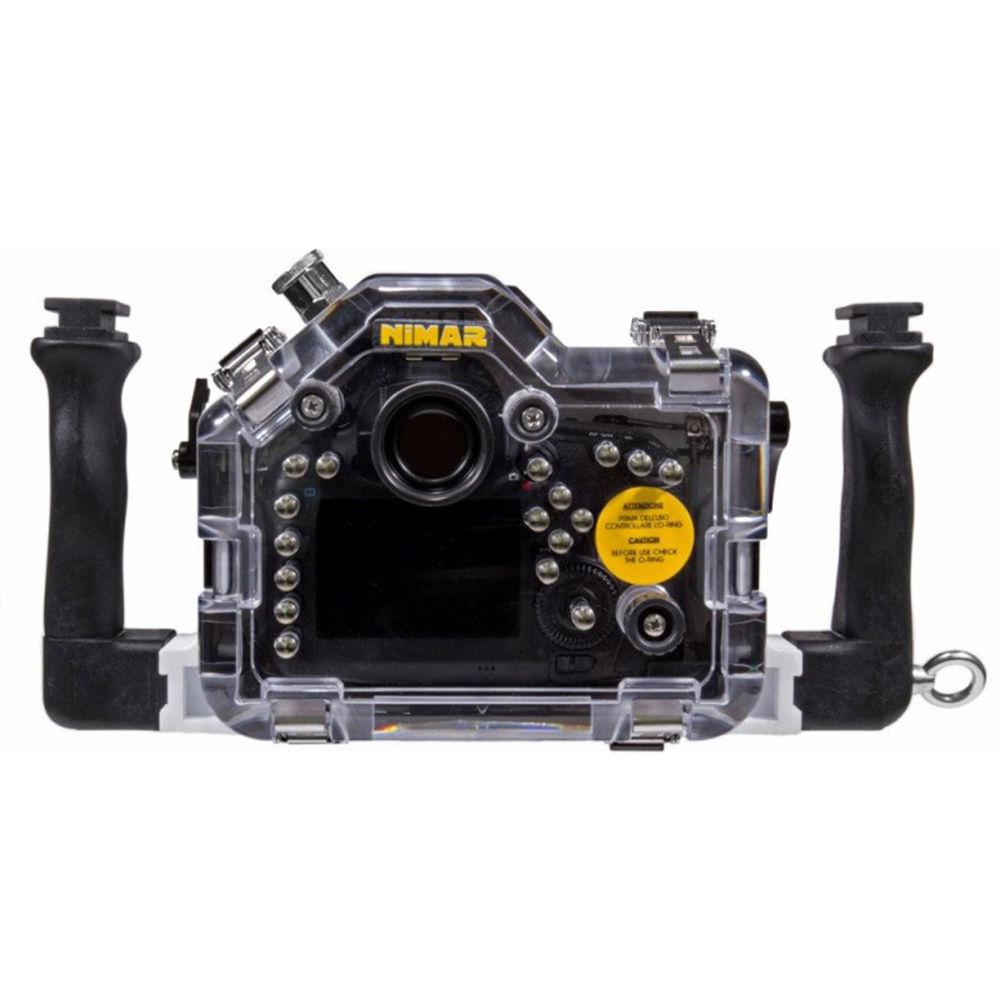

- Clear to allow you to maintain a full view of the camera and O-ring seal
- Stainless steel latches with safety clips ensure that the housing remains shut while submerged
- Controls and Handling
-
- Mechanical push-buttons, dials, and levers afford access to virtually all camera functions: power on/off, shutter, video recording, live view, metering, exposure compensation, flash compensation, aperture, mode dial, main control dial, multi-selector, ISO, menu, white balance, info, OK, playback, quality setting, reduction / magnification in reproduction, help, protect, and delete
- Dual removable, ergonomic grips improve handling and provide attachment points for optional lighting arms
- Removable eyepiece with a magnification of 1.5x helps you compose shots through the camera's viewfinder
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable, bayonet-mount ports for an array of different lenses:- NI320 5" Optical Glass Dome for Nikon AF/AF-S NIKKOR 24mm f/2.8D, 28mm f/2.8D, 35mm f/2D, DX 35mm f/1.8G, 50mm f/1.4 G, and 50mm f/1.8 G
- NI31 Polycarbonate Dome for Nikon AF Fisheye NIKKOR 16mm f/2.8D and DX 10.5mm f/2.8 G ED
- NIMD 4" Glass Dome for Nikon DX AF Fisheye NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI32 Flat Port for Nikon AF/AF-S DC-NIKKOR 105mm f/2D and VR Micro-NIKKOR 105mm f/2.8G IF-E, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI34 Flat Port for Nikon AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- NI35 Flat Port for Nikon AF-S DX NIKKOR 16-85mm f/3.5-5.6G ED VR
- NI35N 5" Optical Glass Dome for Nikon AF-S DX NIKKOR 10-24mm f/3.5-4.5G ED
- NI35N1 Flat Port for Nikon AF-S DX NIKKOR 16-80mm f/2.8-4E ED VR
- NI37N Flat Port for Nikon AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38 Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38A Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38B Flat Port for Nikon AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38N Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38Z Flat Port for Nikon AF-S DX NIKKOR 18-70mm f/3.5-4.5G IF ED
- NI42 Flat Port for Nikon AF-S DX NIKKOR 24-85mm f/3.5-5.6G ED VR
- NI42A Flat Port for Nikon AF-S DX NIKKOR 24-120mm f/3.5-5.6G ED VR
- NI46 5" Optical Glass Dome for Nikon AF-S DX Zoom NIKKOR 12-24mm f/4G IF ED
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105 mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI37C Flat Port for Sigma MACRO 50mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm f/4-5.6 EX DC / HSM
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO HSM
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Nikon DX AF Fisheye-NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm F/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye / NH
- Strobe Connection and Operation
-
- Manual, 5-pin Nikonos bulkhead connector enables the attachment of optional external strobes via sync cords
- Camera's built-in flash can also trigger strobes via cables connected to the housing's dual fiber-optic ports
UPC: 810075022056 In the Box Nimar Underwater Housing for Nikon D5100 2 x Removable Side Grip Handles Tool Kit Camera Mounting Plate Spare Main O-Ring Silicone Grease Rubber Eyepiece Guard Bayonet Port Mount Cover Protective Rubber Tips for Controls Silica Gel Bag Soft Storage Bag Limited 2-Year Warranty Guides & Manuals aedzqaazbyuxxrq Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Nikon D5100 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NID5100 Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Enable access to virtually all camera functions: power on/off, shutter, video recording, live view, metering, exposure compensation, flash compensation, aperture, mode dial, main control dial, multi-selector, ISO, menu, white balance, info, OK, playback, quality setting, reduction / magnification in reproduction, help, protect, and delete | | Material of Construction | Body: Bayer Makrolon polycarbonate
Latches with Safety Clips: Aisi 316 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable ports for various lenses
For complete compatibility details, see list in overview | | Buoyancy | Housing Only: Slightly positive
Complete System: Depends on choice of lens and port | | External Strobe Connector | Manual, 5-pin Nikonos bulkhead for connecting optional strobes via sync cords (cords not included)
2x Fiber-optic ports for attaching strobes via cables (cables not included) | | Mounting | 2x T-mounts on grip handles for lighting arms | | Moisture Alarm | Yes | | Dimensions | With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Handles: 5.3 lb / 2.4 kg | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 11.25 x 11.25 x 8.25" |
