User Manual for Nimar Underwater Housing for Nikon D5200 Click to enlarge the picture
Contents of the user manual for the Nimar Underwater Housing for Nikon D5200
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Underwater Housing for Nikon D5200 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

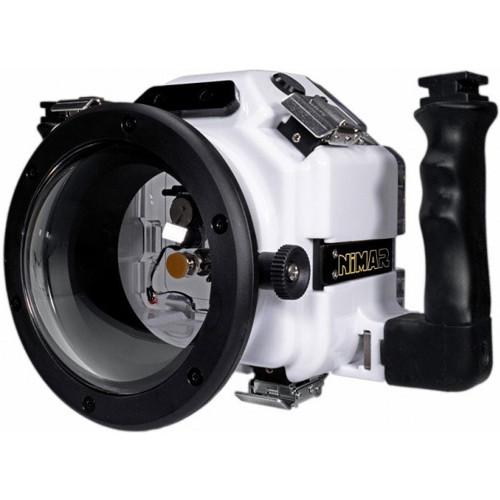

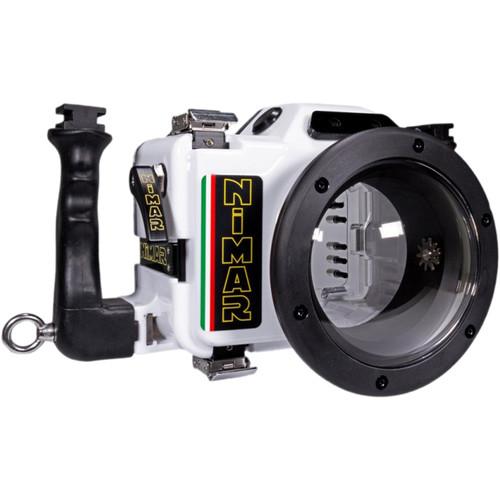

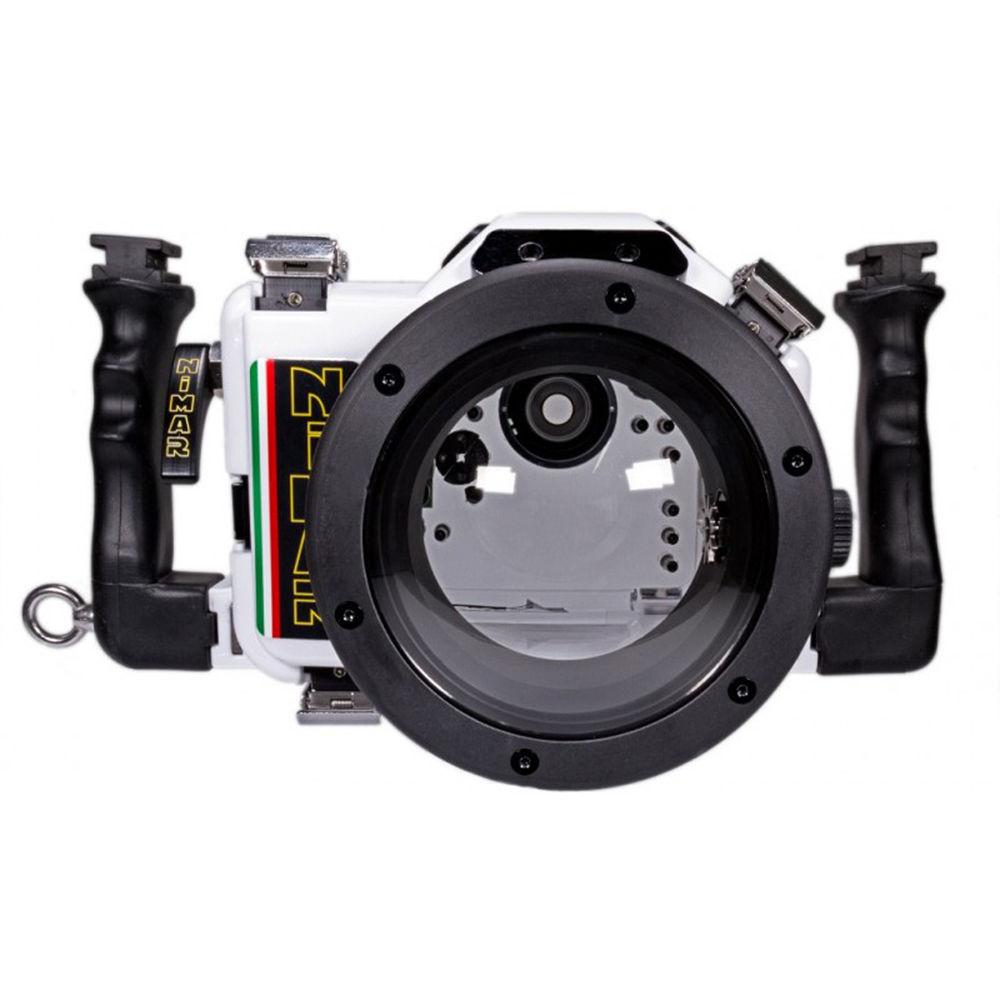

Product description You can capture brilliant photos and video as far as 197' beneath the surface with your Nikon D5200 DSLR camera, thanks to this dedicated Underwater Housing from Nimar. It features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead connector enables the attachment of optional external strobes via sync cords. As an alternative, the camera's built-in flash can trigger strobes via cables connected to the housing's dual fiber-optic ports.
Mechanical push-buttons, dials, and levers provide access to the vast majority of camera functions, including shutter, video recording, live view, exposure compensation, aperture, multi-selector, and mode dial. The housing is also equipped with a removable eyepiece offering 1.5x magnification to help you compose shots through the camera's viewfinder. Removable, ergonomic side grips afford comfort and improved handling, while providing T-mounts for optional lighting arms. The enclosure ships without a required lens port, and accepts various interchangeable ports for different lenses. For full compatibility details, see the list below.

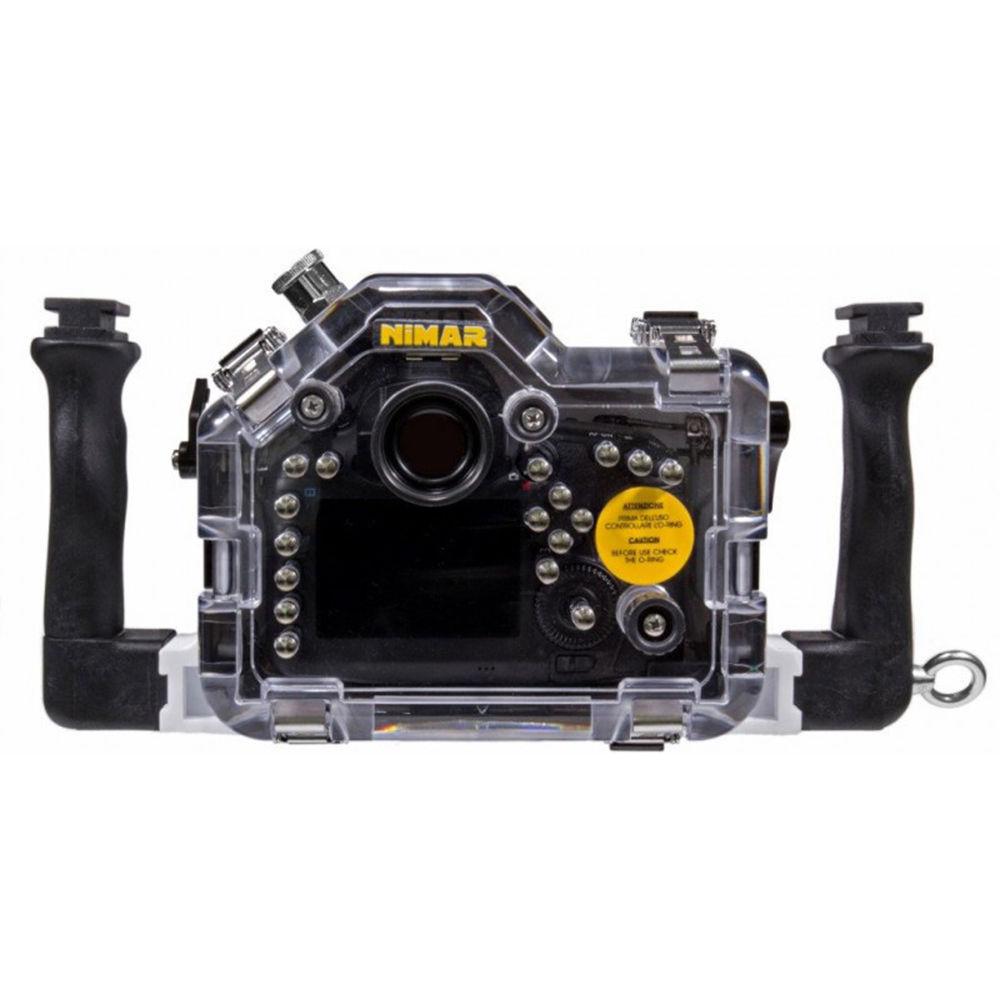

Built for durability, the housing is constructed from corrosion-resistant Bayer Makrolon polycarbonate, which is clear to allow you to monitor the O-ring seal and maintain a full view of the camera. It also features stainless steel latches with safety clips to ensure a secure closure. - Construction Details
-
- Depth rating: 197'

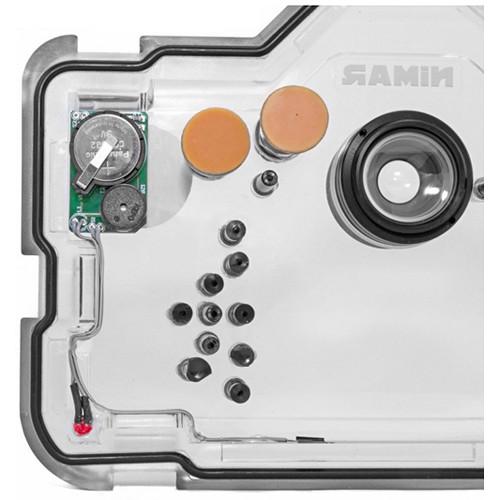

- Moisture alarm alerts you in the unlikely event of any breach in the waterproof seal--giving you time to get to the surface and prevent damage to your camera and lens
- Made from durable, corrosion-resistant Bayer Makrolon polycarbonate
- Clear to allow you to monitor the O-ring seal and maintain a full view of the camera
- Stainless steel latches with safety clips ensure a secure closure
- Controls and Handling
-
- Mechanical push-buttons, dials, and levers afford access to the vast majority of camera functions, including power on/off, shutter, video recording, live view, metering, exposure compensation, flash compensation, aperture, multi-selector, mode dial, main control dial, ISO, playback, menu, white balance, reduction in reproduction, magnification in reproduction, info, quality setting, OK, help, protect, and delete
- Equipped with a removable eyepiece featuring 1.5x magnification to help you compose shots through the camera's viewfinder
- Eyepiece has a rubber hood, which helps block stray light for better visibility
- Dual removable grips afford comfort and improved handling, while providing T-mounts for the attachment of optional strobe and video light arms
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable ports for various lenses:- NI320 5" Optical Glass Dome for Nikon AF/AF-S NIKKOR 24mm f/2.8D, 28mm f/2.8D, 35mm f/2D, DX 35mm f/1.8G, 50mm f/1.4 G, and 50mm f/1.8 G
- NI31 Polycarbonate Dome for Nikon AF Fisheye NIKKOR 16mm f/2.8D and DX 10.5mm f/2.8 G ED
- NIMD 4" Glass Dome for Nikon DX AF Fisheye NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI32 Flat Port for Nikon AF/AF-S DC-NIKKOR 105mm f/2D and VR Micro-NIKKOR 105mm f/2.8G IF-E, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI34 Flat Port for Nikon AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- NI35 Flat Port for Nikon AF-S DX NIKKOR 16-85mm f/3.5-5.6G ED VR
- NI35N 5" Optical Glass Dome for Nikon AF-S DX NIKKOR 10-24mm f/3.5-4.5G ED
- NI35N1 Flat Port for Nikon AF-S DX NIKKOR 16-80mm f/2.8-4E ED VR
- NI37N Flat Port for Nikon AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38 Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38A Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38B Flat Port for Nikon AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38N Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38Z Flat Port for Nikon AF-S DX NIKKOR 18-70mm f/3.5-4.5G IF ED
- NI42 Flat Port for Nikon AF-S DX NIKKOR 24-85mm f/3.5-5.6G ED VR
- NI42A Flat Port for Nikon AF-S DX NIKKOR 24-120mm f/3.5-5.6G ED VR
- NI46 5" Optical Glass Dome for Nikon AF-S DX Zoom NIKKOR 12-24mm f/4G IF ED
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105 mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI37C Flat Port for Sigma MACRO 50mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm f/4-5.6 EX DC / HSM
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO HSM
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Nikon DX AF Fisheye-NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm F/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye / NH
- Strobe Connection and Operation
-
- Manual, 5-pin Nikonos bulkhead connector enables attachment of optional external strobes via sync cords
- Sea & Sea YS-D1 strobe and select flash units from Nikon are compatible
- Nimar offers underwater housings for the Nikon SB-700 and SB-900/SB-910 flashes
- Camera's built-in flash is usable in the housing, and can trigger an external strobe via cables connected to the housing's dual fiber-optic ports
In the Box Nimar Underwater Housing for Nikon D5200 2 x Removable Side Grip Handles Tool Kit Rubber Eyepiece Hood Bayonet Port Mount Cover Set of Protective Rubber Tips for Controls Spare Main O-Ring Seal Silicone Grease Soft Storage Bag Silica Gel Bag Camera Mount Test Certificate Limited 2-Year Warranty Compatibility chart PDF 181.8kbctuwvffsxubzxtya Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Nikon D5200 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NID5200 Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Provides access to vast majority of camera functions, including power on/off, shutter, video recording, live view, metering, exposure compensation, flash compensation, aperture, multi-selector, mode dial, main control dial, ISO, playback, menu, white balance, reduction in reproduction, magnification in reproduction, info, quality setting, OK, help, protect, and delete | | Material of Construction | Housing Body: Bayer Makrolon polycarbonate
Controls and Strobe Bulkhead: Chromed brass
4 Latches with Safety Clips: AISI 316 stainless steel
Grip Handles: ABS plastic | | Lens Port | Ships without required port
Accepts interchangeable bayonet-mount ports for various lenses
For compatibility, see list in overview | | Buoyancy | Housing Only: Slightly positive
Complete System: May vary depending on choice of lens and port | | Internal Flash Usable | Yes, camera's built-in flash | | External Flash Connector | Manual, 5-pin Nikonos bulkhead for connecting strobes via sync cords (not included)
2x Fiber-optic ports for connecting strobes via cables (not included) | | Mounting | 2x T-mounts on grip handles for optional lighting arms | | Dimensions | With Handles and Eyepiece: 6.7 x 13.4 x 5.9" / 17 x 34 x 15 cm | | Weight | With Handles: 5.3 lb / 2.4 kg |
