User Manual for Nimar Underwater Housing for Nikon D5500 or D5600 Click to enlarge the picture
Contents of the user manual for the Nimar Underwater Housing for Nikon D5500
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Underwater Housing for Nikon D5500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

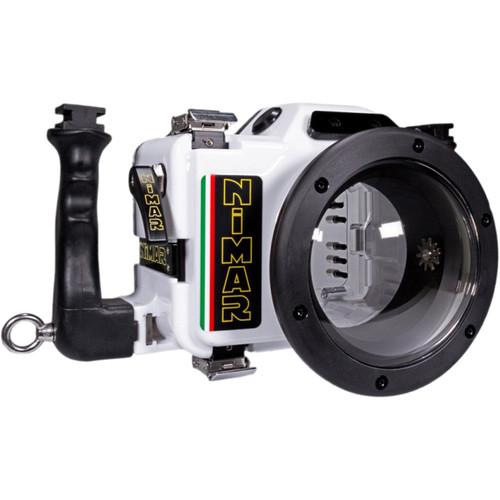

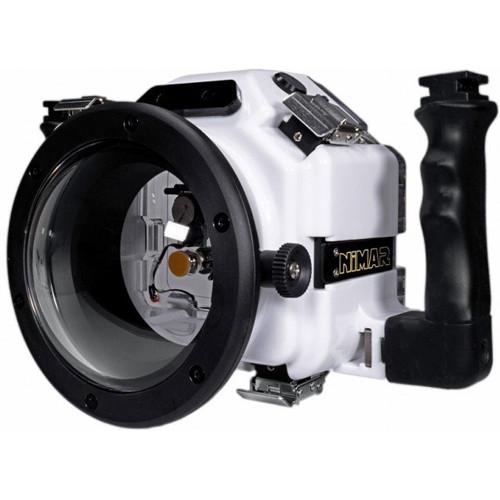

Product description You can capture beautiful images of parrot fish, moray eels, and coral reefs at depths as great as 197', thanks to Nimar's dedicated Underwater Housing for your Nikon D5500 or D5600 DSLR camera. The enclosure features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos connector enables the attachment of optional external strobes via sync cords. As an alternative, dual fiber-optic ports allow strobes to be fired by the camera's built-in flash.
Mechanical controls afford access to virtually all camera functions, while dual ergonomic grips improve handling and provide attachment points for lighting arms. Additionally, a removable eyepiece with 1.5x magnification enhances your view when composing shots through the camera's finder. The housing ships without a required lens port, and accepts interchangeable bayonet-mount ports for various lenses. For complete compatibility details, see the list below.
Built for durability, the housing is made from corrosion-resistant polycarbonate, which is clear to allow you to monitor the camera and O-ring seal. Four stainless steel latches with safety clips ensure a secure closure. - Construction Details
-
- Depth Rating: 197'

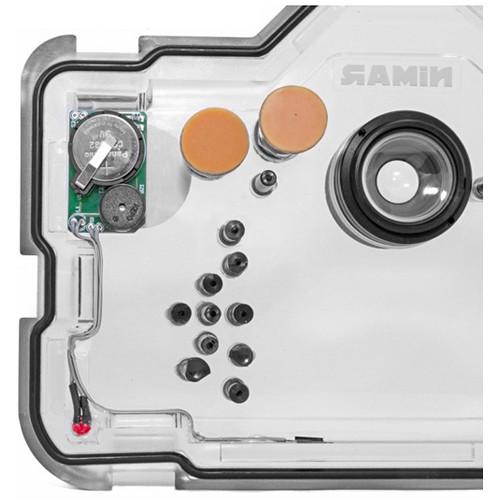

- Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal, so you can get to the surface and prevent damage to your camera and lens
- Made from durable, corrosion-resistant Bayer Makrolon polycarbonate
- Clear to allow you to monitor the camera and the waterproof seal
- Stainless steel latches with safety clips help ensure a secure closure
- Controls and Handling
-

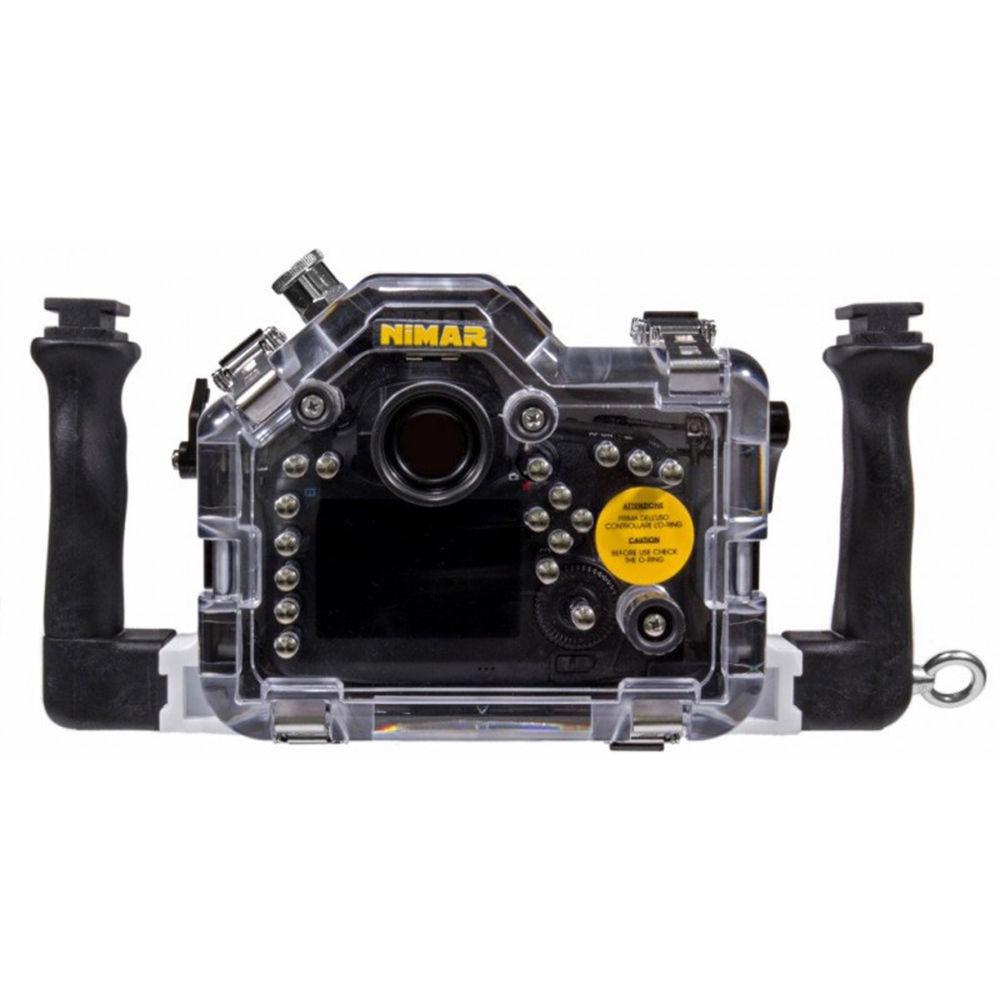

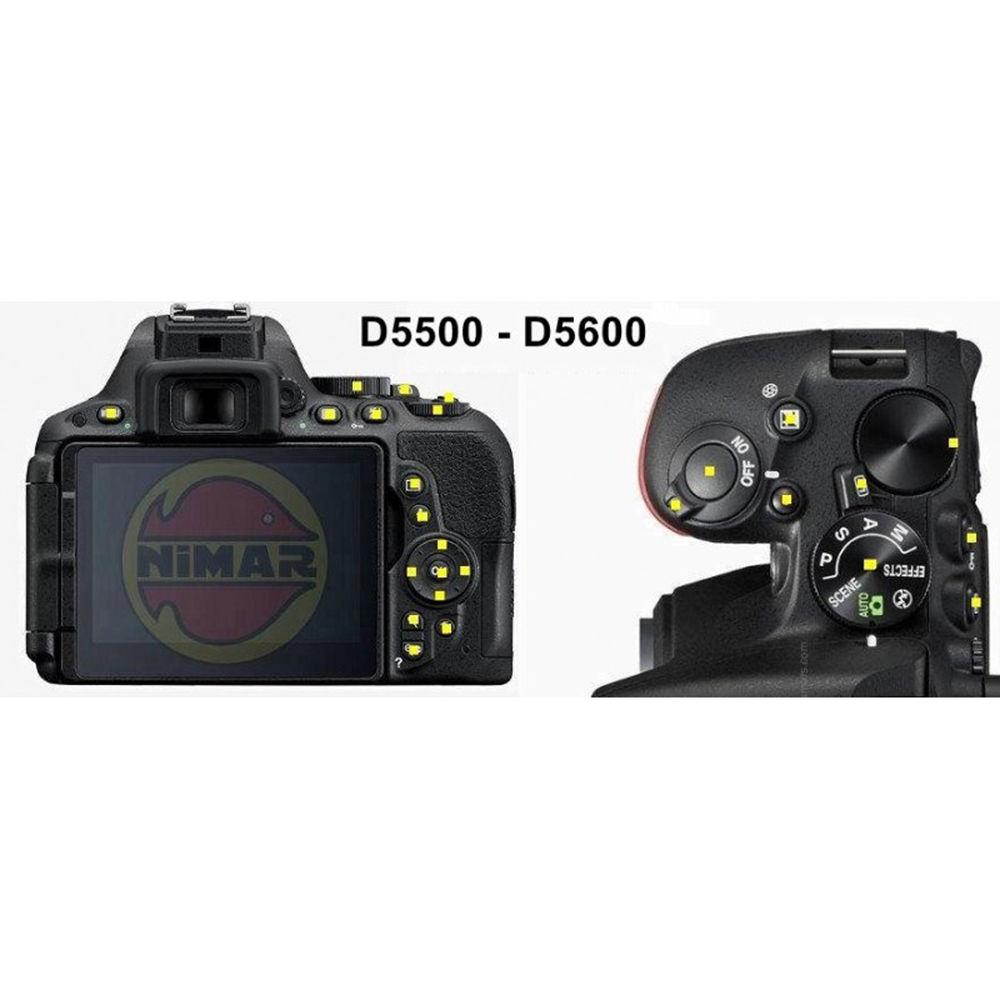

- Mechanical controls, including push-buttons, grooved dials, and a lever, afford access to virtually all camera functions: power on/off, shutter, mode dial, multi-selector, main command dial, video recording, AE-L/AF-L, exposure metering, exposure compensation, aperture, live view, flash compensation, playback, i-button, menu, ISO, reduction in reproduction, magnification in reproduction, quality setting, info, help, protect, OK, and delete
- Equipped with a removable eyepiece with 1.5x magnification to enhance your view when looking through the camera's finder
- Dual ergonomic grips improve balance and handling, while providing T-mounts for optional lighting arms
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable bayonet-mount ports for various lenses:- NI320 5" Optical Glass Dome for Nikon AF/AF-S NIKKOR 24mm f/2.8D, 28mm f/2.8D, 35mm f/2D, DX 35mm f/1.8G, 50mm f/1.4 G, and 50mm f/1.8 G
- NI31 Polycarbonate Dome for Nikon AF Fisheye NIKKOR 16mm f/2.8D and DX 10.5mm f/2.8 G ED
- NIMD 4" Glass Dome for Nikon DX AF Fisheye NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI32 Flat Port for Nikon AF/AF-S DC-NIKKOR 105mm f/2D and VR Micro-NIKKOR 105mm f/2.8G IF-E, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI34 Flat Port for Nikon AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- NI35 Flat Port for Nikon AF-S DX NIKKOR 16-85mm f/3.5-5.6G ED VR
- NI35N 5" Optical Glass Dome for Nikon AF-S DX NIKKOR 10-24mm f/3.5-4.5G ED
- NI35N1 Flat Port for Nikon AF-S DX NIKKOR 16-80mm f/2.8-4E ED VR
- NI37N Flat Port for Nikon AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38 Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38A Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38B Flat Port for Nikon AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38N Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38Z Flat Port for Nikon AF-S DX NIKKOR 18-70mm f/3.5-4.5G IF ED
- NI42 Flat Port for Nikon AF-S DX NIKKOR 24-85mm f/3.5-5.6G ED VR
- NI42A Flat Port for Nikon AF-S DX NIKKOR 24-120mm f/3.5-5.6G ED VR
- NI46 5" Optical Glass Dome for Nikon AF-S DX Zoom NIKKOR 12-24mm f/4G IF ED
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105 mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI37C Flat Port for Sigma MACRO 50mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm f/4-5.6 EX DC / HSM
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO HSM
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Nikon DX AF Fisheye-NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm F/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye / NH
- Strobe Connection and Operation
-
- Manual, 5-pin Nikonos connector enables the attachment of optional external strobes via sync cords

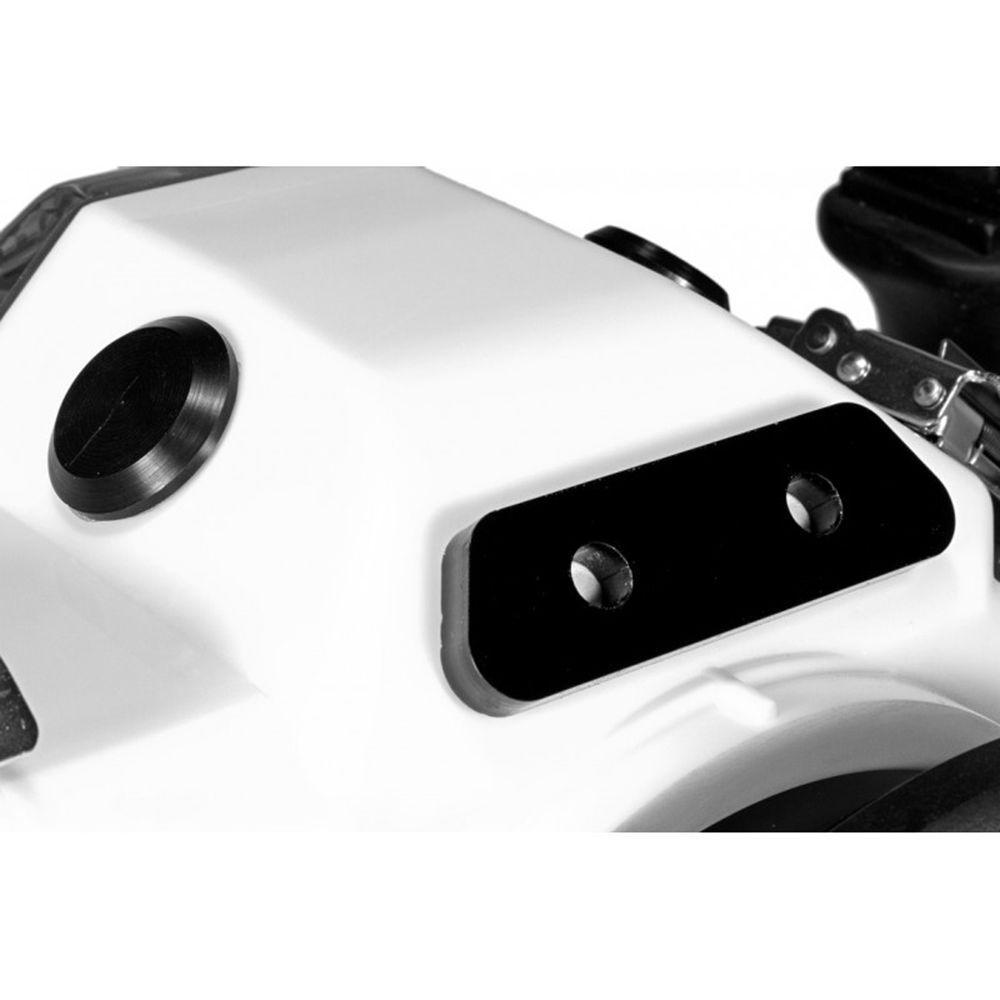

- As an alternative, dual fiber-optic ports allow strobes to be fired by the camera's built-in flash
In the Box Nimar Underwater Housing for Nikon D5500 or D5600 2 x Removable Side Handles Spare Main O-Ring Silicone Grease Rubber Eyepiece Guard Port Mount Cover Soft Storage Bag Protective Rubber Tips for Controls Tool Kit Camera Mounting Plate Silica Gel Bag Limited 2-Year Warranty Compatibility chart PDF 181.8kbfwyzbvttswucesztbeutrwzs Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Nikon D5500 or D5600 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NID5500 Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and a lever | | Controls | Provide access to virtually all camera functions: power on/off, shutter, mode dial, multi-selector, main command dial, video recording, AE-L/AF-L, exposure metering, exposure compensation, aperture, live view, flash compensation, playback, i-button, menu, ISO, reduction in reproduction, magnification in reproduction, quality setting, info, help, protect, OK, and delete | | Material of Construction | Housing: Bayer Makrolon polycarbonate
Controls: Chromed brass
Latches with Safety Clips: Aisi 316 stainless steel
Grip Handles: ABS plastic with Aisi 316 stainless steel eyelet | | Lens Port | Ships without required lens port
Accepts interchangeable bayonet-mount ports for various lenses
For full compatibility, see list in overview | | Buoyancy | Housing Only: Slightly positive
Complete System: May vary based on choice of lens and port | | Internal Flash Usable | Yes, camera's built-in flash | | External Flash Connector | Manual, 5-pin Nikonos bulkhead for connecting strobes via sync cords (not included)
2x Fiber-optic ports for connecting strobes via cables (not included) | | Viewfinder | Removable eyepiece with 1.5x magnification | | Moisture Alarm | Yes | | Mounting | 2x T-mounts for lighting arms on grip handles | | Dimensions | With Grip Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Grip Handles: 5.3 lb / 2.4 kg |
