User Manual for Nimar Underwater Housing for Nikon D7500 Click to enlarge the picture
Contents of the user manual for the Nimar Underwater Housing for Nikon D7500
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Underwater Housing for Nikon D7500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

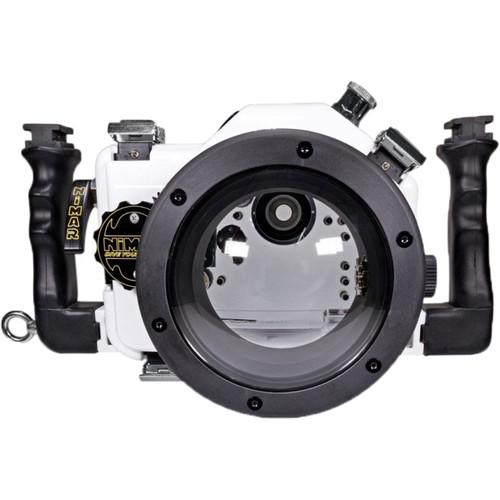

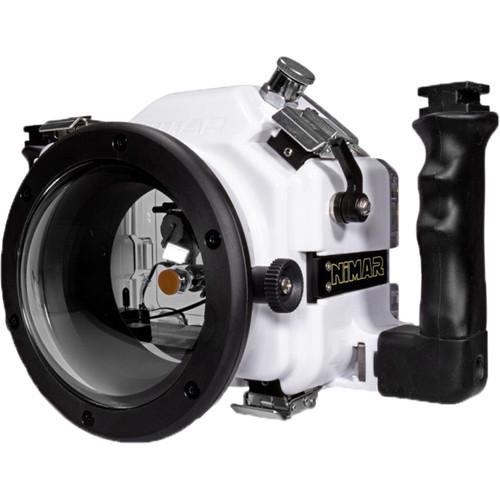

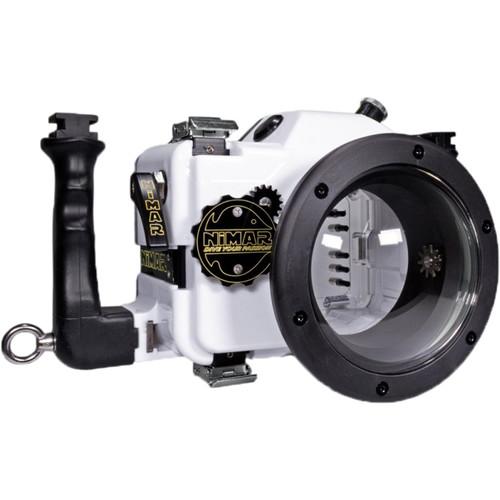

Product description With your Nikon D7500 DSLR camera inside Nimar's dedicated Underwater Housing, you can capture brilliant images of coral, parrot fish, and barracudas at depths as great as 197'. The enclosure features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead enables the connection of optional external strobes via sync cords.
Mechanical controls afford access to virtually all camera functions, while dual ergonomic grips improve handling and provide attachment points for optional lighting arms. A removable eyepiece with 1.5x magnification helps you compose shots through the camera's viewfinder. The housing ships without a required lens port, and accepts interchangeable ports for a broad array of different lenses. For complete compatibility details, see the list below.

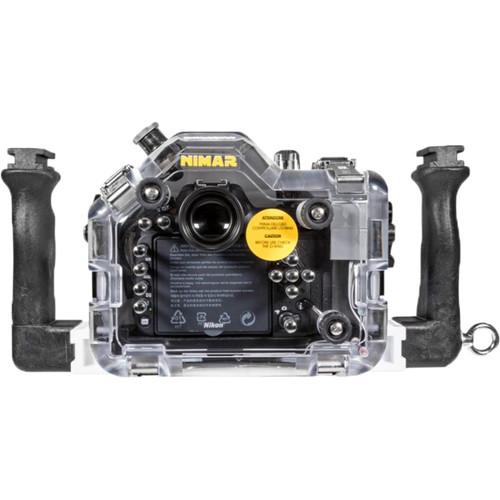

Built for durability, the housing is constructed from corrosion-resistant Bayer Makrolon polycarbonate, which is white on the front, sides, and top, but clear in the back to allow you to monitor the O-ring seal and camera. Stainless-steel latches with safety clips ensure that the enclosure stays shut during your dive. - Construction Details
-
- Depth rating: 197'
- Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal, so you can get to the surface before your camera and lens sustain any damage
- Made from corrosion-resistant Bayer Makrolon polycarbonate, which is white on the front, top, and sides, but clear in the back to allow you to monitor the O-ring seal and camera
- Stainless-steel latches with safety clips ensure that the housing remains shut while submerged
- Controls and Handling
-
- Mechanical push-buttons, dials, and levers afford access to virtually all camera functions: power on/off, shutter, video recording, live view, metering, exposure compensation, aperture, flash compensation, ISO, white balance, mode dial, multi-selector, main control dial, OK, menu, playback, reduction / magnification in reproduction, quality setting, info, help, protect, and delete
- Dual removable, ergonomic grips improve handling and provide T-mounts for optional lighting arms
- Removable eyepiece with 1.5x magnification helps you compose shots through the camera's viewfinder
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable, bayonet-mount ports for an array of different lenses:- NI320 5" Optical Glass Dome for Nikon AF/AF-S NIKKOR 24mm f/2.8D, 28mm f/2.8D, 35mm f/2D, DX 35mm f/1.8G, 50mm f/1.4 G, and 50mm f/1.8 G
- NI31 Polycarbonate Dome for Nikon AF Fisheye NIKKOR 16mm f/2.8D and DX 10.5mm f/2.8 G ED
- NIMD 4" Glass Dome for Nikon DX AF Fisheye NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI32 Flat Port for Nikon AF/AF-S DC-NIKKOR 105mm f/2D and VR Micro-NIKKOR 105mm f/2.8G IF-E, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI34 Flat Port for Nikon AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- NI35 Flat Port for Nikon AF-S DX NIKKOR 16-85mm f/3.5-5.6G ED VR
- NI35N 5" Optical Glass Dome for Nikon AF-S DX NIKKOR 10-24mm f/3.5-4.5G ED
- NI35N1 Flat Port for Nikon AF-S DX NIKKOR 16-80mm f/2.8-4E ED VR
- NI37N Flat Port for Nikon AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38 Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38A Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38B Flat Port for Nikon AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38N Flat Port for Nikon AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR II and AF/AF-S MICRO-NIKKOR 60mm f/2.8 D and 60mm f/2.8G ED
- NI38Z Flat Port for Nikon AF-S DX NIKKOR 18-70mm f/3.5-4.5G IF ED
- NI42 Flat Port for Nikon AF-S DX NIKKOR 24-85mm f/3.5-5.6G ED VR
- NI42A Flat Port for Nikon AF-S DX NIKKOR 24-120mm f/3.5-5.6G ED VR
- NI46 5" Optical Glass Dome for Nikon AF-S DX Zoom NIKKOR 12-24mm f/4G IF ED
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105 mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI37C Flat Port for Sigma MACRO 50mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm f/4-5.6 EX DC / HSM
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO HSM
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI32 Flat Port for Nikon AF DC-NIKKOR 105mm f/2D and AF-S VR Micro-NIKKOR 105mm f/2.8G IF-ED, as well as Sigma 105mm f/2.8 Macro DG OS HSM and Tamron SP 90mm f/2.8 Di VC USD
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Nikon DX AF Fisheye-NIKKOR 10.5mm f/2.8G ED and Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm F/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye / NH
- Strobe Connection and Operation
-
- Manual, 5-pin Nikonos bulkhead enables the connection of optional external strobes via sync cords
UPC: 810075022797 In the Box Nimar Underwater Housing for Nikon D7500 (White) 2 x Removable Side Grip Handles Tool Kit Rubber Eyepiece Guard Protective Rubber Tips for Controls Spare Main O-Ring Silicone Grease Mounting Plate for Camera Silica Gel Bag Limited 2-Year Warranty Port chart PDF 160.9kbwzydyvxyrqwcwc Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Nikon D7500 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NID7500 Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Enable access to virtually all camera functions | | Material of Construction | Body: Bayer Makrolon polycarbonate
Grip Handles: ABS plastic with AISI 316 stainless-steel eyelet
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable, bayonet-mount ports for various lenses
For complete compatibility details, see list in overview section | | Buoyancy | Housing Only: Slightly positive
Complete System: Depends on choice of lens and port | | External Flash Connector | Manual, 5-pin Nikonos bulkhead for connecting optional strobes via sync cords | | Mounting | 2x T-mounts on grip handles for lighting arms | | Moisture Alarm | Yes | | Dimensions | 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | 5.3 lb / 2.4 kg | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 13.0 x 12.0 x 11.0" |
