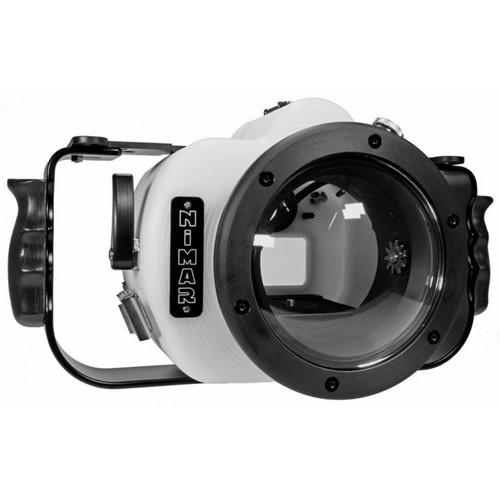

Product description With your Olympus OM-D E-M1 Mark II Mirrorless MFT Camera in this white Nimar Underwater Housing, you can capture images of coral, blue hippo tang fish, and whale sharks at depths as great as 328'. The enclosure features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead enables the connection of optional external strobes via sync cords. Additionally, dual fiber-optic ports allow for strobe connection via cables and the required Nimar trigger.
Mechanical controls afford access to all camera functions, while a bracket with dual ergonomic grips improves handling and provides attachment points for optional lighting arms. A removable eyepiece helps you compose shots through the camera's viewfinder. The housing ships without a required lens port, and accepts interchangeable ports for several lenses. For complete compatibility details, see the list below.
Built for durability, the housing is constructed from corrosion-resistant Delrin acetal resin. Stainless-steel latches with safety clips ensure that the enclosure stays shut during your dive. - Construction Details
-
- Depth rating: 328'
- Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal
- Made from durable, corrosion-resistant Delrin acetal resin

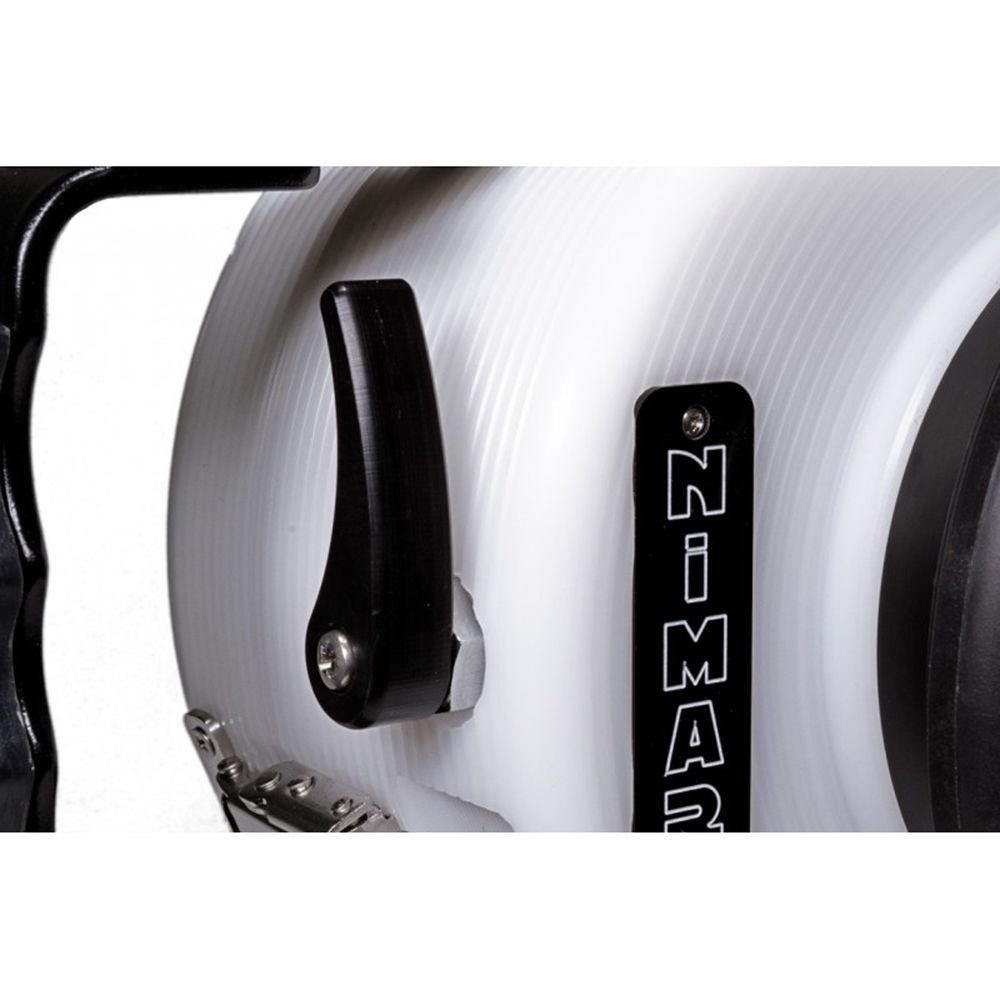

- Three stainless-steel latches with safety clips ensure that the enclosure stays shut during your dive
- Controls and Handling
-

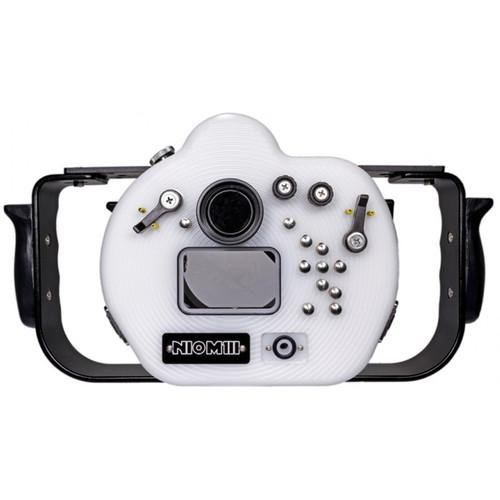

- Mechanical push-buttons, dials, and levers afford access to all camera functions

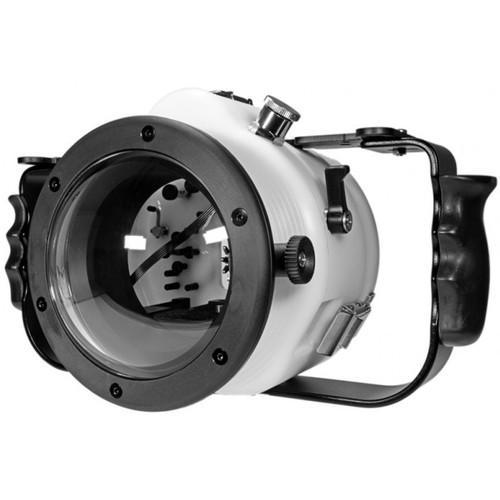

- Aluminum bracket with dual ergonomic grips improves handling and provides attachment points for optional lighting arms
- Removable eyepiece with 1.5x magnification helps you compose shots through the camera's viewfinder
- Lens Ports
-

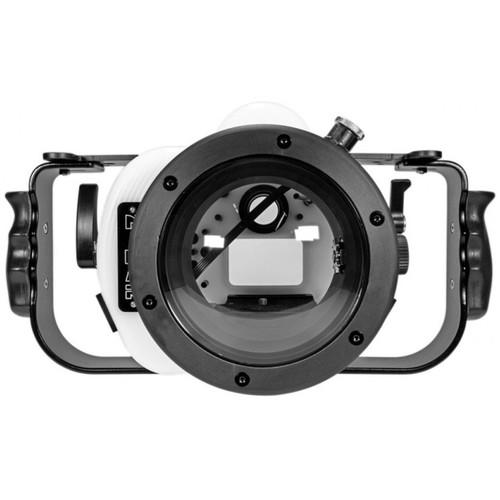

Ships without a required lens port, and accepts interchangeable, bayonet-mount ports for several lenses:- NI35O 5" Glass Dome for Olympus M.Zuiko Digital ED 12-40mm f/2.8 PRO
- NI34OL 5" Glass Dome for Olympus M.Zuiko Digital ED 9-18mm f/4-5.6
- NI37P Flat Port for Panasonic Lumix G 25mm f/1.7 ASPH, Lumix G Macro 30mm f/2.8 ASPH OIS, Leica DG Summilux 25mm f/1.4 ASPH, and Leica DG MACRO-ELMARIT 45mm f/2.8 ASPH, as well as Olympus M.Zuiko Digital 25mm f/1.8 and Digital ED 30mm f/3.5 Macro
Compatible with METAEXT Extension Ring for Metabones T Speed Booster XL 0.64x Adapter - Strobe Connection and Operation
-
- Manual, 5-pin Nikonos bulkhead enables the connection of optional external strobes via sync cords

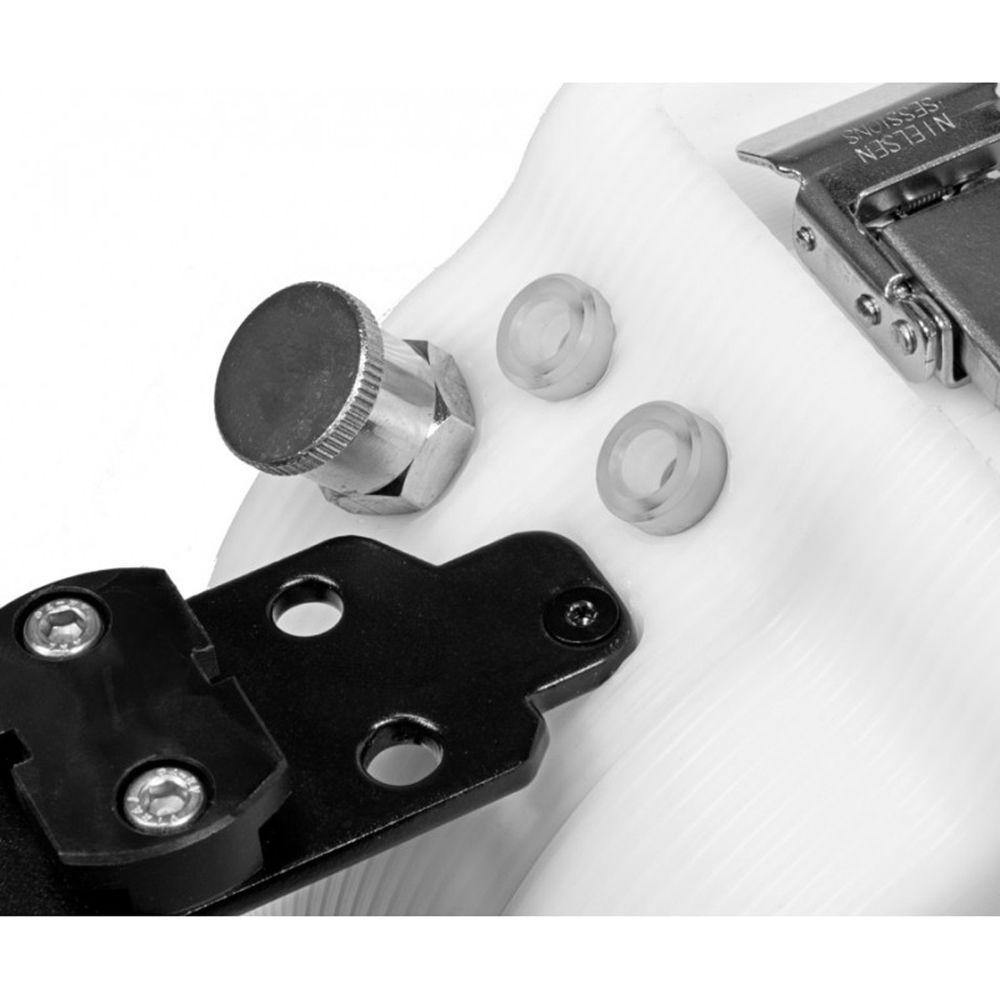

- Dual fiber-optic ports allow for strobe connection via cables, which transfer a light signal to the external flash units to facilitate triggering
- As the camera does not have a built-in flash, the use of fiber-optic cables requires the purchase of a special trigger from Nimar
In the Box Nimar Underwater Housing for Olympus OM-D E-M1 Mark II Bracket with Side Grip Handles Mounting Screws Mounting Plate for Camera Bayonet Port Mount Cover Spare Main O-Ring Silicone Grease Soft Storage Bag Silica Gel Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Olympus OM-D E-M1 Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NIOM1II Specs | Depth Rating | 328' / 100 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Enable access to all camera functions | | Material of Construction | Body: Delrin acetal resin
Bracket with Grips: Aluminum
Latches with Safety Clips: Aisi 316 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable, bayonet-mount ports for several lenses
For complete details, see list in overview section | | Buoyancy | Slightly negative | | External Flash Connector | Manual, 5-pin Nikonos bulkhead for connecting optional strobes via required sync cords
2x Fiber-optic ports for connecting external strobes via required cables and trigger | | Mounting | 2x T-mounts on grip handles for lighting arms | | Moisture Alarm | Yes | | Dimensions | With Bracket: 13.8 x 7.1 x 5.5" / 35 x 18 x 14 cm | | Weight | With Bracket: 6.4 lb / 2.9 kg |
