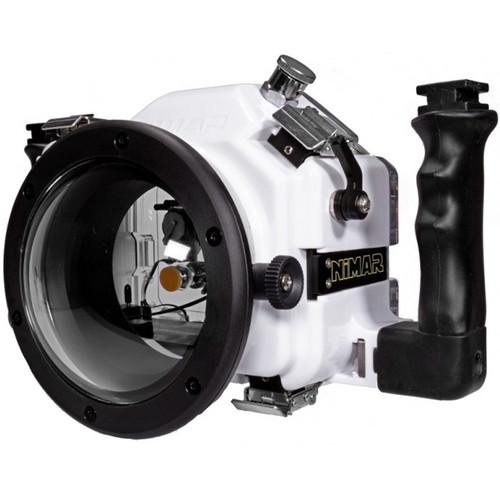

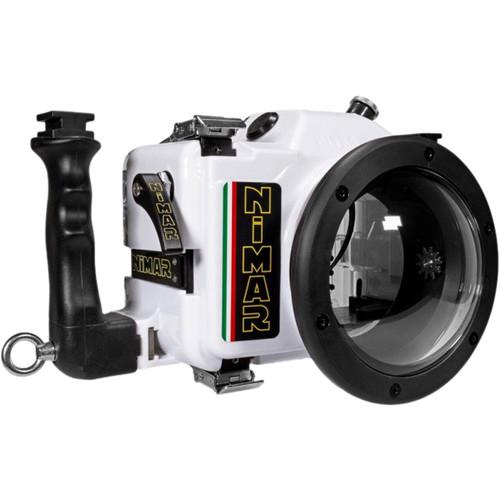

Product description - Underwater Housing for Panasonic DC-GH5

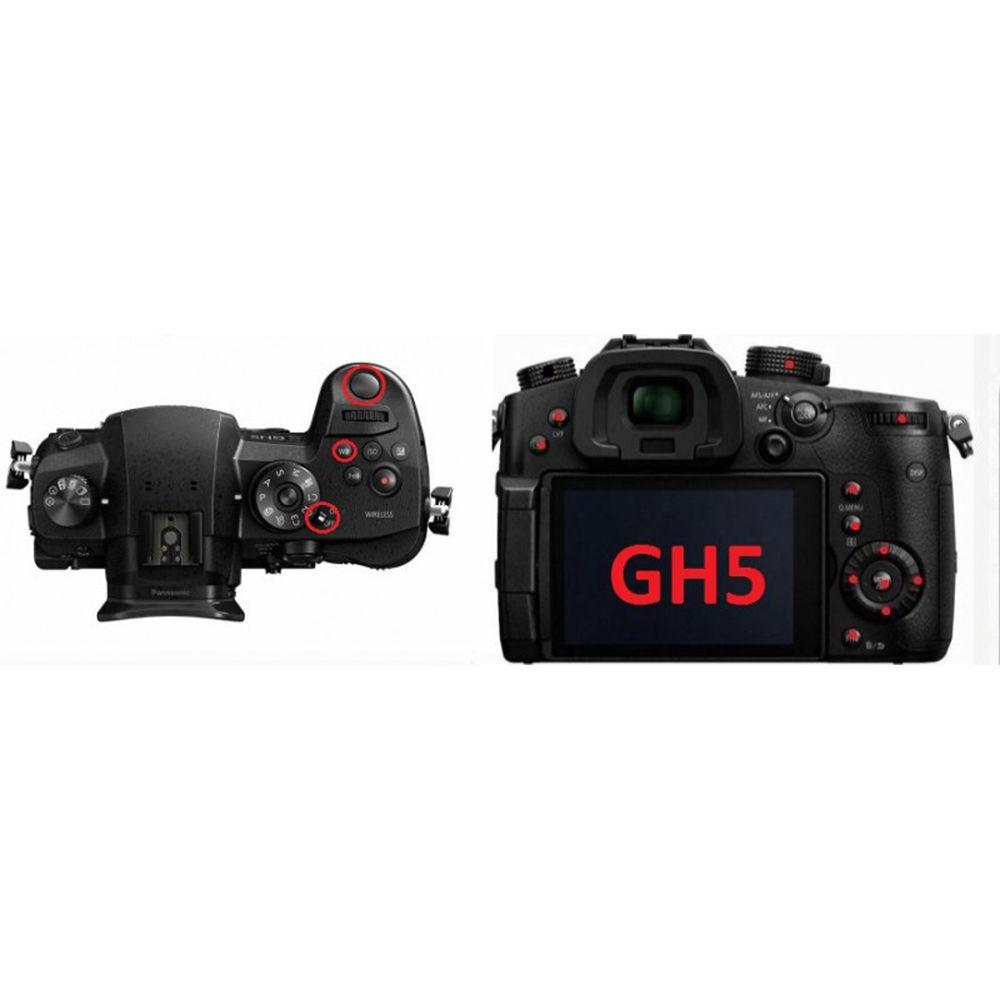

Capture beautiful photos and videos as far as 197' beneath the surface with your Panasonic Lumix DC-GH5/GH5S Mirrorless Micro Four Thirds Digital Camera, thanks to this dedicated Nimar Underwater Housing. It features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead connector enables the attachment of optional, external strobes via sync cords.
Mechanical controls, including push-buttons, dials, and a lever, give you access to most camera functions, and an eyepiece with 1.5x magnification offers an enhanced view through the camera's finder. The ergonomic side grips improve balance and handling underwater, while providing T-mounts for optional lighting arms. The enclosure ships without a required lens port, and features a bayonet mount that accepts interchangeable flat and dome ports for various lenses. For complete compatibility details, see the list below.
Built for durability, the housing is constructed from shock- and corrosion-resistant Bayer Makrolon polycarbonate, which is clear to allow you to monitor the O-ring seal and the camera. It also features stainless steel latches with safety clips to ensure a secure closure. - Construction Details
-
- Depth rating: 197'

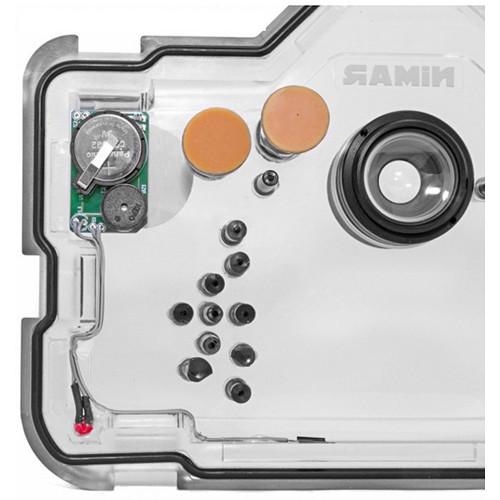

- Moisture alarm alerts you immediately in the unlikely event of a breach in the waterproof seal--giving you time to get to the surface and prevent damage to your camera and lens
- Made from durable, shock- and corrosion-resistant Bayer Makrolon polycarbonate
- Clear to enable you to monitor the O-ring seal and camera
- 4 AISI 316 stainless steel latches with safety clips ensure a secure closure
- Controls and Handling
-

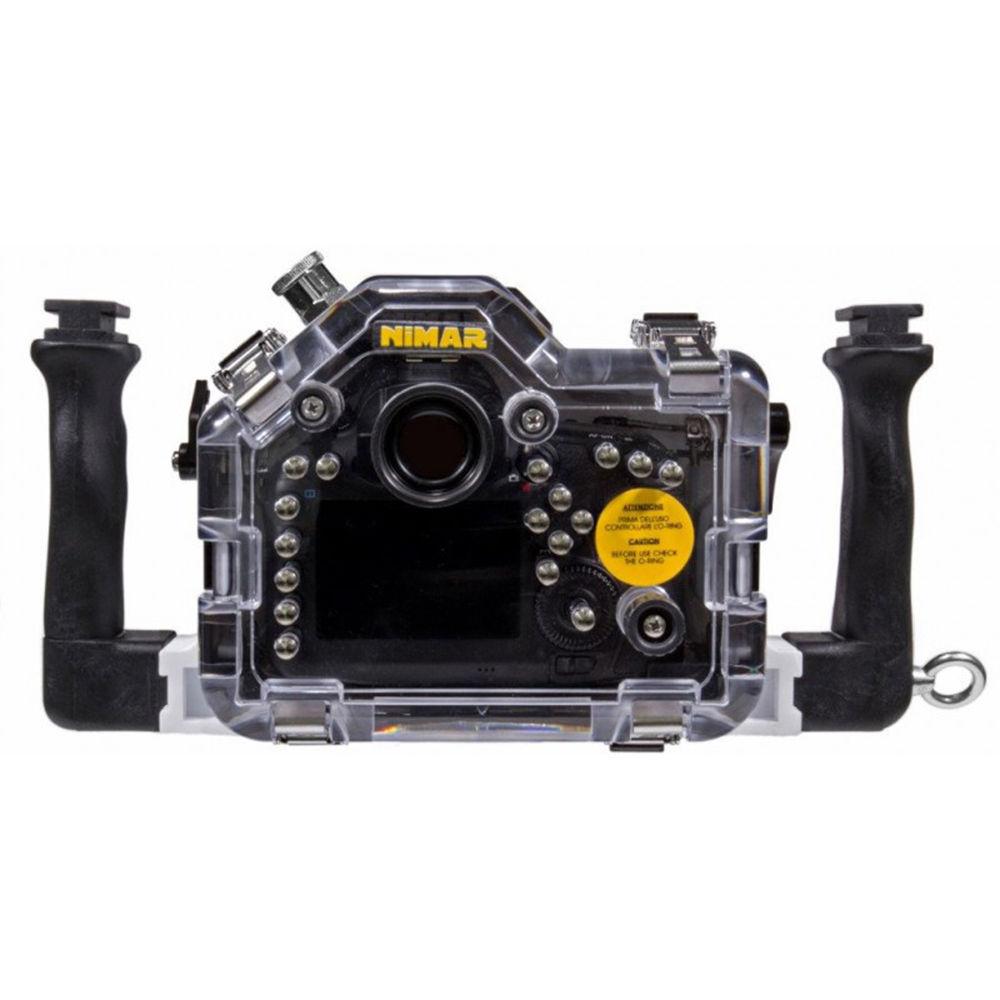

- Mechanical controls, including push-buttons, dials, and a lever, provide access to most camera functions: power on/off, shutter, rear dial, mode dial, control dial, white balance, LCD monitor/viewfinder switch, Fn5, playback, Q menu, menu/set, autofocus mode, Fn3, joystick, function button, Fn4, and delete
- Eyepiece with 1.5x magnification offers an enhanced view through the camera's finder
- Dual removable, ergonomic side grips improve balance and handling underwater, while providing T-mounts for optional lighting arms
- Housing body's buoyancy is slightly positive; the complete system's buoyancy may vary depending on your choice of lens and port
- Lens Port System
-

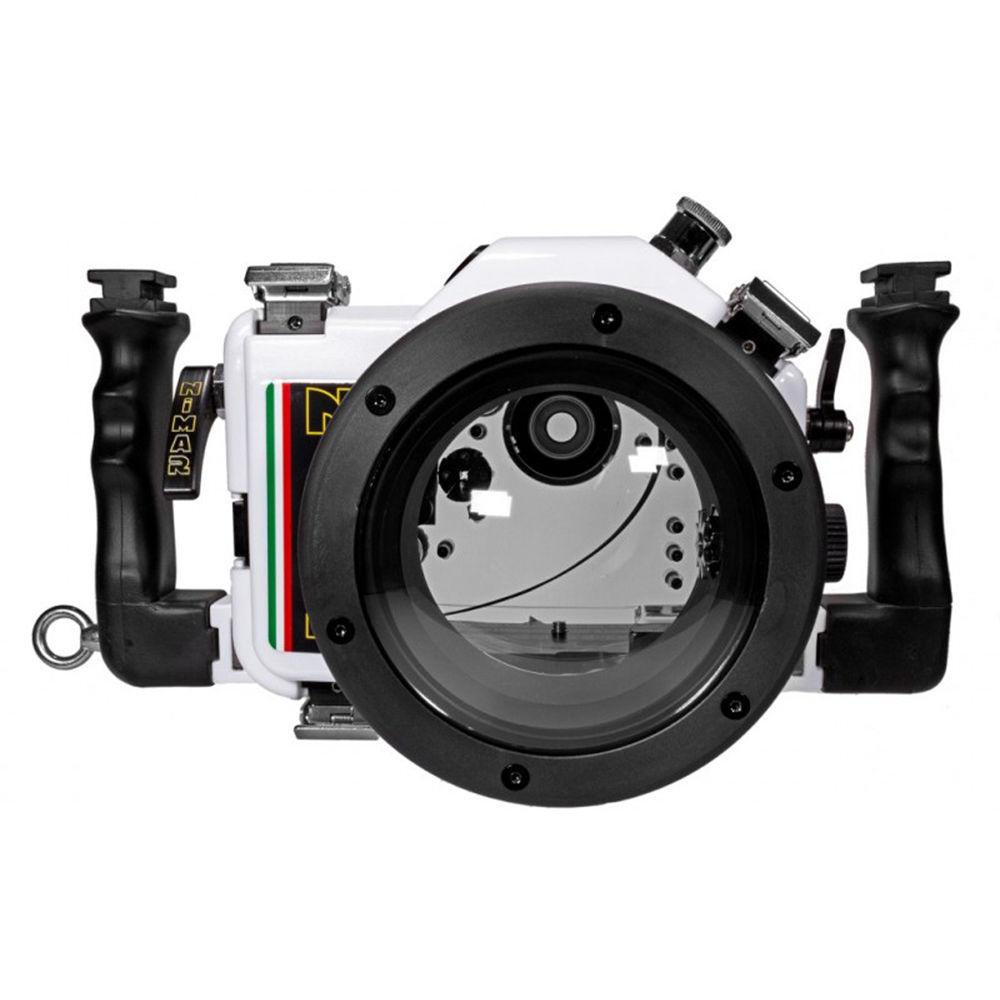

Ships without a required lens port, and accepts interchangeable, bayonet-mount flat and dome ports for various lenses:- NI37C Flat Port for Panasonic Leica DG MACRO-ELMARIT 45mm f/2.8 ASPH
- NI35P 5" Optical Glass Dome for Panasonic Lumix GX 12-35mm f/2.8 / II OIS
- NI46P 5" Optical Glass Dome for Panasonic Lumix G Vario 7-14mm f/4 ASPH
- NI47P Flat Port for Panasonic Lumix G Vario 12-60mm f/3.5-5.6 ASPH
- NI47P1 Flat port for Panasonic Lumix G Vario 12-60mm f/2.8-4 ASPH
METAEXT Extension ring for Metabones T Speed Booster XL 0.64x adapter is also available - Strobe Connection and Operation
-

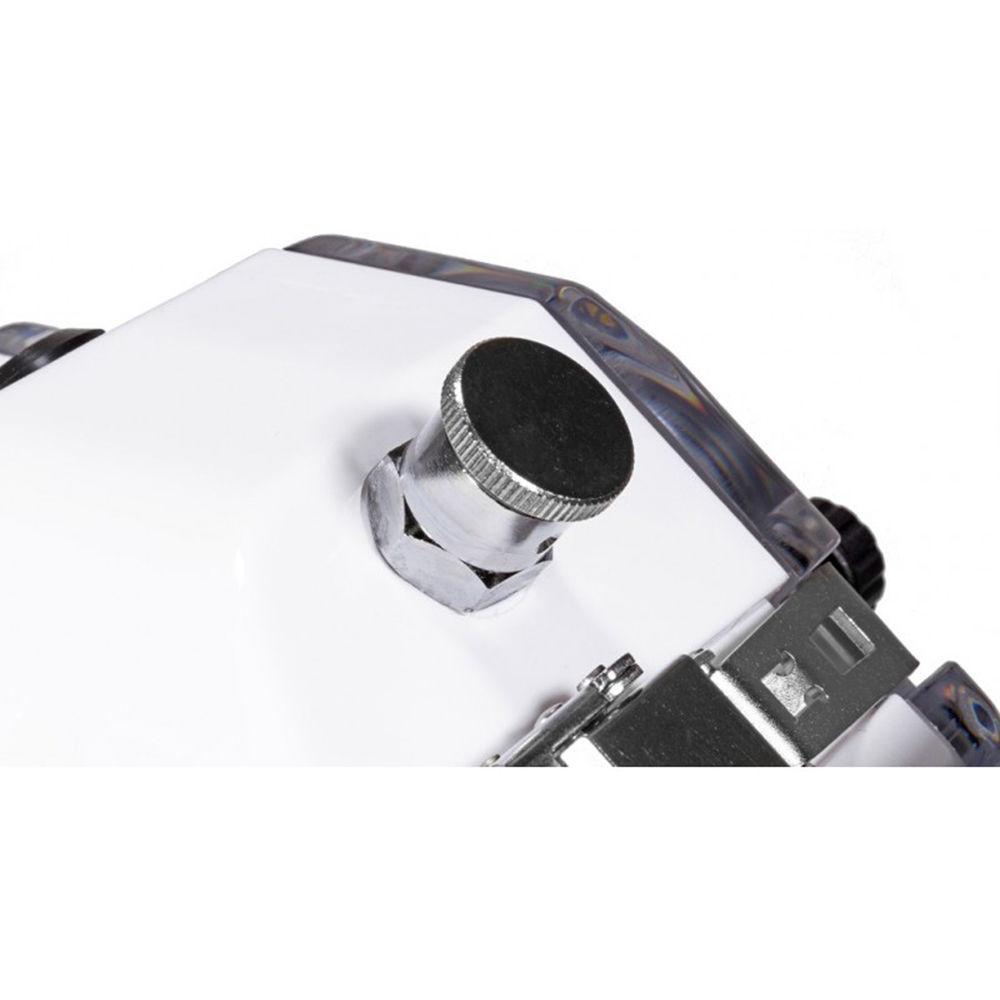

- Manual, 5-pin Nikonos bulkhead connector enables the attachment of optional, external strobes via sync cords
UPC: 810075021646 In the Box Nimar Underwater Housing for Panasonic Lumix DC-GH5/GH5S 2 x Removable Grip Handles Spare Main O-Ring Rubber Eyepiece Guard Protective Cover for Bayonet Port Mount Soft Storage Bag Protective Rubber Tips for Controls Tool Kit Silicone Grease Camera Mounting Plate Silica Gel Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Panasonic Lumix DC-GH5 GH5S in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NIGH5 Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and a lever | | Controls | Provide access to most camera functions: power on/off, shutter, rear dial, mode dial, control dial, white balance, LCD monitor/viewfinder switch, Fn5, playback, Q menu, menu/set, autofocus mode, Fn3, joystick, function button, Fn4, and delete | | Material of Construction | Body: Bayer Makrolon polycarbonate (0.4" / 10 mm thickness)
Latches: AISI 316 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable, bayonet-mount flat and dome ports for various lenses
See list in overview | | Buoyancy | Housing Body: Slightly positive
Complete System: May vary depending on choice of lens and port | | External Flash Connector | Manual, 5-pin Nikonos bulkhead for connecting external strobes via sync cords (not included) | | Mounting | 2x T-mounts on grip handles for lighting arms | | Moisture Alarm | Yes | | Dimensions | With Grips & Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Grips: 5.3 lb / 2.4 kg | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 11.4 x 11.2 x 8.3" |
