User Manual for Nimar Underwater Housing for Sony Alpha a7II, a7R II, or a7S II Click to enlarge the picture
Contents of the user manual for the Nimar Underwater Housing for Sony Alpha
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Underwater Housing for Sony Alpha contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|
Product description - Underwater Housing for Sony a7II - a7RII - a7SII (White)

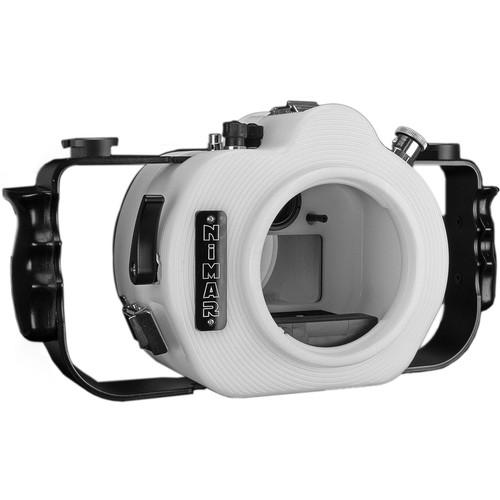

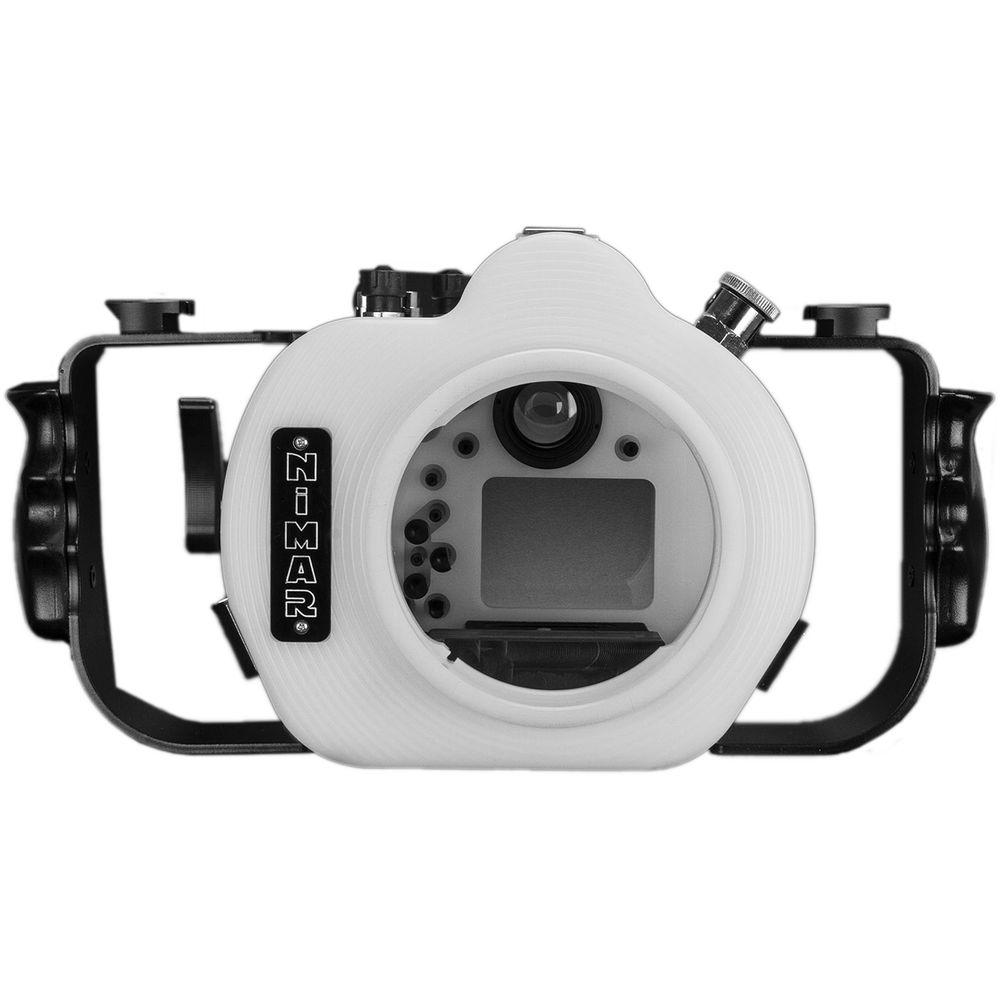

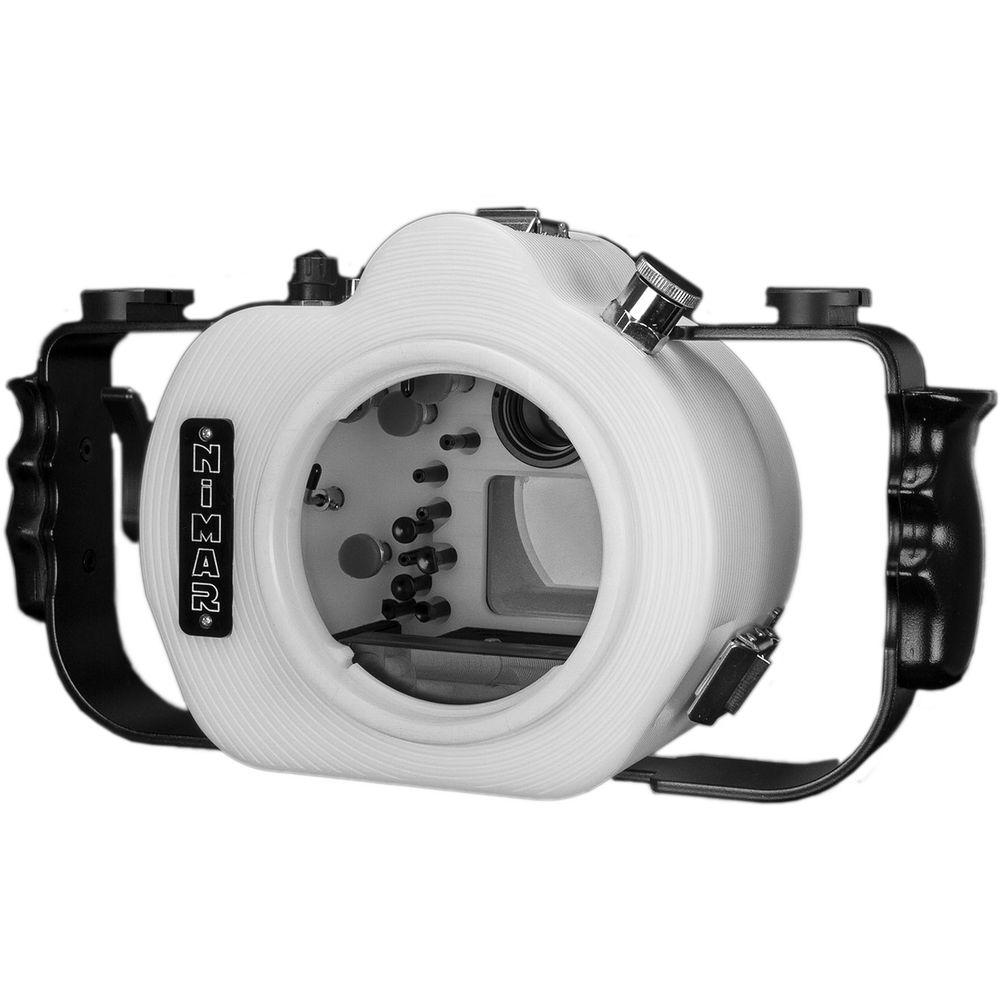

Capture brilliant images beneath the surface with your Sony Alpha a7II, a7R II, or a7S II Camera in Nimar's dedicated white Underwater Housing. The enclosure features a moisture alarm that alerts you right away in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead enables the connection of optional external strobes via sync cords. Mechanical controls give you access to all camera functions, and an eyepiece with 1.5x magnification offers an enhanced view through the camera's viewfinder. The ergonomic side grips improve balance and handling underwater, while providing T-mounts for optional lighting arms.
Built for durability, the housing is constructed from corrosion-resistant Delrin acetyl resin. A clear window at the rear enables you to view the camera's monitor, so you can use it for shot composition and image playback. Nimar's NIA7II enclosure ships without a required lens port, and accepts interchangeable, bayonet-mount flat and dome ports for various lenses. For complete compatibility details, please see the list below. - Construction Details
-
- Depth rating: 328'
- Moisture alarm alerts you immediately in the unlikely event of a breach in the waterproof seal
- Body is made from corrosion-resistant Delrin acetyl resin
- Grip handles are made from aluminum

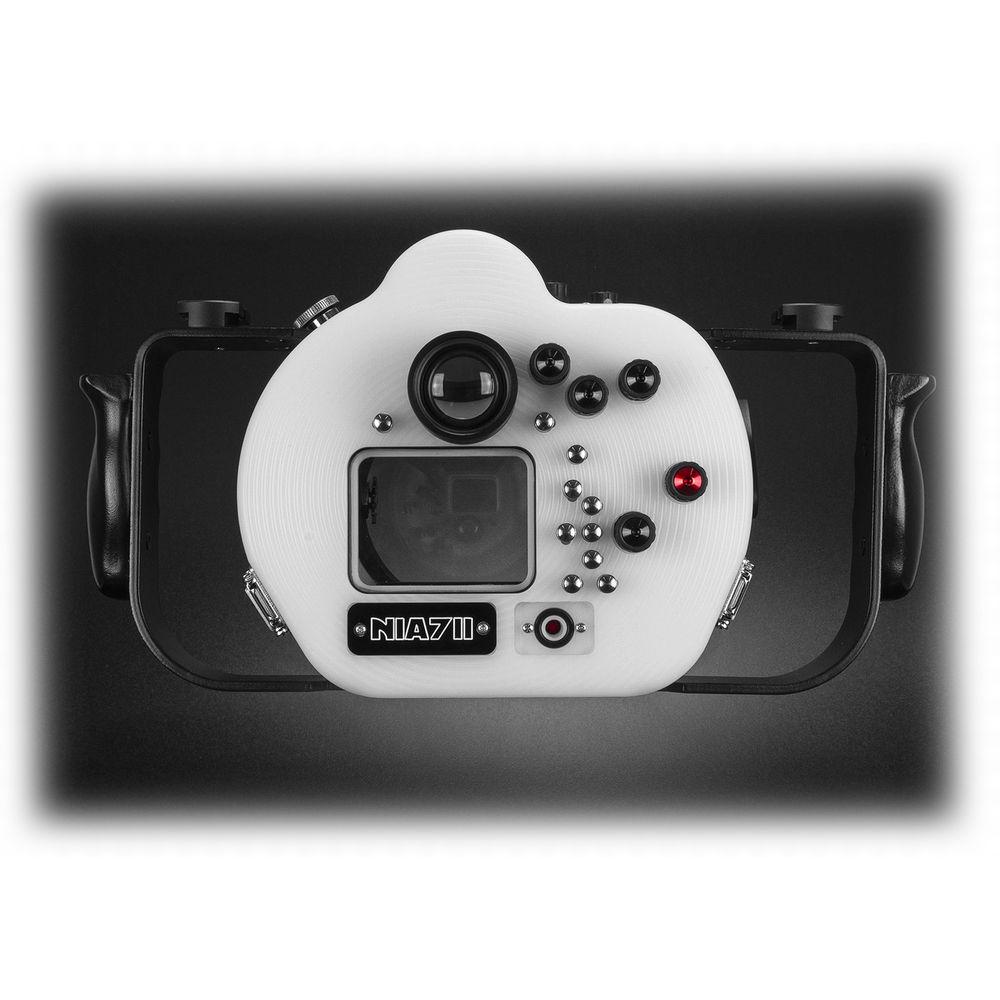

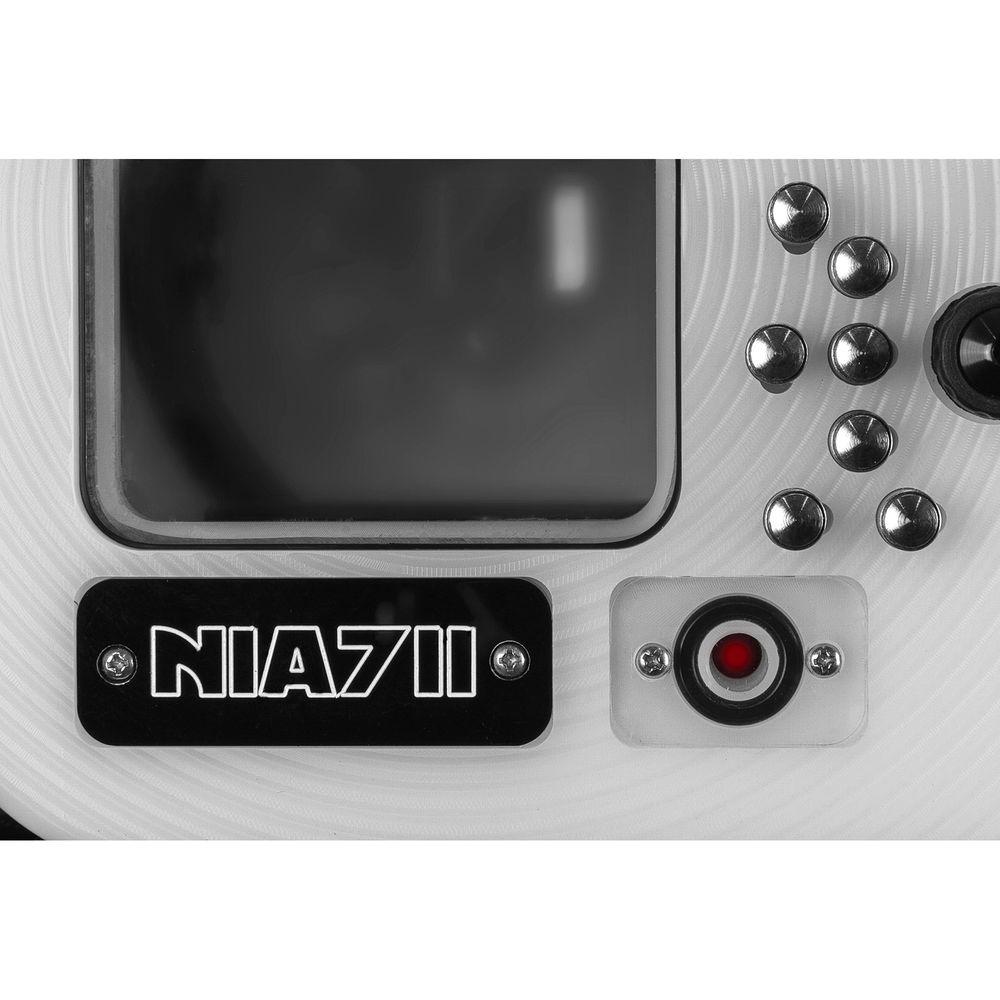

- Clear LCD viewing window on the back allows for composition and playback

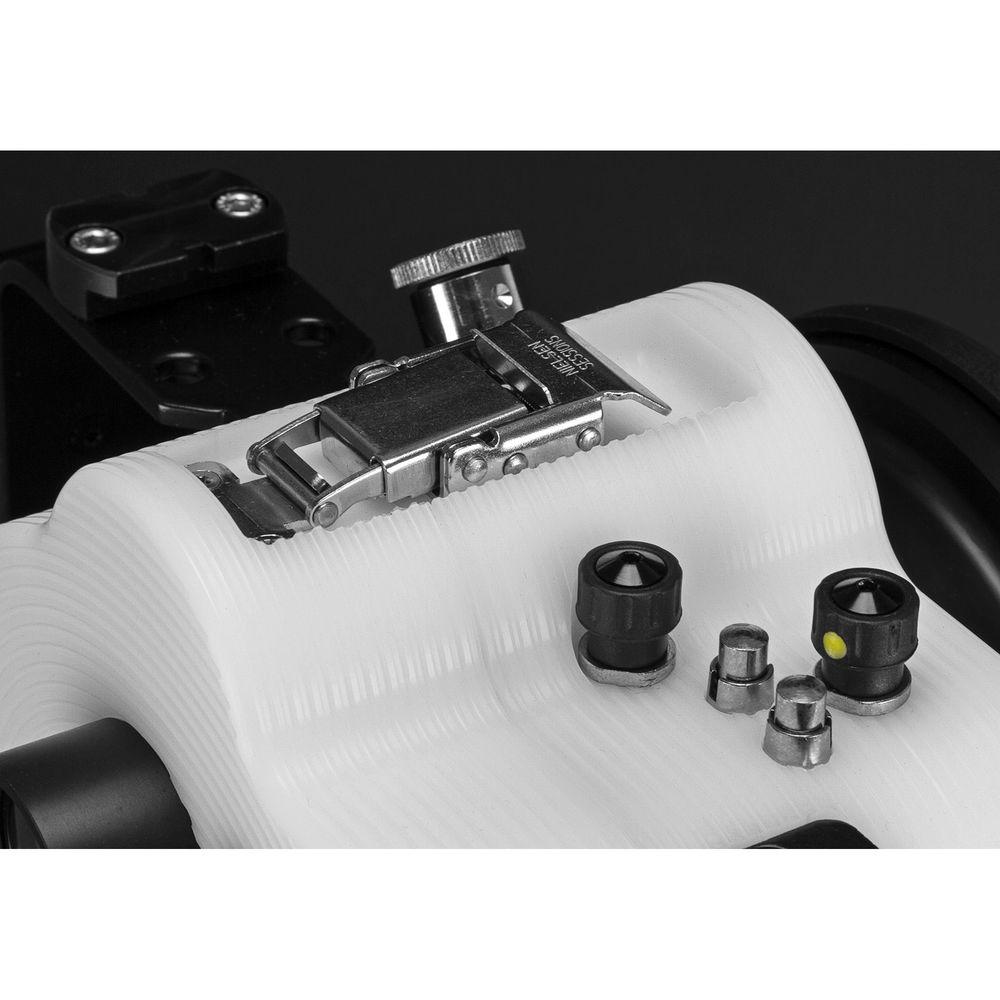

- Three AISI 316 stainless steel latches with safety clips ensure that the housing remains shut while submerged
- Controls and Handling
-

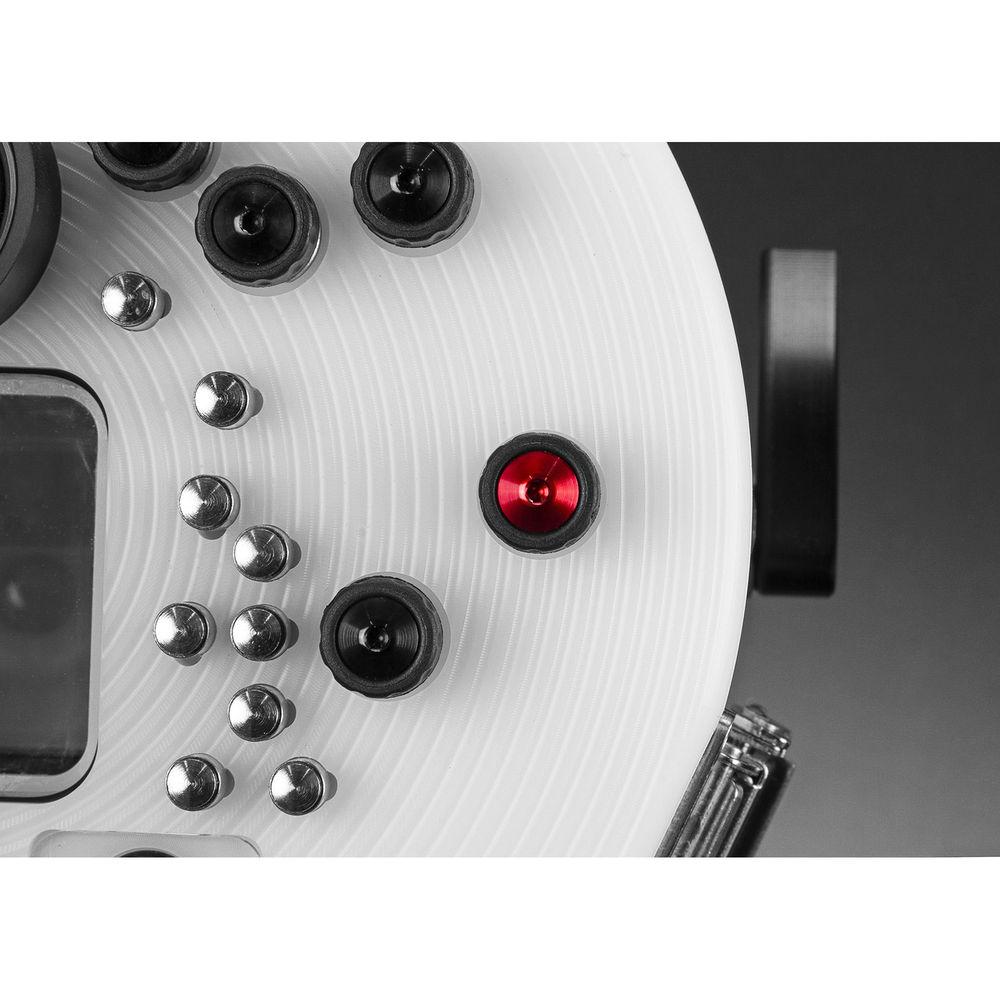

- Mechanical controls, including push-buttons, dials, and levers, enable access to all camera functions
- Eyepiece with 1.5x magnification offers an enhanced view through the camera's viewfinder

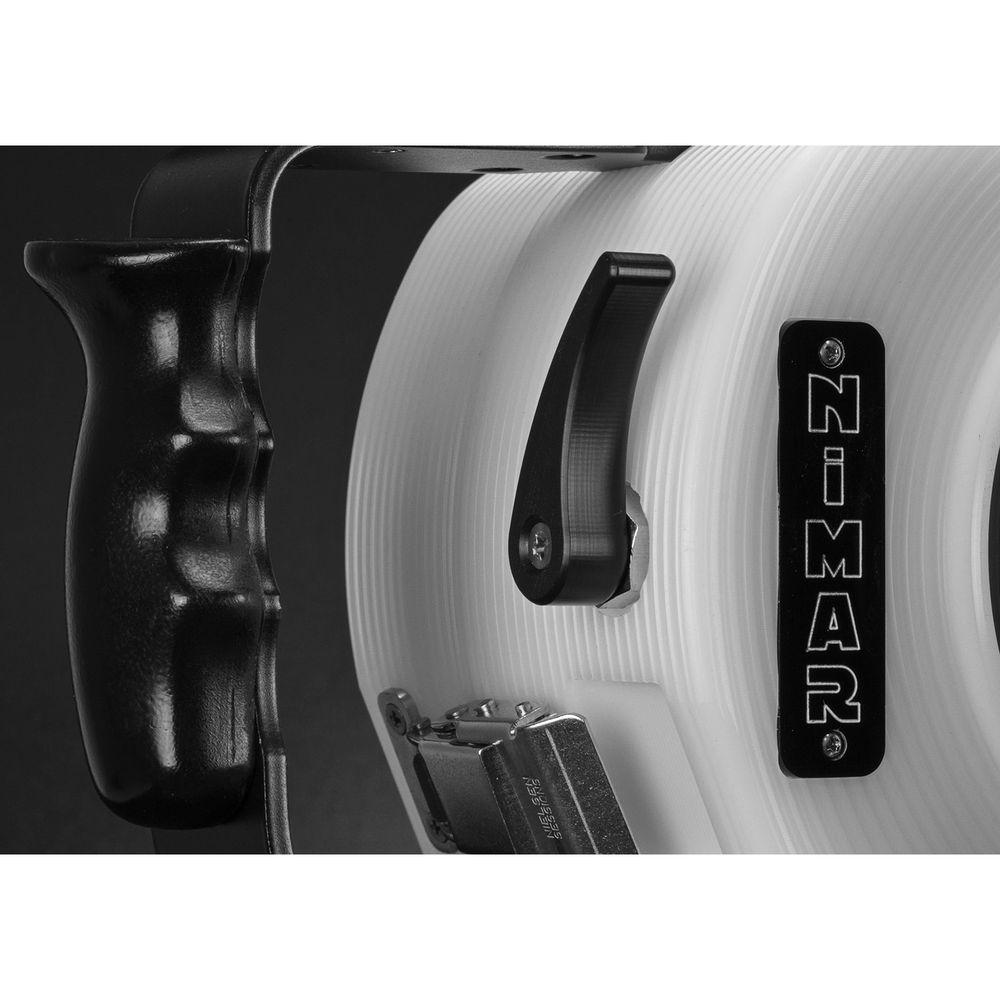

- Ergonomic side grips improve balance and handling underwater, while providing T-mounts for optional strobe or video light arms
- Housing alone has slightly negative buoyancy, though overall system buoyancy varies depending on your choice of lens and port
- Lens Ports
-

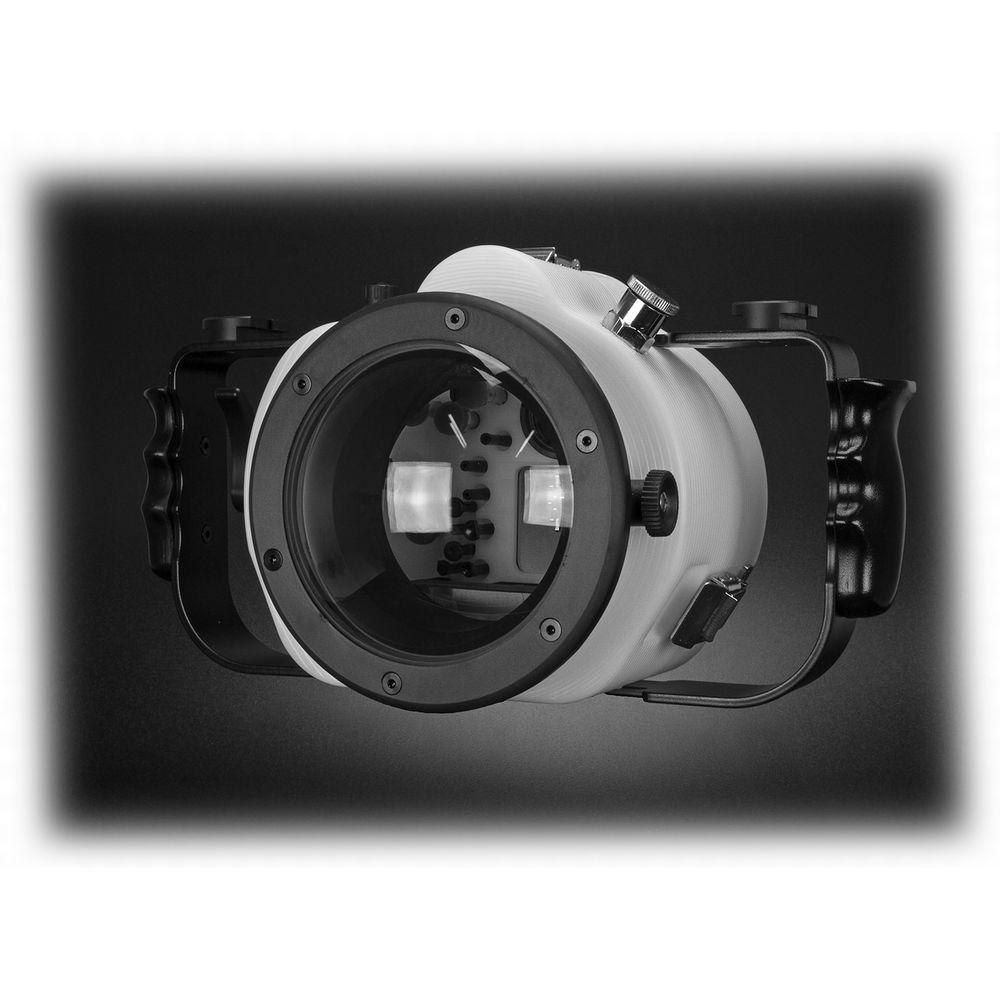

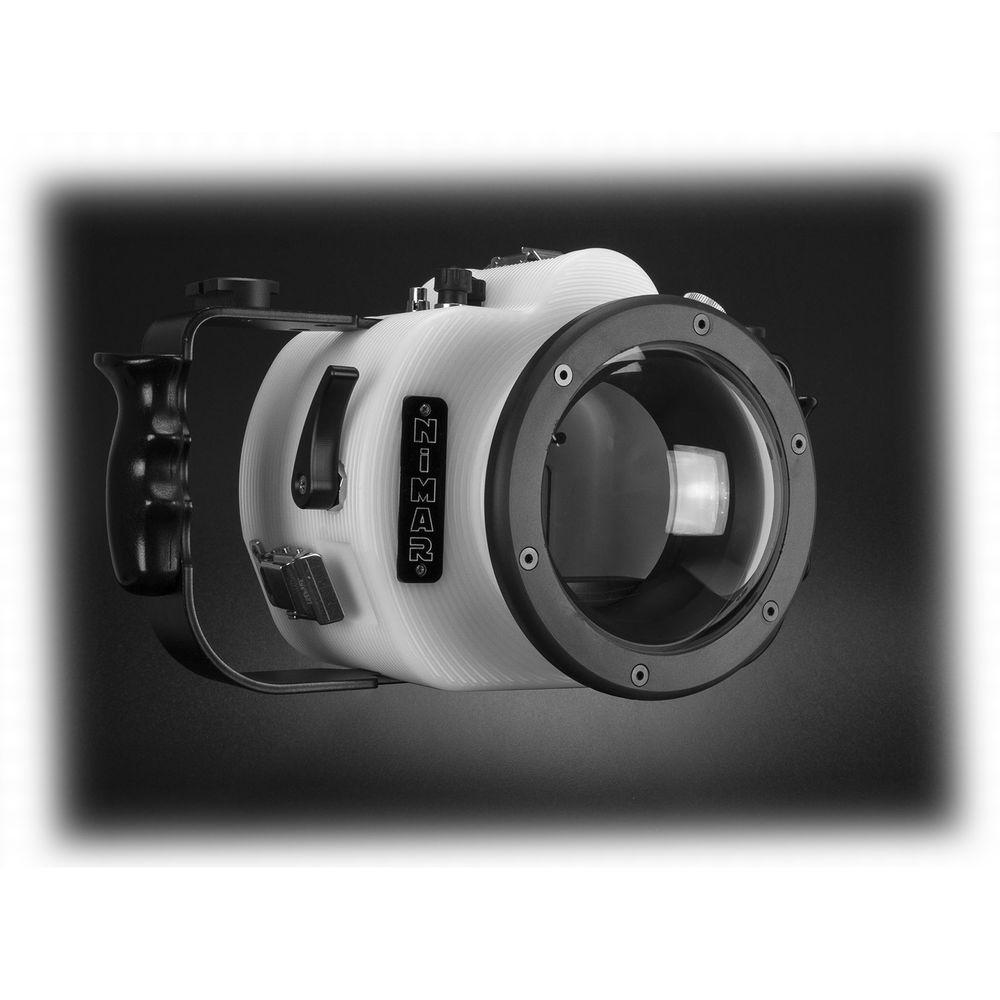

Ships without a required lens port, and accepts interchangeable, bayonet-mount flat and dome ports for various lenses:- NI320S Flat Port for Sony FE 28mm f/2, Sonnar T* FE 35mm f/2.8 ZA, and Sonnar T* FE 55mm f/1.8 ZA
- NI32 Flat Port for Canon EF 100 mm f/2.8 Macro USM, Canon EF 100 mm f/2.8L Macro IS USM, Nikon AF DC-Nikkor 105mm f/2D, Nikon AF-S VR Micro-Nikkor 105 mm f/2.8G IF-ED, Sigma 105mm f/2.8 DG OS HSM Macro, Tamron SP 90mm f/2.8 Di Macro VC USD, and Sony FE 90mm f/2.8 Macro G OSS
- NI35S Flat Port for Sony E PZ 18-105mm f/4 G OSS
- NI35S1 Dome Port for Sony Vario-Tessar T* FE 16-35mm f/4 ZA OSS
- NI37C Flat Port for Canon EF-S 60mm f/2.8 Macro USM, Canon EF 50 mm f/2.5 Compact Macro, Sigma Macro 50mm f/2.8 EX DG, Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH, and Sony FE 50mm f/2.8 Macro
- NI46SO Dome Port for Sony E 10-18mm f/4 OSS
- NI47SO Flat Port for Sony Vario-Tessar T* FE 24-70mm f/4 ZA OSS
- NI47SO1 Flat Port for Sony FE 28-70mm f/3.5-6 OSS
- NI46SO1 Flat Port for Sony E PZ 16-50mm f/3.5-5.6 OSS
- Strobe Connection and Operation
-
- Manual, 5-pin Nikonos bulkhead for connecting optional strobes via sync cords
- Sync connection solves the problems of false triggering by other light sources and inconsistent exposure due to weak transmission, both of which can occur with fiber-optic cables
- Cold shoe mount on top for flash or lighting arm
In the Box Nimar Underwater Housing for Sony Alpha a7II, a7R II, or a7S II (White) Aluminum Bracket/Side Handles with Screws Spare Main O-Ring Seal Protective Cover for Bayonet Mount Soft Bag Silicone Grease Mounting Plate for Camera Silica Gel Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Sony Alpha a7II, a7R II, or a7S II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NIA7IIW Specs | Depth Rating | 328' / 100 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Allow access to all camera functions | | Material of Construction | Body: Delrin acetyl resin
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without required lens port
Bayonet mount for interchangeable flat and dome ports
See list in overview section for complete compatibility details | | Buoyancy | Housing Only: Slightly negative
Complete System: Varies depending on choice of lens and port | | External Flash Connector | Manual, 5-pin Nikonos bulkhead for connecting optional strobes via sync cords | | Mounting | 2x T-mounts on grip handles
Cold shoe on top for flash or lighting arm | | Moisture Alarm | Yes | | Viewfinder | Eyepiece with 1.5x magnification | | Dimensions | With Handles: 13.8 x 7.1 x 5.5" / 35 x 18 x 14 cm | | Weight | With Handles: 6.4 lb / 2.9 kg |
