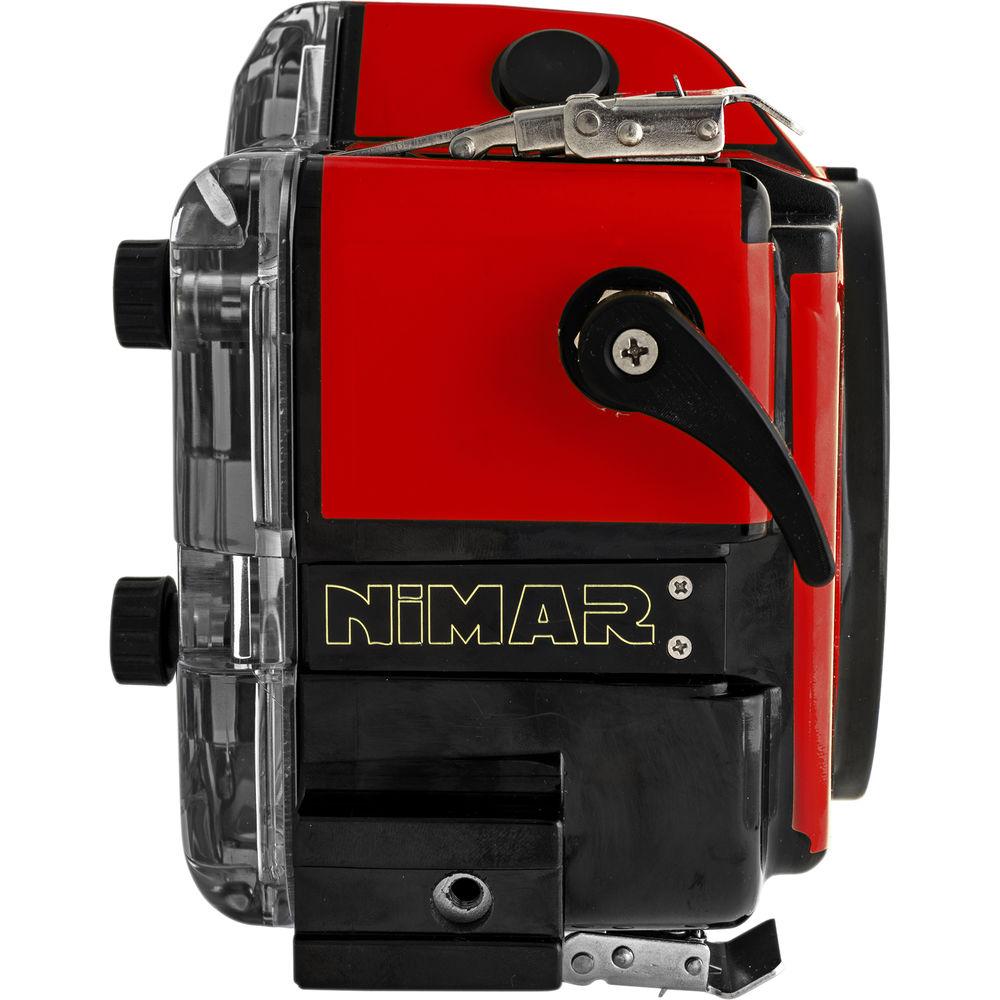

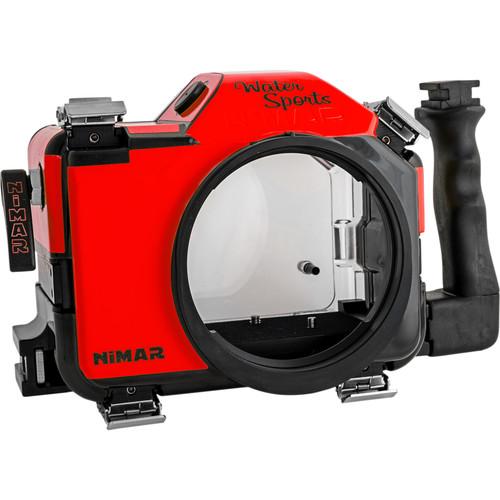

Product description Capture brilliant images and HD video above, on, and below the surface with your Canon EOS 5D Mark III, 5DS, or 5DS R DSLR camera in Nimar's dedicated Water Sports Housing. This enclosure features a depth rating of 197', which is the same as that of Nimar's original line of dive housings; however, this model is designed especially for capturing surfing, water-skiing, and other activities in shallow depths. Stripped down to just the essentials, it is half the weight of the original dive housings, so it enables easier maneuvering. It also features one side grip handle instead of the traditional two.
Mechanical push buttons, dials, and a lever enable access to many of the camera's functions, including shutter, record, playback, set, rear control dial, Q, and joystick. This control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports.
Built for durability, the Water Sports Housing is constructed from corrosion-resistant polycarbonate, which is red on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. The enclosure ships without a required lens port, and accepts interchangeable models for a broad array of lenses. Additionally, an optional bulkhead can be installed to allow for the connection of external strobes via sync cords. - Construction Details
-
- Depth Rating: 196'
- Made from durable, corrosion-resistant polycarbonate that's red on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and camera
- Camera plate bolts to the bottom of the camera and slides into the mount inside the housing
- Controls and Handling
-
- Mechanical controls, including push buttons, dials, and a lever, enable access to the following camera functions: shutter, start/stop video recording, magnify, playback, set button, rear control dial, Q button, right multi-controller, joystick, AF-On, auto focus point button, and zoom in
- Control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports
- Pole extension also gives you extra reach when shooting at certain angles
- Stripped down to just the essentials, it is half the weight of Nimar's original dive housings, so it enables easier maneuvering

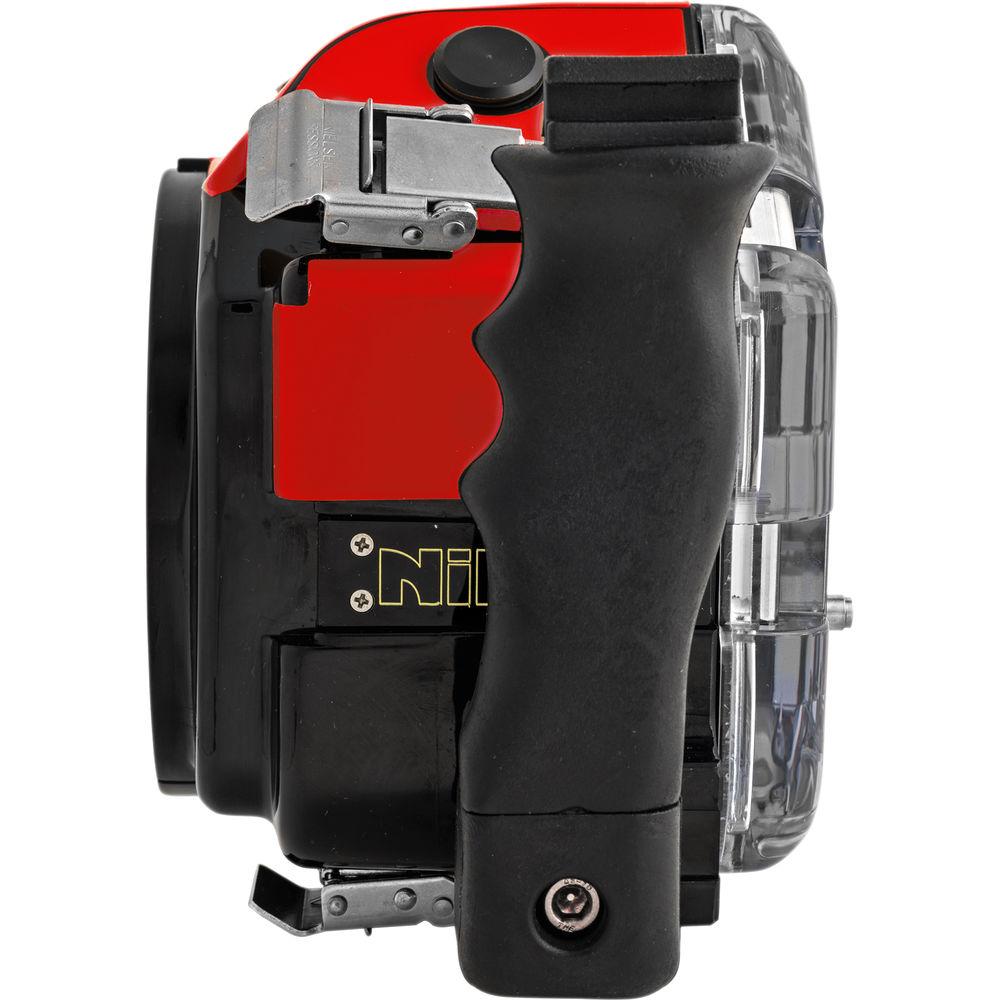

- Features one side grip handle instead of the usual two
- T-mount on grip handle allows for the attachment of an optional lighting arm
- Lens Ports
-
- Ships without a required lens port, and accepts a series of interchangeable ports for a broad array of Canon lenses:
- Flat Acrylic Port for EF 24mm f/2.8 IS USM, 24mm f/1.4 L USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- 6" Polycarbonate Dome for EF 15 mm f/2.8 Fisheye
- 5" Optical Glass Dome for 8-15mm f/4 L USM Fisheye
- Flat Acrylic Port for EF-S 18-135 mm f/3.5-5.6 IS, 18-135 mm f/3.5-5.6 IS STM, and 18-135 mm f/3.5-5.6 IS USM
- Flat Acrylic Port for EF 24-70mm f/2.8 L USM
- Flat Acrylic Port for EF 24-70mm F/2.8 L II USM
- 5" Optical Glass Dome for EF-S 10-22mm f/3.5-4.5 USM
- 5" Optical Glass Dome for EF 24mm f/1.4L II USM
- Flat Acrylic Port for EF 24-105mm f/4L IS USM
- Flat Acrylic Port for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- 5" Optical Glass Dome for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- Flat Acrylic Port for EF 17-40mm f/4 L USM
- 5" Optical Glass Dome for EF 17-40mm f/4L USM
- Flat Acrylic Port for EF-S 17-85 mm f/4-5.6 IS USM
- Flat Acrylic Port for EF 15-85mm f/3.5-5.6 IS USM
- Flat Glass Port for EF-S 18-55mm f/3.5-5.6 II, 18-55mm f/3.5-5.6 II USM, 18-55mm f/3.5-5.6 IS, 18-55mm f/3.5-5.6 IS II, 18-55mm f/3.5-5.6 IS STM, 18-55mm DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro
- 5" Optical Glass Dome for EF-S 10-18mm f/4.5-5.6 IS STM
- Flat Acrylic Port for EF 70-200mm f/4L USM and 70-200mm f/4 L IS USM
- Strobe Connection and Operation
-
- Optional 5-pin bulkhead can be installed to allow for the connection of external strobes, which will increase brightness and enhance color correction
- Strobes require sync cords
UPC: 810075021189 In the Box Nimar Water Sports Housing for Canon EOS 5D Mark III, 5DS, or 5DS R (Red/Clear) Removable Side Grip Mounting Screws and Allen Key for Grip Set of O-Rings Silicone Grease for O-Rings Silica Gel Desiccant to Absorb Moisture Body Cap Soft Storage Bag Camera Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing for Canon EOS 5D Mark III, 5DS, or 5DS R in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI5DMK3WS Specs | Depth Rating | 196' / 60 m | | Control Type | Mechanical push buttons, dials, and a lever | | Controls | Afford access to the following camera functions: shutter, start/stop video recording, magnify, playback, set button, rear control dial, Q button, right multi-controller, joystick, AF-On, auto focus point button, zoom in | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chrome-plated brass
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without required port
Accepts interchangeable ports for various lenses
For compatibility details, see list in overview section | | Buoyancy | Housing Only: Positive
Complete System: May vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chrome-plated brass bulkhead for connection of external strobes via sync cords | | Mounting | T-mount on grip handle for optional lighting arms | | Dimensions | Without Grip Handle: 6.7 x 8.7 x 5.1" / 17 x 22 x 13 cm | | Weight | With Grip Handle: 3.75 lb / 1.7 kg | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 11.6 x 11.0 x 8.6" |
