User Manual for Nimar Water Sports Housing for Canon EOS 7D Mark II Click to enlarge the picture
Contents of the user manual for the Nimar Water Sports Housing for Canon
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Water Sports Housing for Canon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

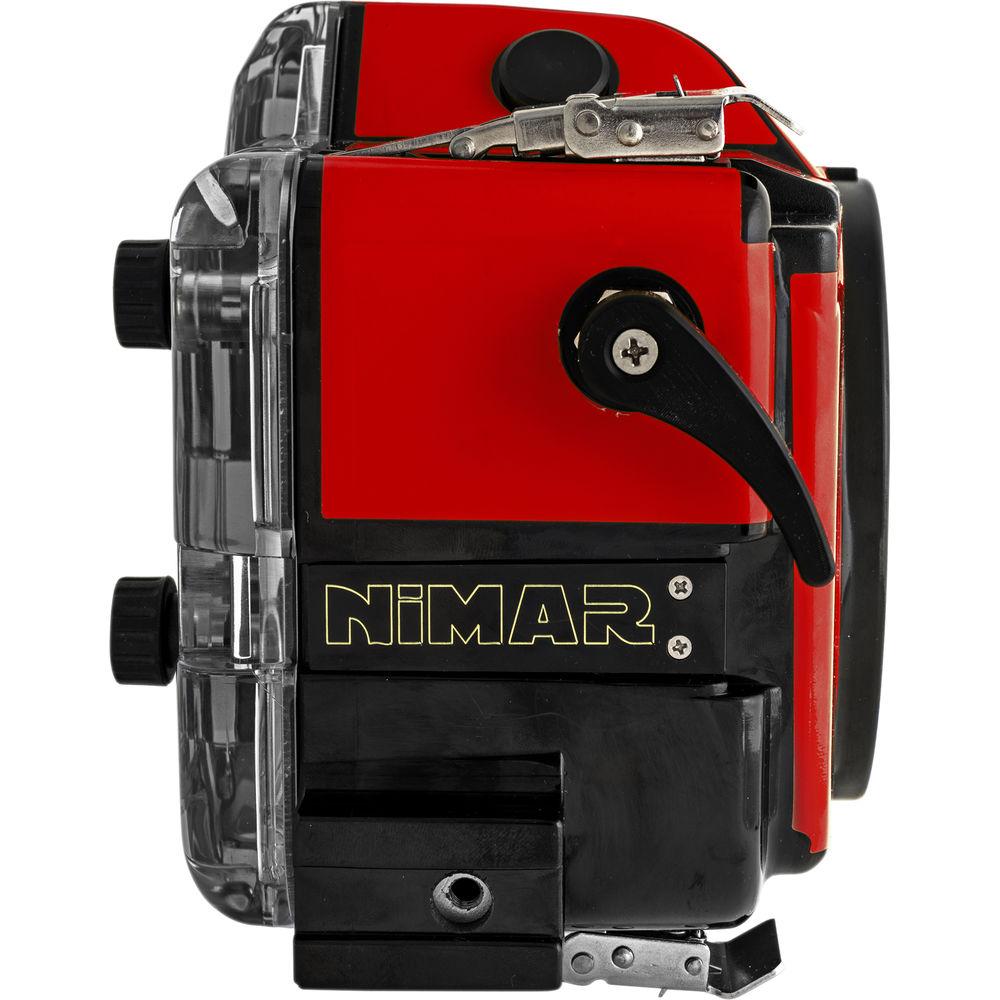

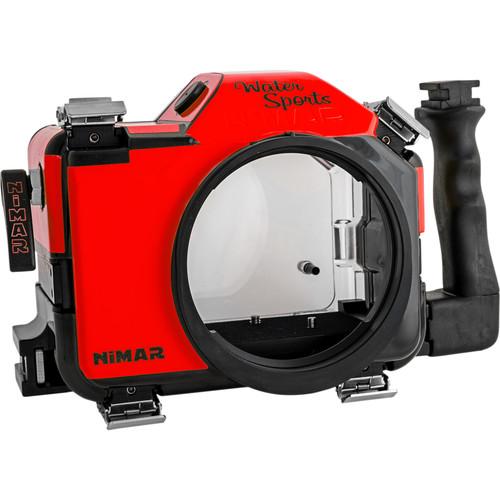

Product description With your Canon EOS 7D Mark II DSLR camera in Nimar's dedicated Water Sports Housing, you can capture brilliant photos and HD video above, on, and below the surface. This enclosure features a depth rating of 197', which is the same as that of Nimar's original line of dive housings. However, this model is designed to help you photograph or record people surfing, water-skiing, and playing sports in shallow depths. Stripped down to just the essentials, it is half the weight of the original dive housings, so it enables easier maneuvering. It also features one side grip handle instead of the traditional two.
Mechanical push buttons, dials, and a lever enable access to many of the camera's functions, including shutter, video recording, AF-On, set, playback, joystick, rear control dial, and Q. This control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports.
Designed for durability, the Water Sports Housing is constructed from corrosion-resistant polycarbonate that's red on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. It ships without a required lens port, and accepts interchangeable ports for a broad array of lenses. Additionally, an optional bulkhead can be installed to allow for the connection of external strobes via sync cords. - Construction Details
-
- Depth rating: 196'
- Made from durable, corrosion-resistant polycarbonate that's red on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera
- Camera plate bolts to the bottom of the camera and slides securely into the mount inside the housing
- Four stainless-steel AISI 316 latches with safety clips ensure that the housing remains closed during submersion
- Controls and Handling
-
- Mechanical controls, including push buttons, dials, and a lever, enable access to the following camera functions: shutter, start/stop video recording, AF-On, set, playback, magnify, joystick, rear control dial, and Q button
- This control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports
- Pole extension also gives you extra reach when shooting at certain angles
- Stripped down to the essentials, the housing is half the weight of Nimar's original dive enclosures, so it enables easier maneuvering

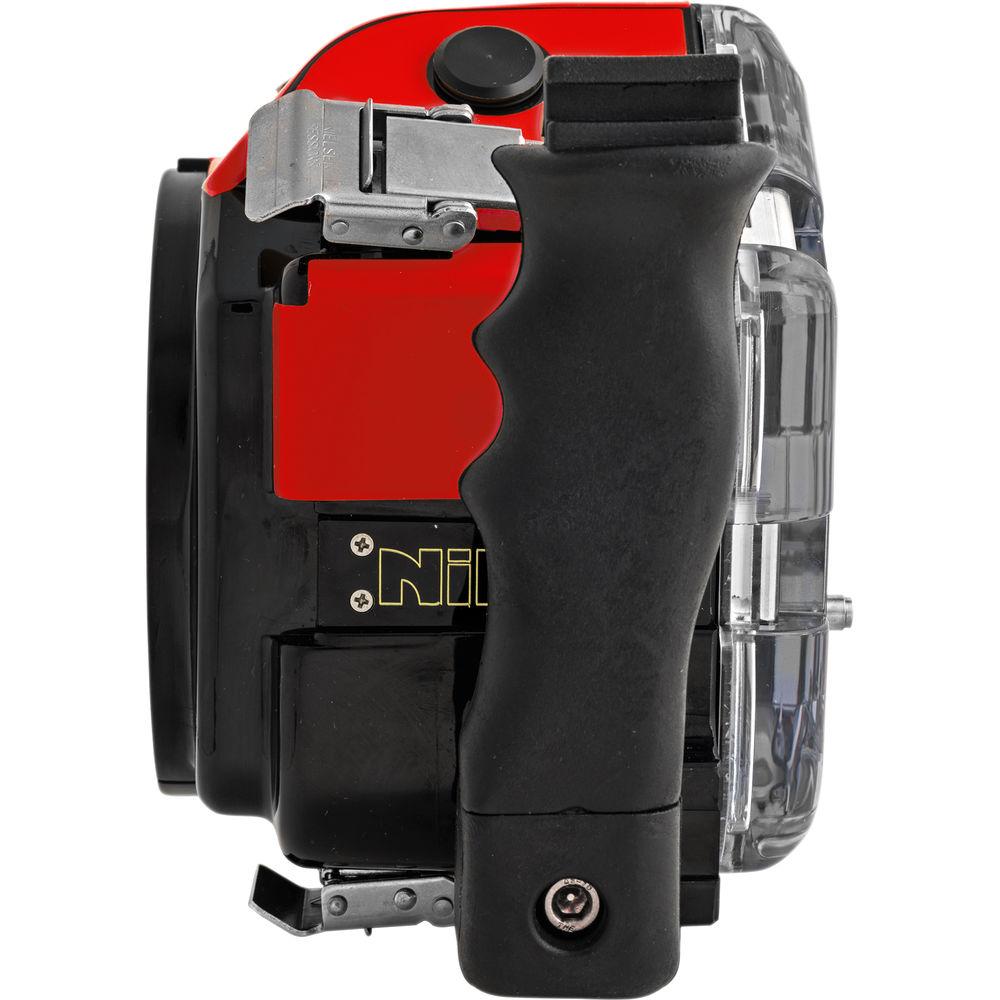

- Features one side grip handle instead of the usual two
- T-mount on the grip handle allows for the attachment of optional lighting arms
- Lens Ports
-
- Ships without a required lens port, and accepts various interchangeable ports for an array of Canon lenses:
- Flat Acrylic Port for EF 24mm f/2.8 IS USM, 24mm f/1.4 L USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- 6" Polycarbonate Dome for EF 15 mm f/2.8 Fisheye
- 5" Optical Glass Dome for 8-15mm f/4 L USM Fisheye
- Flat Acrylic Port for EF-S 18-135 mm f/3.5-5.6 IS, 18-135 mm f/3.5-5.6 IS STM, and 18-135 mm f/3.5-5.6 IS USM
- Flat Acrylic Port for EF 24-70mm f/2.8 L USM
- Flat Acrylic Port for EF 24-70mm F/2.8 L II USM
- 5" Optical Glass Dome for EF-S 10-22mm f/3.5-4.5 USM
- 5" Optical Glass Dome for EF 24mm f/1.4L II USM
- Flat Acrylic Port for EF 24-105mm f/4L IS USM
- Flat Acrylic Port for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- 5" Optical Glass Dome for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- Flat Acrylic Port for EF 17-40mm f/4 L USM
- 5" Optical Glass Dome for EF 17-40mm f/4L USM
- Flat Acrylic Port for EF-S 17-85 mm f/4-5.6 IS USM
- Flat Acrylic Port for EF 15-85mm f/3.5-5.6 IS USM
- Flat Glass Port for EF-S 18-55mm f/3.5-5.6 II, 18-55mm f/3.5-5.6 II USM, 18-55mm f/3.5-5.6 IS, 18-55mm f/3.5-5.6 IS II, 18-55mm f/3.5-5.6 IS STM, 18-55mm DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro
- 5" Optical Glass Dome for EF-S 10-18mm f/4.5-5.6 IS STM
- Flat Acrylic Port for EF 70-200mm f/4L USM and 70-200mm f/4 L IS USM
- Strobe Connection and Operation
-
- Optional 5-pin, chrome-plated brass bulkhead can be installed to allow for the connection of optional external strobes, which will increase brightness and enhance color correction
- Strobes require sync cords
In the Box Nimar Water Sports Housing for Canon EOS 7D Mark II (Red/Clear) Removable Side Grip Mounting Screws and Allen Key for Grip Set of O-Rings Silicone Grease for O-Rings Silica Gel Desiccant to Absorb Moisture Soft Storage Bag Camera Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing for Canon EOS 7D Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI7DMK2WS Specs | Depth Rating | 196' / 60 m | | Control Type | Mechanical push buttons, dials, and a lever | | Controls | Afford access to the following camera functions: shutter, start/stop video recording, AF-On, set, playback, magnify, joystick, rear control dial, and Q button | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chrome-plated brass
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without required port
Accepts interchangeable ports for various lenses
For compatibility details, see list in overview section | | Buoyancy | Housing Only: Positive
Complete System: May vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chrome-plated brass bulkhead for connection of strobes via sync cords | | Mounting | T-mount on grip handle for optional lighting arms | | Dimensions | Without Grip Handle: 6.7 x 8.7 x 5.1" / 17 x 22 x 13 cm | | Weight | With Grip Handle: 3.75 lb / 1.7 kg |
