User Manual for Nimar Water Sports Housing for Panasonic Lumix DC-GH5 GH5S Click to enlarge the picture
Contents of the user manual for the Nimar Water Sports Housing for Panasonic
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Water Sports Housing for Panasonic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

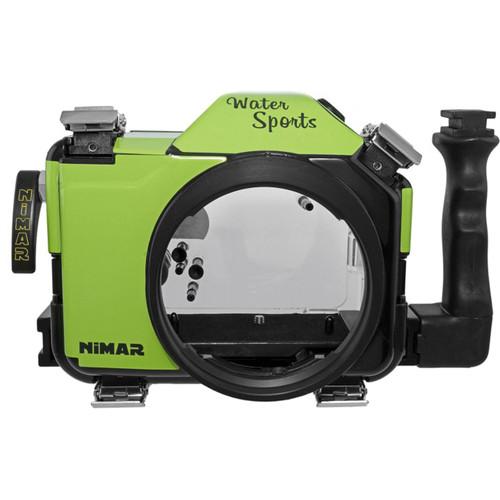

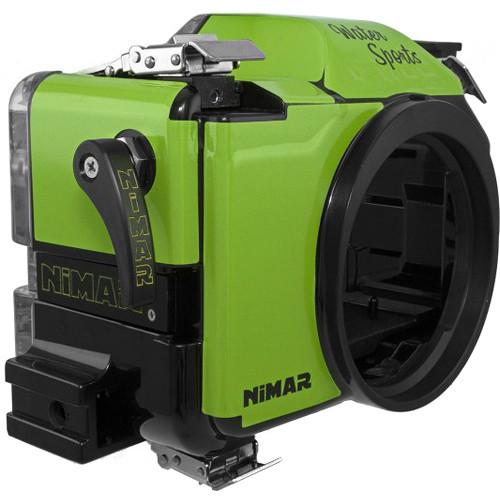

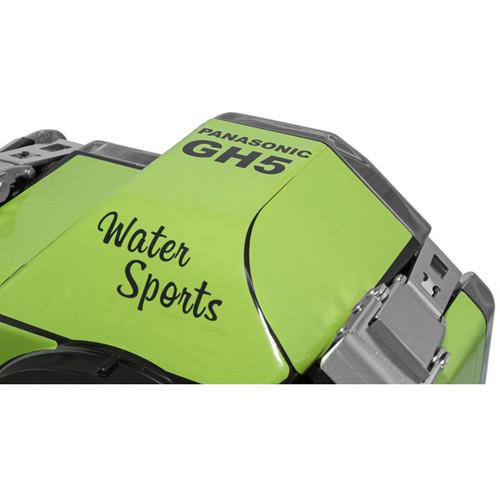

Product description - "CLASSIC" Water Sports Housing for Panasonic Lumix GH5
Capture images and HD video above, on, and below the surface with Nimar's green and clear Water Sports Housing for Panasonic's Lumix DC-GH5 and GH5S mirrorless cameras. Like Nimar's original line of dive housings, this enclosure features a depth rating of 200'; however, it is designed especially for active shooting in shallower depths and when capturing water-based activities, such as surfing or water-skiing. Stripped down to just the essentials for ease of use, it is roughly half the weight of the original dive housings and features one side grip handle instead of the traditional two.
Mechanical controls, including push-buttons, dials, and a lever, enable access to the following camera functions: shutter, start/stop video recording, Fn2, joystick, menu/set, and rear control dial. This reduced control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports.
Designed for durability, the Water Sports Housing is constructed from corrosion-resistant polycarbonate that's green/black on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. It ships without a required lens port, and accepts interchangeable ports for several Panasonic lenses--as well as a few Canon EF lenses via the Metabones T Speed Booster adapter. Additionally, an optional bulkhead can be installed for the connection of external strobes via sync cords. - Construction Details
-
- Depth rating of 200'
- Made from durable, corrosion-resistant polycarbonate
- Green/black on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and camera

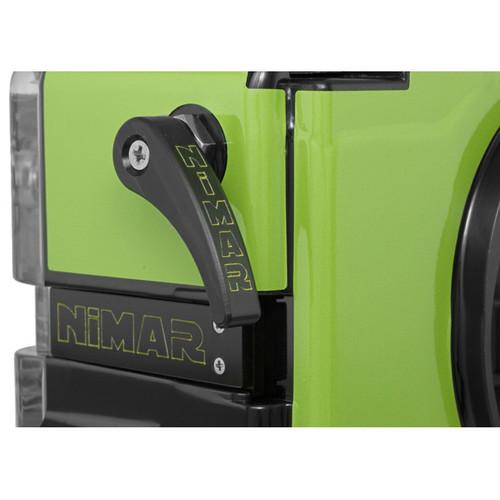

- Features 4 stainless steel AISI 316 latches with safety clips for security
- Controls and Handling
-
- Mechanical controls, including push-buttons, dials, and a lever, enable access to the following camera functions: shutter, start/stop video recording, Fn2, joystick, menu/set, and rear control dial
- Reduced control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports
- Pole extension also gives you extra reach when shooting at certain angles

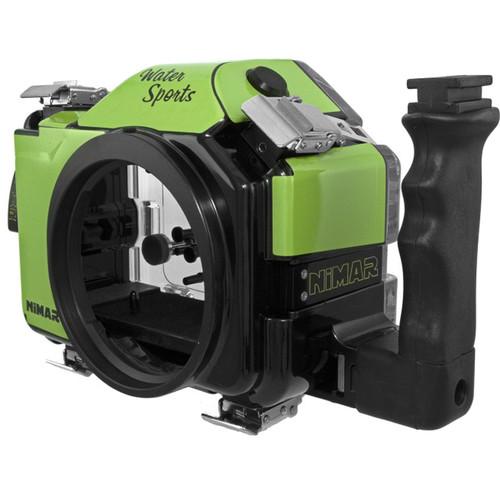

- Stripped down to the essentials, the Water Sports housing is half the weight of Nimar's original dive housings and features one side grip handle instead of two
- T-mount on grip handle enables the attachment of optional lighting arms
- Lens Ports
- Ships without a required lens port, and accepts several interchangeable ports for different lenses:
- 5" Optical Glass Dome for Panasonic Lumix GX 12-35mm f/2.8 or f/2.8 II OIS
- 5" Optical Glass Dome for Panasonic Lumix G Vario 7-14mm f/4 ASPH
- Flat Port for Panasonic Lumix G Vario 12-60mm f/3.5-5.6 ASPH
- Flat Port for Panasonic Lumix G Vario 12-60mm f/2.8-4 ASPH
- 5" Optical Glass Dome for Canon EF 16-35mm f/2.8 L, f/2.8 L II, or f/4L USM with Metabones T Speed Booster XL 0.64x adapter
Also, accepts the Extension Ring for Metabones T Speed Booster XL 0.64x - Strobe Connection and Operation
-
- Optional bulkhead can be installed to allow for the connection of external strobes that will increase brightness and enhance color correction
- Strobes require sync cords
UPC: 810075022520 In the Box Nimar Water Sports Housing for Panasonic Lumix DC-GH5/GH5S (Green/Clear) 2 x Removable Side Grip Handles with Screws Spare Main O-Ring Seal Port Mount Cover Soft Bag Silicone Grease Silica Gel Bag Camera Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing for Panasonic Lumix DC-GH5 GH5S in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NIGH5WS Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical, i.e., push-buttons, dials, and a lever | | Controls | Provide access to shutter, start/stop video recording, Fn2, joystick, menu/set, and rear control dial | | Material of Construction | Body: Bayer Makrolon polycarbonate
Latches with Clips: AISI 316 stainless steel | | Lens Port | Bayonet port mount
Ships without required lens port
Accepts interchangeable ports for lenses
For compatibility details, see list in overview section | | Buoyancy | Slightly positive | | External Flash Connector | Optional 5-pin, chrome-plated brass bulkhead can be installed for connection of external strobes via sync cords | | Mounting | T-mount on grip handle for attaching optional lighting arms | | Dimensions | Without Grip Handle: 8.7 x 6.7 x 5.5" / 22 x 17 x 14 cm | | Weight | With Grip Handle: 3.75 lb / 1.7 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 11.3 x 11.3 x 8.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
