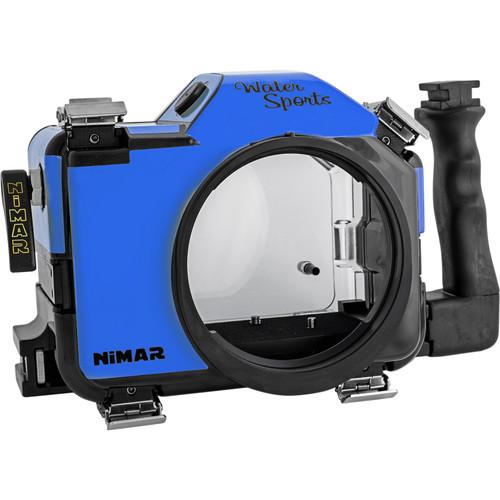

Product description Capture beautiful photos and HD video above, on, and below the surface with Nimar's blue/clear Water Sports Housing for the Panasonic Lumix DMC-GH4 or GH4R Mirrorless MFT Digital Camera. This enclosure features a depth rating of 196', which is the same as Nimar's original line of dive housings, but it is designed especially for active shooting in shallower depths and when capturing water-based activities like surfing or water-skiing. Stripped down to just the essentials, it is half the weight of the original dive housings and features one side grip handle instead of the traditional two.

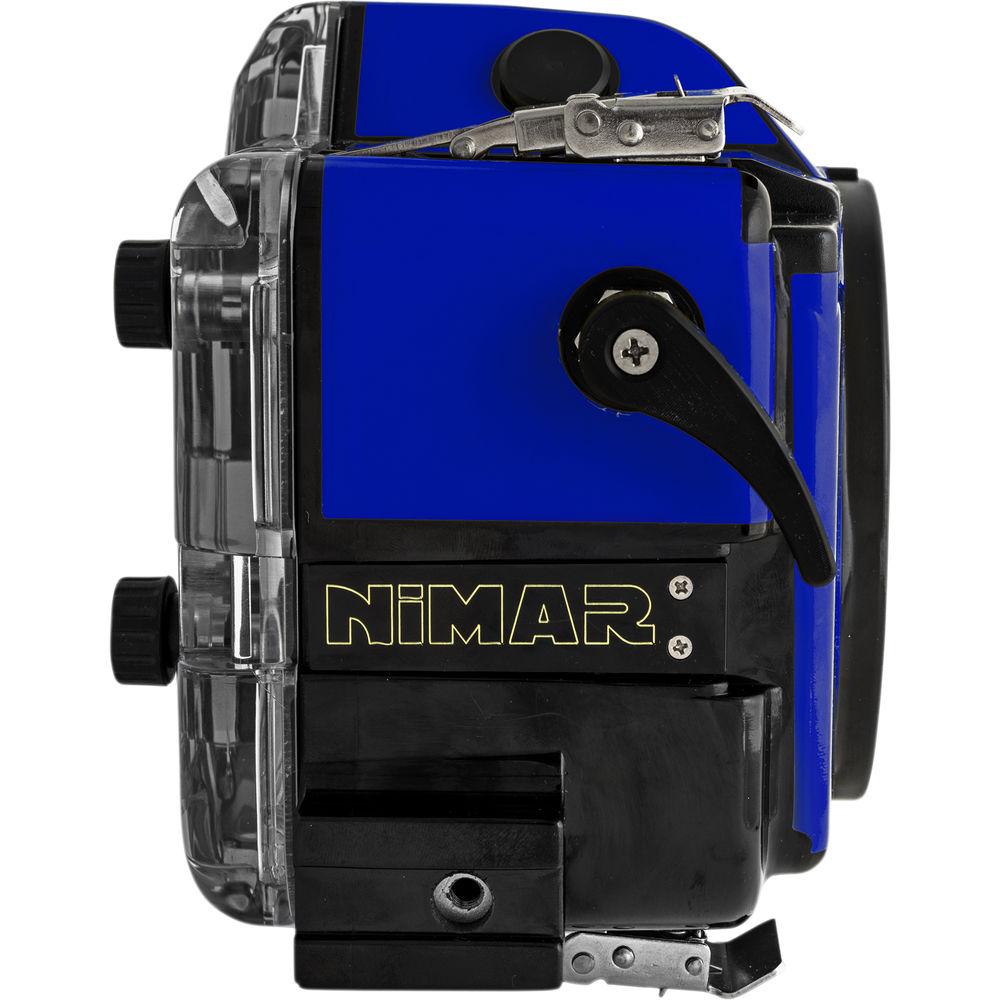

Mechanical controls, including push buttons, dials, and a lever, enable access to the following camera functions: shutter, AF/AE lock, start/stop video recording, Fn2/Q menu, both rear control dials, and the menu/set button. This reduced control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports.
Designed for durability, the Water Sports Housing is constructed from corrosion-resistant polycarbonate that's blue on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. It ships without a required lens port, and accepts interchangeable ports for several Panasonic lenses--as well as a few Canon EF lenses via the Metabones T Speed Booster adapter. Additionally, an optional bulkhead can be installed to allow for the connection of external strobes via sync cords. - Construction Details
-
- Depth rating: 196'
- Made from durable, corrosion-resistant polycarbonate that's blue on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and camera
- Camera plate bolts to the bottom of the camera and slides into the mount inside the housing for secure installation
- Features 4 stainless-steel AISI 316 latches with safety clips for security
- Controls and Handling
-
- Mechanical controls, including push buttons, dials, and a lever, enable access to the following camera functions: shutter, AF/AE Lock, start/stop video recording, Fn2/Q menu, both rear control dials, and the menu/set button
- Pared-down control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports
- Pole extension also gives you extra reach when shooting at certain angles
- Stripped down to the essentials, the housing is half the weight of Nimar's original dive housings, so it allows for easier maneuvering

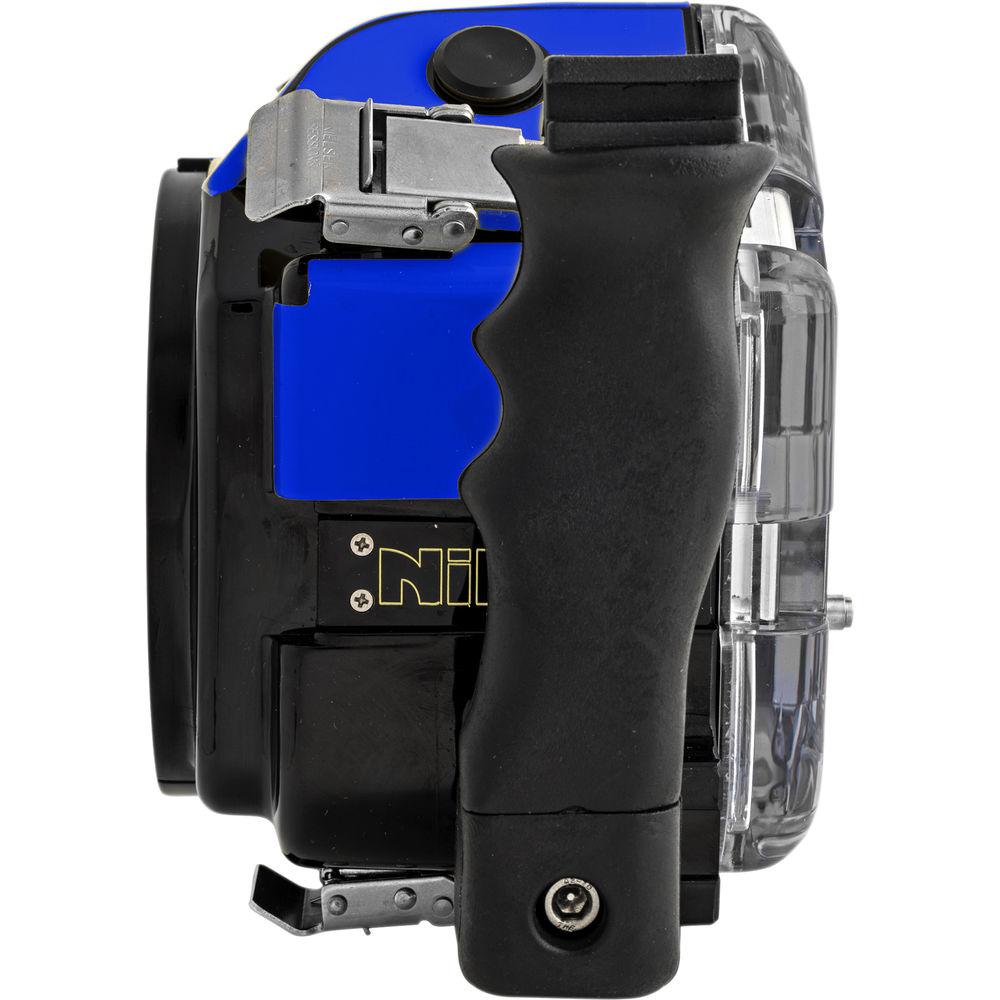

- Features one side grip handle instead of the traditional two
- T-mount on the grip enables the attachment of an optional lighting arm
- Lens Ports
-
- Ships without a required lens port, and accepts several interchangeable ports for different lenses:
- 5" Optical Glass Dome for Panasonic Lumix GX 12-35mm f/2.8 and f/2.8 II OIS
- 5" Optical Glass Dome for Panasonic Lumix G Vario 7-14mm f/4 ASPH
- Flat Port for Panasonic Lumix G Vario 12-60mm f/3.5-5.6 ASPH
- Flat Port for Panasonic Lumix G Vario 12-60mm f/2.8-4 ASPH
- Flat Port for Panasonic Lumix G 25mm f/1.7 ASPH, Lumix G Macro 30mm f/2.8 ASPH OIS, Leica DG Summilux 25mm f/1.4 ASPH, and Leica DG MACRO-ELMARIT 45mm f/2.8 ASPH, as well as Olympus M.Zuiko Digital 25mm f/1.8 and Digital ED 30mm f/3.5 Macro
- 5" Optical Glass Dome for Canon EF 16-35mm f/2.8 L, f/2.8 L II, and f/4L USM with Metabones T Speed Booster XL 0.64x adapter
Also accepts the Extension Ring for Metabones T Speed Booster XL 0.64x - Strobe Connection and Operation
-
- Optional 5-pin bulkhead can be installed to allow for the connection of external strobes, which will increase brightness and enhance color correction
- Strobes require sync cords
UPC: 810075021158 In the Box Nimar Water Sports Housing for Panasonic Lumix DMC-GH4/GH4R (Blue/Clear) Removable Side Grip Mounting Screws and Allen Key for Grip Set of O-Rings Silicone Grease for O-Rings Silica Gel Desiccant to Absorb Moisture Soft Storage Bag Camera Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing for Panasonic Lumix DMC-GH4 GH4R in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NIGH4WS Specs | Depth Rating | 196' / 60 m | | Control Type | Mechanical push buttons, dials, and a lever | | Controls | Afford access to following camera functions: shutter, AF/AE lock, start/stop video recording, Fn2/Q menu, both rear control dials, and menu/set button | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chrome-plated brass
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Bayonet port mount
Ships without required lens port
Accepts interchangeable ports for different lenses
See compatibility list in overview section | | Buoyancy | Housing Only: Slightly positive
Complete System: May vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chrome-plated brass bulkhead available for connection of external strobes via sync cords | | Mounting | T-mount on grip handle for attaching optional lighting arm | | Dimensions | Without Grip Handle: 6.7 x 8.7 x 5.5" / 17 x 22 x 14 cm | | Weight | With Grip Handle: 3.75 lb / 1.7 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 5.0" |
