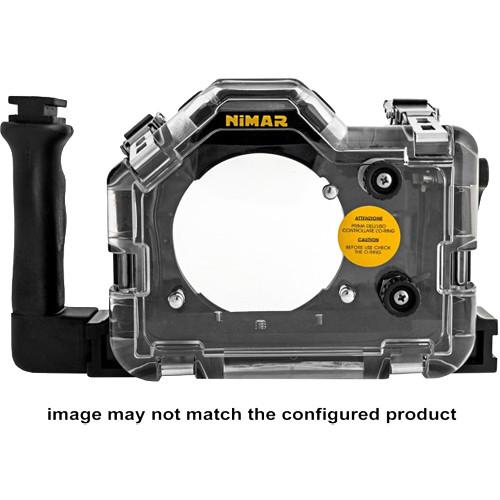

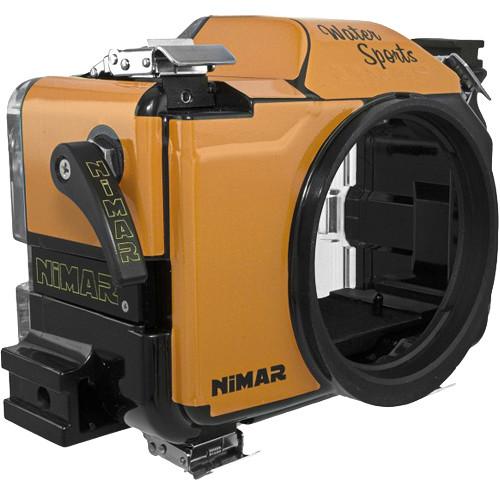

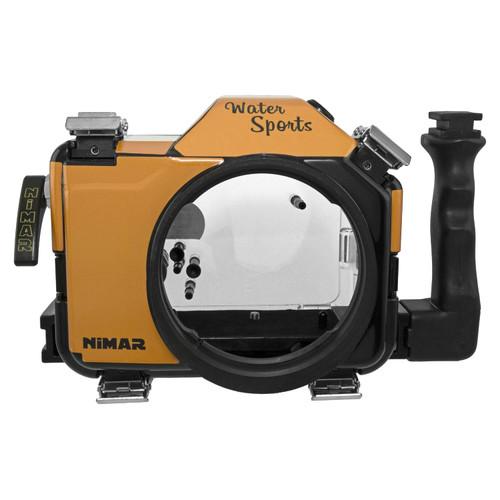

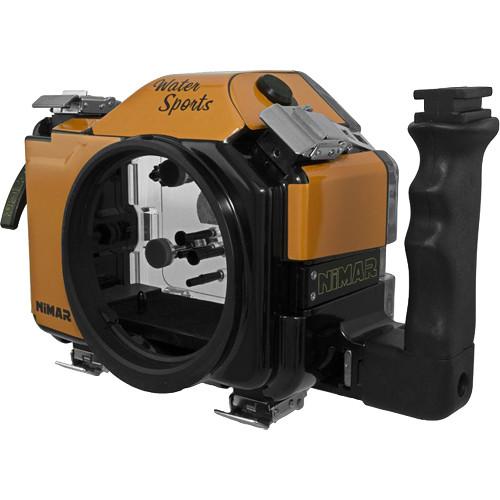

Product description Capture brilliant photos and HD video above, on, and below the surface with your Sony Alpha a7II, a7R II, or a7S II Mirrorless Digital Camera in Nimar's dedicated Water Sports Housing. This enclosure features a depth rating of 197', which is the same as that of Nimar's original line of dive housings. However, this model is designed especially for active shooting in shallower depths and when capturing water-based activities like surfing or water-skiing. Stripped down to just the essentials, it is half the weight of the original dive housings, so it enables easier maneuvering. It also features one side grip handle instead of the traditional two.

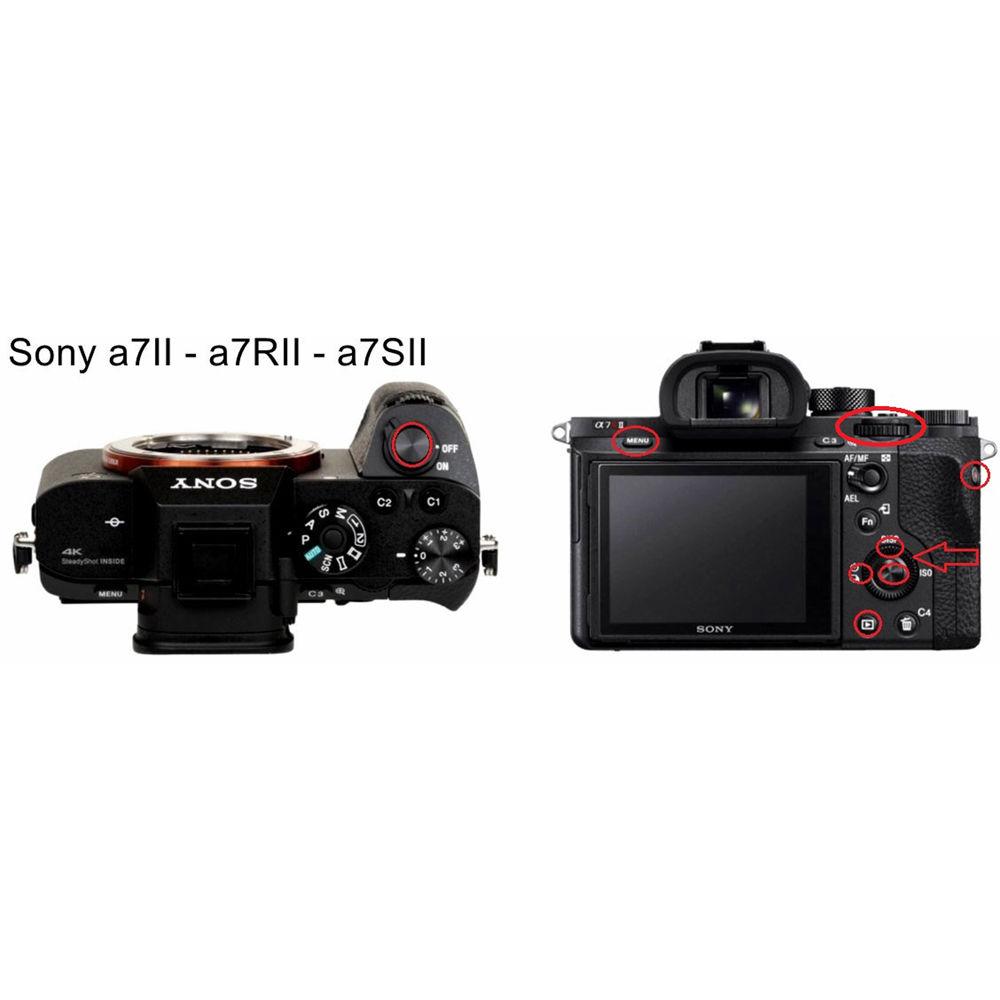

Mechanical push buttons, dials, and a lever enable access to the following camera functions: shutter, video recording, mode dial, rear control wheel, self-timer, drive mode, display, ISO, menu, and playback. This control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports.

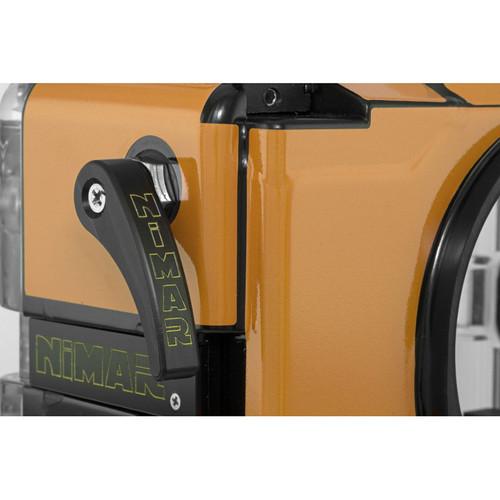

Built for durability, the Water Sports Housing is constructed from corrosion-resistant polycarbonate, which is orange on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. The enclosure ships without a required lens port, and accepts interchangeable ports for various lenses. For complete compatibility details, please see the list below. Additionally, an optional bulkhead can be installed to allow for the connection of external strobes via sync cords. - Construction Details
-
- Depth rating: 197'
- Made from durable, corrosion-resistant polycarbonate that's orange on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and camera
- Controls and Handling
-
- Mechanical push buttons, dials, and a lever enable access to the following camera functions: shutter, video recording, mode dial, rear control wheel, self-timer, drive mode, display, ISO, menu, and playback
- Control set gives you what you need while keeping the setup and shooting process simple, which can be a benefit when capturing water sports
- Pole extension also gives you extra reach when shooting at certain angles
- Stripped down to just the essentials, the housing is half the weight of Nimar's original dive enclosures, so it enables easier maneuvering
- Features one side grip handle instead of the usual two
- T-mount on grip handle enables attachment of optional lighting arms
- Lens Ports
-
- Ships without a required lens port, and accepts the following interchangeable ports for various lenses:
- Flat Port for Sony FE 28mm f/2, Sonnar T* FE 35mm f/2.8 ZA, and Sonnar T* FE 55mm f/1.8 ZA
- Flat Port for Sony E PZ 18-105mm f/4 G OSS
- 5" Optical Glass Dome for Sony Vario-Tessar T* FE 16-35mm f/4 ZA OSS
- 5" Optical Glass Dome for Sony E 10-18mm f/4 OSS
- Flat Port for Sony E PZ 16-50mm f/3.5-5.6 OSS
- Flat Port for Sony Vario-Tessar T* FE 24-70mm f/4 ZA OSS
- Flat Port for Sony FE 28-70mm f/3.5-6 OSS
- Strobe Connection and Operation
-
- Optional 5-pin bulkhead can be installed to allow for the connection of external strobes, which will increase brightness and enhance color correction
- Strobes require sync cords
UPC: 810075021455 In the Box Nimar Water Sports Housing for Sony Alpha a7II, a7R II, or a7S II (Orange/Clear) Removable Side Grip with Screw Spare Main O-Ring Seal Protective Cover for Bayonet Port Mount Soft Bag Silicone Grease for O-Rings Slide Mount for Camera Bag of Silica Gel Desiccant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing for Sony Alpha a7II, a7R II, or a7S II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar Water Sports Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push buttons, dials, and a lever | | Controls | Allow access to following camera functions: Shutter, video recording, mode dial, rear control wheel, self-timer, drive mode, display, ISO, menu, and playback | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chrome-plated brass
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without required port
Accepts interchangeable ports for various lenses
For compatibility details, see list in overview section | | Buoyancy | Housing Only: Slightly positive
Complete System: May vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chrome-plated brass bulkhead for connection of external strobes via sync cords | | Mounting | T-mount on grip handle for optional lighting arm | | Dimensions | Without Grip Handle: 8.7 x 6.7 x 5.1" / 22 x 17 x 13 cm | | Weight | With Grip Handle: 3.75 lb / 1.7 kg |
