Product description - "PRO" Water Sports Housing for Canon EOS 5D MkIII - 5Ds - 5Dsr

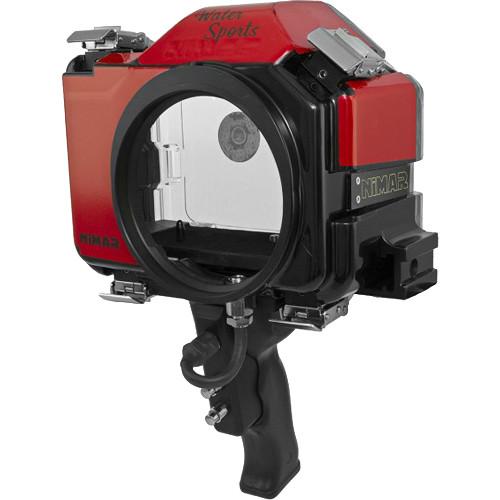

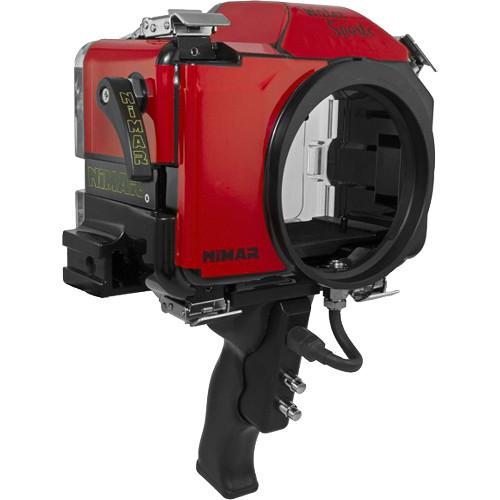

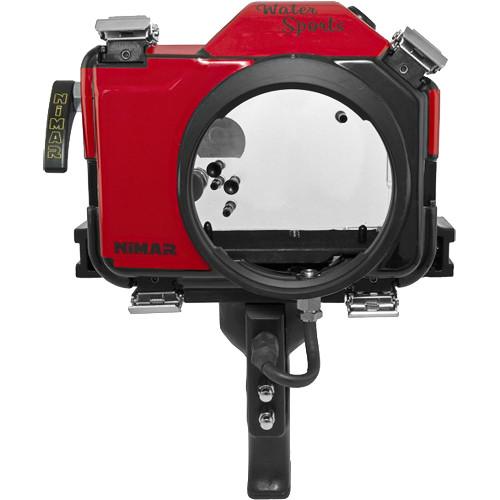

Capture images and HD video above, on, and below the surface with Nimar's red/clear Water Sports Housing for the Canon EOS 5D Mark III, 5DS, or 5DS R DSLR camera. This enclosure is equipped with a 2-button pistol grip trigger that allows for aiming, maneuvering, and image capture with a single hand, all without shaking the camera--thus ensuring clear, blur-free shots.
The housing features a depth rating of 197', which is the same as that of Nimar's original line of dive housings, but it is designed especially for active shooting in shallower depths and when capturing water-based activities, such as surfing or water-skiing. Stripped down to just the essentials, it is half the weight of the original dive housings to afford easier maneuvering.

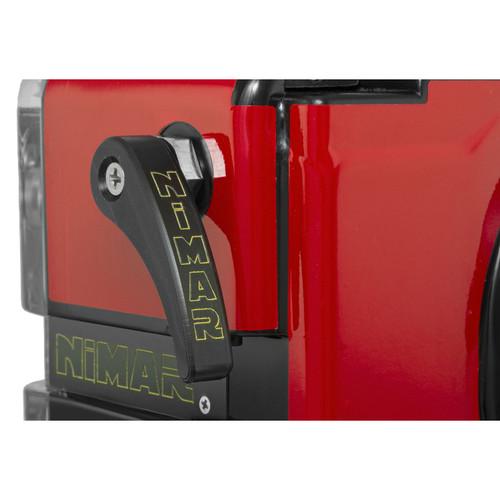

Mechanical controls, including push-buttons, dials/knobs, and a lever, enable access to essential camera functions. This reduced control set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports--especially with the supplied pistol grip.

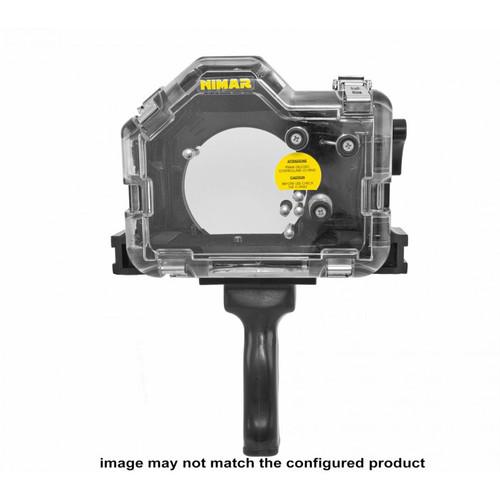

Built for durability, the Water Sports Housing is constructed from corrosion-resistant polycarbonate that's red on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. The enclosure ships without a required lens port, and accepts interchangeable ports for various lenses. Additionally, an optional sync connector can be installed to allow for the attachment of an external strobe. - Construction Details
-
- Depth Rating: 197'
- Made from durable, corrosion-resistant polycarbonate that's red on top, front, and sides, but clear in back to allow you to monitor O-ring seal and camera
- Camera plate bolts to bottom of camera and slides into mount inside housing for secure installation
- Controls and Handling
-

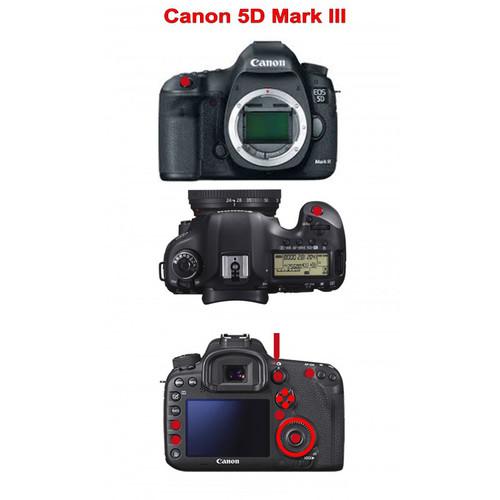

- Mechanical controls, including push-buttons, dials/knobs, and a lever, enable access to the following camera functions: shutter, start/stop video recording, magnify, playback, set button, rear control dial, Q button, right multi-controller, joystick, AF-On, auto focus point button, and zoom in
- Reduced control set gives you what you need while simplifying setup and shooting process, which can be a benefit when capturing water sports
- Included 2-button pistol grip offers remote firing capability and focus control, allowing you to capture blur-free images with ease
- Stripped down to just essentials, housing is half the weight of original dive enclosures to afford easier maneuvering
- Lens Port System
-
Ships without required lens port and accepts series of interchangeable ports for a broad array of Canon lenses:- Flat Acrylic Port for EF 24mm f/2.8 IS USM, 24mm f/1.4 L USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- 6" Polycarbonate Dome for EF 15 mm f/2.8 Fisheye
- 5" Optical Glass Dome for 8-15mm f/4 L USM Fisheye
- Flat Acrylic Port for EF-S 18-135 mm f/3.5-5.6 IS, 18-135 mm f/3.5-5.6 IS STM, and 18-135 mm f/3.5-5.6 IS USM
- Flat Acrylic Port for EF 24-70mm f/2.8 L USM
- Flat Acrylic Port for EF 24-70mm F/2.8 L II USM
- 5" Optical Glass Dome for EF-S 10-22mm f/3.5-4.5 USM
- 5" Optical Glass Dome for EF 24mm f/1.4L II USM
- Flat Acrylic Port for EF 24-105mm f/4L IS USM
- Flat Acrylic Port for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- 5" Optical Glass Dome for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- Flat Acrylic Port for EF 17-40mm f/4 L USM
- 5" Optical Glass Dome for EF 17-40mm f/4L USM
- Flat Acrylic Port for EF-S 17-85 mm f/4-5.6 IS USM
- Flat Acrylic Port for EF 15-85mm f/3.5-5.6 IS USM
- Flat Glass Port for EF-S 18-55mm f/3.5-5.6 II, 18-55mm f/3.5-5.6 II USM, 18-55mm f/3.5-5.6 IS, 18-55mm f/3.5-5.6 IS II, 18-55mm f/3.5-5.6 IS STM, 18-55mm DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro
- 5" Optical Glass Dome for EF-S 10-18mm f/4.5-5.6 IS STM
- Flat Acrylic Port for EF 70-200mm f/4L USM and 70-200mm f/4 L IS USM
- Strobe Connection and Operation
-
- Optional 5-pin, chromed brass connector can be installed to allow for attachment of an external strobe via sync cord
UPC: 810075021479 In the Box Nimar Water Sports Housing with Pistol Grip for Canon EOS 5D Mark III, 5DS, or 5DS R (Red/Clear) Pistol Grip Trigger Spare Main O-Ring Seal Protective Cover for Bayonet Port Mount Soft Bag Silicone Grease Slide Mount for Camera Bag of Silica Gel Desiccant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing with Pistol Grip for Canon EOS 5D Mark III, 5DS, or 5DS R in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar Water Sports Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials/knobs, and lever | | Controls | Afford access to following camera functions:
Shutter
Start/stop video recording
Magnify
Playback
Set button
Rear control dial
Q button
Right multi-controller
Joystick
AF-On
Auto focus point button
Zoom in | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chromed brass
Latches with Safety Clips: Aisi 316 stainless steel | | Lens Port | Ships without required lens port
Accepts interchangeable ports for various lenses
See list in Overview | | Buoyancy | Positive, though may vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chromed brass connector can be installed for attaching external strobe via sync cord | | Dimensions | Without Grip: 8.7 x 6.7 x 5.1" / 22 x 17 x 13 cm | | Weight | With Grip: Approx. 4.6 lb / 2.1 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 13.0 x 10.7 x 9.0" |
