User Manual for Nimar Water Sports Housing with Pistol Grip for Canon EOS 7D Click to enlarge the picture
Contents of the user manual for the Nimar Water Sports Housing with Pistol
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Water Sports Housing with Pistol contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

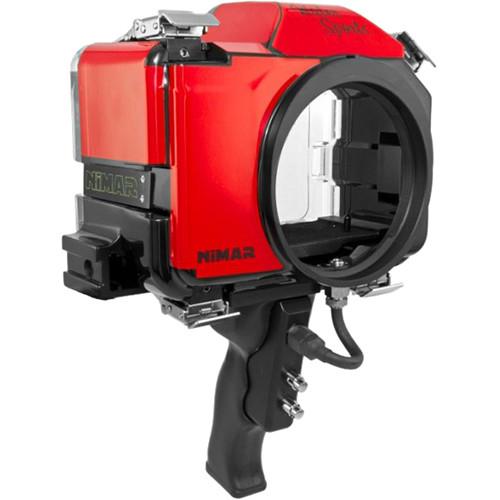

Product description Sharp, eye-catching photos and HD video above and below the surface are yours with Nimar's red/clear Water Sports Housing for the Canon EOS 7D DSLR camera. This enclosure is equipped with a two-button pistol grip trigger that allows for aiming, maneuvering, and image capture with a single hand.
The housing has the same 197' depth rating as Nimar's classic underwater housings, but is designed for active shooting of surfing, windsurfing, stand-up paddle-boarding, triathlons, etc. Stripped down to just the essentials, it is half the weight of the original dive housings to afford easier maneuvering. The two-button trigger controls focus and the shutter; all other controls must be preset or set to auto when the camera is loaded into the housing.
Built for durability, the Water Sports Housing is constructed from corrosion-resistant Bayer Makrolon polycarbonate that's red on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. It ships without a required lens port, and accepts interchangeable ports for a broad array of lenses. For full compatibility info, see the Port Chart.An optional sync connector can be installed to allow for the attachment of an external strobe to increase brightness and correct the color in your images. In the unlikely event of a breach in the waterproof seal, the built-in moisture alarm will give you time to prevent damage to your camera and lens. - Construction Details
-
- Depth rating: 197'
- Made from durable, corrosion-resistant Bayer Makrolon polycarbonate
- Clear back to monitor O-ring seal and camera
- Features 4 stainless-steel AISI 316 hooks with safety clips for secure closure
- Moisture alarm
- Controls and Handling
-
- Pistol grip designed for one-handed shooting of water sports like windsurfing, SUP, triathlon
- Two-button pistol grip offers remote firing capability and focus control
- Other controls are preset or set to auto when loading camera into housing
- Half the weight of classic dive enclosures to afford easier maneuvering
- Lens Port System
-
Ships without a required lens port, and accepts interchangeable ports for various lenses (check port chart link in Overview for compatibility) - Strobe Connection and Operation
-
- Optional connector can be installed to allow for attachment of an external strobe via sync cord
UPC: 810075024036 In the Box Nimar Water Sports Housing with Pistol Grip for Canon EOS 7D Pistol Grip Trigger Spare Main O-Ring Seal Silicone Grease for O-Rings Silica Gel Desiccant Protective Cover for Bayonet Port Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing with Pistol Grip for Canon EOS 7D in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI7DWB Specs | Depth Rating | 197' / 60 m | | Controls | Push-button focus & shutter | | Material of Construction | Body: Bayer Makrolon polycarbonate
Hooks/Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable ports for various lenses
See compatibility link in Overview | | External Flash Connector | Optional connector can be installed for attachment of external strobe via sync cord | | Dimensions | Without Grip: 11.8 x 8.7 x 4.7" / 30 x 22 x 12 cm | | Weight | 4.1 lb / 1.9 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
