User Manual for Nimar Water Sports Housing with Pistol Grip for Canon EOS 7D Mark II Click to enlarge the picture
Contents of the user manual for the Nimar Water Sports Housing with Pistol
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Water Sports Housing with Pistol contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

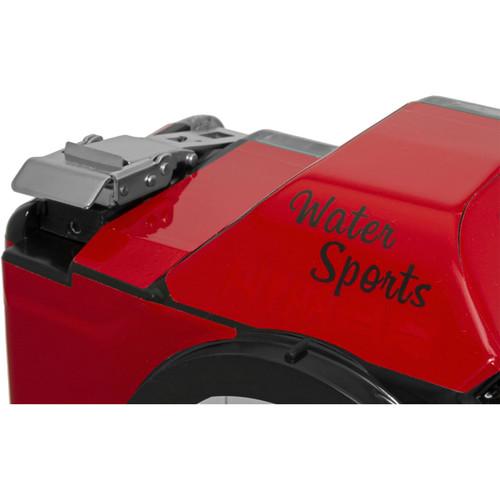

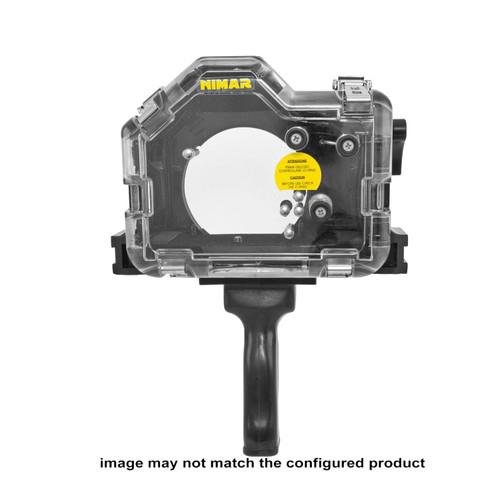

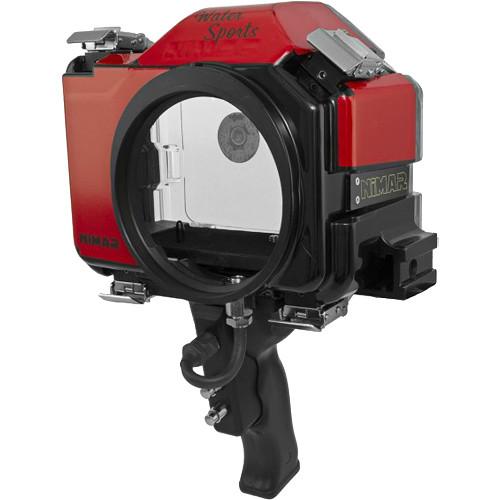

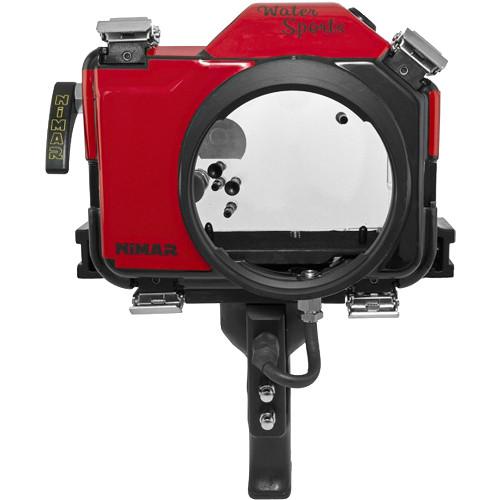

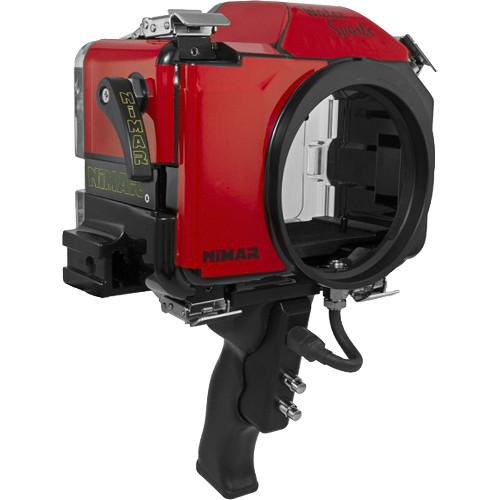

Product description Sharp, eye-catching photos and HD video above, on, and below the surface are yours with Nimar's red/clear Water Sports Housing for the Canon EOS 7D Mark II DSLR camera. This enclosure is equipped with a 2-button pistol grip trigger that allows for aiming, maneuvering, and image capture with a single hand, all without shaking the camera--thus ensuring clear, blur-free shots.
The housing features a depth rating of 197', which is the same as that of Nimar's original line of dive housings; however, this model is designed especially for active shooting in shallower depths and when capturing activities such as surfing and water-skiing. Stripped down to just the essentials, it is half the weight of the original dive housings to afford easier maneuvering.

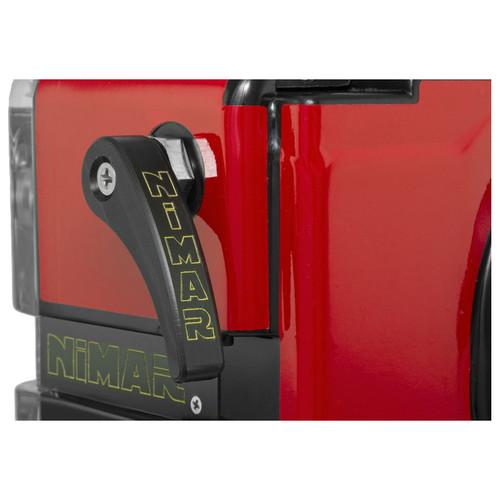

Mechanical push-buttons, dials/knobs, and a lever enable access to a pared-down set of camera functions that includes only what you need, thus simplifying the setup and shooting process.
Built for durability, the Water Sports Housing is constructed from corrosion-resistant polycarbonate that's red on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. It ships without a required lens port, and accepts interchangeable ports for a broad array of lenses. Additionally, an optional sync connector can be installed to allow for the attachment of an external strobe to increase brightness and correct the color in your images. - Construction Details
-
- Depth rating: 196'
- Made from durable, corrosion-resistant polycarbonate that's red on top, front, and sides, but clear in back to allow you to monitor O-ring seal and camera
- Camera plate bolts to bottom of camera and slides into mount inside housing for secure installation
- Features 4 stainless steel AISI 316 hooks with safety clips for secure closure
- Controls and Handling
-

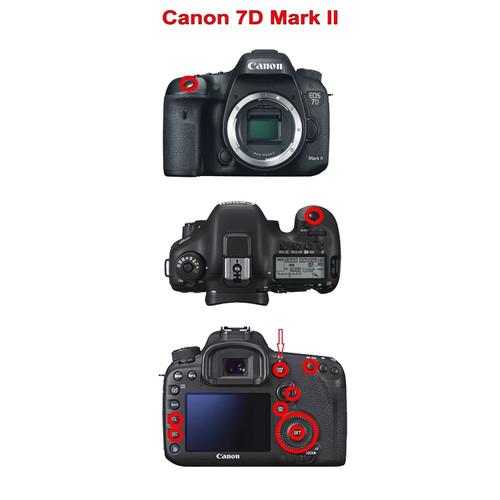

- Mechanical controls, including push-buttons, dials/knobs, and a lever, enable access to following camera functions: shutter, start/stop video recording, AF-On, set, playback, magnify, joystick, rear control dial, and Q button
- Pared-down control set gives you what you need while simplifying setup and shooting process, which can be a benefit when capturing water sports
- Included 2-button pistol grip offers remote firing capability and focus control, allowing you to capture blur-free images with ease
- Pistol grip designed for one-handed shooting, and features both a highly sensitive shutter release control and extendable cable release
- Optional pole extension gives you extra reach when shooting at certain angles
- Stripped down to essentials, housing is half the weight of original dive enclosures to afford easier maneuvering
- Lens Port System
-
Ships without a required lens port, and accepts interchangeable ports for various Canon lenses:- Flat Acrylic Port for EF 24mm f/2.8 IS USM, 24mm f/1.4 L USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- 6" Polycarbonate Dome for EF 15 mm f/2.8 Fisheye
- 5" Optical Glass Dome for 8-15mm f/4 L USM Fisheye
- Flat Acrylic Port for EF-S 18-135 mm f/3.5-5.6 IS, 18-135 mm f/3.5-5.6 IS STM, and 18-135 mm f/3.5-5.6 IS USM
- Flat Acrylic Port for EF 24-70mm f/2.8 L USM
- Flat Acrylic Port for EF 24-70mm F/2.8 L II USM
- 5" Optical Glass Dome for EF-S 10-22mm f/3.5-4.5 USM
- 5" Optical Glass Dome for EF 24mm f/1.4L II USM
- Flat Acrylic Port for EF 24-105mm f/4L IS USM
- Flat Acrylic Port for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- 5" Optical Glass Dome for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- Flat Acrylic Port for EF 17-40mm f/4 L USM
- 5" Optical Glass Dome for EF 17-40mm f/4L USM
- Flat Acrylic Port for EF-S 17-85 mm f/4-5.6 IS USM
- Flat Acrylic Port for EF 15-85mm f/3.5-5.6 IS USM
- Flat Glass Port for EF-S 18-55mm f/3.5-5.6 II, 18-55mm f/3.5-5.6 II USM, 18-55mm f/3.5-5.6 IS, 18-55mm f/3.5-5.6 IS II, 18-55mm f/3.5-5.6 IS STM, 18-55mm DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro
- 5" Optical Glass Dome for EF-S 10-18mm f/4.5-5.6 IS STM
- Flat Acrylic Port for EF 70-200mm f/4L USM and 70-200mm f/4 L IS USM
- Strobe Connection and Operation
-
- Optional 5-pin, chromed brass connector can be installed to allow for attachment of an external strobe via sync cord
UPC: 810075021493 In the Box Nimar Water Sports Housing with Pistol Grip for Canon EOS 7D Mark II (Red/Clear) Pistol Grip Trigger Spare Main O-Ring Seal Silicone Grease for O-Rings Silica Gel Desiccant Soft Storage Bag Camera Plate/Mount Protective Cover for Bayonet Port Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing with Pistol Grip for Canon EOS 7D Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar Water Sports Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials/knobs, and lever | | Controls | Afford access to following camera functions:
Shutter
Start/stop video recording
AF-On
Set
Playback
Magnify
Joystick
Rear control dial
Q button | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chromed brass
Hooks/Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable ports for various lenses
See compatibility list in Overview | | Buoyancy | Housing Only: Positive
With Camera, Lens, and Port: May vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chromed brass connector can be installed for attachment of external strobe via sync cord | | Dimensions | Without Grip: 8.7 x 6.7 x 5.1" / 22 x 17 x 13 cm | | Weight | With Grip: 4.6 lb / 2.1 kg | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 13.0 x 11.0 x 9.0" |
