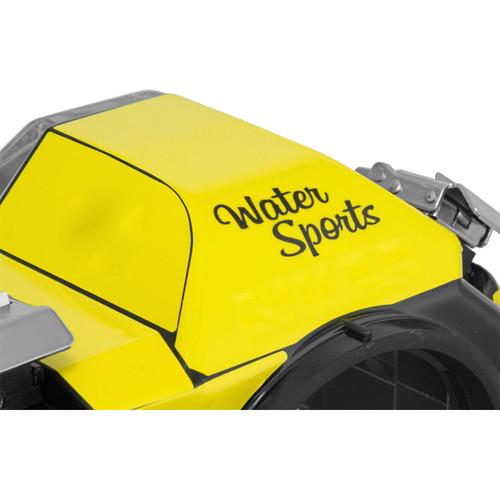

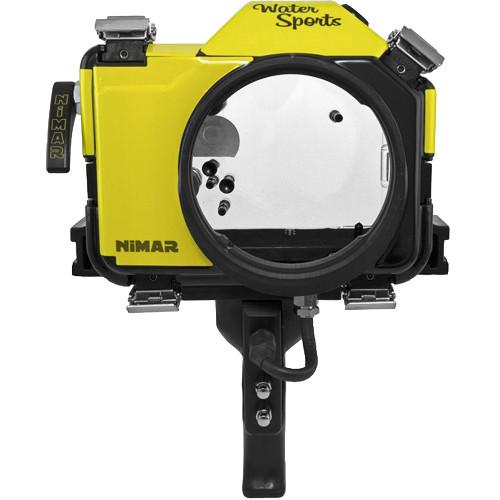

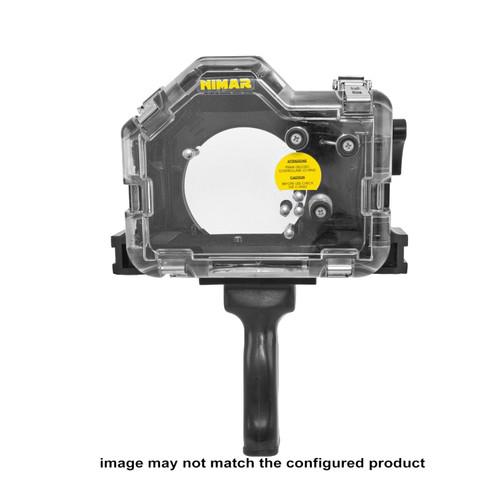

Product description With your Nikon D3300 DSLR Camera in Nimar's dedicated Water Sports Housing, you can capture brilliant photos and HD video above, on, and below the surface. This enclosure is equipped with a two-button pistol grip trigger that allows for one-handed aiming, maneuvering, and shooting without shaking the camera--thus ensuring clear, blur-free shots.
The housing features a depth rating of 197', which is the same as that of Nimar's original line of dive housings. However, this model is designed to help you photograph or record people surfing, water-skiing, and playing sports in shallow depths. Stripped down to just the essentials, it is half the weight of original dive housings, so it enables easier maneuvering. Mechanical push buttons, dials, and a lever allow for the operation of select camera controls, giving you access to what you need while simplifying the setup and shooting process.
Built for durability, the Water Sports Housing is constructed from corrosion-resistant polycarbonate that's yellow on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. The enclosure ships without a required lens port, and accepts interchangeable ports for a broad array of lenses. Additionally, an optional bulkhead can be installed to enable the connection of external strobes via sync cords. - Construction Details
-
- Depth rating: 197'
- Made from durable, corrosion-resistant polycarbonate that's yellow on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and camera
- Controls and Handling
-

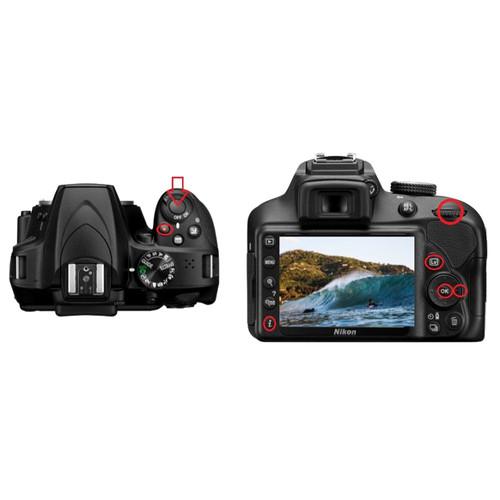

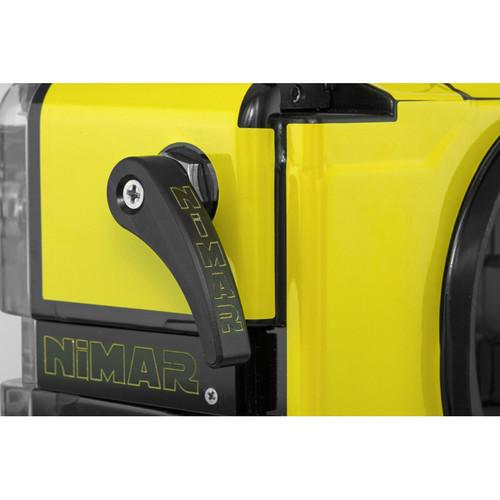

- Mechanical controls, including push buttons, dials, and a lever, afford access to the following camera functions: shutter, video recording, live view, command dial, multi-selector, OK, and i button (for changing display settings)
- Control set gives you what you need while simplifying the setup and shooting process

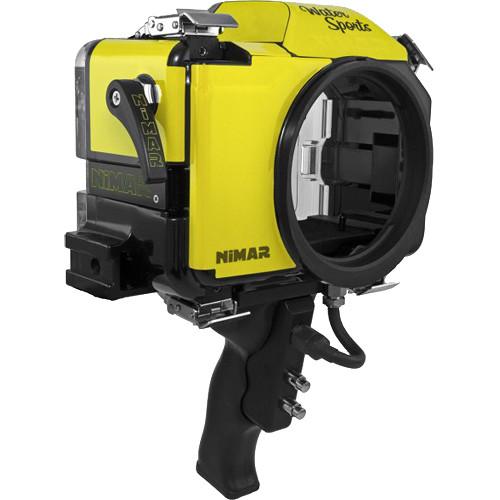

- Included 2-button pistol grip offers remote firing capability and focus control, allowing you to capture blur-free images with ease
- Lens Ports
-
- Ships without a required lens port, and accepts interchangeable ports for various lenses:
- NI320WS Flat Port for AF NIKKOR 24mm f/2.8D, 28mm f/2.8D, and 35mm f/2D, as well as AF-S DX NIKKOR 35mm f/1.8G and AF-S NIKKOR 50mm f/1.4 G
- NI31WS 6" Dome Port for AF-DX Fisheye NIKKOR 10.5mm f/2.8G ED and AF Fisheye NIKKOR 16mm f/2.8D
- NI34 Flat Port for AF-S-DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- NI35 Flat Port for AF-S-DX NIKKOR 16-85mm f/3.5-5.6G ED VR
- NI35NWS 5" Dome Port for Nikon AF-S DX 10-24mm f/3.5-4.5G ED
- NI35N1 Flat Port for AF-S-DX NIKKOR 16-80mm f/2.8-4E ED VR
- NI38 Flat Port for AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR, AF Micro NIKKOR 60mm f/2.8 D, and AF-S Micro NIKKOR 60mm f/2.8G ED
- NI38A Flat Port for AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED II, AF Micro NIKKOR 60mm f/2.8 D, and AF-S Micro NIKKOR 60mm f/2.8G ED
- NI38B Flat Port for AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR, AF Micro NIKKOR 60mm f/2.8 D, and AF-S Micro NIKKOR 60mm f/2.8G ED
- NI38N Flat Port for AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR II, AF Micro NIKKOR 60mm f/2.8 D, and AF-S Micro NIKKOR 60mm f/2.8G ED
- NI38Z Flat Port for AF-S DX NIKKOR 18-70mm f/3.5-4.5G IF-ED (3.8x)
- NI42 Flat Port for AF-S DX NIKKOR 24-85mm f/3.5-5.6G ED VR
- NI42A Flat Port for AF-S-DX NIKKOR 24-120mm f/3.5-5.6G ED VR
- NI46WS 5" Dome Port for AF-S DX Zoom NIKKOR 12-24mm f/4G IF ED
- NI48NWS Flat Port for AF-S 70-200mm f/4 G ED VR
- Strobe Connection and Operation
-
- Optional 5-pin, chrome-plated brass bulkhead can be installed to enable the connection of external strobes, which increase brightness and enhance color correction
- Strobes require sync cords
UPC: 810075021523 In the Box Nimar Water Sports Housing with Pistol Grip for Nikon D3300 (Yellow/Clear) Pistol Grip Trigger Spare Main O-Ring Seal Protective Cover for Bayonet Port Mount Soft Bag Silicone Grease Slide Mount for Camera Bag of Silica Gel Desiccant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing with Pistol Grip for Nikon D3300 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar Water Sports Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push buttons, dials, and a lever | | Controls | Provide Access to the Following Camera Functions: Shutter, video recording, live view, command dial, multi-selector, OK, and i button (for display settings) | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chrome-plated brass
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without required lens port
Accepts interchangeable ports for various lenses
See list in overview section for compatibility details | | Buoyancy | Housing Only: Positive
Complete System: May vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chrome-plated brass bulkhead for connection of strobes via sync cords | | Dimensions | Without Grip Handle: 8.7 x 6.7 x 5.1" / 22 x 17 x 13 cm | | Weight | With Grip Handle: 4.6 lb / 2.1 kg |
