User Manual for Nimar Water Sports Housing with Pistol Grip for Sony Alpha a7II, a7R II, or a7S II Click to enlarge the picture
Contents of the user manual for the Nimar Water Sports Housing with Pistol
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Water Sports Housing with Pistol contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

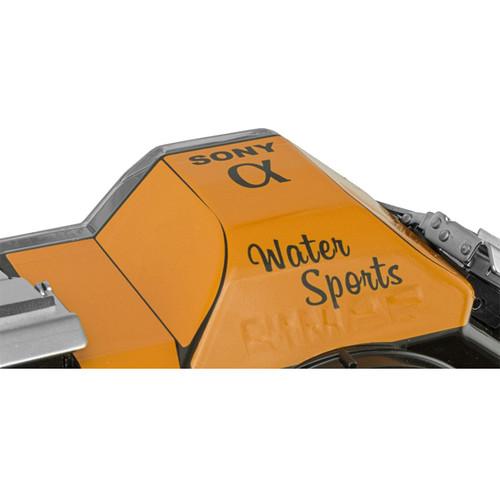

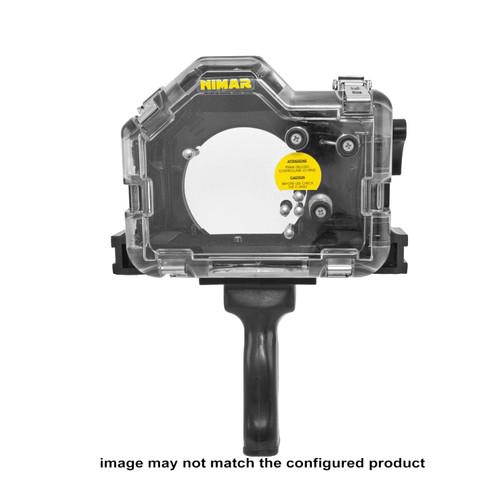

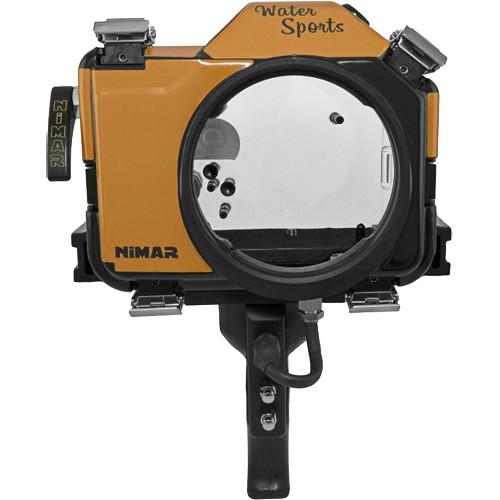

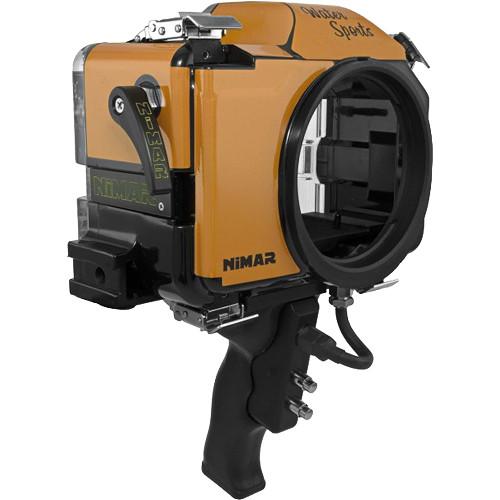

Product description Capture images and HD video above, on, and below the surface with Nimar's orange and clear Water Sports Housing for the Sony Alpha a7II, a7R II, or a7S II Mirrorless Digital Camera. This enclosure is equipped with a 2-button pistol grip trigger that allows for aiming, maneuvering, and image capture with a single hand, all without shaking the camera--thus ensuring clear, blur-free shots.
The housing features a depth rating of 197', which is the same as that of Nimar's original line of dive housings. However, this model is designed especially for active shooting in shallower depths and when capturing water-based activities such as surfing or water-skiing. Stripped down to just the essentials, it is half the weight of the original dive housings to afford easier maneuvering.

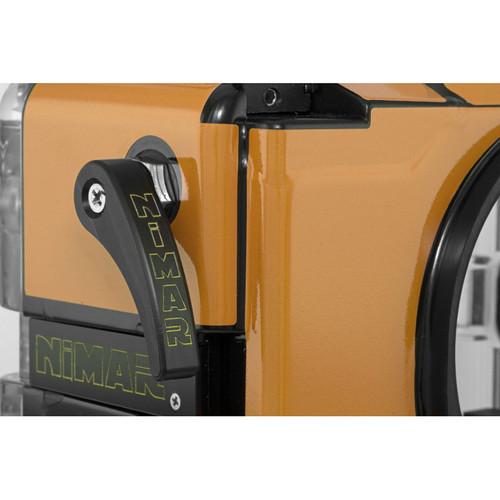

Mechanical push-buttons, dials, and a lever enable access to the camera's shutter, video recording, mode dial, rear control wheel, self-timer, drive mode, display, ISO, menu, and playback controls. This reduced set gives you what you need while simplifying the setup and shooting process, which can be a benefit when capturing water sports--especially with the supplied pistol grip.
Built for durability, the Water Sports Housing is constructed from corrosion-resistant polycarbonate that's orange on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. The enclosure ships without a required lens port, and accepts interchangeable ports for various lenses. For compatibility details, please see the list below. Additionally, an optional sync connector can be installed to allow for the attachment of an external strobe. - Construction Details
-
- Depth rating: 197'
- Made from durable, corrosion-resistant polycarbonate that's orange on top, front, and sides, but clear in back to allow you to monitor O-ring seal and camera
- Controls and Handling
-
- Mechanical controls, including push-buttons, dials/knobs, and a lever, enable access to following camera functions: shutter, video recording, mode dial, rear control wheel, self-timer, drive mode, display, ISO, menu, and playback
- Reduced control set gives you what you need while simplifying setup and shooting process, which can be a benefit when capturing water sports
- Included 2-button pistol grip offers remote firing capability and focus control, allowing you to capture blur-free images with ease
- Optional pole extension gives you extra reach when shooting at certain angles
- Stripped down to just essentials, this model is half the weight of original dive housings to afford easier maneuvering, and features one side grip handle instead of two
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable ports for various lenses:- Flat Acrylic Port for Sony FE 28mm f/2, Sonnar T* FE 35mm f/2.8 ZA, and Sonnar T* FE 55mm f/1.8 ZA
- Flat Acrylic Port for E PZ 18-105mm f/4 G OSS
- 5" Optical Glass Dome for Vario-Tessar T* FE 16-35mm f/4 ZA OSS
- 5" Optical Glass Dome for Sony E 10-18mm f/4 OSS
- Flat Acrylic Port for Sony E PZ 16-50mm f/3.5-5.6 OSS
- Flat Acrylic Port for Vario-Tessar T* FE 24-70mm f/4 ZA OSS
- Flat Acrylic Port for FE 28-70mm f/3.5-6 OSS
- Strobe Connection and Operation
-
- Optional 5-pin connector can be installed to allow for attachment of an external strobe via sync cord
UPC: 810075021561 In the Box Nimar Water Sports Housing with Pistol Grip for Sony Alpha a7II, a7R II, or a7S II (Orange/Clear) Removable Side Grip with Screw Spare Main O-Ring Seal Protective Cover for Bayonet Port Mount Soft Bag Silicone Grease for O-Rings Slide Mount for Camera Bag of Silica Gel Desiccant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Water Sports Housing with Pistol Grip for Sony Alpha a7II, a7R II, or a7S II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar Water Sports Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials/knobs, and lever | | Controls | Allow access to following camera functions:
Shutter
Video recording
Mode dial
Rear control wheel
Self-timer
Drive mode
Display
ISO
Menu
Playback | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chromed brass
Latches with Safety Clips: Aisi 316 stainless steel | | Lens Port | Ships without required port
Accepts interchangeable ports for various lenses | | Buoyancy | Slightly positive, though may vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chromed brass connector can be installed for attaching optional external strobe via sync cord | | Dimensions | Without Grip Handle: 8.7 x 6.7 x 5.1" / 22 x 17 x 13 cm | | Weight | With Grip Handle: 4.7 lb / 2.1 kg |
