User Manual for NiSi 100 x 150mm Horizon Line Graduated Neutral Density 1.2 Filter Click to enlarge the picture
Contents of the user manual for the NiSi 100 x 150mm Horizon Line
- Product category: Graduated Neutral Density NiSi
- Brand: NiSi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NiSi Graduated Neutral Density
 |
User manual for the NiSi 100 x 150mm Horizon Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NiSi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NiSi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NiSi product will considerably shorten its lifespan!
|

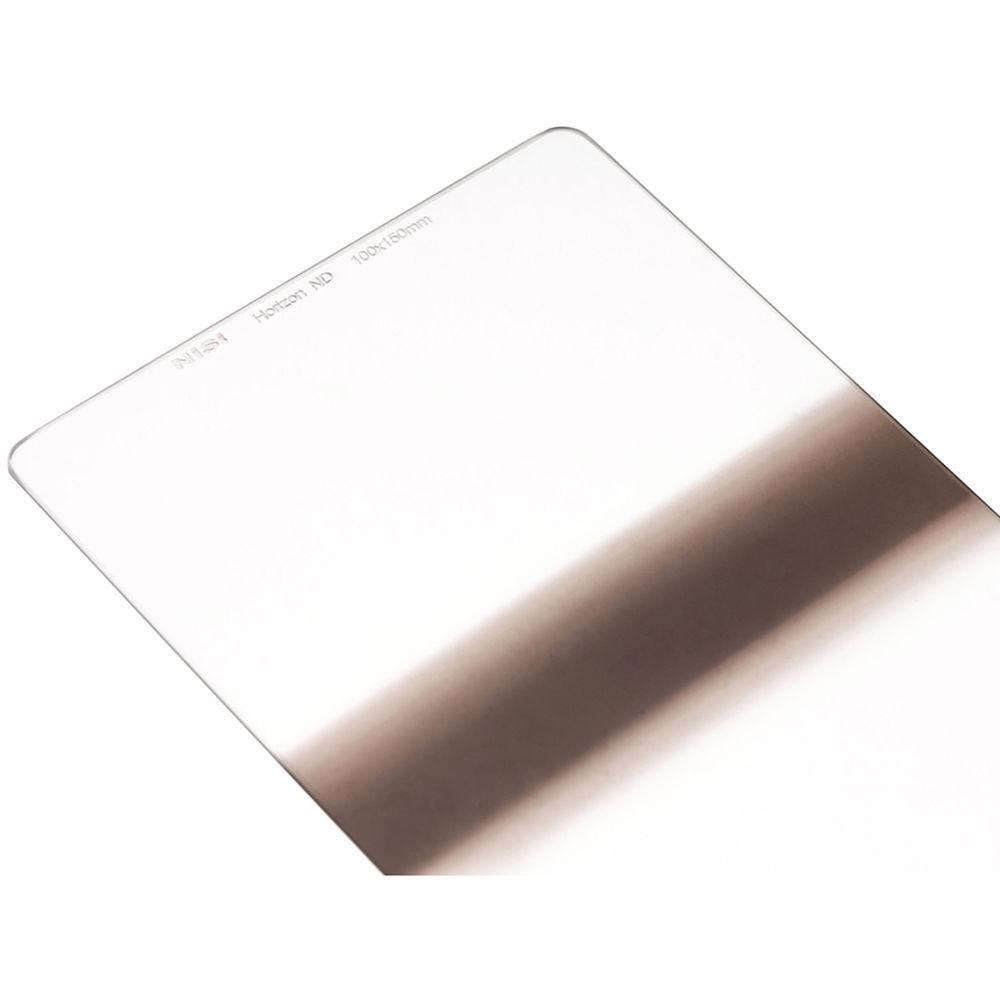

Product description How to Use ND Filters: Tips, Tricks, and Special Effects Read More dxwvacuatubcufwry The NiSi 100 x 150mm Horizon Line Graduated Neutral Density 1.2 Filter can be applied to darken the sky, specifically along the horizon during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image.

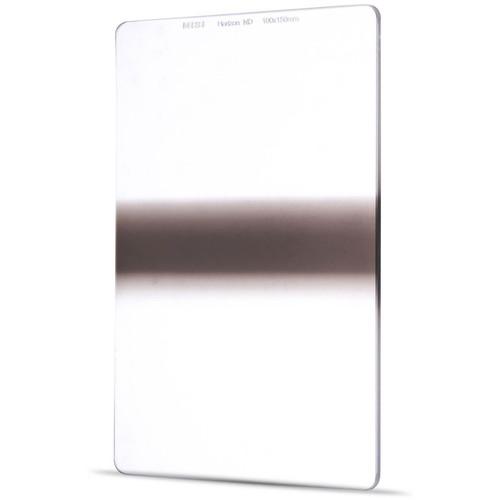

This filter achieves its effect with a 1.2 band of density across its center region that provides up to a 4-stop reduction in light from entering a lens. The band of density extends approximately 1.25" in both vertical directions before tapering to clear below and above, with soft-edged lines of transition before the clear areas. The clear areas then extend approximately 2.3" until they meet the top and bottom edges of the filter.
A narrow 1.2 band of density with larger clear areas directly above and below it allows the NiSi 100 x 150mm Horizon Line Graduated Neutral Density 1.2 Filter to specifically match the positioning of the sun when it is at, or immediately above, the horizon. In such instances, the sun will appear closer to the center of an image as opposed to the upper edge, and an increase in brightness is created which is much more prominent on both sides of the sun than either above or below it. This pattern of brightness corresponds to the density pattern on the 100 x 150mm Horizon Line Graduated Neutral Density Filter 1.2 Filter. The soft-edged lines of transition in this filter are useful for images that have features alongside the sun that cannot be confined within the band of density.

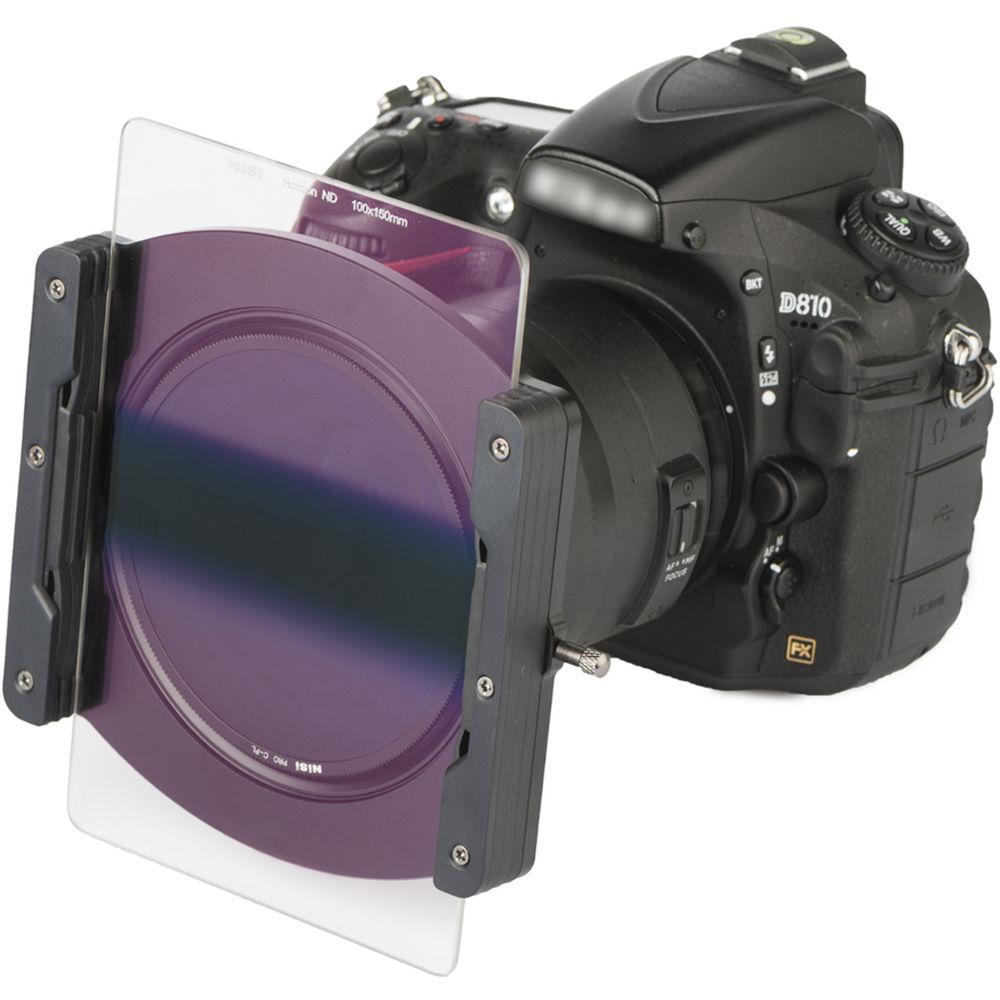

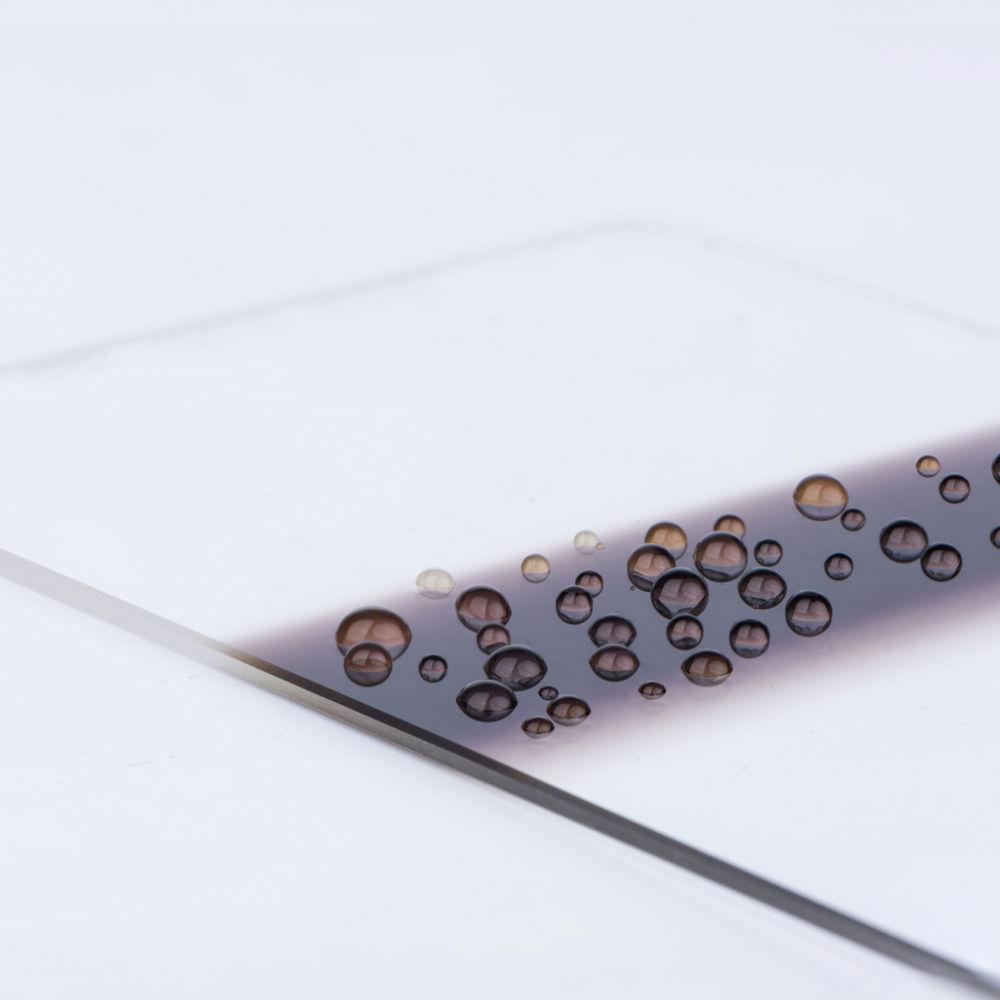

This filter is compatible with filter holders that can accommodate 2mm-thick, 100mm-wide rectangular filters and is constructed from optical glass for clarity as well as color fidelity. Each glass surface includes one layer of nano coating. The nano coating associated with this filter results in an improved beading effect when in contact with water or oil for greater cleaning efficiency.
A leatherette pouch is included with this filter for storage and transport. -
- Compatible with filter holders that can accommodate 2mm-thick, 100mm-wide filters
- Effectively darkens skies, specifically along the horizon during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image
- 4-stop band of density across filter that extends approximately 1.25" in both vertical directions before tapering to clear areas that extend 2.3" until they meet the top and bottom edges of the filter
- Creates a neutral density pattern that matches the positioning of the sun when it is at, or immediately above the horizon
- Density pattern to specifically match the brightness pattern of the sun when it appears at or is close to the horizon as opposed to a higher angle, which creates an increase in brightness that is much more prominent on both sides of the sun than either above or below it
- Soft-edged line of transition between the 4-stop band of density and the clear areas above and below it are useful for images that have features alongside the sun that cannot be confined within the band of density
- Filter does not affect the overall coloration of the image
- Constructed from optical glass for clarity
- Each glass surface includes one layer of nano coating that results in an improved beading effect when in contact with water or oil for greater cleaning efficiency
- Leatherette pouch included for storage and transport
In the Box NiSi 100 x 150mm Horizon Line Graduated Neutral Density 1.2 Filter (4 Stops) Filter Pouch Limited 1-Year Warranty Introduction to ND Filters: The Basics BH Online Videos 05/29/2015 How to Use ND Filters: Beyond the Basics BH Online Videos 05/29/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the NiSi 100 x 150mm Horizon Line Graduated Neutral Density 1.2 Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNiSi NIP-100-HZN1.2 Specs | Filter Type | Graduated ND | | Graduation Type | Strip | | Graduation Direction | Vertical | | Density | 1.2 (4 Stops) | | Shape | Rectangle | | Rectangular Size | 3.94 x 5.91" / 100.0 x 150.0 mm | | Filter Thickness | 0.08" / 2.0 mm | | Filter Material | Glass | | Coatings | Resistance Coating | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 8.75 x 6.85 x 0.75" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
