User Manual for NiSi 150mm Starter Filter Kit

• Product category: Filter Kits NiSi
• Brand: NiSi
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for NiSi Filter Kits

Product description

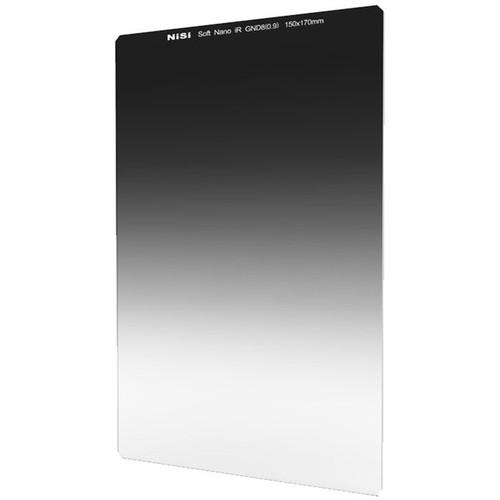

• 150 x 170mm Nano Soft-Edge Graduated IRND 0.9 Filter (3-Stop) The NiSi 150 x 170mm Nano Soft-Edge Graduated IRND 0.9 Filter is a rectangular filter that helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a soft-edged line of transition between the dense and clear areas. A neutral density filter with a soft-edged line of transition is particularly useful for images that do not have a strongly defined transition between the sky and the foreground. Neutral density filters do not affect the coloration of the image and this filter provides up to a 3-stop reduction in light from entering the lens.

  The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. To provide a high level of neutrality across the visible and infrared spectrums in order to eliminate color casts and ensure cleaner, truer blacks when using the NiSi 150 x 170mm Nano Soft-Edge Graduated IRND 0.9 Filter, one layer of NiSi Optical Nano Coating is applied to each of this filter's surfaces. The Nano coating associated with this filter also results in an improved beading effect when in contact with water or oil for greater cleaning efficiency.

  This NiSi 150 x 170mm Nano Soft-Edge Graduated IRND 0.9 Filter is constructed from optical glass for clarity as well as color fidelity, and measures 2mm thick.
  • 150 x 170mm graduated neutral density filter darkens bright areas of an image, such as skies, while leaving the remainder of the frame unaffected.
  • 8x filter factor provides up to a 3-stop reduction of light in selective areas.
  • Soft-edged line of transition between the dense and clear areas.
  • Useful for images that do not have a strongly defined transition between the sky and the foreground.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Each surface includes one layer of NiSi Optical Nano Coating that attenuates infrared light as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times.
  • Nano coating provides an improved beading effect with water or oil for more efficient cleaning.
  • Constructed from optical glass for clarity.
  • Leatherette pouch included for storage and transport.
• 150 x 150mm Nano IRND 1.8 Filter (6-Stop) The NiSi 150 x 150mm Nano IRND 1.8 Filter is an ND filter with a 64x filter factor that provides a 6-stop exposure reduction. Its 1.8 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.

  The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. To provide a high level of neutrality across the visible and infrared spectrums in order to eliminate color casts and ensure cleaner, truer blacks when using the NiSi 150 x 150mm Nano IRND 1.8 Filter, one layer of NiSi Optical Nano Coating is applied to each of this filter's surfaces. The Nano coating associated with this filter also results in an improved beading effect when in contact with water or oil for greater cleaning efficiency.

  This NiSi 150 x 150mm Nano IRND 1.8 Filter is constructed from optical glass for clarity as well as color fidelity, and measures 2mm thick.
  • 150 x 150mm neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 6-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Each surface includes one layer of NiSi Optical Nano Coating that attenuates infrared light as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times.
  • Nano coating provides an improved beading effect with water or oil for more efficient cleaning.
  • Constructed from optical glass for clarity.
  • Leatherette pouch included for storage and transport.

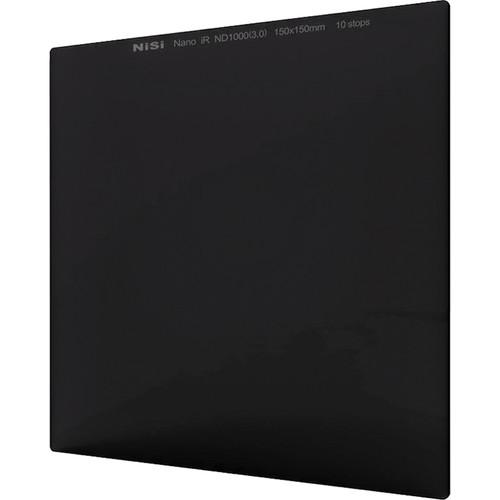

• 150 x 150mm Nano IRND 3.0 Filter (10-Stop) The NiSi 150 x 150mm Nano IRND 3.0 Filter is an ND filter with a 1,000x filter factor that provides a 10-stop exposure reduction. Its 3.0 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.

  The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. To provide a high level of neutrality across the visible and infrared spectrums in order to eliminate color casts and ensure cleaner, truer blacks when using the NiSi 150 x 150mm Nano IRND 3.0 Filter, one layer of NiSi Optical Nano Coating is applied to each of this filter's surfaces. The Nano coating associated with this filter also results in an improved beading effect when in contact with water or oil for greater cleaning efficiency.

  This NiSi 150 x 150mm Nano IRND 3.0 Filter is constructed from optical glass for clarity as well as color fidelity, and measures 2mm thick.
  • 150 x 150mm neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 10-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Each surface includes one layer of NiSi Optical Nano Coating that attenuates infrared light as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times.
  • Nano coating provides an improved beading effect with water or oil for more efficient cleaning.
  • Constructed from optical glass for clarity.
  • Leatherette pouch included for storage and transport.

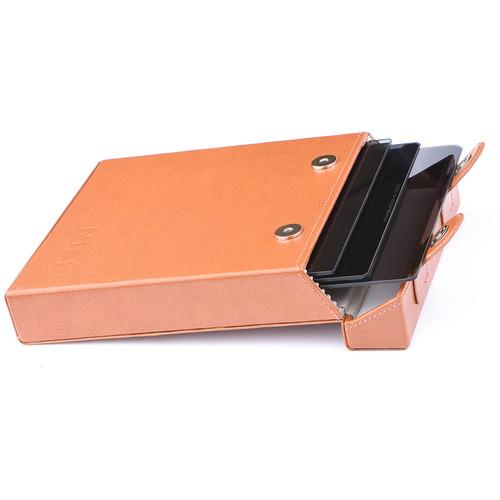

• NIP-C150 Filter Case The NIP-C150 Filter Case from NiSi is designed to provide a secure and convenient, transport and storage solution for any combination of up to six NiSi 150 x 150mm or 150 x 170mm filters. Filters placed within the NIP-C150 Filter Case are each held within one of six nonabrasive slots.

  This rigid filter case features a leatherette exterior and magnetic closure.

• Filter Pouch

• Limited 1-Year Warranty

• Filter Pouch

• Limited 1-Year Warranty

• Filter Pouch

• Limited 1-Year Warranty

• Limited 1-Year Warranty

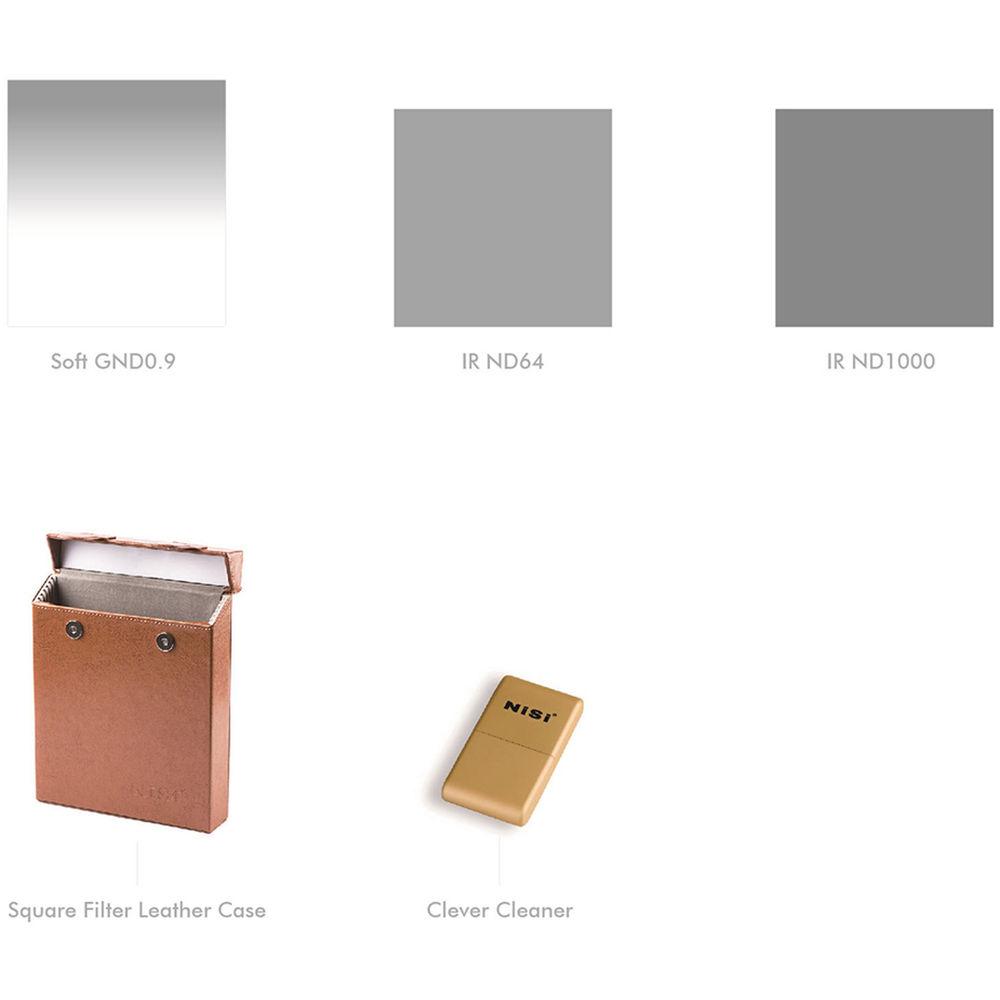

Also Includes

• Microfiber Cleaning Cloth
• Carbon-Compound Cleaning Eraser

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 150 x 170mm Nano Soft-Edge Graduated IRND 0.9 Filter (3-Stop)

  Filter Type	Graduated ND Combination
  Combination Type	IR Attenuation
  Graduation Type	Soft Edge
  Density	0.9 (3 Stops)
  Shape	Rectangle
  Rectangular Size	5.9 x 6.7" / 150.0 x 170.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	9.0 x 8.4 x 0.9"

• 150 x 150mm Nano IRND 1.8 Filter (6-Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	1.8 (6 Stops)
  Rectangular Size	5.9 x 5.9" / 150.0 x 150.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	9.0 x 8.4 x 0.9"

• 150 x 150mm Nano IRND 3.0 Filter (10-Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	3.0 (10 Stops)
  Rectangular Size	5.9 x 5.9" / 150.0 x 150.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	8.6 x 8.4 x 0.9"

• NIP-C150 Filter Case

  Filter Capacity	6 x 5.9 x 6.7" / 150 x 170 mm
  Exterior Dimensions	6.5 x 8.5 x 1.5" / 16.5 x 21.6 x 3.8 cm
  Weight	0.8 lb / 0.3 kg

  Box Dimensions (LxWxH)	7.6 x 6.2 x 1.4"
