User Manual for NiSi 6.6 x 6.6" Linear Polarizer Filter Click to enlarge the picture
Contents of the user manual for the NiSi 6.6 x 6.6" Linear Polarizer
- Product category: Polarizing NiSi
- Brand: NiSi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NiSi Polarizing
 |
User manual for the NiSi 6.6 x 6.6" Linear Polarizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NiSi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NiSi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NiSi product will considerably shorten its lifespan!
|
Product description - Nisi Filter Family - Cinematic Camera Filters
The NiSi 6.6 x 6.6" Linear Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A linear polarizer differs from a circular polarizer in that it does not contain an additional quarter wave plane. The addition of a quarter wave plane is to circularly polarize linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, in-camera auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
This filter is recommended when not using in-camera exposure metering or autofocus. It is made using a process that involves laminating a layer of polarizing film between 2 pieces of optical glass. The glass layers are then ground flat to maintain image sharpness. - Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
- Clears up haze in distant landscapes and provides more saturated, vivid colors.
- Strongest effect when used at a 90° angle from the sun.
- Recommended when not using in-camera exposure metering or autofocus.
- 2 to 2.8x filter factor reduces exposure by +1 to 1.5 stops.
- Constructed using optical glass for clarity.

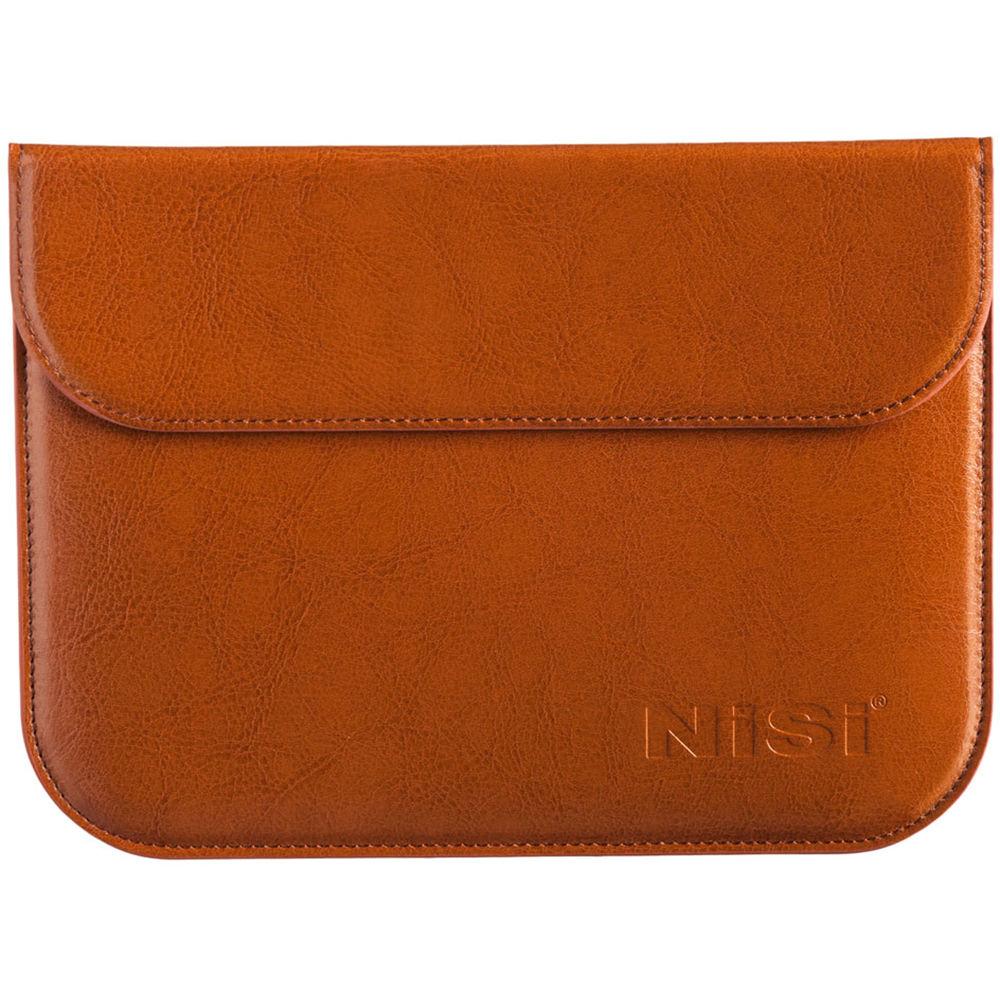

- Leatherette pouch included for storage and transport.
In the Box NiSi 6.6 x 6.6" Linear Polarizer Filter Filter Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NiSi 6.6 x 6.6" Linear Polarizer Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNiSi NIC-66-POLA Specs | Filter Type | Linear Polarizer | | Filter Factor | 2 - 2.8 (1 - 1.5 Stop) | | Shape | Rectangle | | Rectangular Size | 6.6 x 6.6" / 167.6 x 167.6 mm | | Filter Thickness | 0.2" / 5 mm | | Filter Material | Glass | | Coatings | None | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.8 x 8.4 x 0.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
