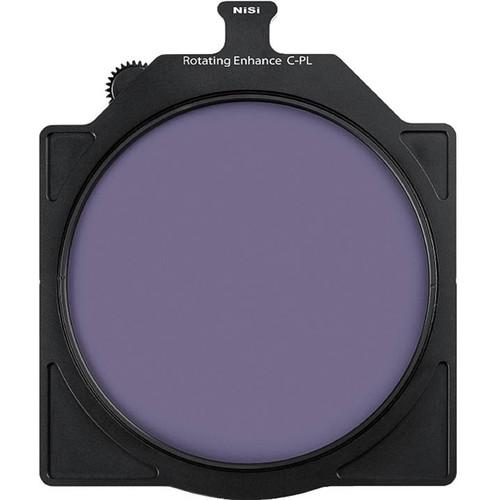

User Manual for NiSi 6.6 x 6.6" Rotating Enhanced Circular Polarizer Filter Click to enlarge the picture
Contents of the user manual for the NiSi 6.6 x 6.6" Rotating Enhanced
- Product category: Polarizing NiSi
- Brand: NiSi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NiSi Polarizing
|
User manual for the NiSi 6.6 x 6.6" Rotating Enhanced contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NiSi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NiSi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NiSi product will considerably shorten its lifespan!
|
Product description The NiSi 6.6 x 6.6" Rotating Enhanced Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
The NiSi 6.6 x 6.6" Rotating Enhanced Circular Polarizer Filter is designed to provide a saturation effect that is approximately 25% greater than a NiSi 6.6 x 6.6" Rotating Circular Polarizer Filter. Constructed from optical glass, this filter is mounted within a 7mm-thick, 6.6 x 6.6" aluminum-alloy filter tray for use in matte boxes that can accommodate ARRI R2 filter rings. In order to adjust the intensity of the polarization effect, an external dial on the filter tray allows for the independent rotation of the circular polarizer. Each glass surface includes one layer of nano coating which results in an improved beading effect when in contact with water or oil for greater cleaning efficiency. - Compatible with matte boxes that can accommodate ARRI R2 filter rings.
- Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
- Clears up haze in distant landscapes and provides more saturated, vivid colors.
- Offers a saturation effect that is approximately 25% greater than a NiSi 6.6 x 6.6" Rotating Circular Polarizer Filter.
- Strongest effect when used at a 90° angle from the sun.
- 2 to 2.8x filter factor reduces exposure by +1 to 1.5 stops.
- Constructed from optical glass for clarity and mounted within an aluminum-alloy, 7mm-thick, 6.6 x 6.6" filter tray.
- Each glass surface includes one layer of nano coating that results in an improved beading effect when in contact with water or oil for greater cleaning efficiency.
- External dial on filter tray allows for the rotation of the polarizer filter to adjust the intensity of the polarization effect.
- Padded pouch included for storage and transport.
In the Box NiSi 6.6 x 6.6" Rotating Enhanced Circular Polarizer Filter Filter Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NiSi 6.6 x 6.6" Rotating Enhanced Circular Polarizer Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNiSi NIC-66-CPL-EN Specs | Filter Type | Circular Polarizer | | Filter Factor | 2 - 2.8 (1 - 1.5 Stop) | | Shape | Rectangle | | Rotating | Yes | | Rectangular Size | 6.6 x 6.6" / 167.6 x 167.6 mm | | Filter Thickness | 0.28" / 7 mm | | Filter Material | Glass | | Coatings | Resistance Coating | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.75 x 8.75 x 1.0" |
