User Manual for NiSi 70 x 100mm Nano Hard-Edge Reverse-Graduated IRND 0.9 to 0.15 Filter Click to enlarge the picture
Contents of the user manual for the NiSi 70 x 100mm Nano Hard-Edge
- Product category: Graduated Neutral Density NiSi
- Brand: NiSi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NiSi Graduated Neutral Density
|
User manual for the NiSi 70 x 100mm Nano Hard-Edge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NiSi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NiSi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NiSi product will considerably shorten its lifespan!
|
Product description How to Use ND Filters: Tips, Tricks, and Special Effects Read More bbczvvzararcvydyucsyuabz This Nano Hard-Edge Reverse-Graduated IRND 0.9 to 0.15 Filter from NiSi is designed for use with a NiSi M1 Filter Holder. It can be applied to darken bright skies, specifically during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image.
This filter achieves its effect with a 0.9 band of density across its center region that provides a 3-stop reduction in light from entering a lens. This band extends approximately 4mm in both vertical directions which tapers to a 0.15 density that provides a 0.5-stop reduction in light at the edge above it. Directly below the 0.9 band of density, it tapers to clear, with a hard-edged line of transition before the clear area.
The placement of a 0.9 band of density that tapers to a density of 0.15 above it with a clear area directly below, allows the NiSi 70 x 100mm Nano Reverse-Graduated IRND 0.9 to 0.15 Filter to match the positioning of the sun when it is at, or immediately above the horizon. In such instances, the sun can appear closer to the center of an image as opposed to the upper edge, and an increase in brightness is created that is more prominent on both sides of the sun than above it. This pattern of brightness corresponds to the density pattern on the NiSi 70 x 100mm Nano Hard-Edge Reverse-Graduated IRND 0.9 to 0.15 Filter. The hard-edged line of transition in this reverse, graduated neutral density filter is useful for hard transitions between the sky and land, while the 3-stop to 0.5-stop gradation is applicable to multiple regions of brightness within the sky. -
- Compatible with a NiSi M1 Filter Holder
- Effectively darkens bright skies, specifically during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image
- 3-stop band of density that tapers to a 0.5-stop density at the edge above it while directly above a clear area creates a neutral density pattern that matches the positioning of the sun when it is at, or immediately above the horizon
- 3-stop band of density extends approximately 4mm in both vertical directions
- Density pattern corresponds to the brightness pattern of the sun when it appears at or is closer to the horizon as opposed to a higher angle, which creates an increase in brightness that is more prominent on both sides of the sun than above it
- Hard-edged line of transition between the 3-stop band of density and the clear area below it is useful for hard transitions between the sky and land
- 3-stop to 0.5-stop gradation is applicable to multiple regions of brightness within the sky
- Filter does not affect the overall coloration of the image
- Each surface includes one layer of NiSi Optical Nano Coating that attenuates infrared light as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times
- Nano coating provides an improved beading effect with water or oil for more efficient cleaning
- Constructed from optical glass for clarity
- Leatherette pouch included for storage and transport

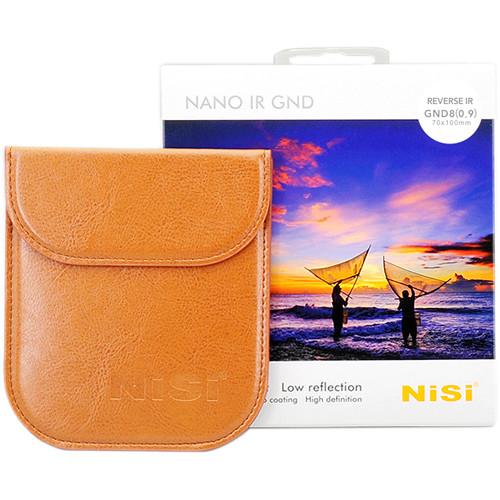

In the Box NiSi 70 x 100mm Nano Hard-Edge Reverse-Graduated IRND 0.9 to 0.15 Filter (3 to 0.5-Stop) Filter Pouch Limited 1-Year Warranty Introduction to ND Filters: The Basics BH Online Videos 05/29/2015 How to Use ND Filters: Beyond the Basics BH Online Videos 05/29/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the NiSi 70 x 100mm Nano Hard-Edge Reverse-Graduated IRND 0.9 to 0.15 Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNiSi NIP-70-RGND0.9 Specs | Filter Type | Graduated ND Combination | | Combination Type | IR Attenuation | | Graduation Type | Reverse | | Density | 0.9 (3 Stops) | | Shape | Rectangle | | Rectangular Size | 2.76 x 3.94" / 70.0 x 100.0 mm | | Filter Thickness | 0.08" / 2 mm | | Filter Material | Glass | | Coatings | Single-Coating |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
