User Manual for NiSi C4 Cinema Filter Holder Kit Click to enlarge the picture
Contents of the user manual for the NiSi C4 Cinema Filter Holder Kit
- Product category: Filter Holders & Frames NiSi
- Brand: NiSi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NiSi Filter Holders & Frames
 |
User manual for the NiSi C4 Cinema Filter Holder Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NiSi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NiSi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NiSi product will considerably shorten its lifespan!
|

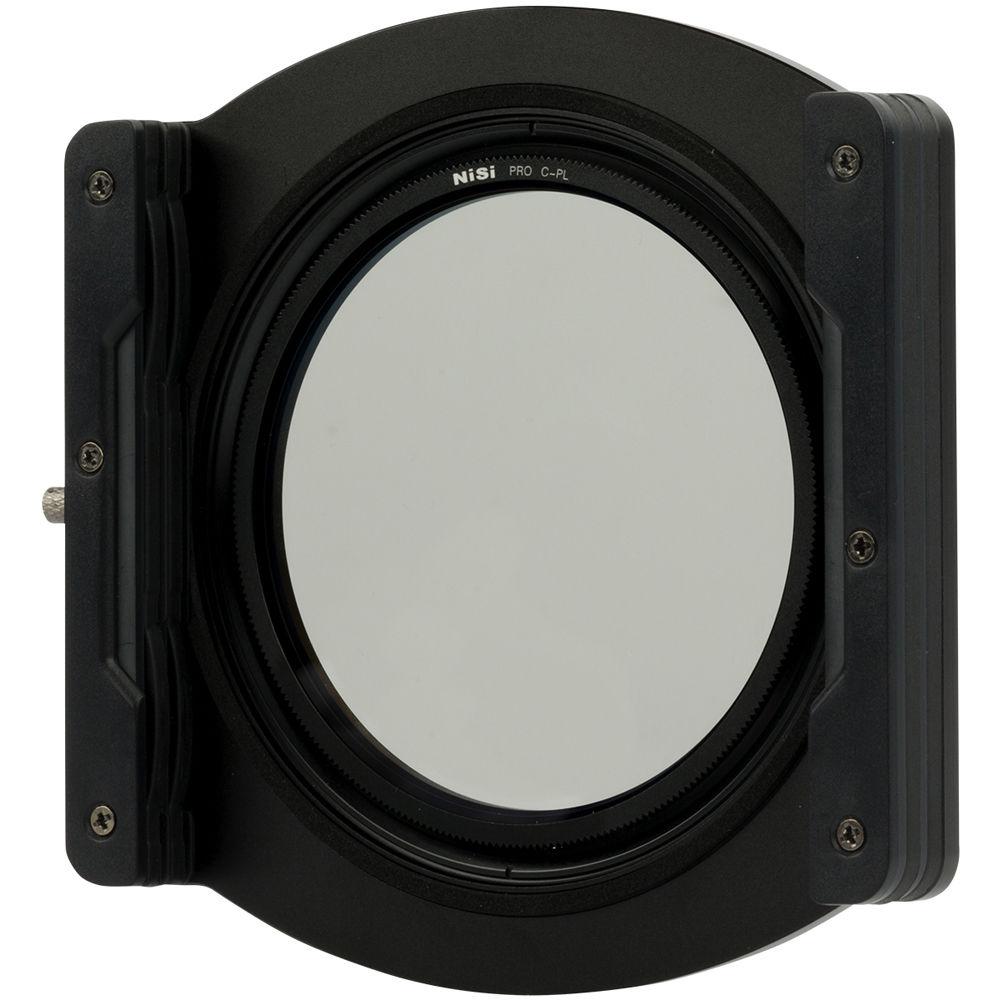

Product description The NiSi C4 Cinema Filter Holder Kit allows for the convenient use of up to two, separately-available 4"-wide, 4mm-thick filters along with an included circular polarizer. This kit comes fully assembled and features an aluminum-alloy filter holder that is pre-installed with two pairs of plastic filter slots, a configuration that accommodates two rectangular filters. Each slot is designed to grip an installed filter only along the surface of the filter's edges. Contact with a filter's front or rear-facing surfaces is avoided, particularly when using graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.

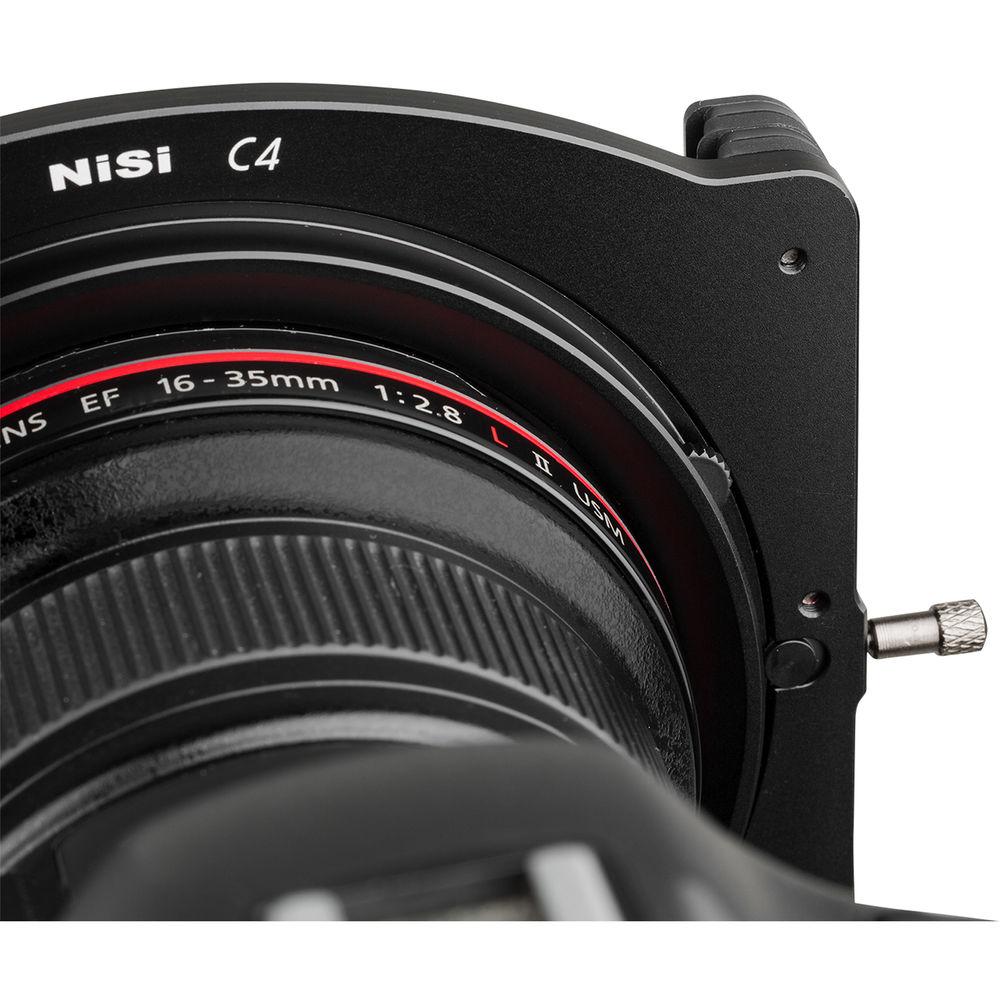

Use of the NiSi C4 Cinema Filter Holder Kit can be easily accomplished by first screwing the included 82mm adapter ring onto a lens with 82mm front filter threads. Step-up rings are included to allow the adapter ring to be used with lenses that have 67mm, 72mm, or 77mm front filter threads; while additional step-up rings are separately available for lenses with 49mm, 52mm, 55mm, 58mm, or 62mm front filter threads. After being fitted onto the adapter ring, the filter holder's pull-and-release locking lever helps to provide a reliable connection that allows the holder to be rotated 360°, further benefiting the use of graduated neutral density and other filters that are enhanced by varied positioning.

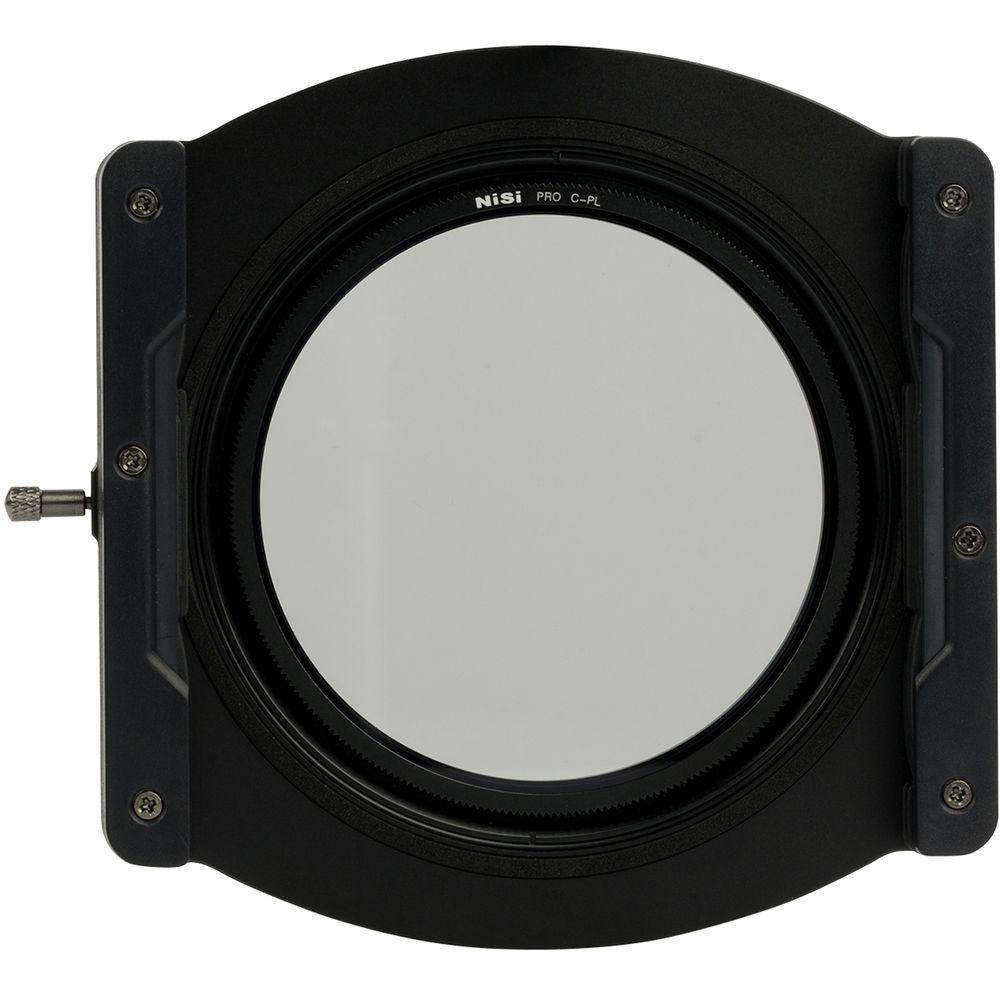

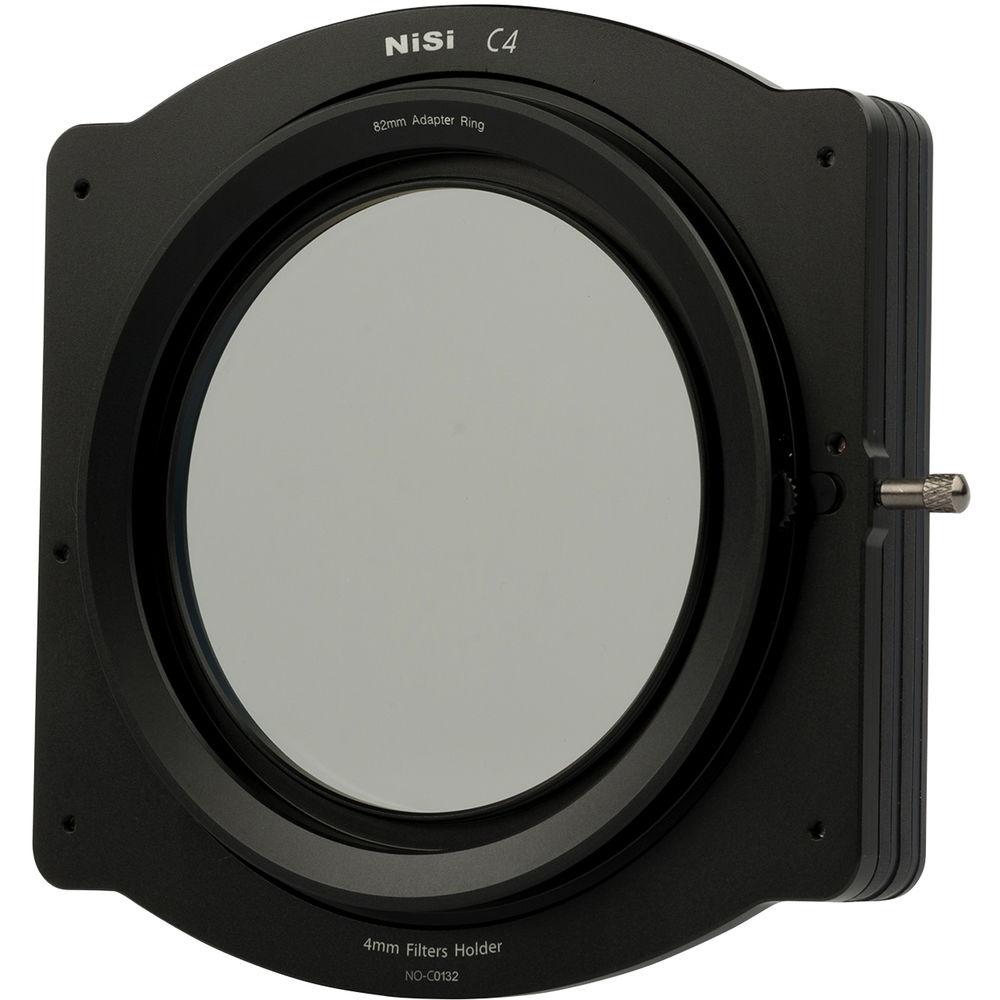

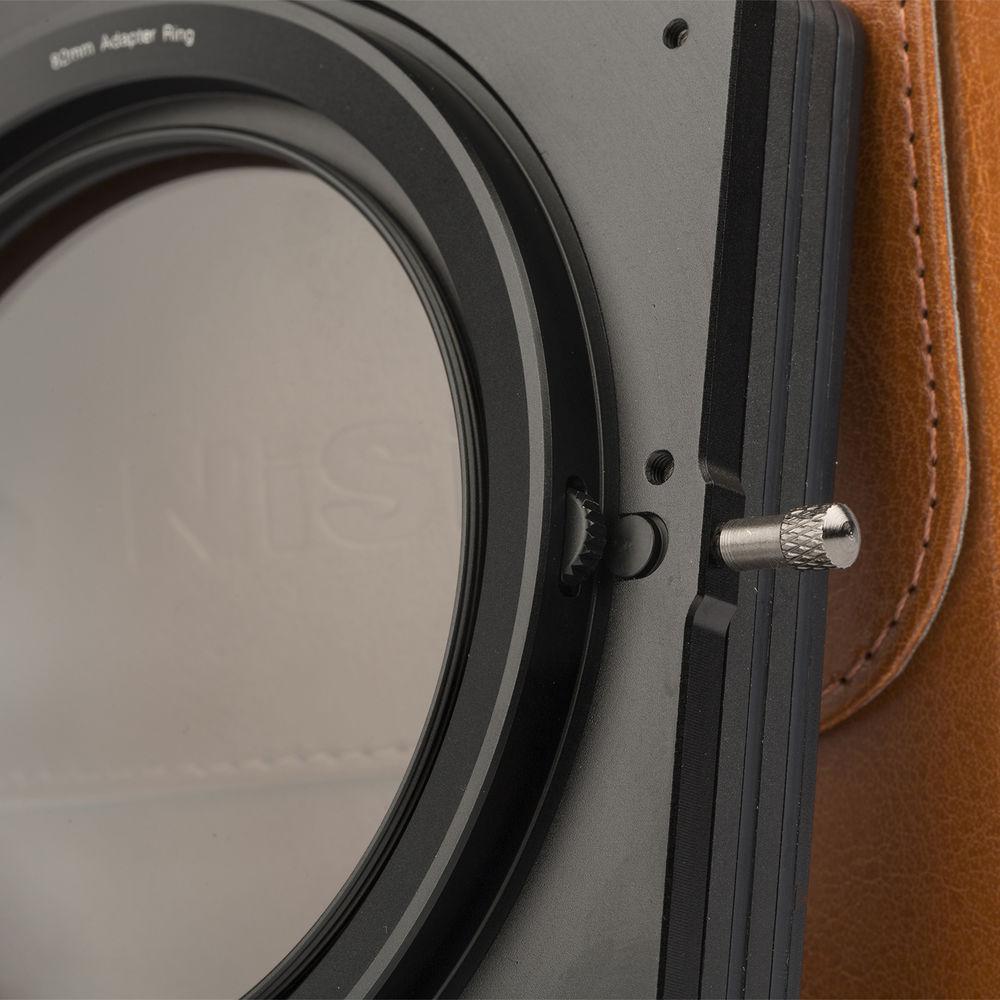

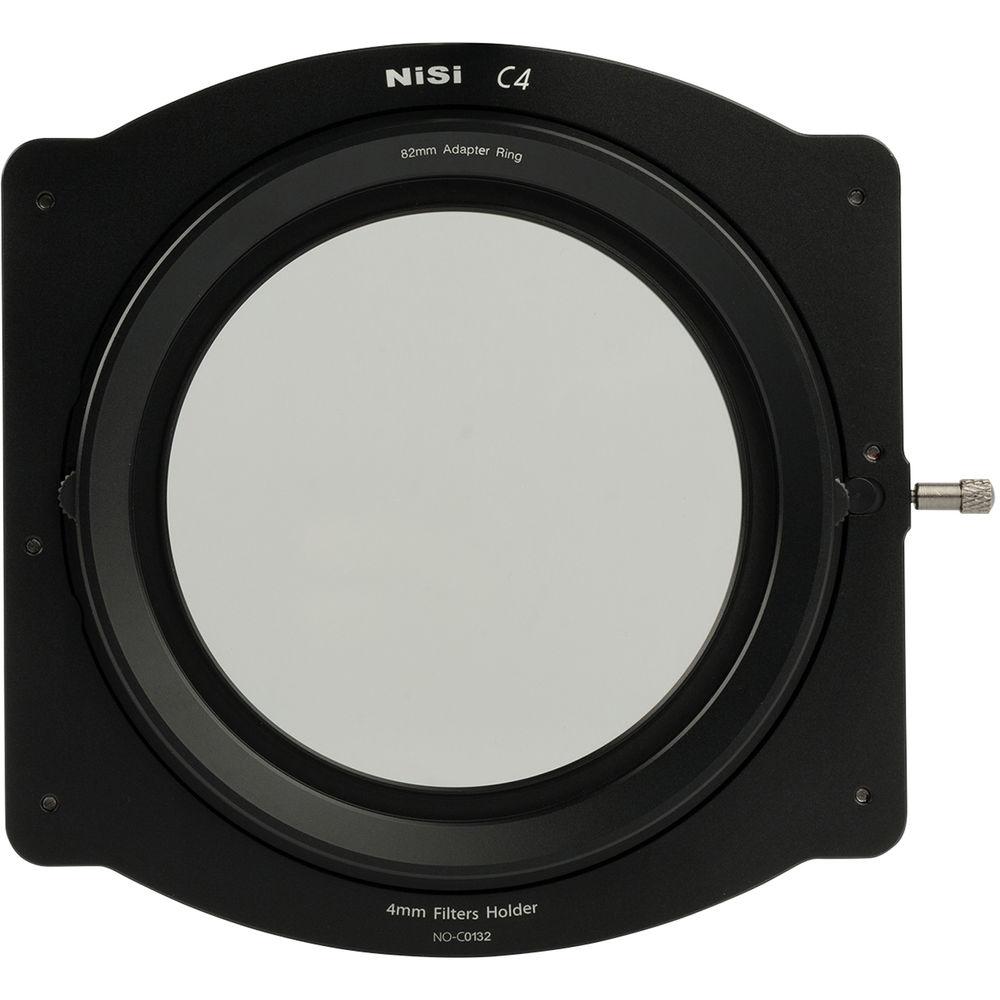

Together, the 82mm adapter ring and filter holder also accommodate the included NiSi 86mm circular polarizer filter while allowing that filter's edges to be easily gripped for convenient installation or removal. When combined with the filter holder and the adapter ring, as well as an optional step-up ring, the polarizer filter can be rotated to adjust its effect. In such instances, an external dial on the adapter ring allows for the independent rotation of the circular polarizer.
Adapter rings for lenses with 86mm or 95mm front filter threads are also separately available. The combination of either of those adapter rings with the filter holder cannot accommodate a NiSi 86mm circular polarizer filter; however, a polarization effect can instead be obtained by placing a separately available, 4"-wide, 4mm-thick polarizer filter between one pair of the filter holder's slots. -
- Durable aluminum-alloy filter holder provides two pairs of filter slots, a configuration that accommodates up to two, separately-available 4"-wide, 4mm-thick filters

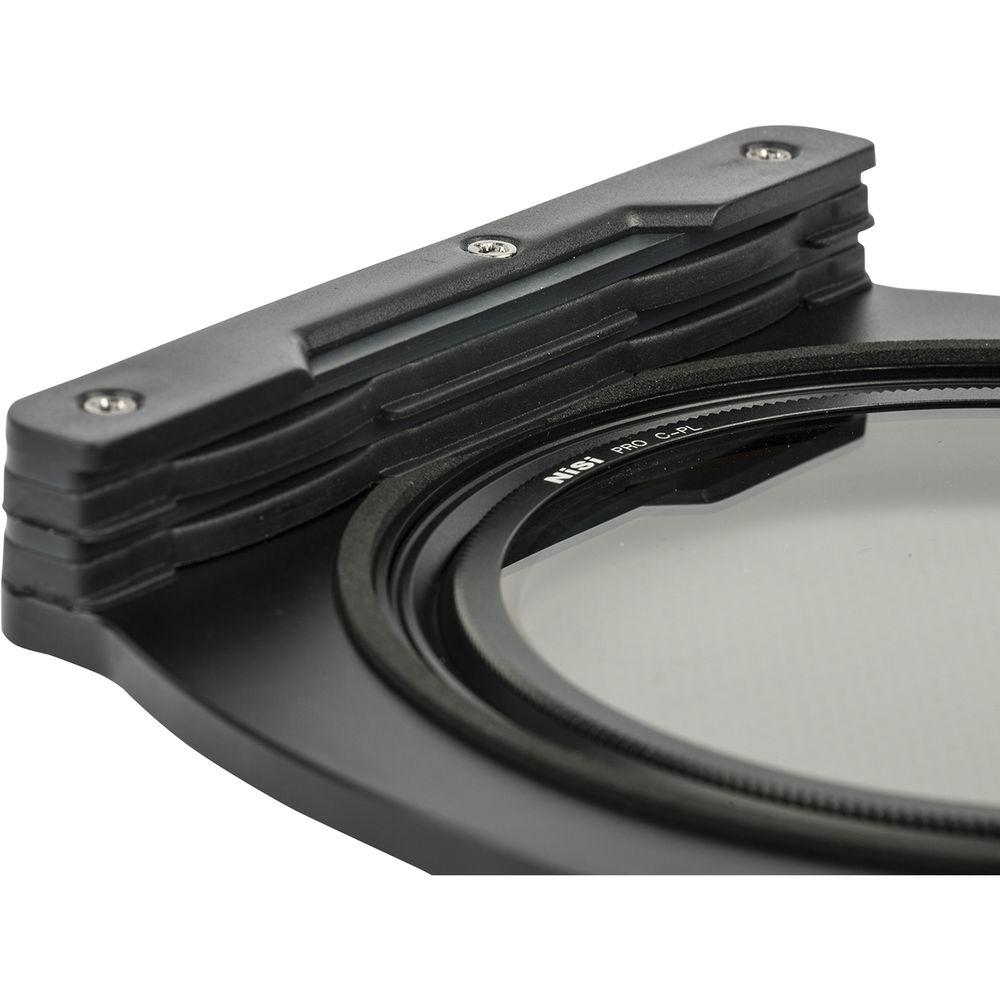

- Each slot is designed to grip an installed filter only along the surface of the filter's edges, avoiding contact with a filter's front or rear-facing surfaces
- Use of the filter holder can be easily accomplished by first screwing the included 82mm adapter ring onto a lens with 82mm front filter threads
- Included step-up rings allow 82mm adapter ring to be used with lenses that have 67mm, 72mm, or 77mm front filter threads
- Additional step-up rings are separately available for lenses with 49mm, 52mm, 58mm, or 62mm front filter threads
- Pull-and-release locking lever on filter holder allows for a reliable connection to the 82mm adapter ring which allows the holder to be rotated 360°
- 82mm adapter ring accommodates included NiSi 86mm circular polarizer filter and allows it to rotate for adjustment of its effect
- When combined, filter holder and 82mm adapter ring allow for easy installation or removal of the circular polarizer
- Additional adapter rings are separately available for lenses with 86mm or 95mm front filter threads

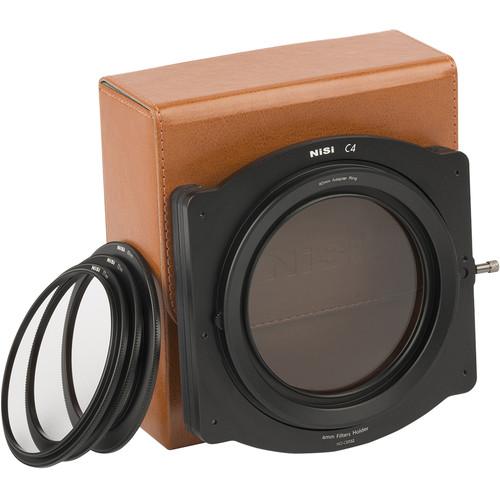

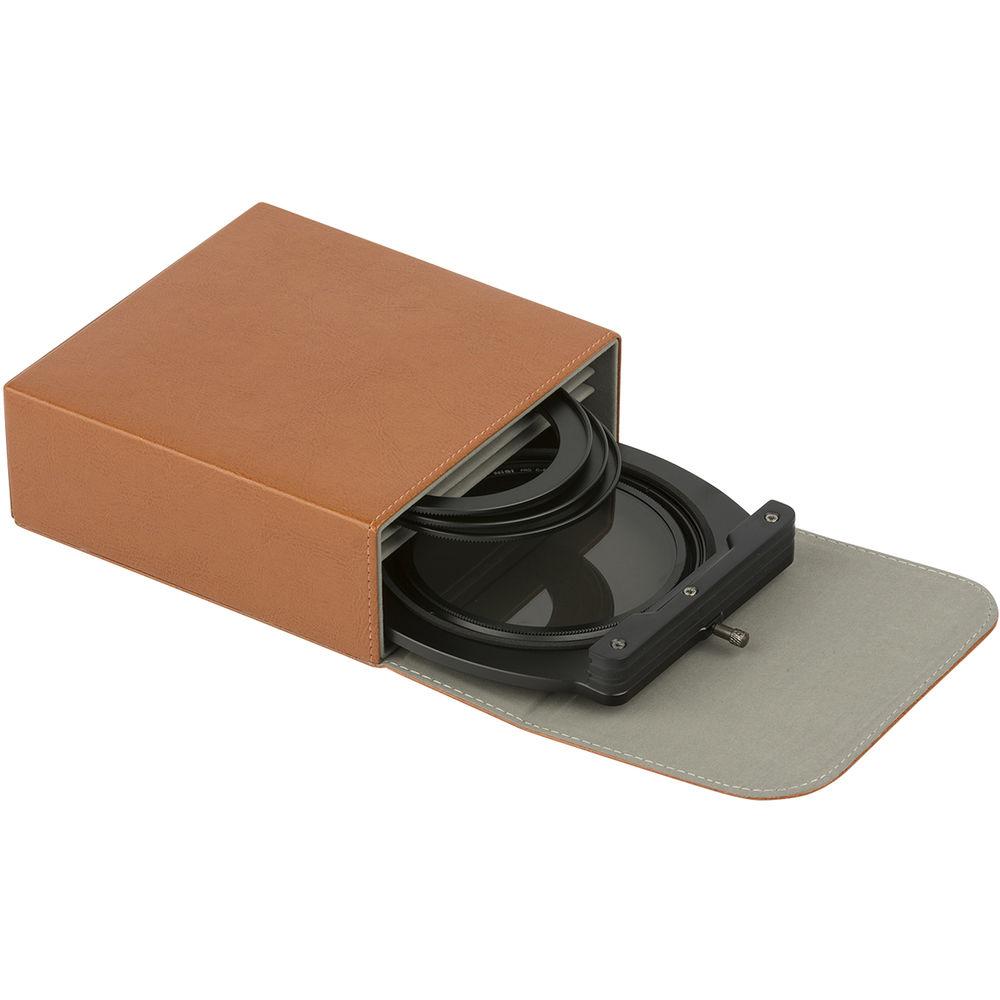

- Leatherette pouch included for storage and transport

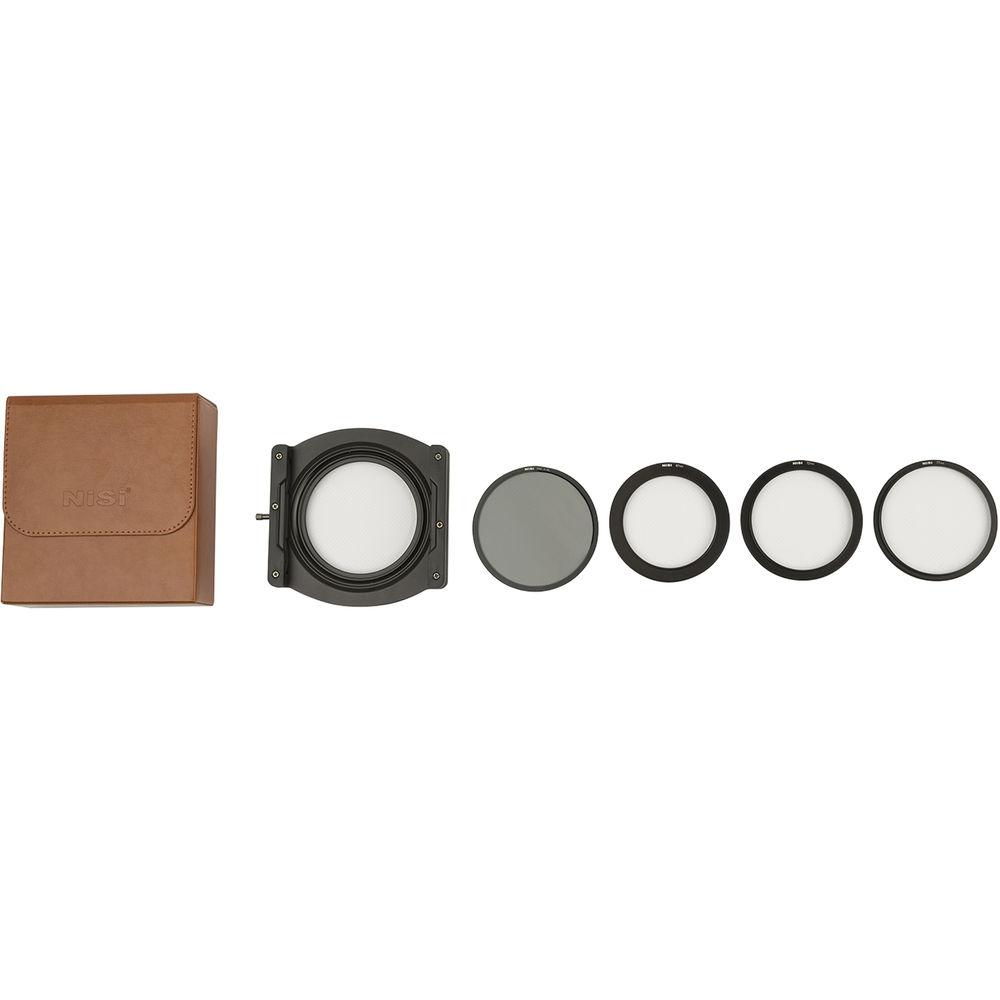

In the Box NiSi C4 Cinema Filter Holder Kit Filter Holder 4 x Filter Slot 6 x Screw 82mm Adapter Ring for C4 Cinema Filter Holder Kit and V5 100mm or V5 Pro 100mm Filter Holder Kits 67-82mm Step-Up Ring for C4 Cinema Filter Holder Kit and V5 100mm or V5 Pro 100mm Filter Holder Kits 72-82mm Step-Up Ring for C4 Cinema Filter Holder Kit and V5 100mm or V5 Pro 100mm Filter Holder Kits 77-82mm Step-Up Ring for C4 Cinema Filter Holder Kit and V5 100mm or V5 Pro 100mm Filter Holder Kits 86mm Circular Polarizer Filter for Select NiSi Filter Holder Kits Storage Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NiSi C4 Cinema Filter Holder Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNiSi NIC-44-C4 Specs | Compatible Lens | 67 mm, 72 mm, 77 mm, 82 mm | | Material | Aluminum, Plastic | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 6.6 x 5.5 x 2.6" |
