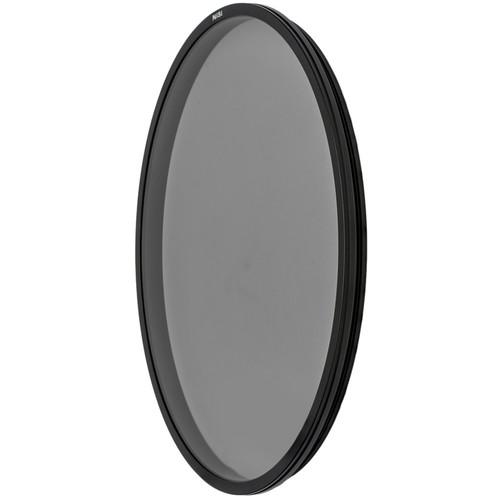

Product description How to Use ND Filters: Tips, Tricks, and Special Effects Read More This NiSi Pro Solid Neutral Density 1.8 and Circular Polarizer Filter is designed for use with a NiSi S5 150mm filter holder kit. It can screw into a NiSi S5 150mm filter holder adapter ring after the kit's included Pro Screw-In Circular Polarizer Filter has been removed. When in use, this filter's 64x filter factor provides a 6-stop exposure reduction. Its 1.8 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily.
Simultaneously, this filter can help to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
This filter is non-coated and is constructed from optical glass for clarity and features an aluminum alloy filter ring for durability while remaining lightweight. - Compatible with NiSi S5 150mm filter holder kits
- Can screw into a NiSi S5 150mm filter holder kit's filter holder adapter ring
- 1.8 neutral density filter effect darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required
- Providing a 64x filter factor with a 6-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily
- Polarizing filter effect arranges, and filters, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
- Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
- Clears up haze in distant landscapes and provides more saturated, vivid colors
- Strongest polarization effect when used at a 90° angle from the sun
- Circular polarizer effect is ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features
- Constructed from optical glass for clarity
- Aluminum alloy filter ring for durability while remaining lightweight
- Padded pouch included for storage and transport
In the Box NiSi Pro Solid Neutral Density 1.8 and Circular Polarizer Filter for NiSi S5 150mm Filter Holder Kits Filter Pouch Limited 1-Year Warranty Introduction to ND Filters: The Basics BH Online Videos 05/29/2015 How to Use ND Filters: Beyond the Basics BH Online Videos 05/29/2015 vfeqxwdezztartavwuyxcubq Table of Contents
|
Upload User Manual
Have you got an user manual for the NiSi Pro Solid Neutral Density 1.8 and Circular Polarizer Filter for NiSi S5 150mm Filter Holder Kits in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNiSi NIP-S5-ND1.8CPL Specs | Filter Type | Solid ND Combination | | Combination Type | Circular Polarizer | | Density | 1.8 (6 Stops) | | Rotating | Yes | | Filter Material | Glass | | Ring Material | Aluminum | | Coatings | None | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 8.0" |
