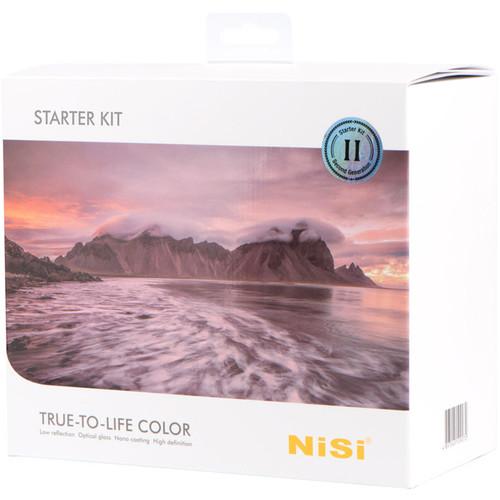

NiSi V5 Pro Starter Filter Kit

User Manual for NiSi V5 Pro Starter Filter Kit

• Product category: Filter Kits NiSi
• Brand: NiSi
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for NiSi Filter Kits

Product description

• V5 Pro 100mm Filter Holder Kit This NiSi V5 Pro 100mm Filter Holder Kit allows for the convenient use of up to three separately-available, 100mm-wide, 2mm-thick filters along with an included circular polarizer. This kit comes fully assembled and features an aluminum alloy filter holder that is pre-installed with three pairs of plastic filter slots, a configuration that accommodates three rectangular filters. Each slot is designed to grip an installed filter only along the surface of the filter's edges. Contact with a filter's front or rear-facing surfaces is avoided, particularly when using graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.

  Use of the NiSi V5 Pro 100mm Filter Holder Kit can be easily accomplished by first screwing the included 82mm adapter ring onto a lens with 82mm front filter threads. Step-up rings are included to allow the adapter ring to be used with lenses that have 67mm, 72mm, or 77mm front filter threads; while additional step-up rings are separately available for lenses with 49mm, 52mm, 55mm, 58mm, or 62mm front filter threads. After being fitted onto the adapter ring, the filter holder's pull-and-release locking lever helps to provide a reliable connection that allows the holder to be rotated 360°, further benefiting the use of graduated neutral density and other filters that are enhanced by varied positioning.

  Together, the 82mm adapter ring and filter holder also accommodate the included NiSi 86mm circular polarizer filter while allowing that filter's edges to be easily gripped for convenient installation or removal. When combined with the filter holder and the adapter ring, as well as an optional step-up ring, the polarizer filter can be rotated to adjust its effect. In such instances, an external dial on the adapter ring allows for the independent rotation of the circular polarizer.

  Adapter rings for lenses with 86mm or 95mm front filter threads are also separately available. The combination of either of those adapter rings with the filter holder cannot accommodate a NiSi 86mm circular polarizer filter; however a polarization effect can instead be obtained by placing a separately available, 100mm-wide, 2mm-thick polarizer filter between one pair of the filter holder's slots.
  • • Durable aluminum alloy filter holder provides three pairs of filter slots, a configuration that accommodates up to three, separately-available 100mm-wide, 2mm-thick filters
    • Each slot is designed to grip an installed filter only along the surface of the filter's edges, avoiding contact with a filter's front or rear-facing surfaces
    • Use of the filter holder can be easily accomplished by first screwing the included 82mm adapter ring onto a lens with 82mm front filter threads
    • Included step-up rings allow 82mm adapter ring to be used with lenses that have 67mm, 72mm, or 77mm front filter threads
    • Additional step-up rings are separately available for lenses with 49mm, 52mm, 58mm, or 62mm front filter threads
    • Pull-and-release locking lever on filter holder allows for a reliable connection to the 82mm adapter ring which allows the holder to be rotated 360°
    • 82mm adapter ring accommodates included NiSi 86mm circular polarizer filter and allows it to rotate for adjustment of its effect
    • When combined, filter holder and 82mm adapter ring allow for easy installation or removal of the circular polarizer
    • Additional adapter rings are separately available for lenses with 86mm or 95mm front filter threads
    • Leatherette pouch included for storage and transport
• 100x150mm Nano Soft-Edge Graduated IRND 0.9 Filter (3-Stop) The NiSi 100x150mm Nano Soft-Edge Graduated IRND 0.9 Filter is a rectangular filter that helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a soft-edged line of transition between the dense and clear areas. A neutral density filter with a soft-edged line of transition is particularly useful for images that do not have a strongly defined transition between the sky and the foreground. Neutral density filters do not affect the coloration of the image and this filter provides up to a 3-stop reduction in light from entering the lens.

  The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. To provide a high level of neutrality across the visible and infrared spectrums to eliminate color casts and ensure cleaner, truer blacks when using the NiSi 100 x 150mm Nano Soft-Edge Graduated IRND 0.9 Filter, one layer of NiSi Optical Nano Coating is applied to each of this filter's surfaces. The Nano coating associated with this filter also results in an improved beading effect when in contact with water or oil for greater cleaning efficiency.

  This NiSi 100x150mm Nano Soft-Edge Graduated IRND 0.9 Filter is constructed from optical glass for clarity as well as color fidelity, and measures 2mm thick.
  • 100x150mm graduated neutral density filter darkens bright areas of an image, such as skies, while leaving the remainder of the frame unaffected.
  • 8x filter factor provides up to a 3-stop reduction of light in selective areas.
  • Soft-edged line of transition between the dense and clear areas.
  • Useful for images that do not have a strongly defined transition between the sky and the foreground.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Each surface includes one layer of NiSi Optical Nano Coating that attenuates infrared light as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times.
  • Nano coating provides an improved beading effect with water or oil for more efficient cleaning.
  • Constructed from optical glass for clarity.
  • Leatherette pouch included for storage and transport.
• 100 x 100mm Nano IRND 1.8 Filter (6-Stop) The NiSi 100 x 100mm Nano IRND 1.8 Filter is an ND filter with a 64x filter factor that provides a 6-stop exposure reduction. Its 1.8 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.

  The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. To provide a high level of neutrality across the visible and infrared spectrums in order to eliminate color casts and ensure cleaner, truer blacks when using the NiSi 100 x 100mm Nano IRND 1.8 Filter, one layer of NiSi Optical Nano Coating is applied to each of this filter's surfaces. The Nano coating associated with this filter also results in an improved beading effect when in contact with water or oil for greater cleaning efficiency.

  This NiSi 100 x 100mm Nano IRND 1.8 Filter is constructed from optical glass for clarity as well as color fidelity, and measures 2mm thick.
  • 100 x 100mm neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 6-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Each surface includes one layer of NiSi Optical Nano Coating that attenuates infrared light as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times.
  • Nano coating provides an improved beading effect with water or oil for more efficient cleaning.
  • Constructed from optical glass for clarity.
  • Leatherette pouch included for storage and transport.
• 100 x 100mm Nano IRND 3.0 Filter (10-Stop) The NiSi 100 x 100mm Nano IRND 3.0 Filter is an ND filter with a 1,000x filter factor that provides a 10-stop exposure reduction. Its 3.0 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.

  The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. To provide a high level of neutrality across the visible and infrared spectrums in order to eliminate color casts and ensure cleaner, truer blacks when using the NiSi 100 x 100mm Nano IRND 3.0 Filter, one layer of NiSi Optical Nano Coating is applied to each of this filter's surfaces. The Nano coating associated with this filter also results in an improved beading effect when in contact with water or oil for greater cleaning efficiency.

  This NiSi 100 x 100mm Nano IRND 3.0 Filter is constructed from optical glass for clarity as well as color fidelity, and measures 2mm thick.
  • 100 x 100mm neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 10-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Each surface includes one layer of NiSi Optical Nano Coating that attenuates infrared light as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times.
  • Nano coating provides an improved beading effect with water or oil for more efficient cleaning.
  • Constructed from optical glass for clarity.
  • Leatherette pouch included for storage and transport.
• 100mm System All in One Case The 100mm System All in One Case from NiSi is made of a polyurethane leather, and the case has a top lid closure. The case accommodates eight 100 x 100 or 100 x 150mm filters along with a V5/V5 Pro Holder, circular polarizer, and three adapter rings. This strong and durable case can be worn over the shoulder with the included strap or on your waist via the belt loop.

• Filter Holder

• 6 x Filter Slot

• 6 x Screw

• 82mm Adapter Ring for C4 Cinema Filter Holder Kit and V5 100mm or V5 Pro 100mm Filter Holder Kits

• 67-82mm Step-Up Ring for C4 Cinema Filter Holder Kit and V5 100mm or V5 Pro 100mm Filter Holder Kits

• 72-82mm Step-Up Ring for C4 Cinema Filter Holder Kit and V5 100mm or V5 Pro 100mm Filter Holder Kits

• 77-82mm Step-Up Ring for C4 Cinema Filter Holder Kit and V5 100mm or V5 Pro 100mm Filter Holder Kits

• 86mm Circular Polarizer Filter for Select NiSi Filter Holder Kits

• Storage Pouch

• Limited 1-Year Warranty

• Filter Pouch

• Limited 1-Year Warranty

• Filter Pouch

• Limited 1-Year Warranty

• Filter Pouch

• Limited 1-Year Warranty

• Filter Spacers

• Shoulder Strap

• Limited 1-Year Warranty

Also Includes

• 82mm Adapter Ring Cap
• Air Blower
• Microfiber Cleaning Cloth
• Carbon-Compound Cleaning Eraser

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• V5 Pro 100mm Filter Holder Kit

  Filter Capacity	3 x 4 x 4", 4 x 6", 100 x 100 mm, 100 x 150 mm (2 mm Thick) and 1 x Round NiSi 86 mm
  Compatible Lens	67 mm, 72 mm, 77 mm, 82 mm
  Material	Aluminum, Plastic

  Box Dimensions (LxWxH)	6.5 x 5.5 x 2.7"

• 100x150mm Nano Soft-Edge Graduated IRND 0.9 Filter (3-Stop)

  Type	Graduated neutral density with IR attenuation
  Soft/Hard Edge	Soft
  Size	3.9x5.9" (100x150 mm) Thickness: 0.1" (2 mm)
  Density	0.9
  Filter Factor	8 (3-stop)
  Effect	Reduces exposure in select areas of an image and helps to attenuate IR contamination
  Construction	H-K9L optical glass

  Box Dimensions (LxWxH)	8.6 x 6.7 x 1.0"

• 100 x 100mm Nano IRND 1.8 Filter (6-Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	1.8 (6 Stops)
  Rectangular Size	3.94 x 3.94" / 100.0 x 100.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	6.8 x 6.8 x 0.9"

• 100 x 100mm Nano IRND 3.0 Filter (10-Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	3.0 (10 Stops)
  Rectangular Size	3.94 x 3.94" / 100.0 x 100.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	6.8 x 6.8 x 0.9"

• 100mm System All in One Case

  Filter Capacity	8 x 4 x 6" / 100 x 150 mm
  Exterior Material	Polyurethane

  Box Dimensions (LxWxH)	6.8 x 5.6 x 4.1"
