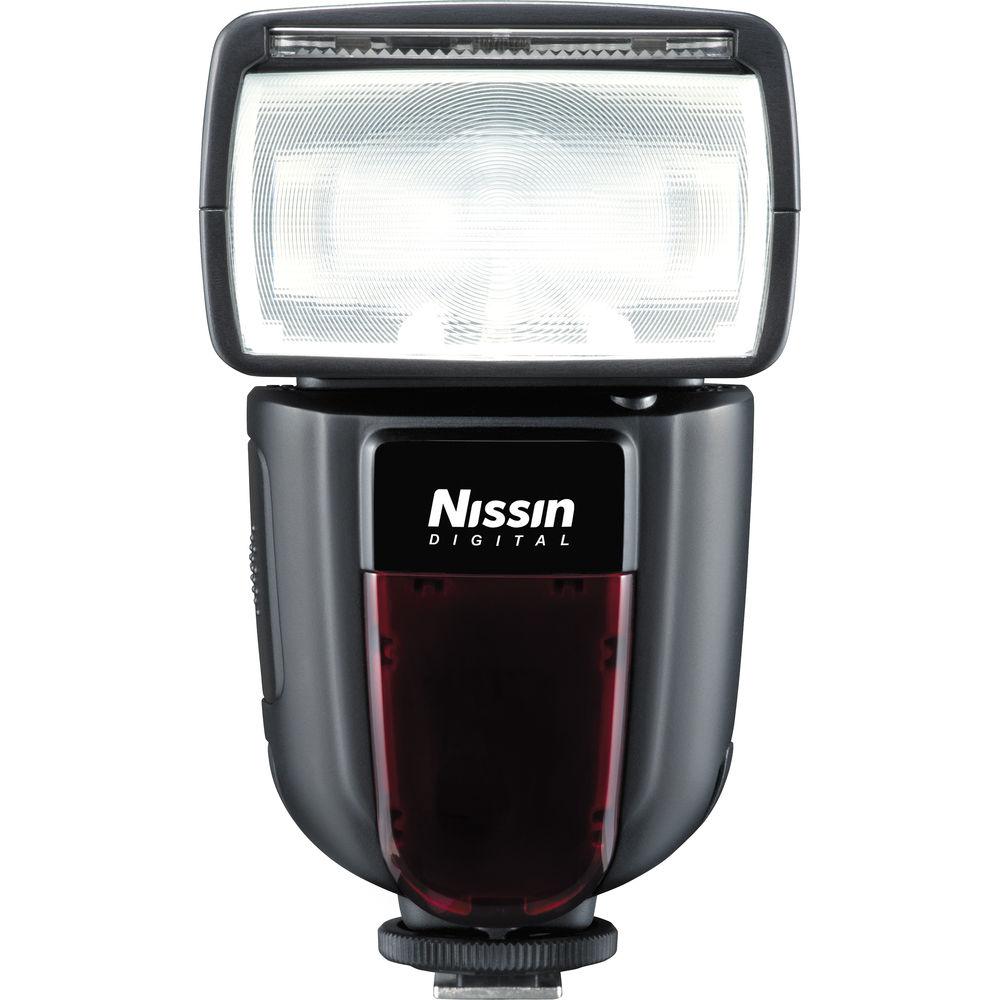

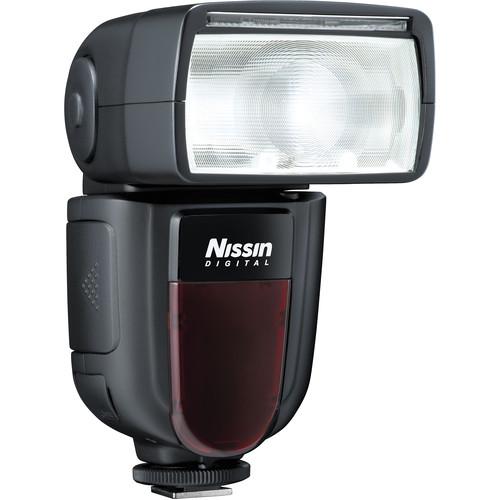

User Manual for Nissin Di700A Flash for Micro Four Thirds Cameras Click to enlarge the picture
Contents of the user manual for the Nissin Di700A Flash for Micro Four
- Product category: On Camera Flashes Nissin
- Brand: Nissin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nissin On Camera Flashes
 |
User manual for the Nissin Di700A Flash for Micro Four contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nissin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nissin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nissin product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More Free yourself from cables and optical alignment with the built-in Nissin Air System of the Nissin Di700A Flash, which provides reliable 2.4 GHz TTL triggering from up to 98' away. This system works with Micro Four Thirds cameras that feature TTL metering and offers wireless slave capabilities for off-camera flash use when using the optional Air 1 Commander. The Di700A is also a very capable flash with a guide number of 177' at ISO 100 and 200mm as well as a zoom range of 24-200mm, which can be controlled manually through the Commander. A built-in wide-angle panel is available for coverage of lenses down to 16mm on full frame.

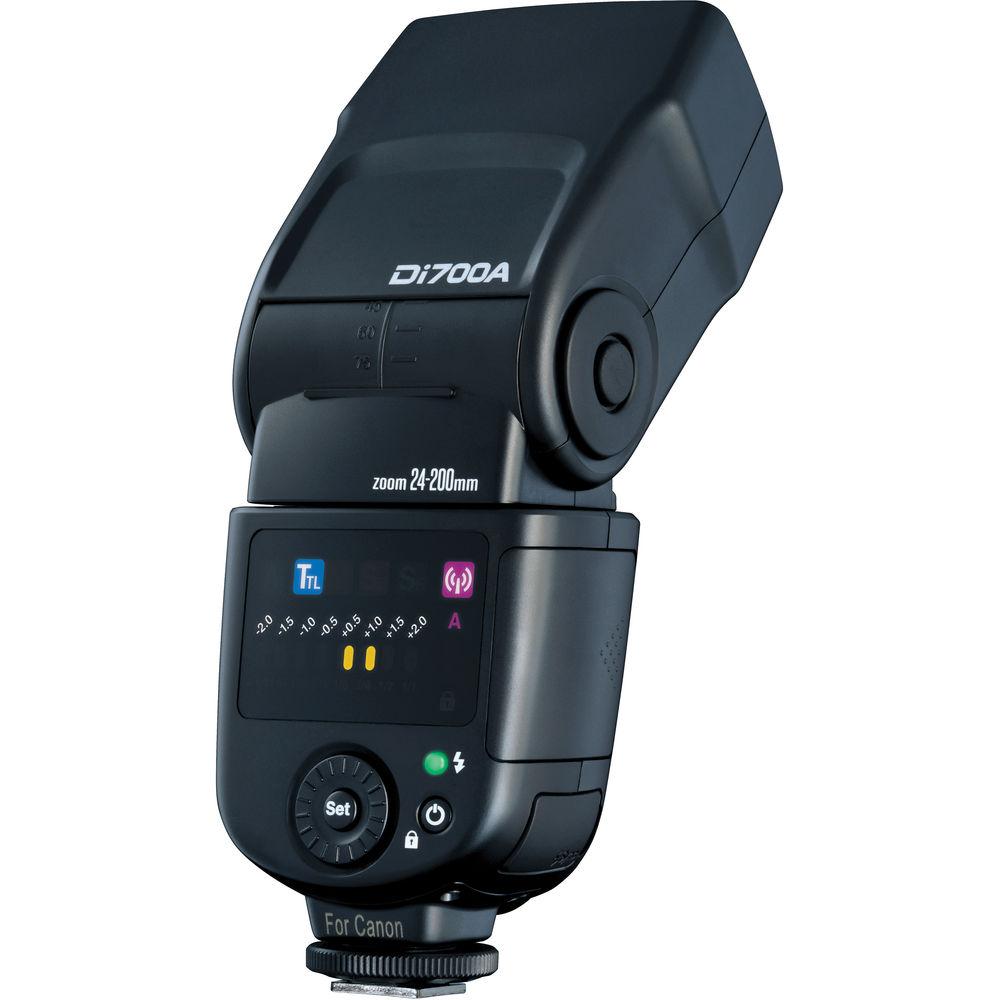

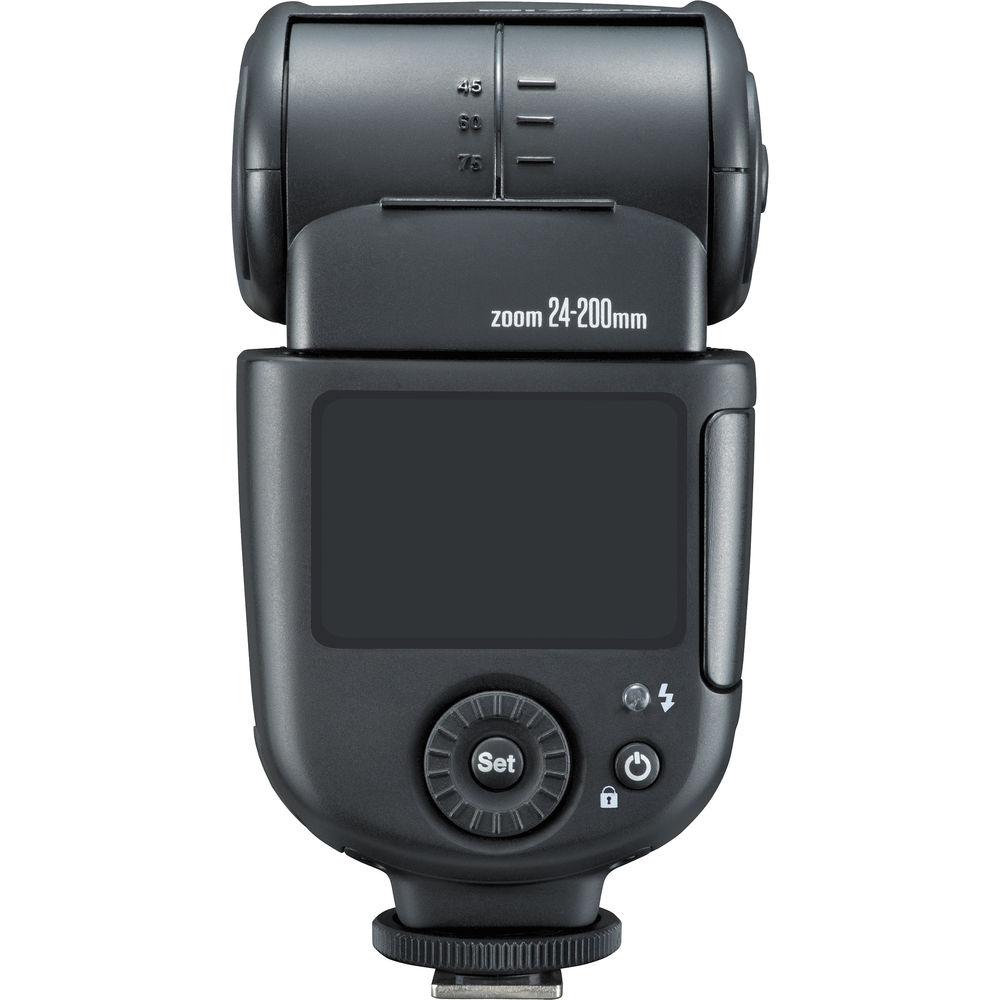

Bounce flash capabilities come in the form of tilting from -7 to 90° and rotating left & right 180° for a full 360° of coverage. Specific to this model is a color LED control panel that allows users to quickly and easy see and adjust settings. Also, it has support for high-speed, 1st & 2nd curtain sync modes and has a recycle time of 0.1 to 4 seconds. Additionally, it runs on 4 AA batteries and uses the BM-02 quick loading battery magazine. - Built-in pull out fill reflector panel
- Optical slave settings for instant sync or skip pre-flash for triggering without radio
- 3.5mm and PC sync terminals
- Socket for external power pack
- AF assist light with range of 2.3-19.7'
- Wireless mode features 8 channels and 3 groups
- Battery life of about 200-1500 flashes
- Color temperature of 5600K
UPC: 855747005401 In the Box Nissin Di700A Flash for Micro Four Thirds Cameras BM-02 Battery Magazine for Di700 Flash Flash Stand Soft Case Limited 2-Year USA Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Nissin Di700A Flash for Micro Four Thirds Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Nissin Di700A Flash for Micro Four Thirds Cameras can be downloaded in PDF format at the link stated below.
Technical parametersNissin Di700A Specs | Mount | Shoe | | Guide No. | 177.17' / 54 m ISO 100 at 200 mm Position | | Exposure Control | Four Thirds TTL, Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 16 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | 3.5 mm, PC | | Recycle Time | Approximately 0.1 to 4 Seconds | | Flash Duration | 1/800 to 1/30000 sec | | Flash-Ready Indicator | Yes | | Compensation | -2 EV to +2 EV (in 1/2 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m | | Wireless Communication Channels | 8 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Batteries | | Dimensions (W x H x D) | 5.5 x 3.0 x 4.5" / 140.0 x 75.0 x 115.0 mm | | Weight | 13.40 oz / 380 g without batteries | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.4 x 3.8 x 3.3" |
