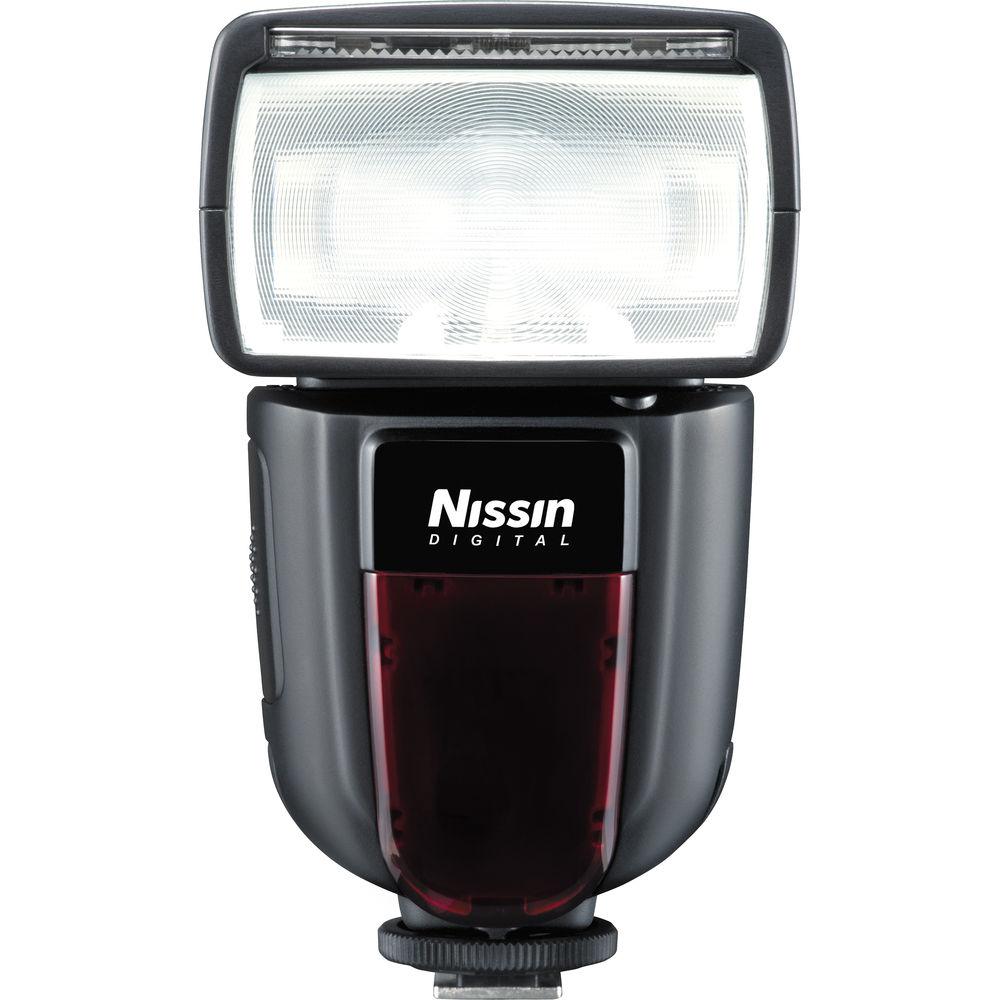

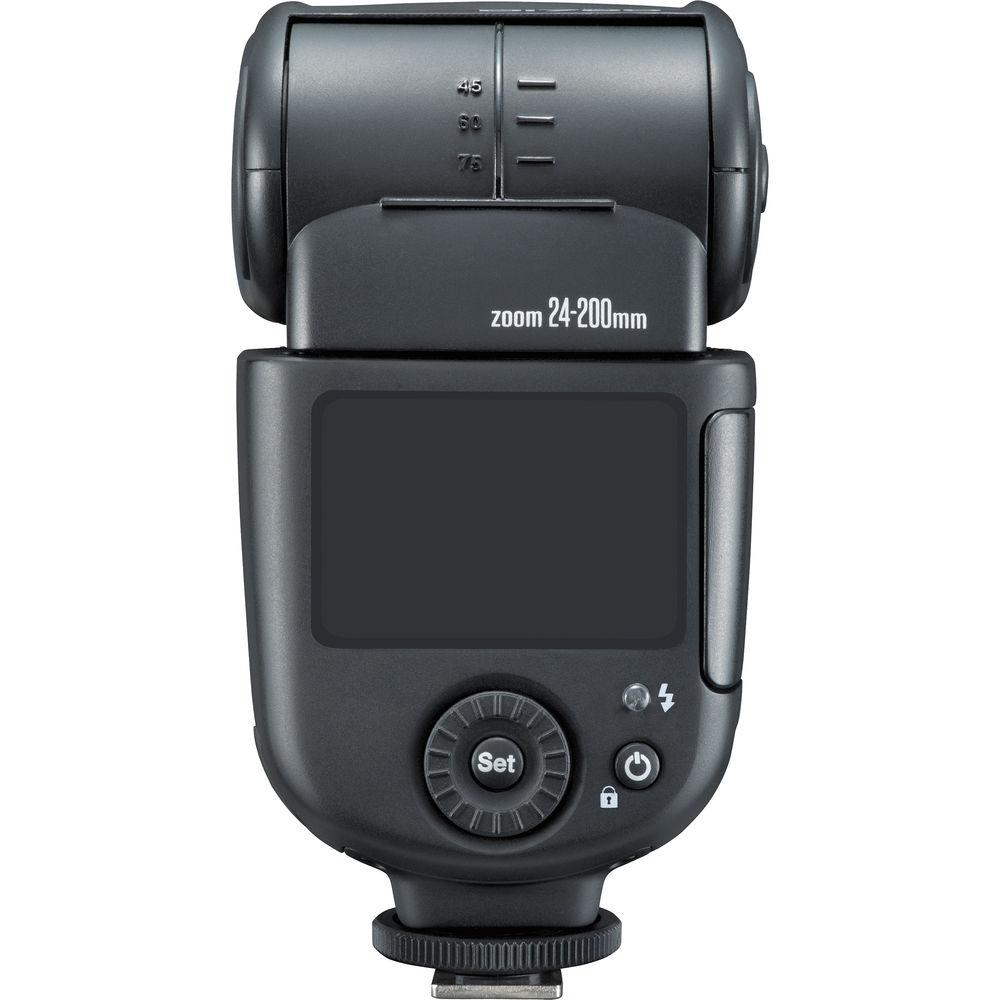

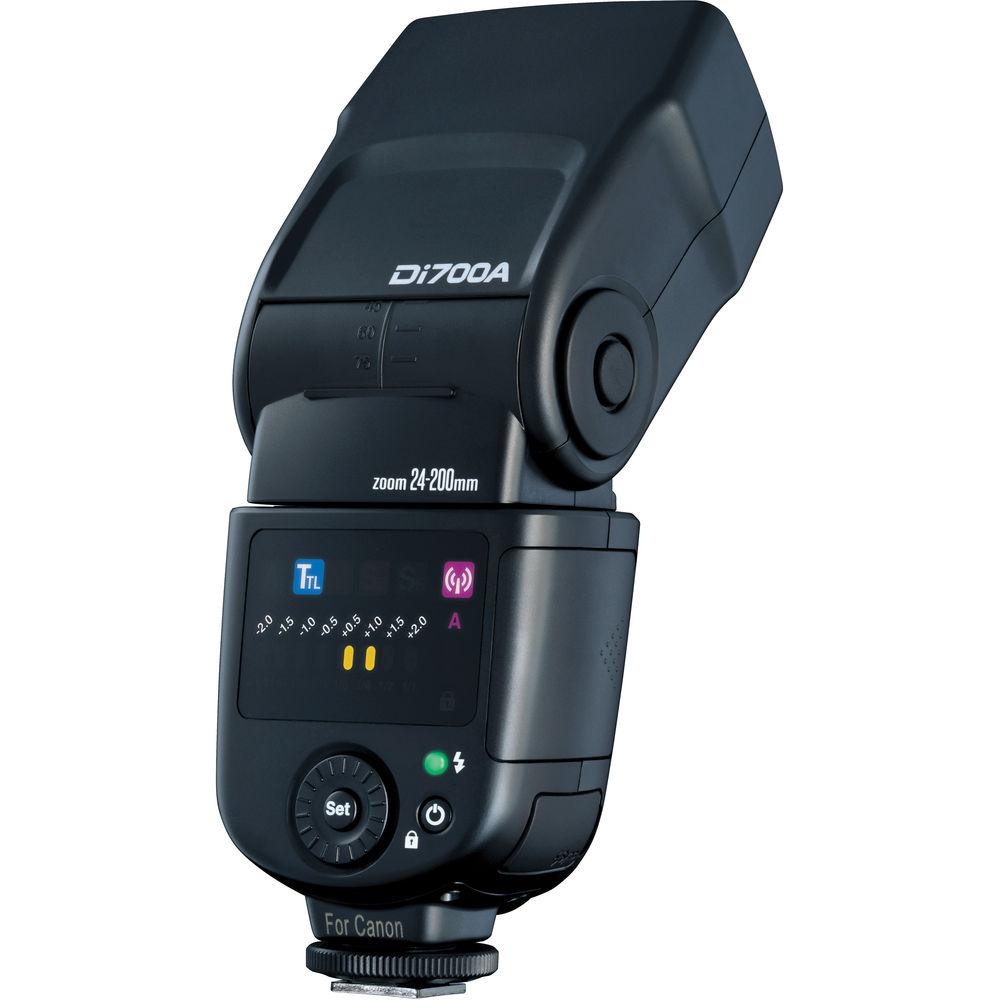

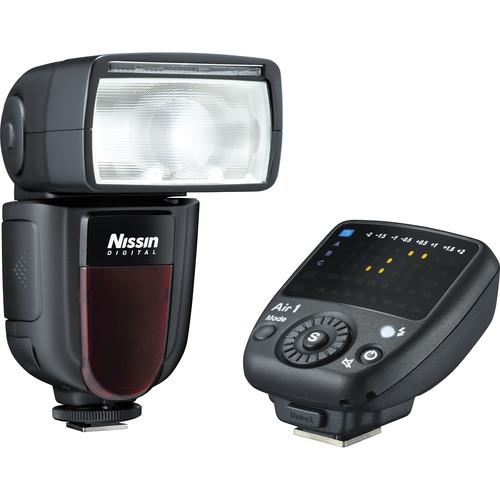

Product description Enjoy powerful on- and off-camera flash capabilities with the Di700A Flash Kit with Air 1 Commander from Nissin. Bundling together the Nissin Air System-capable Di700A Flash with its 177' guide number at ISO 100 and 200mm with the Air 1 Commander, users will easily be able to transition from on- to off-camera lighting and maintain full control of their lights along with Canon E-TTL / E-TTL II capabilities. The Nissin Air System utilizes 2.4 GHz radio transmission with a 98' range to grant reliable wireless triggering without need for line-of-sight. Also, the Commander can control the power and zoom settings for flashes in 8 channels and 3 groups as well as transmit exposure compensation settings from -2 to +2 EV. - Di700A Flash for Canon Cameras Free yourself from cables and optical alignment with the built-in Nissin Air System of the Nissin Di700A Flash, which provides reliable 2.4 GHz TTL triggering from up to 98' away. This system works with Canon cameras that feature E-TTL / E-TTL II metering and offers wireless slave capabilities for off-camera flash use when using the optional Air 1 Commander. The Di700A is also a very capable flash with a guide number of 177' at ISO 100 and 200mm as well as a zoom range of 24-200mm, which can be controlled manually through the Commander. A built-in wide-angle panel is available for coverage of lenses down to 16mm on full frame.
Bounce flash capabilities come in the form of tilting from -7 to 90° and rotating left & right 180° for a full 360° of coverage. Specific to this model is a color LED control panel that allows users to quickly and easy see and adjust settings. Also, it has support for high-speed, 1st & 2nd curtain sync modes and has a recycle time of 0.1 to 4 seconds. Additionally, it runs on 4 AA batteries and uses the BM-02 quick loading battery magazine. - Built-in pull out fill reflector panel
- Optical slave settings for instant sync or skip pre-flash for triggering without radio
- 3.5mm and PC sync terminals
- Socket for external power pack
- AF assist light with range of 2.3-19.7'
- Wireless mode features 8 channels and 3 groups
- Battery life of about 200-1500 flashes
- Color temperature of 5600K

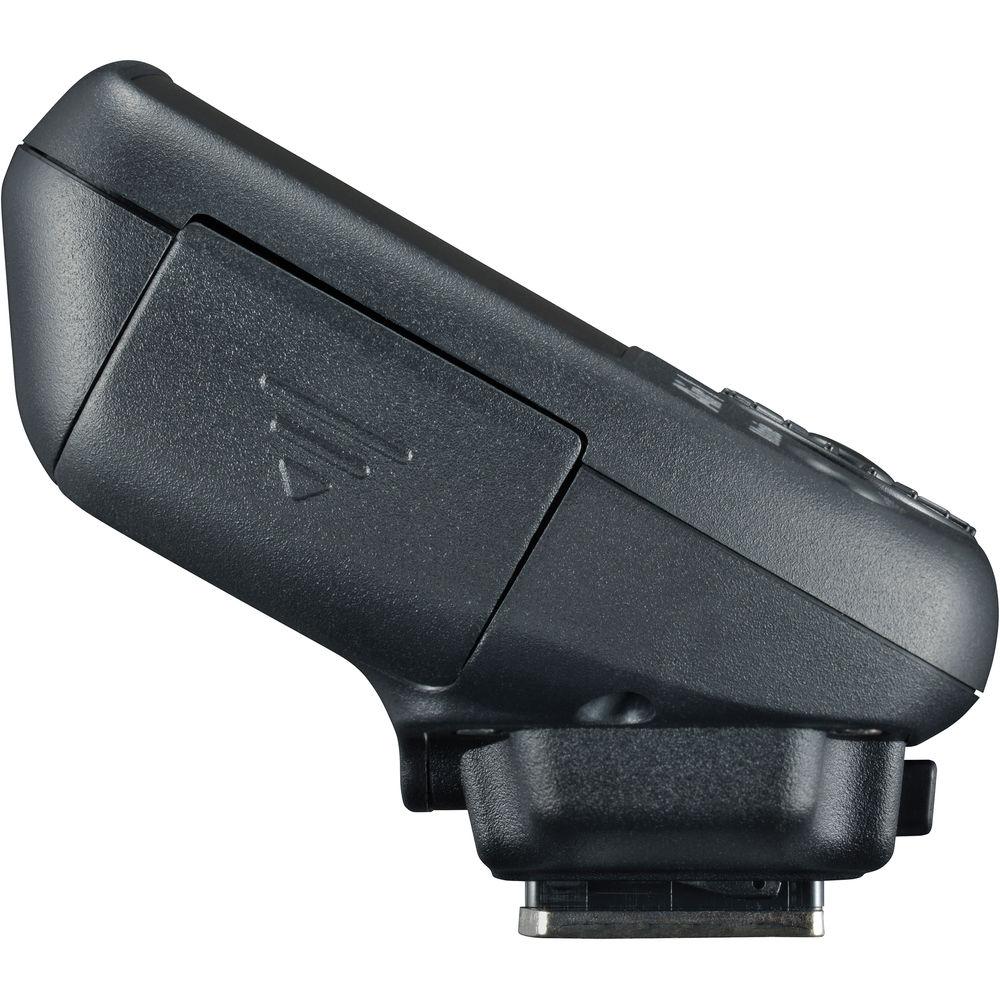

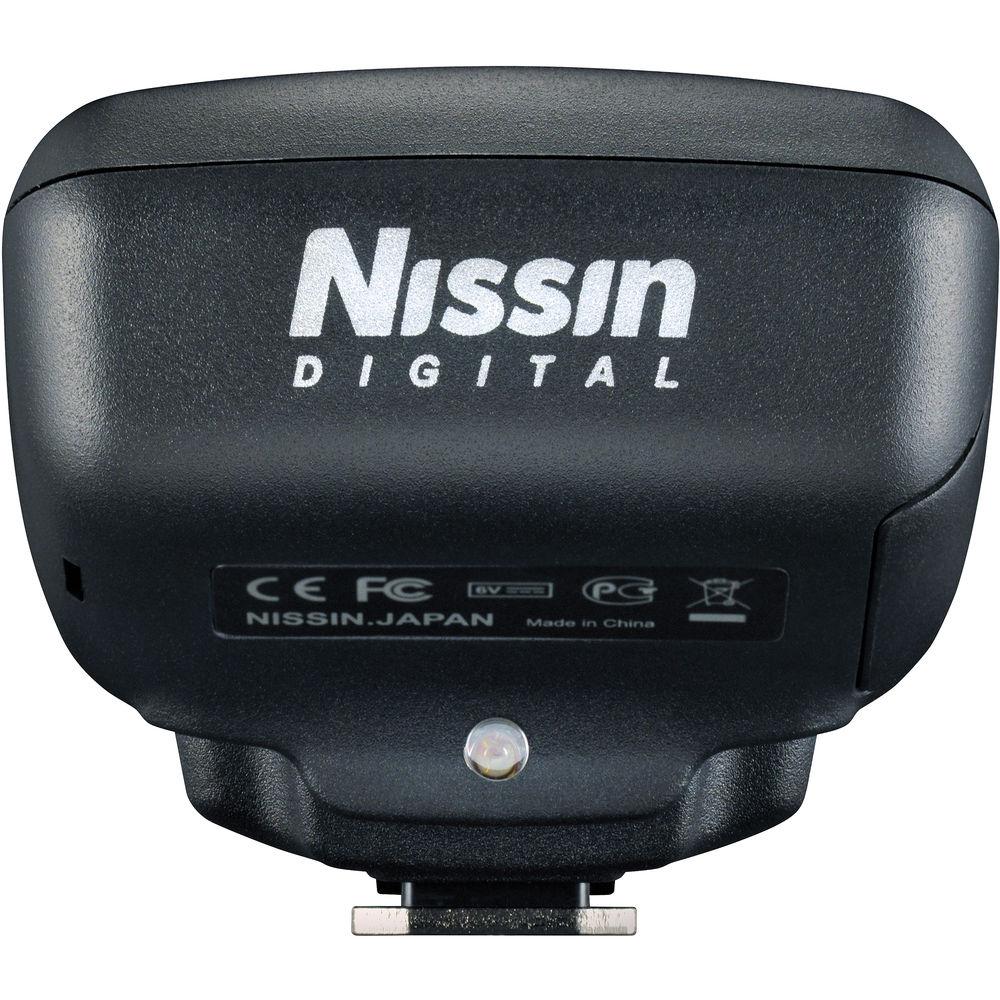

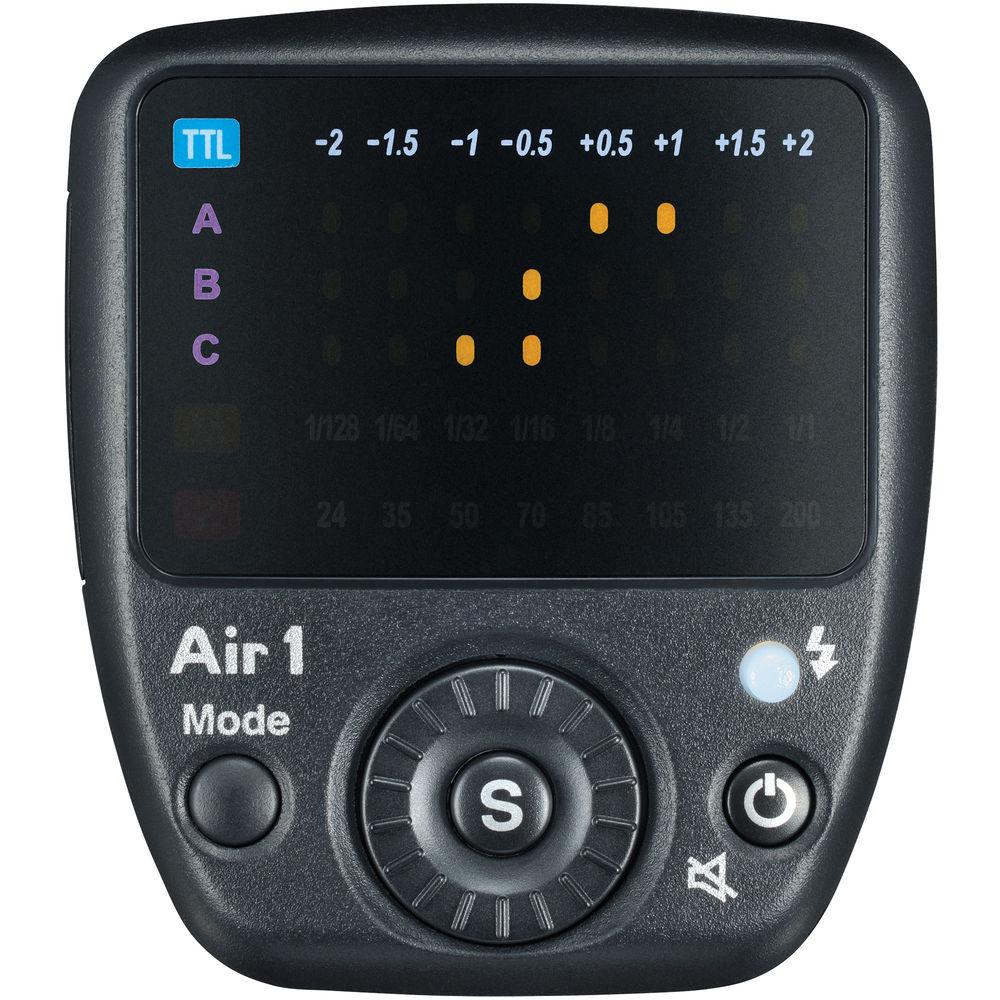

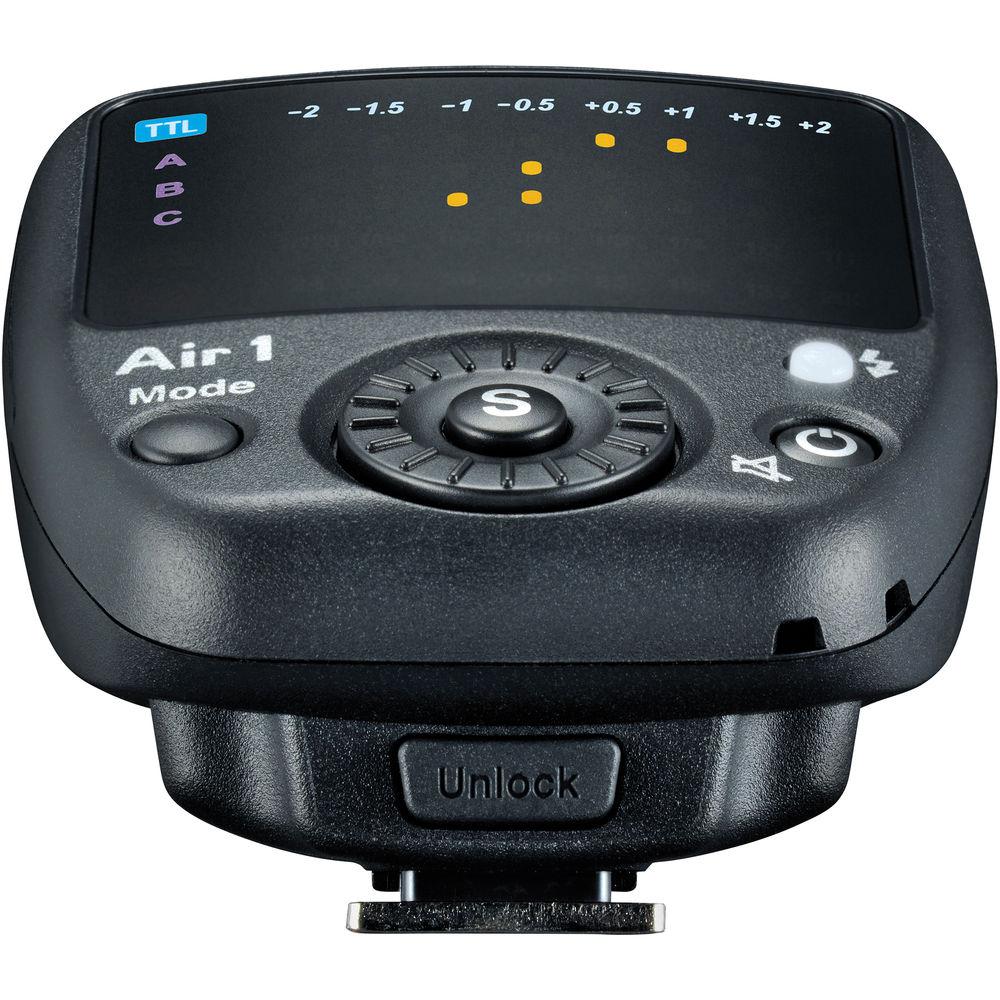

UPC: 855747005227 - Air 1 Commander for Canon Cameras Free yourself from cables and the line-of-sight demanding optical slave modes with the Nissin Air 1 Commander, featuring the Nissin Air System with 2.4 GHz radio transmission for wireless master TTL control over NAS-compatible flash units such as the Di700A. This unit is compatible with Canon cameras that utilize E-TTL / E-TTL II metering and offers a triggering range of up to 98'. Also, it features eight channels and three groups for setting up numerous flashes with different settings and modes, all from the commander unit.
High-speed sync is supported with a maximum sync speed of 1/8000 second along with compatibility for 1st & 2nd curtain sync modes. The zoom setting of the flash can also be manually adjusted from 24-200mm, along with the power from 1/1 to 1/128. The Air 1 features a color LED control panel to view settings and make adjustments as well as an AF assist beam for focusing in low light conditions. Additionally, it runs on 2 AAA batteries. - Capable of firing flash at a rate of 10 flashes per second
- Battery life of about 3000 flashes
- Exposure compensation support from -2 to +2 EV in 1/2 EV steps
- AF assist light has range of 2.3 - 19.7'
UPC: 855747005258 In the Box Bundle Items Di700A Flash for Canon Cameras wubtwqvbazwqaurufxdezuzxzuutdqsdbtue - BM-02 Battery Magazine for Di700 Flash
- Limited 2-Year USA Warranty
Air 1 Commander for Canon Cameras Guides & Manuals wubtwqvbazwqaurufxdezuzxzuutdqsdbtue Table of Contents
|
Upload User Manual
Have you got an user manual for the Nissin Di700A Flash Kit with Air 1 Commander for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Di700A Flash for Canon Cameras
| Mount | Shoe | | Guide No. | 177.17' / 54 m ISO 100 at 200 mm Position | | Exposure Control | E-TTL / E-TTL II, Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 16 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | 3.5 mm, PC | | Recycle Time | Approximately 0.1 to 4 Seconds | | Flash Duration | 1/800 to 1/30000 sec | | Flash-Ready Indicator | Yes | | Compensation | -2 EV to +2 EV (in 1/2 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m | | Wireless Communication Channels | 8 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Batteries | | Dimensions (W x H x D) | 5.5 x 3.0 x 4.5" / 140.0 x 75.0 x 115.0 mm | | Weight | 13.40 oz / 380 g without batteries | | | | Box Dimensions (LxWxH) | 10.4 x 3.7 x 3.2" | - Air 1 Commander for Canon Cameras
| | | Channels | 8 | | Groups | 3 | | Wireless Range | 98' / 30 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | Manual, TTL | | EV Range |
