Product description

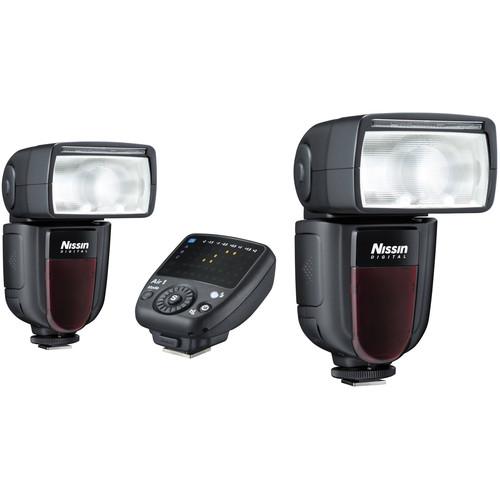

• Nissin Di700A Flash Kit with Air 1 Commander for Micro Four Thirds Cameras Enjoy powerful on- and off-camera flash capabilities with the Di700A Flash Kit with Air 1 Commander from Nissin. Bundling together the Nissin Air System-capable Di700A Flash with its 177' guide number at ISO 100 and 200mm with the Air 1 Commander, users will easily be able to transition from on- to off-camera lighting and maintain full control of their lights along with Micro Four Thirds TTL capabilities. The Nissin Air System utilizes 2.4 GHz radio transmission with a 98' range to grant reliable wireless triggering without need for line-of-sight. Also, the Commander can control the power and zoom settings for flashes in 8 channels and 3 groups as well as transmit exposure compensation settings from -2 to +2 EV. UPC: 855747005425
• Nissin Di700A Flash for Micro Four Thirds Cameras Free yourself from cables and optical alignment with the built-in Nissin Air System of the Nissin Di700A Flash, which provides reliable 2.4 GHz TTL triggering from up to 98' away. This system works with Micro Four Thirds cameras that feature TTL metering and offers wireless slave capabilities for off-camera flash use when using the optional Air 1 Commander. The Di700A is also a very capable flash with a guide number of 177' at ISO 100 and 200mm as well as a zoom range of 24-200mm, which can be controlled manually through the Commander. A built-in wide-angle panel is available for coverage of lenses down to 16mm on full frame.

  Bounce flash capabilities come in the form of tilting from -7 to 90° and rotating left & right 180° for a full 360° of coverage. Specific to this model is a color LED control panel that allows users to quickly and easy see and adjust settings. Also, it has support for high-speed, 1st & 2nd curtain sync modes and has a recycle time of 0.1 to 4 seconds. Additionally, it runs on 4 AA batteries and uses the BM-02 quick loading battery magazine.
  • Built-in pull out fill reflector panel
  • Optical slave settings for instant sync or skip pre-flash for triggering without radio
  • 3.5mm and PC sync terminals
  • Socket for external power pack
  • AF assist light with range of 2.3-19.7'
  • Wireless mode features 8 channels and 3 groups
  • Battery life of about 200-1500 flashes
  • Color temperature of 5600K
  UPC: 855747005401

• Di700A Flash Kit with Air 1 Commander for Micro Four Thirds Cameras czzqsstu
• Di700A Flash for Micro Four Thirds Cameras
• Air 1 Commander for Micro Four Thirds Cameras

• Di700A Flash for Micro Four Thirds Cameras

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nissin Di700A Flash for Micro Four Thirds Cameras

  Mount	Shoe
  Guide No.	177.17' / 54 m ISO 100 at 200 mm Position
  Exposure Control	Four Thirds TTL, Manual
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to +90°
  Swivel Head	360°
  Coverage	16 - 200 mm (Full Frame)
  Zoom Head	Full Frame: 24 - 200 mm
  Off-Camera Terminal	3.5 mm, PC
  Recycle Time	Approximately 0.1 to 4 Seconds
  Flash Duration	1/800 to 1/30000 sec
  Flash-Ready Indicator	Yes
  Compensation	-2 EV to +2 EV (in 1/2 EV steps)
  Slave Timing Modes	Instant Sync Skip Preflash
  Wireless Operation	Method: RF Distance: Up to 98.43' / 30 m
  Wireless Communication Channels	8 Channels
  Wireless Groups	3 Groups
  Power Source	4 x AA Batteries
  Dimensions (W x H x D)	5.5 x 3.0 x 4.5" / 140.0 x 75.0 x 115.0 mm
  Weight	13.40 oz / 380 g without batteries

  Box Dimensions (LxWxH)	10.4 x 3.8 x 3.3"

• Nissin Air 1 Commander for Micro Four Thirds Cameras

  Channels	8
  Groups	3
  Wireless Range	98' / 30 m
  Radio Frequency	2.4 GHz

  Control Modes	Manual, TTL
