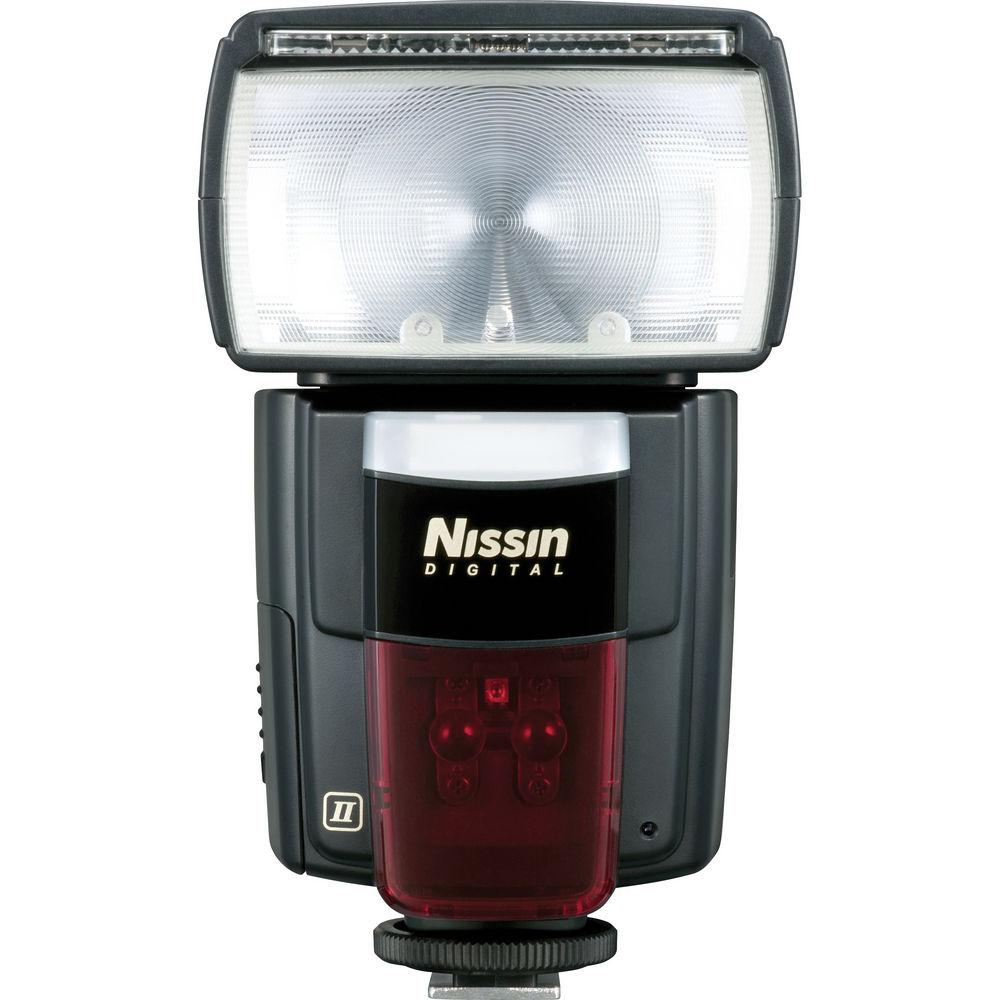

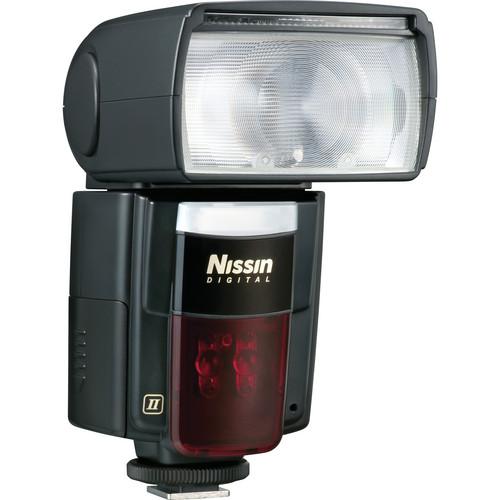

User Manual for Nissin Di866 Mark II Flash for Canon Cameras Click to enlarge the picture
Contents of the user manual for the Nissin Di866 Mark II Flash for
- Product category: On Camera Flashes Nissin
- Brand: Nissin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nissin On Camera Flashes
 |
User manual for the Nissin Di866 Mark II Flash for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nissin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nissin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nissin product will considerably shorten its lifespan!
|

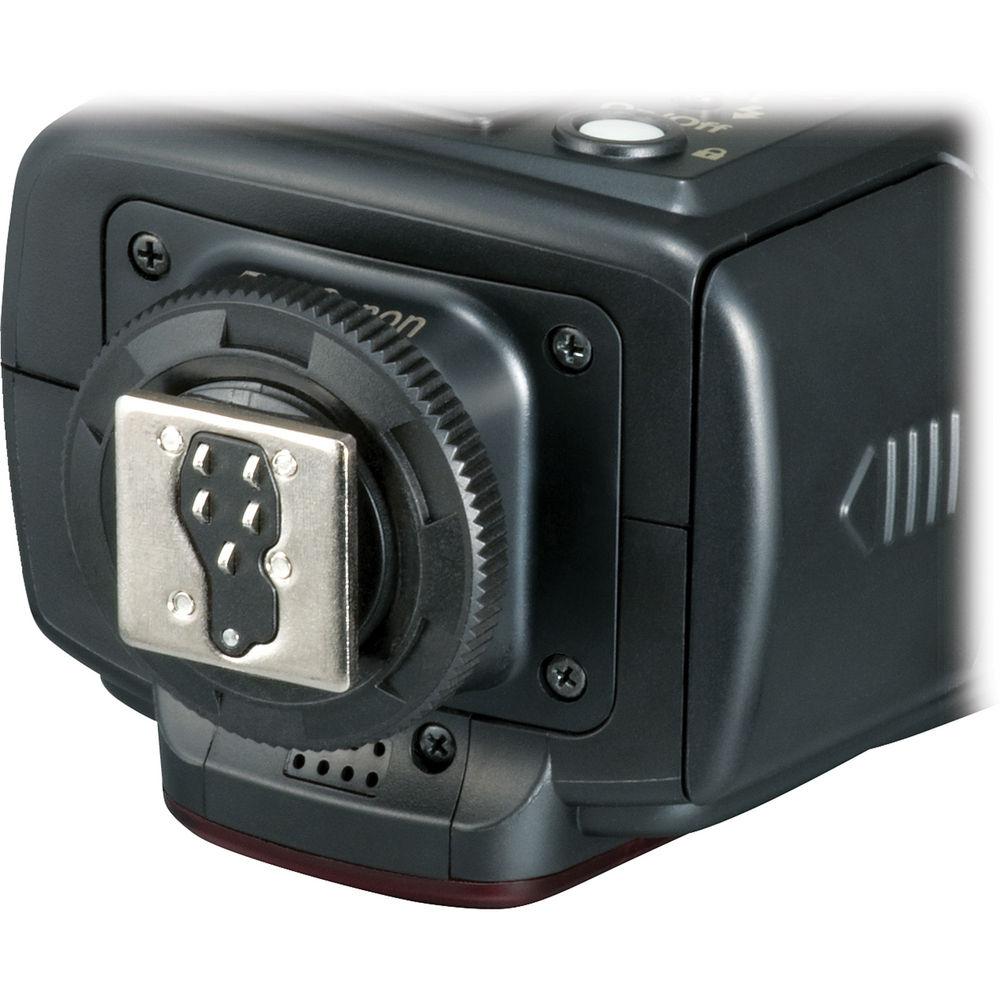

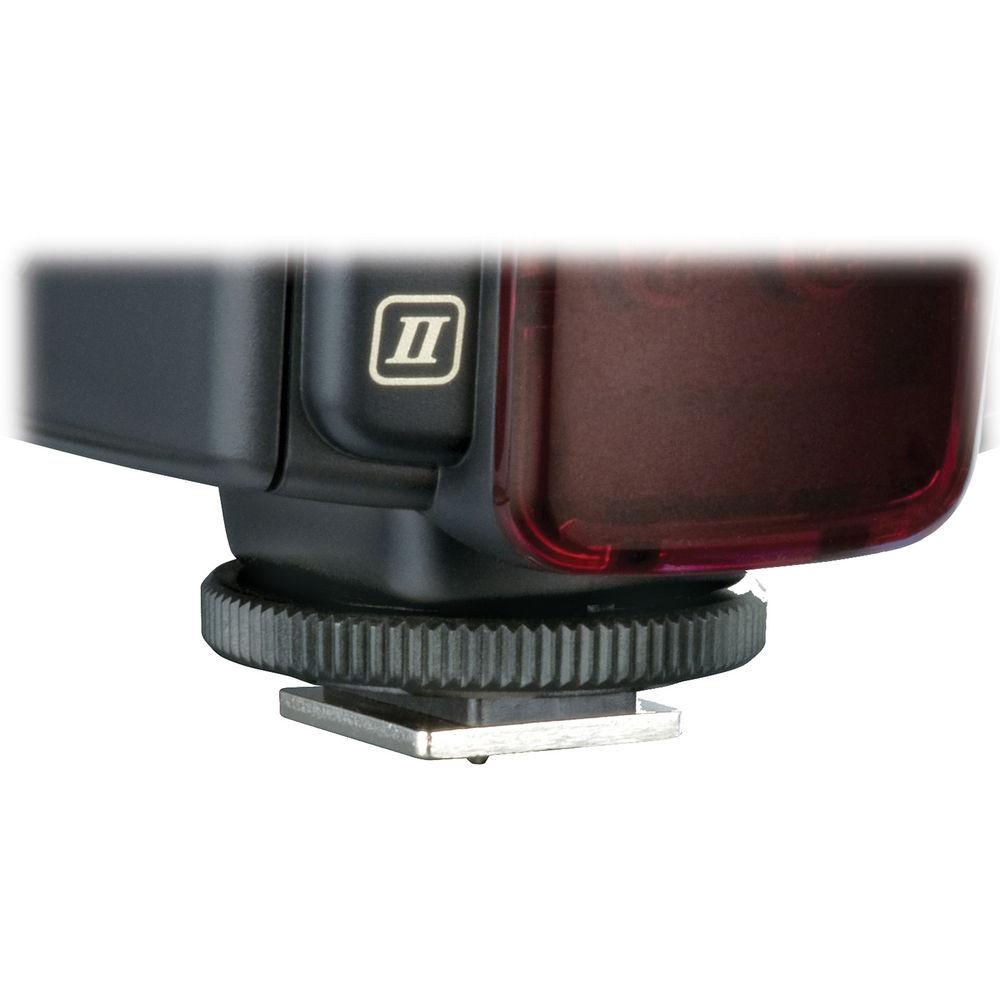

Product description The Canon E-TTL / E-TTL II compatible Nissin Di866 Mark II Flash, with a Guide Number of 198 (ISO 100 in feet at 105mm), provides photographers with the power needed to light up a wide variety of shooting situations. It provides an easy-to-read, two-way color display which helps ensure intuitive operations. The Mark II has been upgraded from the previous model, with a re-designed zoom head that's "whisper quiet", a metal foot for the mount, and a flash tube with increased heat tolerance. The fill-in subflash power ratio range has been increased, now offering a range from 1/1 to 1/128, and the range of the wireless sensor has been improved. The Mark II also has auto-rotation so it stays upright even when turned for vertical framing. It features the "MY TTL" mode for adjustable default level, and a manual motor zoom of 24-105mm. It is designed with clip-on capabilities, built-in wide-angle diffuser and catch-light reflector for added versatility. It's powered by four (4) LR6 rechargeable batteries, (Lithium, NiMH or Oxyride--not included), and when it is operated with a Nissin Power Pack Pro 300 (not included), users have 300 full-power flashes. It boasts a recycling time of about 3.5 seconds.
The Di866 is a high-powered flash unit, great for serious photographers who will appreciate its features. - Adjustable TTL default level
- Auto rotation view color display
- High Speed Synchronization (HSS)
- External auto-exposure sensor
- Eight F-stops, from F2 to F22 with compensation capability
- External auto-exposure sensor
- Multiple focus points are supported
- Sub-flash fill-in while the main flash turns for bounce lighting
- High voltage power pack yields recycle time less than 1 sec
- Battery Magazine quick loading system
- Built-in Wide Angle Diffuser
- Built-in Catch-light Reflector
- Quick battery loading with original battery magazine
- Eight F-stops, from F2 to F22 with compensation capability
- FP flash function synchronizes to all high shutter speed over 1/250sec
- 315V high voltage power series connector
- Firmware update service via USB port
- Comes with full Nissin USA warranty
UPC: 855747005005 In the Box Nissin Di866 Mark II Flash for Canon Cameras Soft Case Flash Stand Limited 2-Year USA Warranty Guides & Manuals ybudtqxsaetdebrb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nissin Di866 Mark II Flash for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Nissin Di866 Mark II Flash for Canon Cameras can be downloaded in PDF format at the link stated below.
Technical parametersNissin Di866 Mark II Specs | Mount | Shoe | | Guide No. | 196.85' / 60 m ISO 100 at 105 mm Position | | Vari-Power | 1/1 to 1/128 | | Bounce Head | 0 to +90° | | Swivel Head | 270° | | Coverage | 18 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 0.1 to 5.5 Seconds | | Flash Duration | 1/300 to 1/30000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 5.3 x 2.9 x 4.3" / 13.5 x 7.4 x 10.9 cm | | Weight | 13.4 oz / 380 g without batteries | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.6 x 3.7 x 3.2" |
