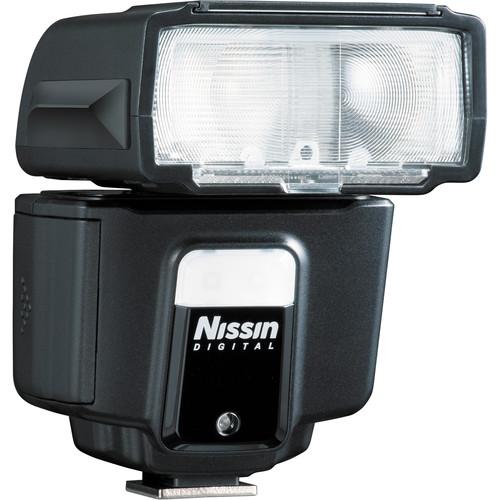

Product description The Nissin i40 Flash is a shoe-mounted, compact flash unit designed for Sony cameras with a Multi-Interface Shoe featuring ADI / P-TTL functionality. It features a guide number of 131' at ISO 100 and in the 105mm position for providing excellent coverage within a zoom range of 24 to 105mm, or down to 16mm with the built-in wide-angle diffuser. Also, this unit features an LED light suited for video work with 9 output levels.

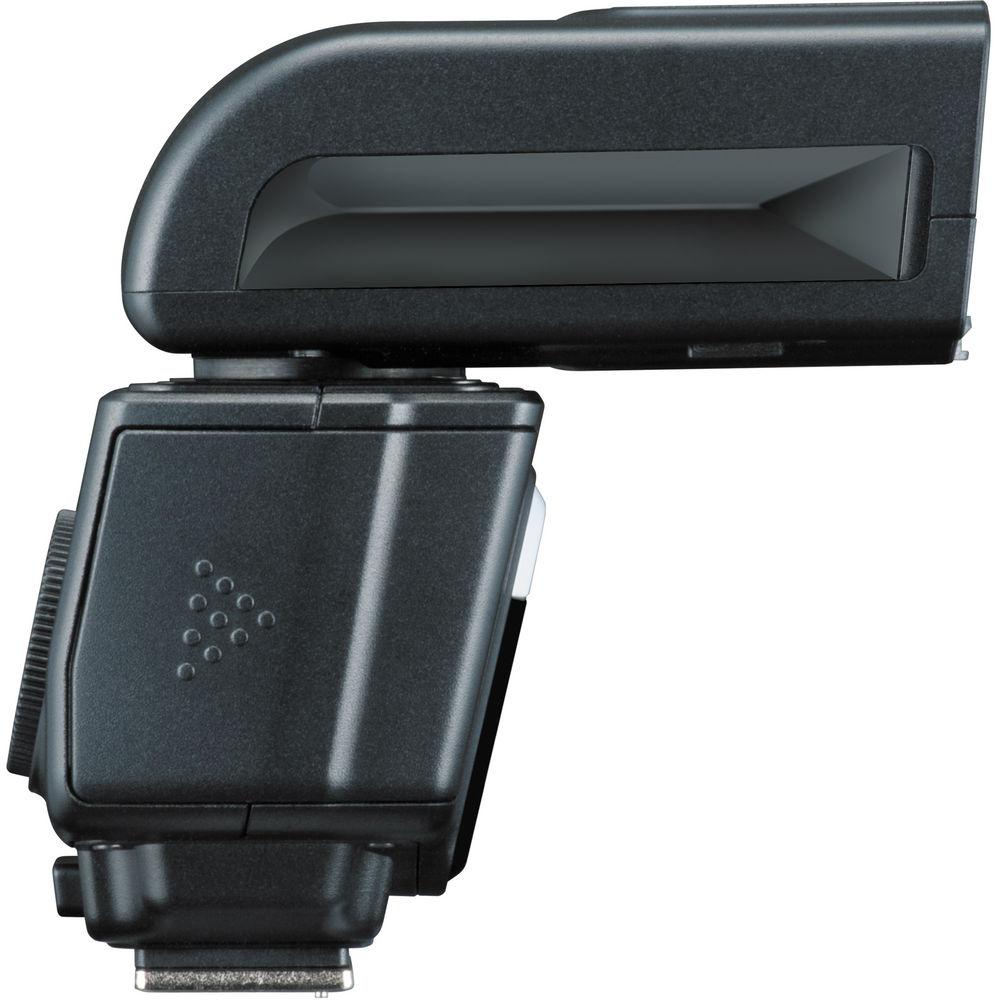

For control of the light during use, the flash head is able to tilt upwards 90° and can rotate 180° in both directions, giving you complete 360° coverage. There is also wireless TTL functionality which will allow you to implement this flash off-camera in combination with other units.
The i40 features full manual control and a range of modes for getting the look you desire from your lighting. These include slow-speed, high-speed, 1st and 2nd curtain synchronization in addition to variable power from 1/1 to 1/256. The flash runs on 4 AA batteries and includes an external diffuser, soft case, and stand. - Guide number at ISO 100 of 131' at 105mm and 89' at 35mm position
- Recycle time of 0.1 to 4 seconds
- Approximately 220 to 1700 flashes on a single set of fully-charged batteries
- LED run time of about 3.5 hours with new batteries
- Color temperature of 5600K
- Wireless slave ADI / P-TTL functionality
- Exposure compensation from -2 to +2 EV in 1/2 step increments
- AF assist beam with range of 2.3 to 16.4'
- Flash duration of 1/800 to 1/20,000 second

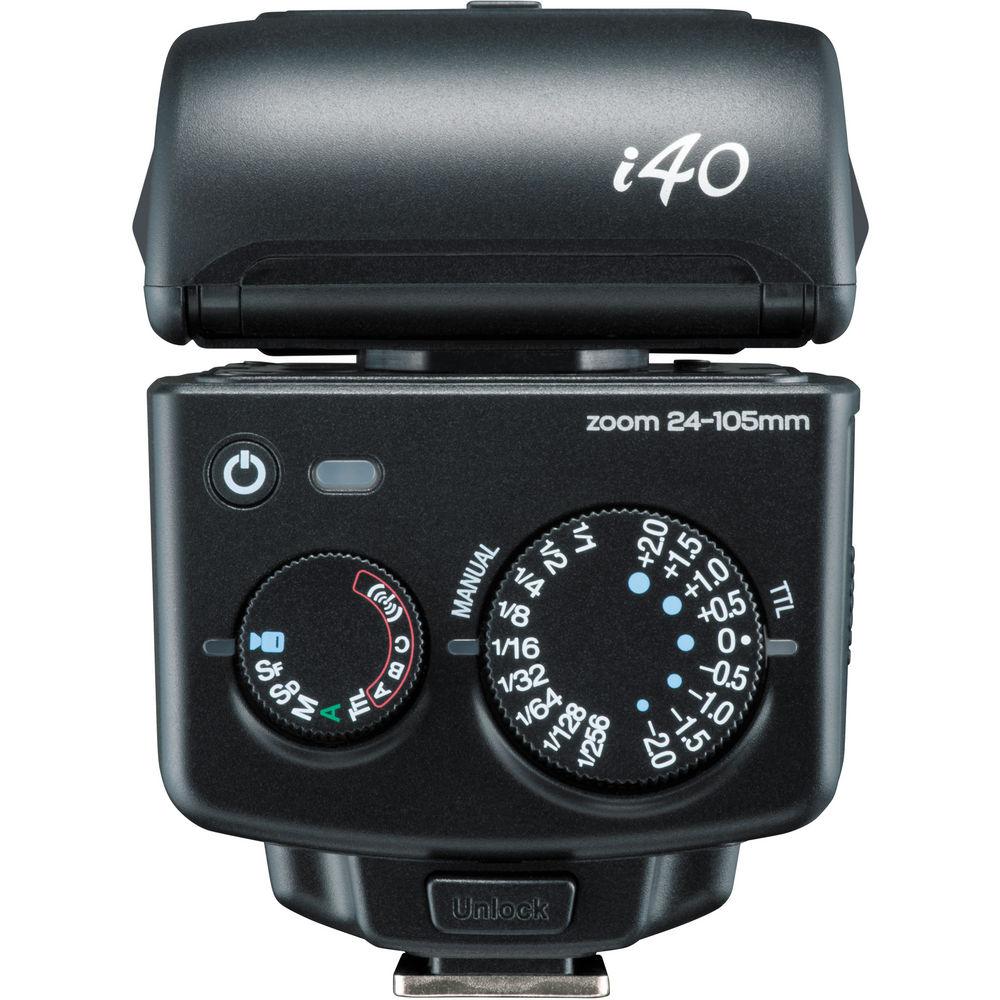

- Two selector dials on the back of the flash for changing modes and adjusting power settings
- LED light has 9 steps of output levels

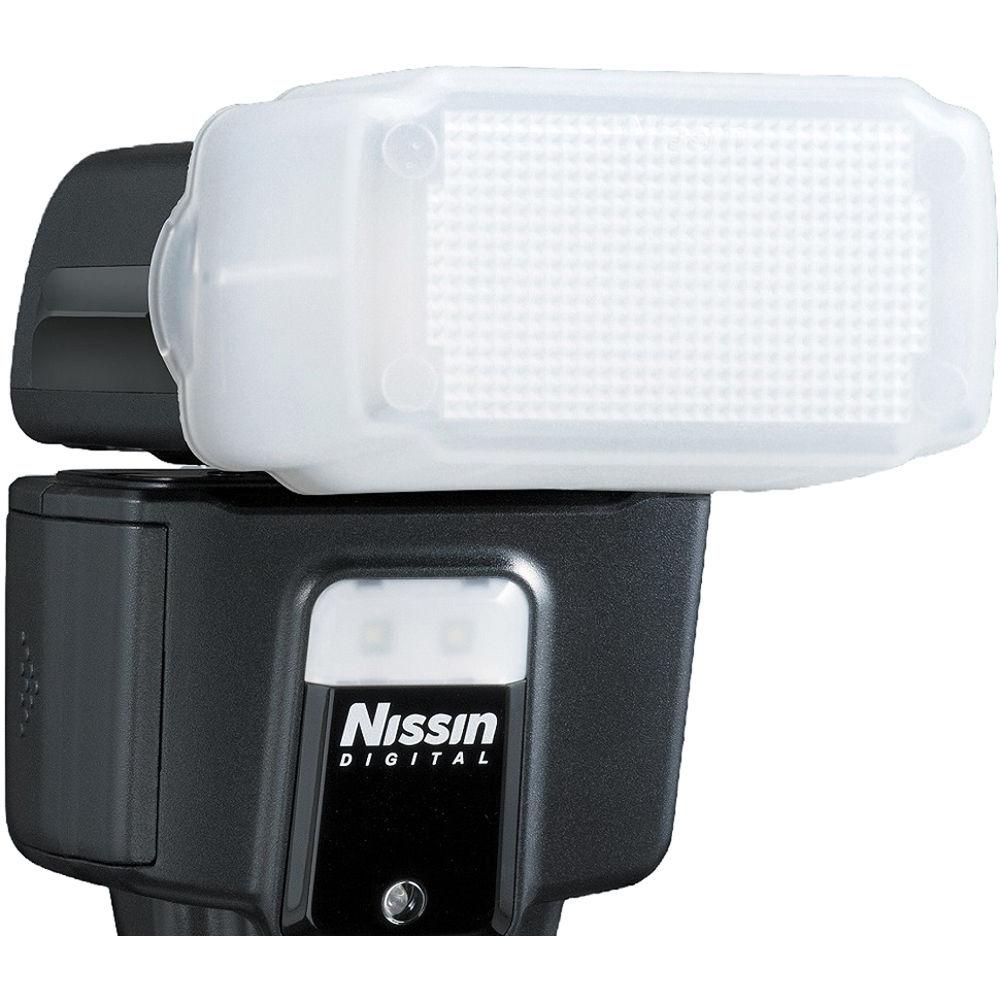

UPC: 855747005135 In the Box Nissin i40 Compact Flash for Sony Cameras with Multi Interface Shoe External Diffuser Soft Case Flash Stand Limited 2-Year USA Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Nissin i40 Compact Flash for Sony Cameras with Multi Interface Shoe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNissin I40 Specs | Mount | Shoe | | Guide No. | 131.23' / 40 m ISO 100 at 105 mm Position | | Exposure Control | ADI / P-TTL, Manual | | Vari-Power | 1/1 to 1/256 | | Bounce Head | Yes, 0 to +90° | | Swivel Head | Yes, 360° | | Coverage | 24 - 105 mm (Full Frame) | | Recycle Time | Approximately 0.1 to 4 Seconds | | Flash Duration | 1/800 to 1/20000 sec | | Compensation | -2 EV to +2 EV (in 1/2 EV steps) | | Power Source | 4 x AA Batteries | | Dimensions (W x H x D) | 3.3 x 2.4 x 3.3" / 85.0 x 61.0 x 85.0 mm | | Weight | 7.16 oz / 203 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.4 x 4.3 x 3.8" |
