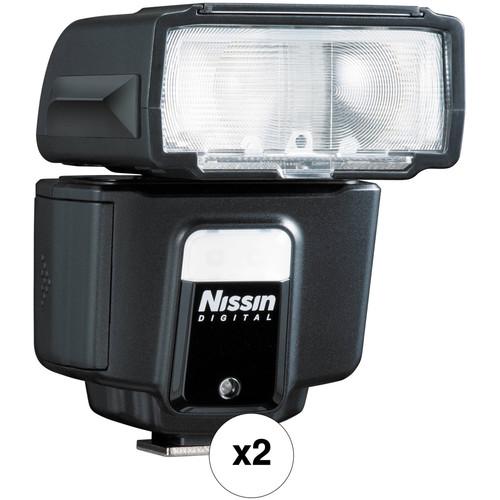

User Manual for Nissin i40 Compact Two Flash Kit for Fujifilm Cameras Click to enlarge the picture
Contents of the user manual for the Nissin i40 Compact Two Flash Kit
- Product category: On Camera Flashes Nissin
- Brand: Nissin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nissin On Camera Flashes
|
User manual for the Nissin i40 Compact Two Flash Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nissin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nissin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nissin product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More Greatly expand your lighting capabilities while maintaining a lightweight bag with this Nissin i40 Compact Two Flash Kit from . It features two i40 flashes that feature a guide number of 131' at ISO 100 and 105mm and they can operate as a wireless slave for off-camera use. Additionally, these models support Fujifilm TTL for automatic exposure and metering. - 2 x Nissin i40 Compact Flash for Fujifilm Cameras The Nissin i40 Flash is a shoe-mounted, compact flash unit designed for Fujifilm cameras featuring TTL functionality. It features a guide number of 131' at ISO 100 and in the 105mm position for providing excellent coverage within a zoom range of 24 to 105mm, or down to 16mm with the built-in wide-angle diffuser. Also, this unit features an LED light suited for video work with 9 output levels.
For control of the light during use, the flash head is able to tilt upwards 90° and can rotate 180° in both directions, giving you complete 360° coverage. There is also wireless functionality which will allow you to implement this flash off-camera in combination with other units.
The i40 features full manual control and a range of modes for getting the look you desire from your lighting. These include slow-speed, high-speed, 1st and 2nd curtain synchronization in addition to variable power from 1/1 to 1/256. The flash runs on 4 AA batteries and includes an external diffuser, soft case, and stand. For high-speed sync functionality, this flash may require a firmware update to be performed at a Nissin service center. - Guide number at ISO 100 of 131' at 105mm and 89' at 35mm position
- Recycle time of 0.1 to 4 seconds
- Approximately 220 to 1700 flashes on a single set of fully-charged batteries
- LED run time of about 3.5 hours with new batteries
- Color temperature of 5600K
- Wireless slave TTL functionality
- Exposure compensation from -2 to +2 EV in 1/2 step increments
- AF assist beam with range of 2.3 to 16.4'
- Flash duration of 1/800 to 1/20,000 second
- Two selector dials on the back of the flash for changing modes and adjusting power settings
- LED light has 9 steps of output levels
UPC: 855747005210 In the Box - 2 x i40 Compact Flash for Fujifilm Cameras tsxxqvcyzzxdf
- External Diffuser
- Soft Case
- Flash Stand
- Limited 2-Year USA Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Nissin i40 Compact Two Flash Kit for Fujifilm Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Nissin i40 Compact Flash for Fujifilm Cameras
| Mount | Shoe | | Guide No. | 131.23' / 40 m ISO 100 at 105 mm Position | | Exposure Control | Manual, TTL | | Vari-Power | 1/1 to 1/256 | | Bounce Head | Yes, 0 to +90° | | Swivel Head | Yes, 360° | | Coverage | 24 - 105 mm (Full Frame) | | Recycle Time | Approximately 0.1 to 4 Seconds | | Flash Duration | 1/800 to 1/20000 sec | | Compensation | -2 EV to +2 EV (in 1/2 EV steps) | | Power Source | 4 x AA Batteries | | Dimensions (W x H x D) | 3.3 x 2.4 x 3.3" / 85.0 x 61.0 x 85.0 mm | | Weight | 7.16 oz / 203 g | | | | Box Dimensions (LxWxH) | 4.3 x 4.2 x 3.9" |
