User Manual for Nissin i60A Flash for Canon Cameras Click to enlarge the picture
Contents of the user manual for the Nissin i60A Flash for Canon Cameras
- Product category: On Camera Flashes Nissin
- Brand: Nissin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nissin On Camera Flashes
 |
User manual for the Nissin i60A Flash for Canon Cameras contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nissin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nissin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nissin product will considerably shorten its lifespan!
|

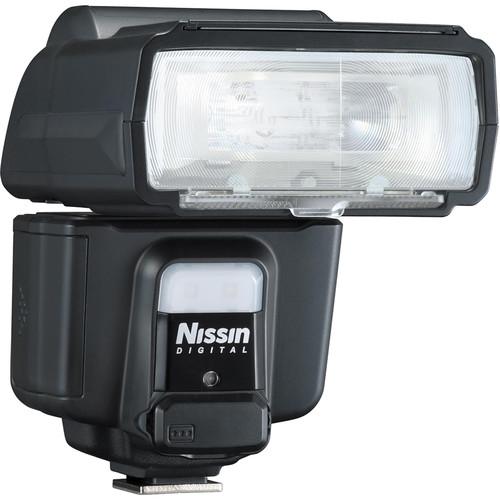

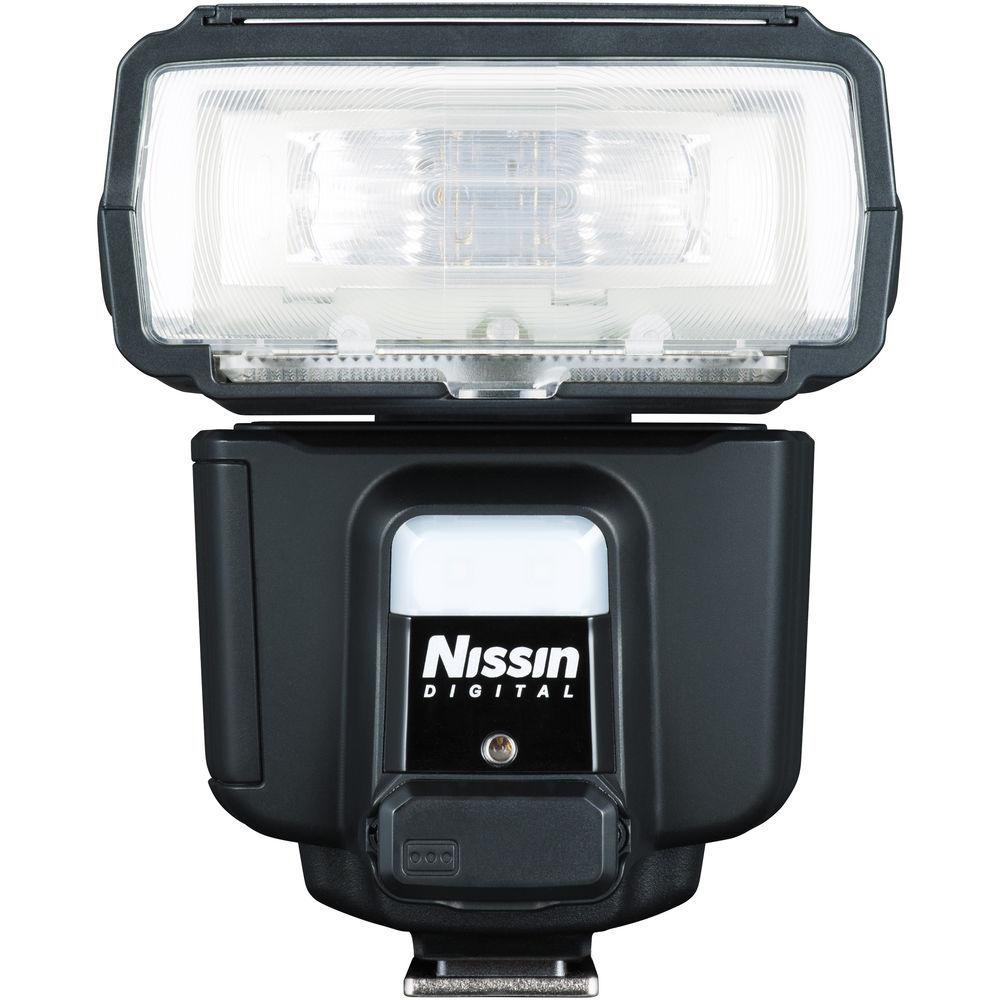

Product description Powerful, compact, and equipped with a 2.4GHz Air radio receiver for wireless slave TTL functionality, the i60A Flash from Nissin will fulfill the needs of many professional lighting setups. Compatible with Canon cameras featuring E-TTL / E-TTL II, the i60A will have full support for all automatic flash functions. It is rated with a guide number of 197' at ISO 100 and the 200mm setting and has a zoom head with a total range of coverage from 24-200mm. It can be expanded to 16mm with the built-in diffusion panel. Hybrid stills/video shooters can benefit from this flash as well thanks to a built-in LED video light for constant illumination.

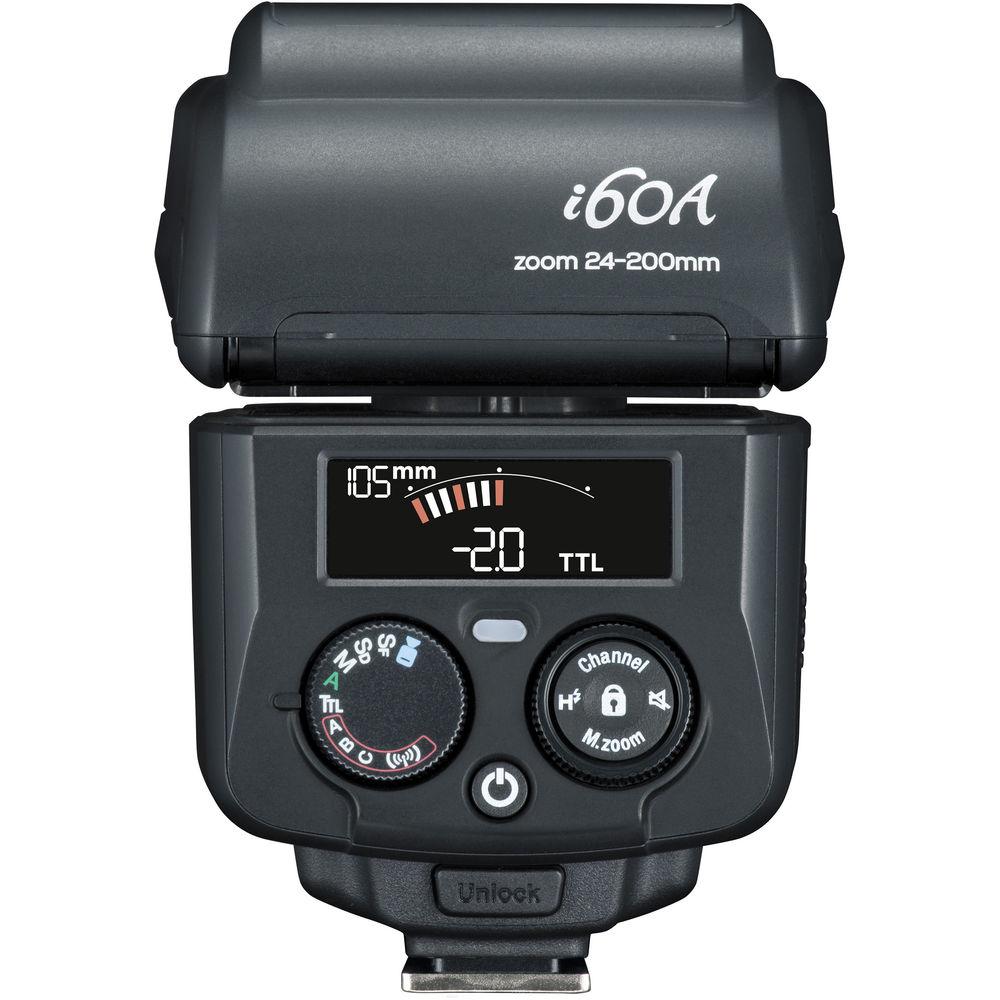

Operation is crystal clear due to rear dials and a color LCD screen to view and change settings. Full bounce capabilities are available with tilt upwards 90° and the ability to rotate left or right 180°. Multiple sync features can expand your creative possibilities with slow, high-speed, first & second curtain sync. It is fast with a recycle time of 0.1-5.5 seconds using either 4 AA batteries or an external HV power pack. - Wireless slave TTL functionality using either Nissin's Air System with a range of 98' or Canon's optical slave capabilities
- Nissin Air System is compatible across mount types with Nissin flashes, allowing a flash from one brand to be mixed and matched with other brand mounts as well as other NAS-compatible units
- Radio mode allows access to 8 channels and 3 groups
- Flash exposure compensation settings of ±2 EV in 1/3 EV steps
- Manual power control from 1/1 to 1/256 in 1/3 EV steps
- HV power socket for using external battery packs
UPC: 855747005340 In the Box Nissin i60A Flash for Canon Cameras Soft Case Stand Limited 2-Year USA Warranty Guides & Manuals zeeewexs Table of Contents
|
Upload User Manual
Have you got an user manual for the Nissin i60A Flash for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNissin i60A Specs | Mount | Shoe | | Guide No. | 196.85' / 60 m ISO 100 at 200 mm Position | | Exposure Control | E-TTL / E-TTL II, Manual | | Vari-Power | Manual: 1/1 to 1/256 | | Bounce Head | 0 to +90° | | Swivel Head | 360° | | Coverage | 16 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 0.1 to 5.5 Seconds | | Flash Duration | 1/800 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -2 EV to +2 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m
Mode: Slave | | Wireless Communication Channels | 8 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Batteries | | Dimensions (W x H x D) | 3.9 x 2.9 x 4.4" / 98.0 x 73.0 x 112.0 mm | | Weight | 10.58 oz / 300 g without batteries | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.3 x 4.7 x 3.9" |
