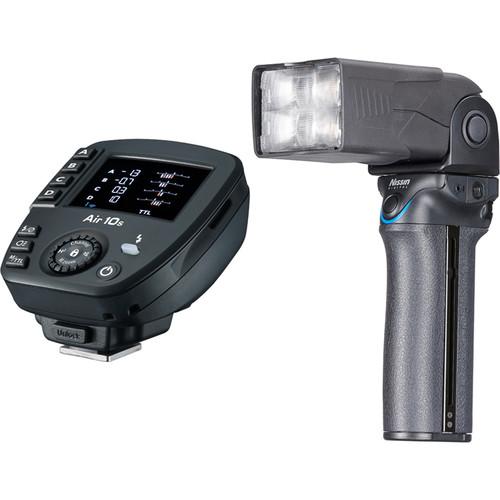

User Manual for Nissin MG10 Wireless Flash with Air 10s Commander Click to enlarge the picture
Contents of the user manual for the Nissin MG10 Wireless Flash with Air
- Product category: On Camera Flashes Nissin
- Brand: Nissin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nissin On Camera Flashes
 |
User manual for the Nissin MG10 Wireless Flash with Air contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nissin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nissin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nissin product will considerably shorten its lifespan!
|

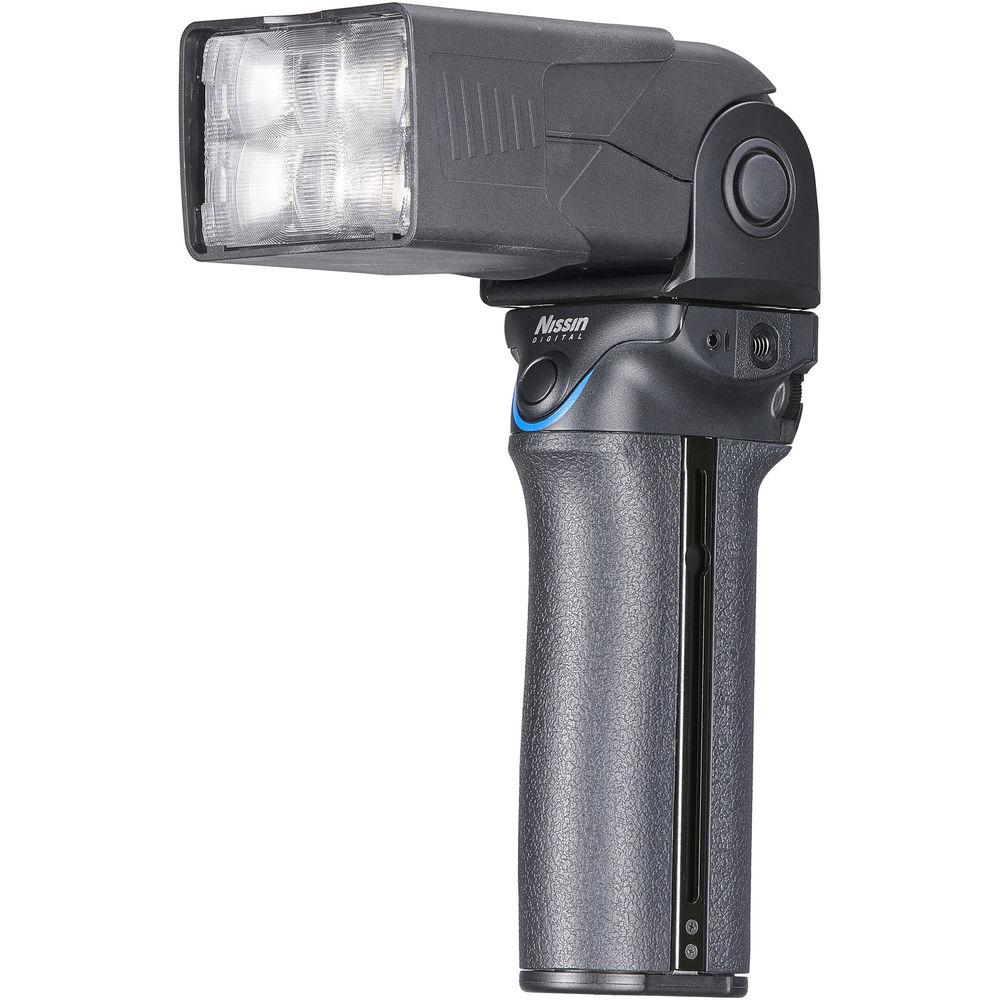

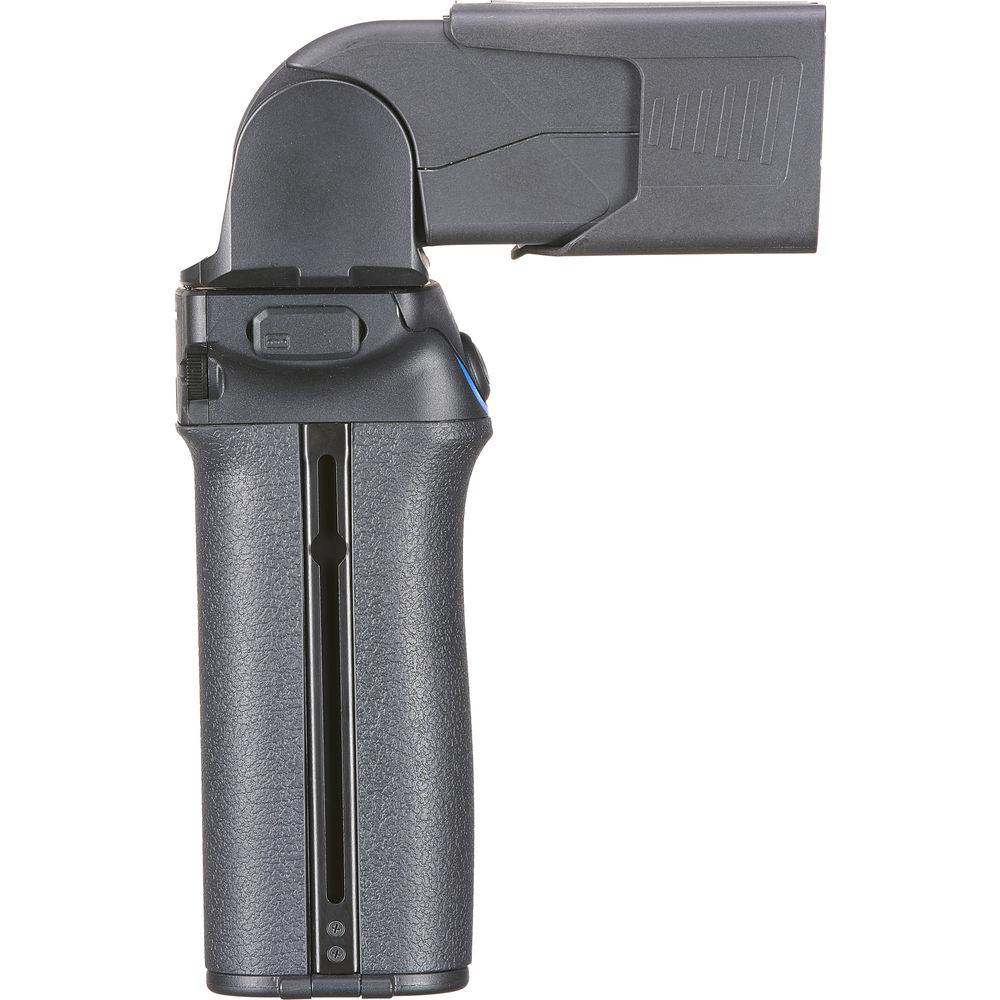

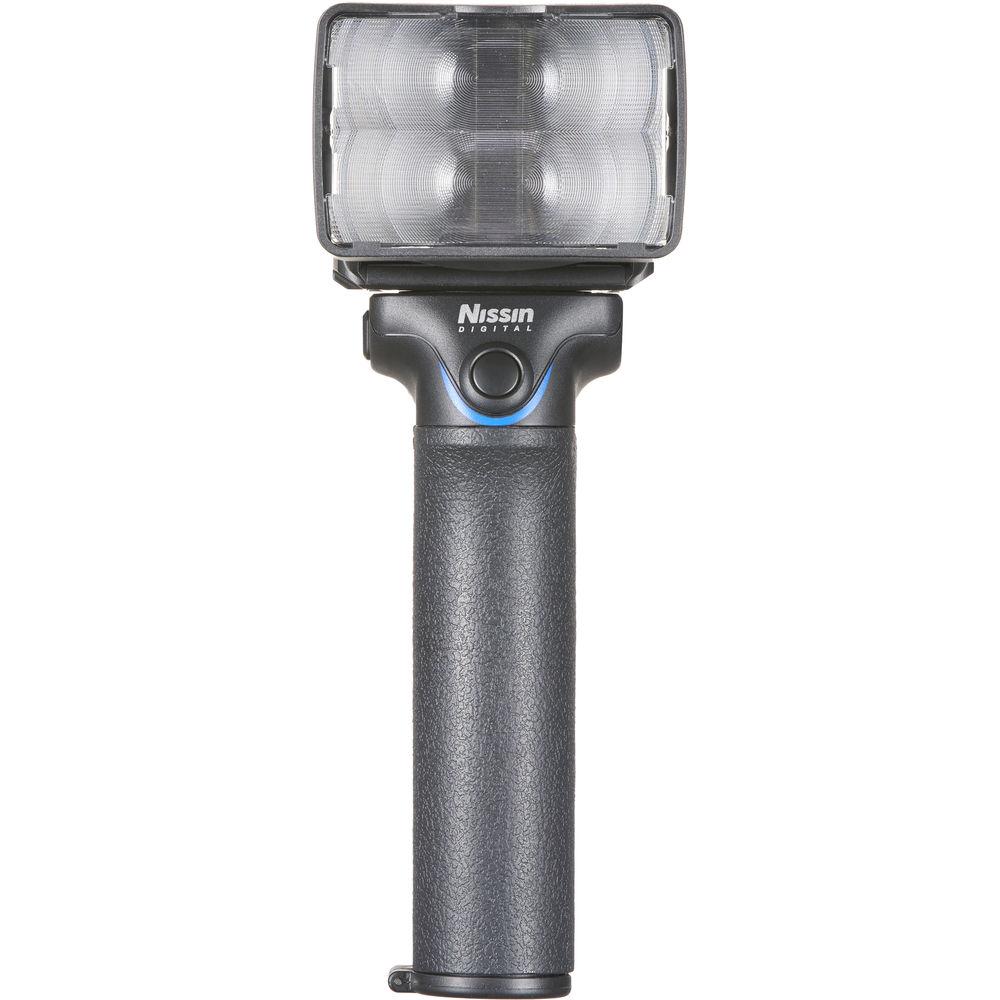

Product description The New Nissin MG10 Wireless Handgrip Flash Read More Combining a powerful flash with a smart commander, this MG10 Wireless Flash with Air 10s Commander from Nissin works with Micro Four Thirds cameras. The TTL-compatible flash is rated with a guide number of 262' at ISO 100 and 200mm and features a zoom range of 24-200mm that drops to 18mm when the diffuser panel is used. It also has a built-in LED modeling light and can rotate 90° upward and 180° left and right.

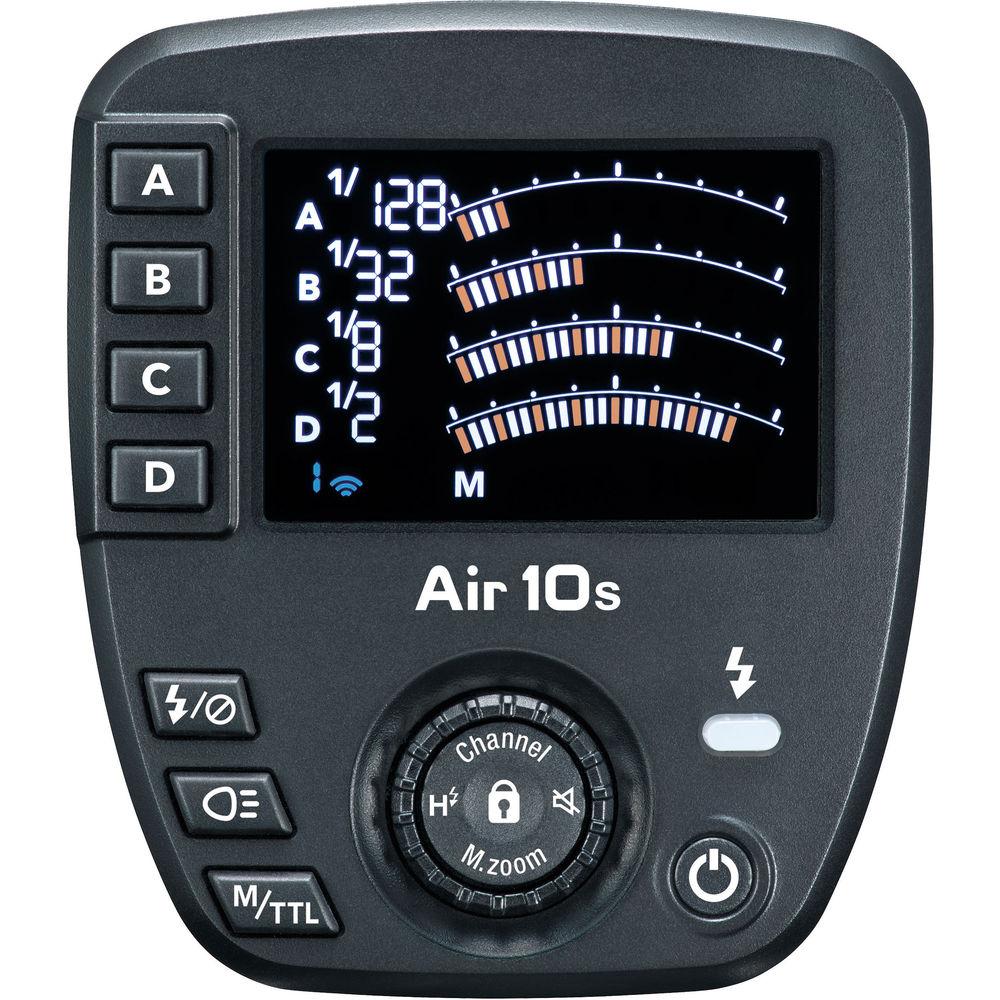

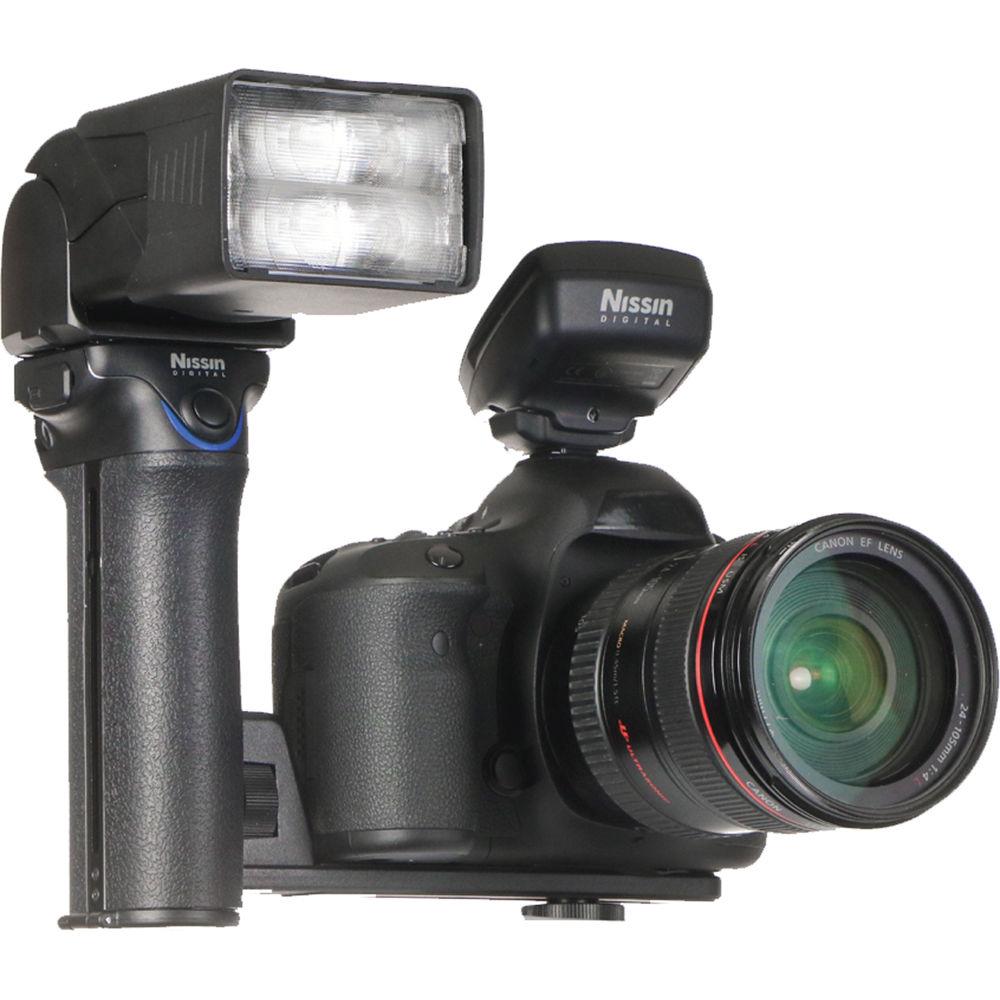

When paired with the Air 10s commander, the flash can be used with other units in up to eight groups with various settings such as slow, high-speed, and 1st and 2nd curtain sync, depending on the camera model. The Air 10s uses a 2.4 GHz ISM band to communicate with other units at distances up to 328' and features an AF-assist light to help with focusing in adverse conditions. Flash settings can be easily synced or changed via the LCD color display on the back of the Air 10s. - MG10 Flash
-
- Wireless slave TTL functionality using the Nissin Air System
- Manual power control from 1/1 to 1/256 in 1/3 EV steps
- Nissin Air 10 compatibility allows for grouping with other strobes
- microSD card slot for firmware updates
- Runs on 8x AA or 2x 26650 batteries

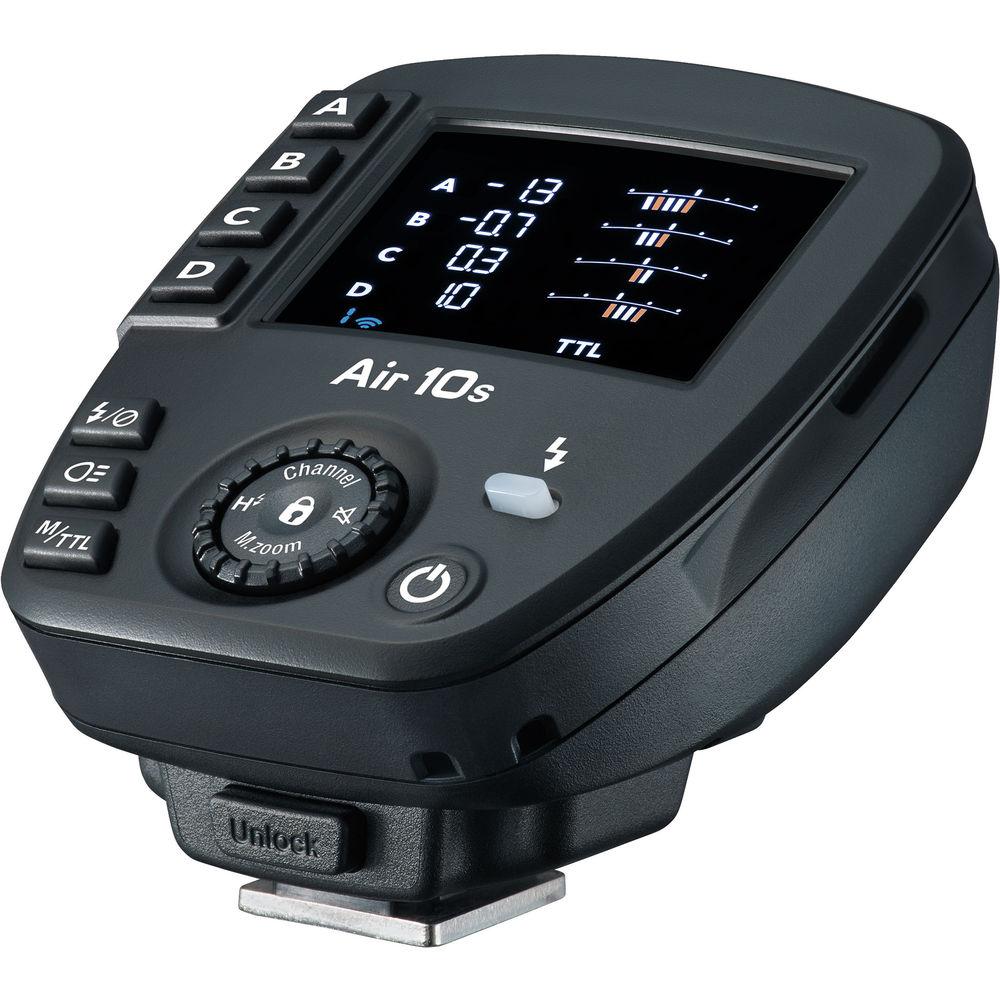

- Air 10s Commander
-
- 2.4 GHz ISM band brings control of up to 8 groups of flashes within a 328' range
- Supports TTL, manual, 1st and 2nd curtain sync, high-speed sync, slow shutter sync, and red eye reduction, depending on camera model.
- Color LCD screen makes settings easy to view

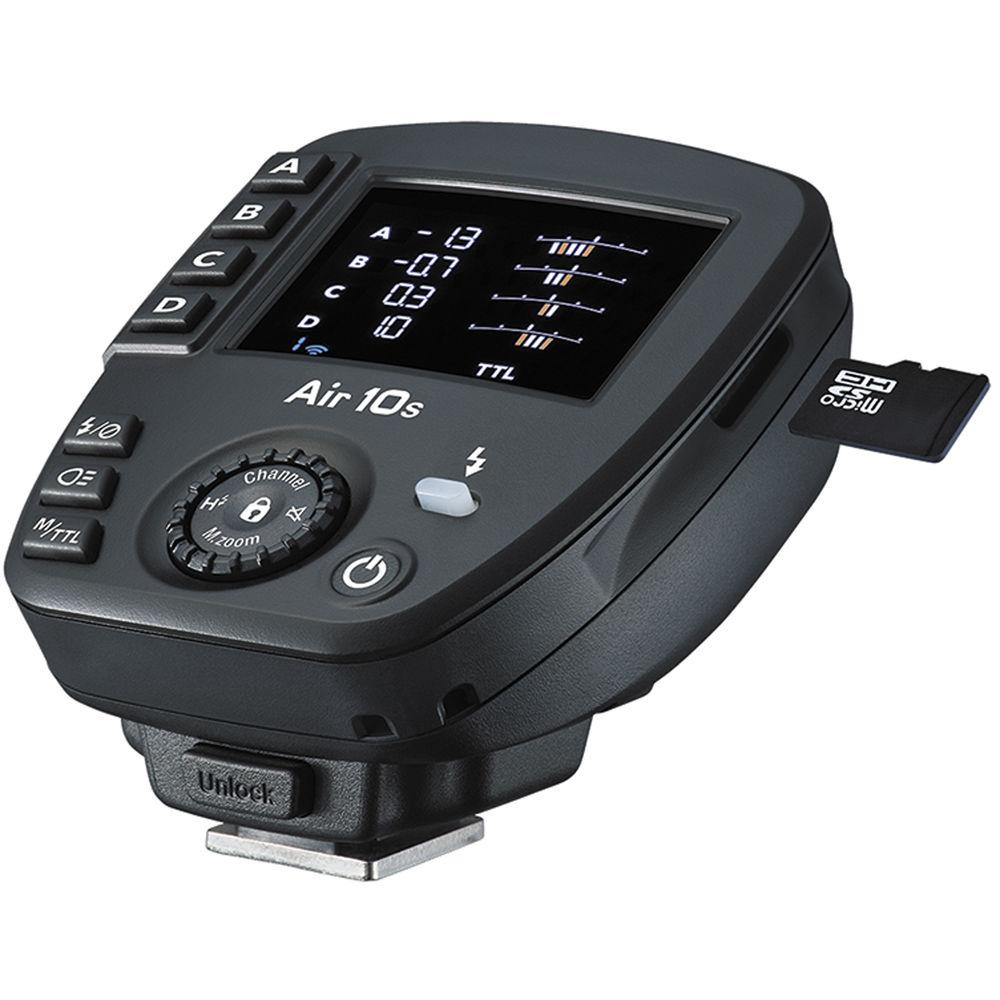

- microSD card slot for firmware updates
UPC: 855747005524 In the Box Nissin MG10 Wireless Flash with Air 10s Commander (Micro Four Thirds) Air10s Wireless TTL Commander for Micro Four Thirds Cameras xazwbxebbvzave Diffuser Filter Holder Tripod Head Battery Case Bracket Pouch Limited 2-Year Warranty A Guide to On-Camera Flash Bjorn Petersen 04/12/2019 User Manual-MG10 PDF 6.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nissin MG10 Wireless Flash with Air 10s Commander in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNissin MG10 Specs | Mount | Handle | | Guide No. | 262.47' / 80 m ISO 100 at 200 mm Position
155.84' / 47.5 m ISO 100 at 35 mm Position | | Exposure Control | Manual, TTL | | Vari-Power | Manual: 1/1 to 1/256 | | Bounce Head | Yes, -7 to +90° | | Swivel Head | Yes, 180° | | Coverage | 18 - 200 mm | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 1.5 to 2.8 Seconds | | Flash Duration | 1/10000 to 1/167 sec | | Flash-Ready Indicator | Yes | | Compensation | -2 EV to +2 EV (in 1/3 EV steps) | | Slave Timing Modes | None | | Wireless Operation | Method: RF
Distance: Up to 328.08' / 100 m
Mode: Slave | | Power Source | 8 x AA Lithium, Rechargeable Li-Ion Batteries | | Dimensions (W x H x D) | 8.3 x 5.7 x 3.1" / 210.0 x 145.0 x 80.0 mm | | Weight | 2.15 lb / 975 g without batteries | | | | Package Weight | 4.39 lb | | Box Dimensions (LxWxH) | 13.5 x 6.5 x 5.4" |
