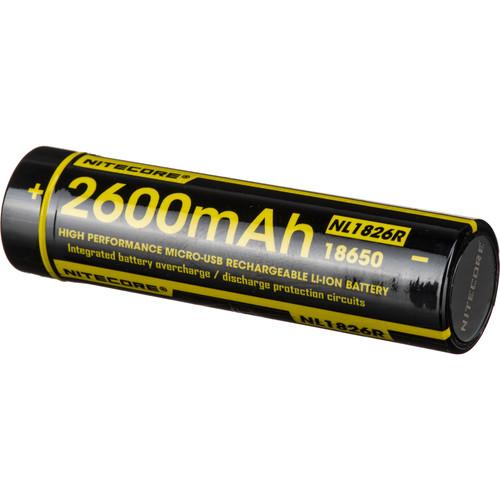

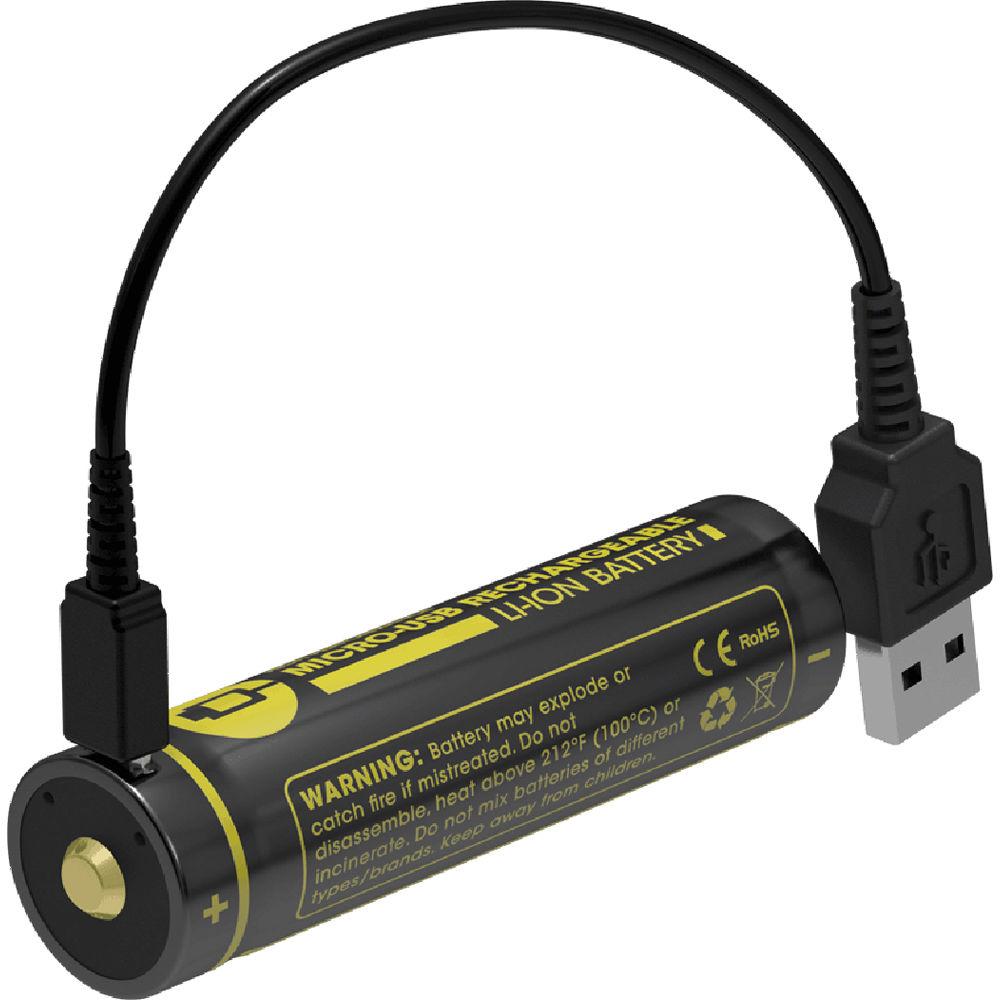

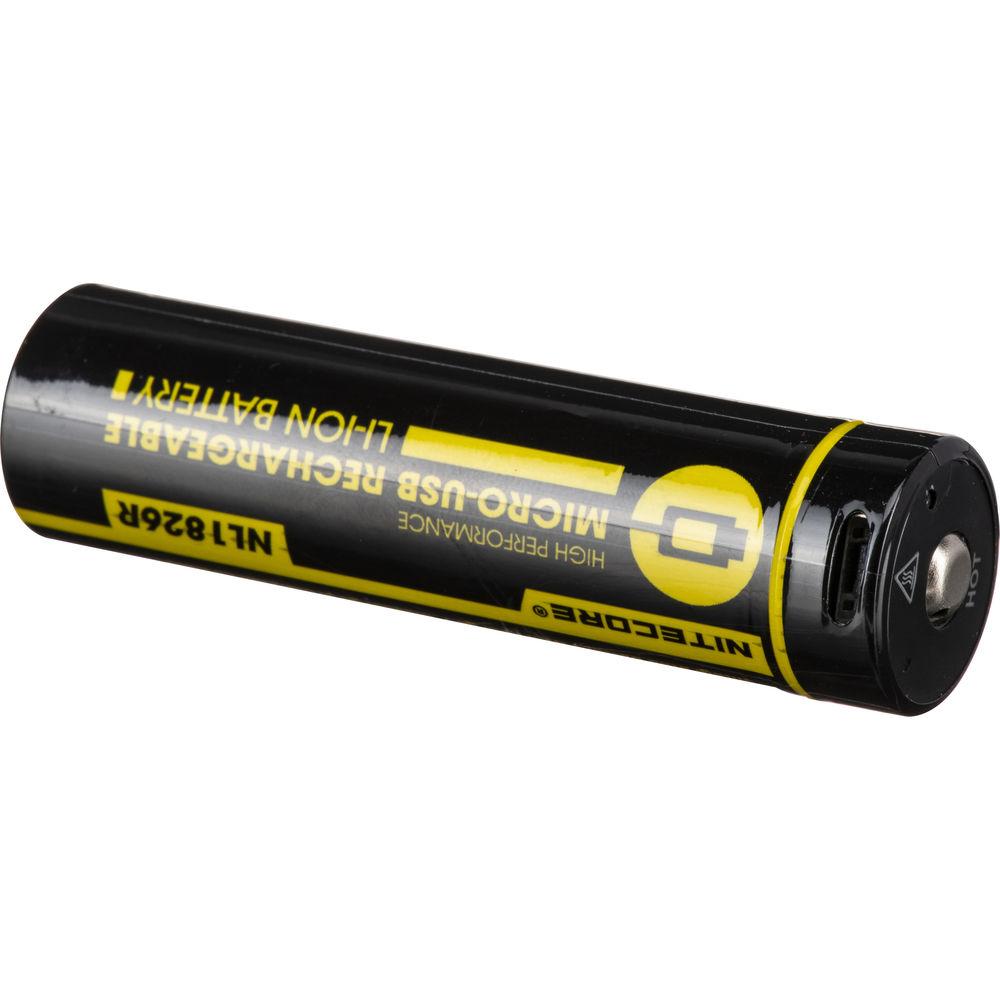

Product description Power a myriad of high-drain electronics, including flashlights, lanterns, headlamps, and various other devices with the NITECORE 18650 Rechargeable Li-Ion Battery. It has a built-in micro-USB port, enabling you to charge the battery from a wall outlet, power strip, or computer using a separately available USB cable, negating the need for an external charger. However, if you'd prefer, you can still insert the battery into a charger just as you normally would.
The 18650 cell contains safety features, such as smart charging circuitry, a micro-porous barrier, and pressure release valve protection to prevent damage from excessive voltage, short-circuiting, rapid expansion and combustion, and other potential dangers. The battery provides 3.7V of output power and a capacity of 2600mAh, resulting in a 9.62Wh energy consumption rate. It's equipped with gold-plated, stainless steel protectors that help ensure high resistance to impact and oxidation, as well as good electrical conductivity. Additionally, the metallic wrapper safeguards against abrasion. The USB cable is not included. In the Box Nitecore 18650 Rechargeable Li-Ion Battery with Micro-USB (3.7V, 2600mAh) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore 18650 Rechargeable Li-Ion Battery with Micro-USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore NL1826R Specs | Type | 18650 | | Chemistry | Lithium-Ion | | Capacity | 2600 mAh | | Output Voltage | 3.7 V | | Watt-Hours | 9.62 Wh | | Input Power | USB Charging Voltage: 5.0 V

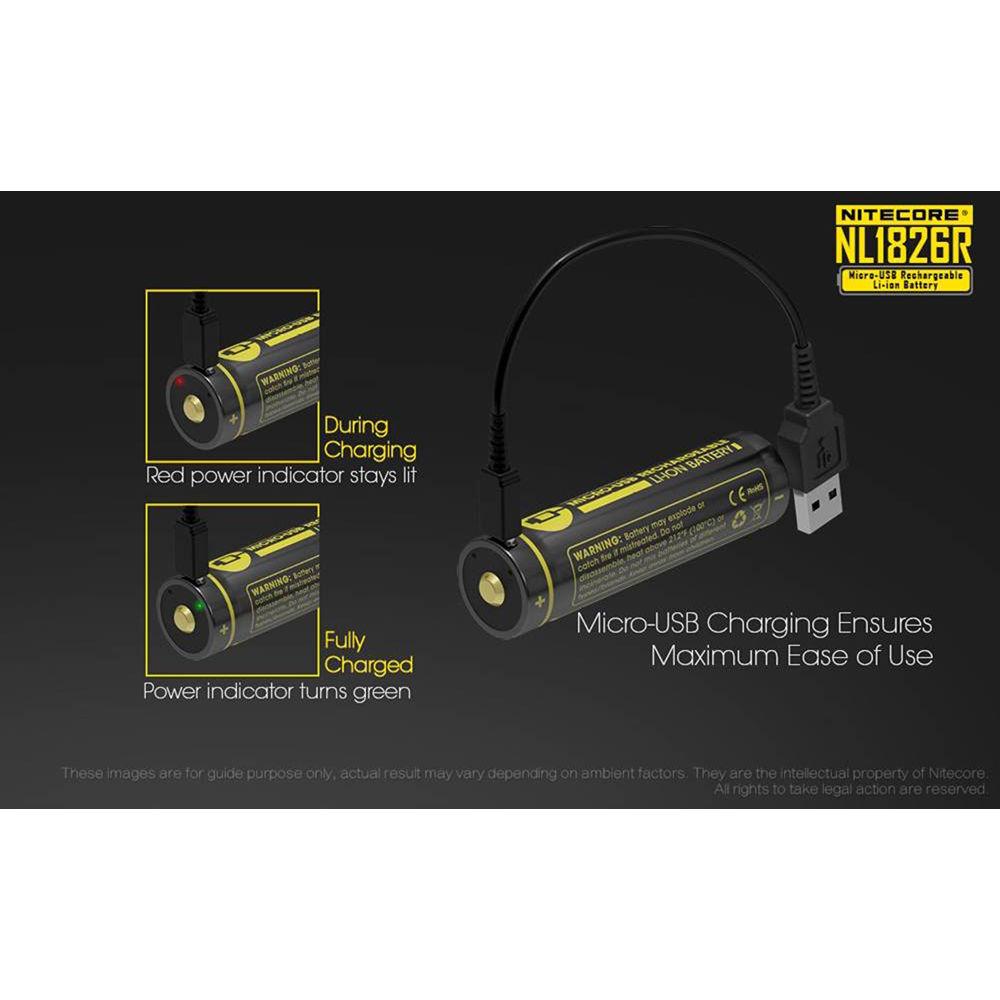

USB Charging Current: 800 mAh (max) | | Durability | Rechargeable up to 500 Times | | Indicator Lights | Red: Charging
Green: Charging Completed | | Protection Circuits | Internal PCB Prevents Insufficient 2.5 V and Excessive 4.25 V Power or High-Current Surges
Safeguards against Over-Charging and Short-Circuiting | | Certifications | CE, RoHS | | Weight | 1.5 oz / 42.5 g | | | | Package Weight | 0.125 lb | | Box Dimensions (LxWxH) | 5.0 x 2.75 x 1.0" |
