User Manual for Nitecore BR35 Rechargeable Bike Light Click to enlarge the picture
Contents of the user manual for the Nitecore BR35 Rechargeable Bike Light
- Product category: Bicycle Lights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Bicycle Lights
 |
User manual for the Nitecore BR35 Rechargeable Bike Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

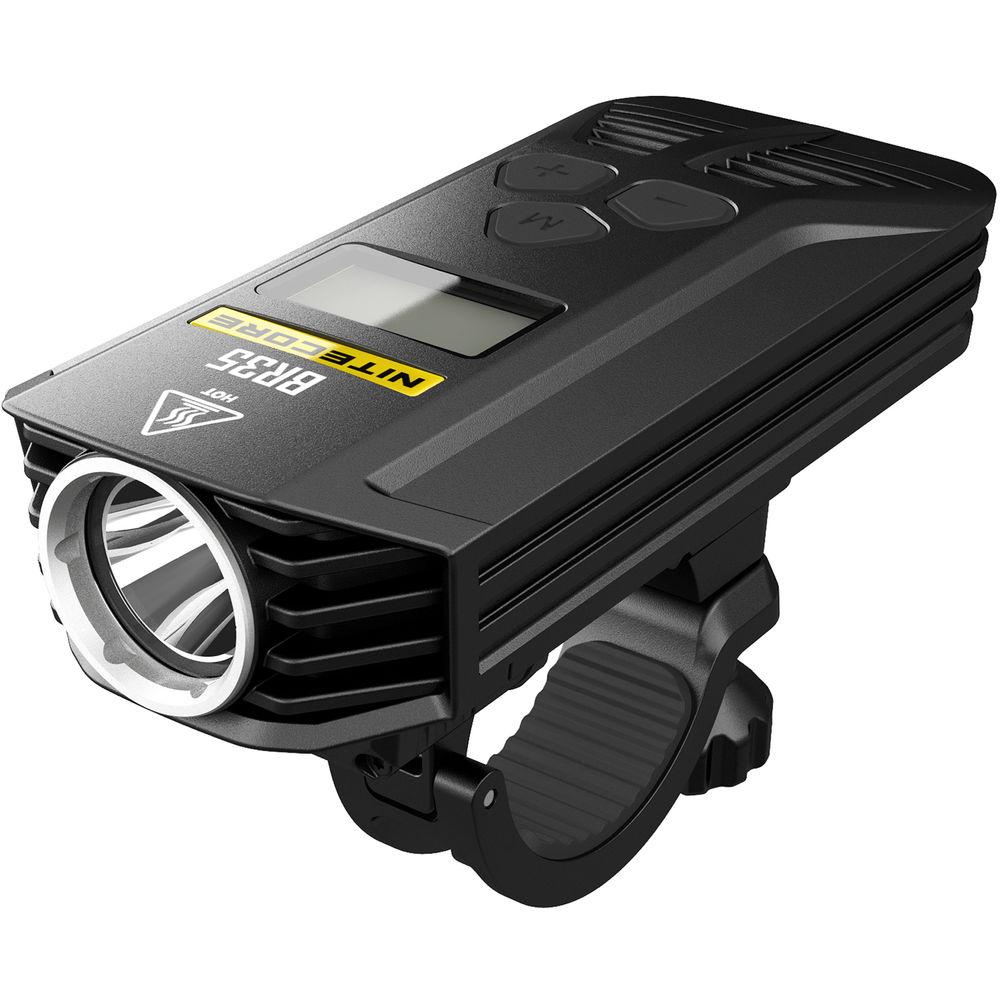

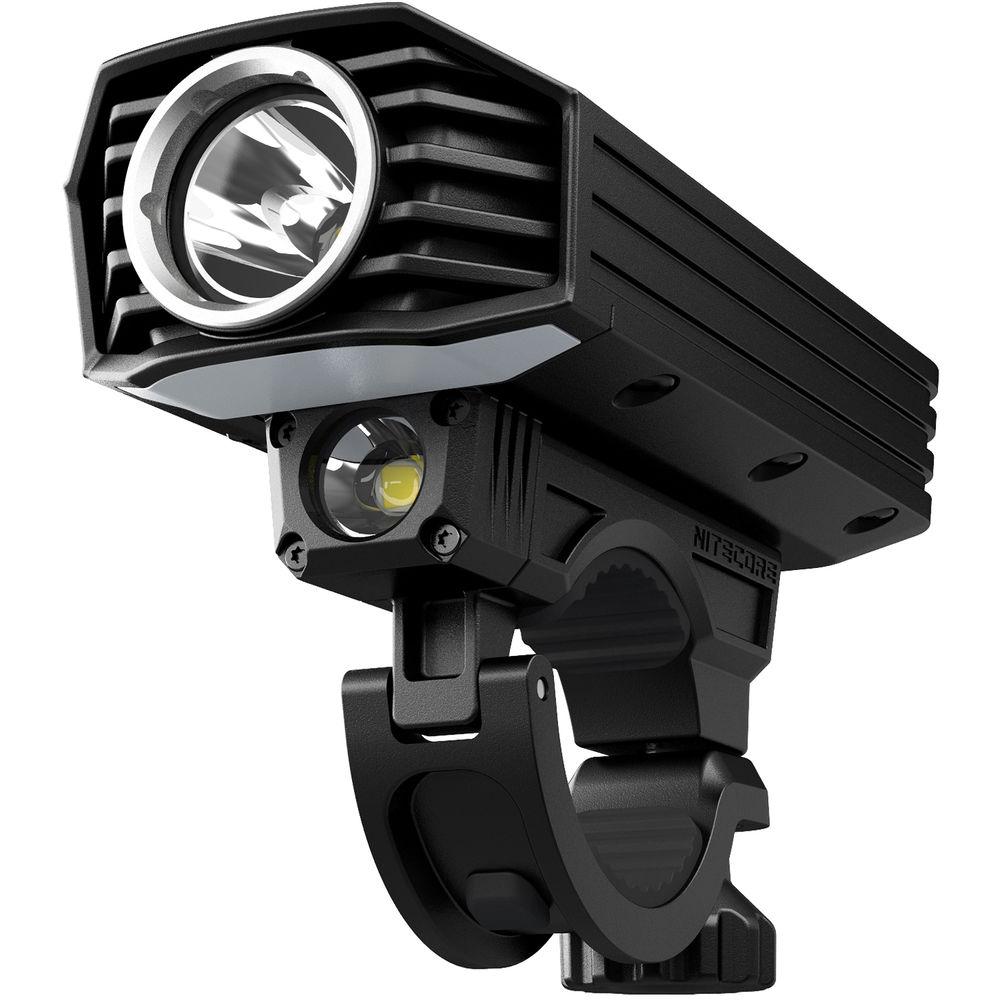

Product description With dual beams like the high and low beams of a car and a powerful 1800-lumen maximum output, the Nitecore BR35 Rechargeable Bike Light will light up the night in town, on the highway, or off-road. It utilizes two Cree XM-L2 U2 LEDs: one for long-range light with a maximum brightness of 1000 lumens, and another for close-range light—which eliminates the dark "dead zone" around your front wheel—with a maximum output of 800 lumens. Use the long beam for general riding, switching to the angled-down low to avoid blinding oncoming drivers. Use just the low beam when close-in visibility is more important. Use both for maximum illumination. Runtimes range from 1 hour on dual-beam high power to 17 hours for either beam on low power. Each beam has four output levels, selected via plus and minus push-button switches on the lamp. You'll know which level you've selected, as well as the remaining battery runtime, with a glance at the OLED display. A remote switch allows you to control the light without taking either hand off the handlebars, and a quick-release bracket makes it easy to remove the light if you duck into a coffee shop or convenience store. Charging the light is also easy: simply plug in the micro-USB cable. It will stop charging automatically upon completion. Built of sturdy, heat-shedding die-cast aluminum, the BR35 features Advanced Temperature Regulation circuitry, overcharge and over-discharge protection, constant circuit (non-PWM) anti-flicker design, and an optic lens with anti-reflective coating and a Precision Digital Optics Technology (PDOT) reflector. It carries an IPX7 water-resistance rating, so rain is no cause for concern, and is rated impact-resistant to 3.3'. - Light Performance
-
- Long-range beam: 1000/550/330/16 lumens
- Short-range beam: 800/465/285/150 lumens
- Dual beam: 1800/1015/615/300
- Two Cree XM-L2 U2 LEDs
- City, Road, and Trail modes
- Diffuser reflection board eliminates front wheel dark spot
- Anti-reflective coated lens and PDOT reflector for optimal performance
- Max beam distance of 557.7'
- Switching
-
- Mode, plus, and minus buttons on lamp
- Remote switch permits operation without removing hands from handlebars
- Construction Details
-
- OLED display shows mode, brightness level, and remaining runtime
- Quick-release mount
- Die-cast aluminum construction
- Structural heat sink and electronic temperature control
- Mirco-USB rechargeable 6800mAh lithium-ion battery
- Overcharge and over-discharge protection
- Non-PWM circuitry for consistent and flicker-free performance
- IPX7 water resistant
- Impact-resistant to 3.3'
In the Box Nitecore BR35 Rechargeable Bike Light Mirco-USB Charge Cable Handlebar Remote Switch Quick-Release Mount 2 x Mount Shim Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore BR35 Rechargeable Bike Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore BR35 Specs | Illumination Source | 2 x Cree XM-L2 U2 LED | | Battery | Built-in 6800 mAh rechargeable lithium-ion | | Output Range | Short-Range Beam
Low: 150 lumens
Med: 285 lumens
High: 465 lumens
Turbo: 800 lumens
Long-Range Beam
Low: 18 lumens
Med: 330 lumens
High: 550 lumens
Turbo: 1000 lumens
Dual Beam
Low: 300 lumens
Med: 615 lumens
High: 1015 lumens
Turbo: 1800 lumens | | Runtime | Short-Range Beam
Low: 17 h
Med: 8.5 h
High: 5.8 h
Turbo: 2 h
Long-Range Beam
Low: 17 h
Med: 8.5 h
High: 5.8 h
Turbo: 2 h
Dual Beam
Low: 8 h
Med: 4 h
High: 2.5 h
Turbo: 1 h | | Construction | Die-cast aluminum housing | | Waterproofing | IPx7-rated, weatherproof | | Impact Resistance | 3.3' / 1 m | | Dimensions | 4.3 x 1.9 x 1.6" / 10.9 x 4.9 x 4.1 cm | | Weight | 8.3 oz / 234.5 g | | | | Package Weight | 1.125 lb | | Box Dimensions (LxWxH) | 8.35 x 6.15 x 2.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Nitecore BR35 Rechargeable Bike Light
| Subject: Nitecore 35 wont turn on after full charge | | Date: 28.05.2021 14:20:38 | Name: Richard Weaver | | after a full night charge, BR35 wont tun on and blue light on button stays on. | | Post reply |
