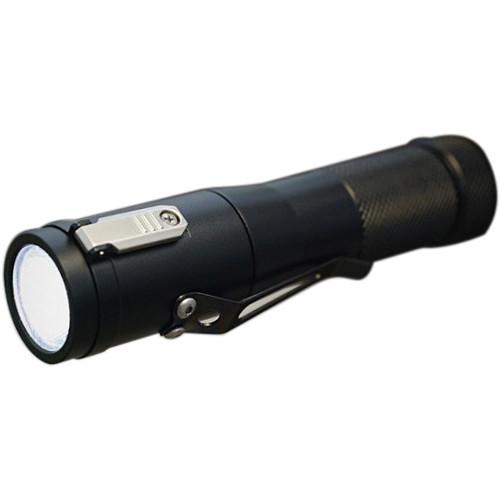

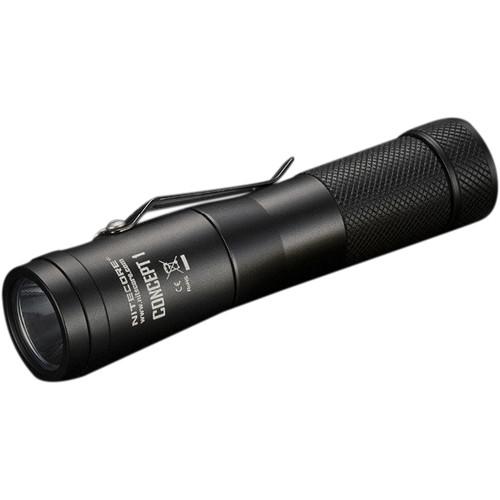

User Manual for Nitecore C1 Concept 1 Series LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore C1 Concept 1 Series LED
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore C1 Concept 1 Series LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

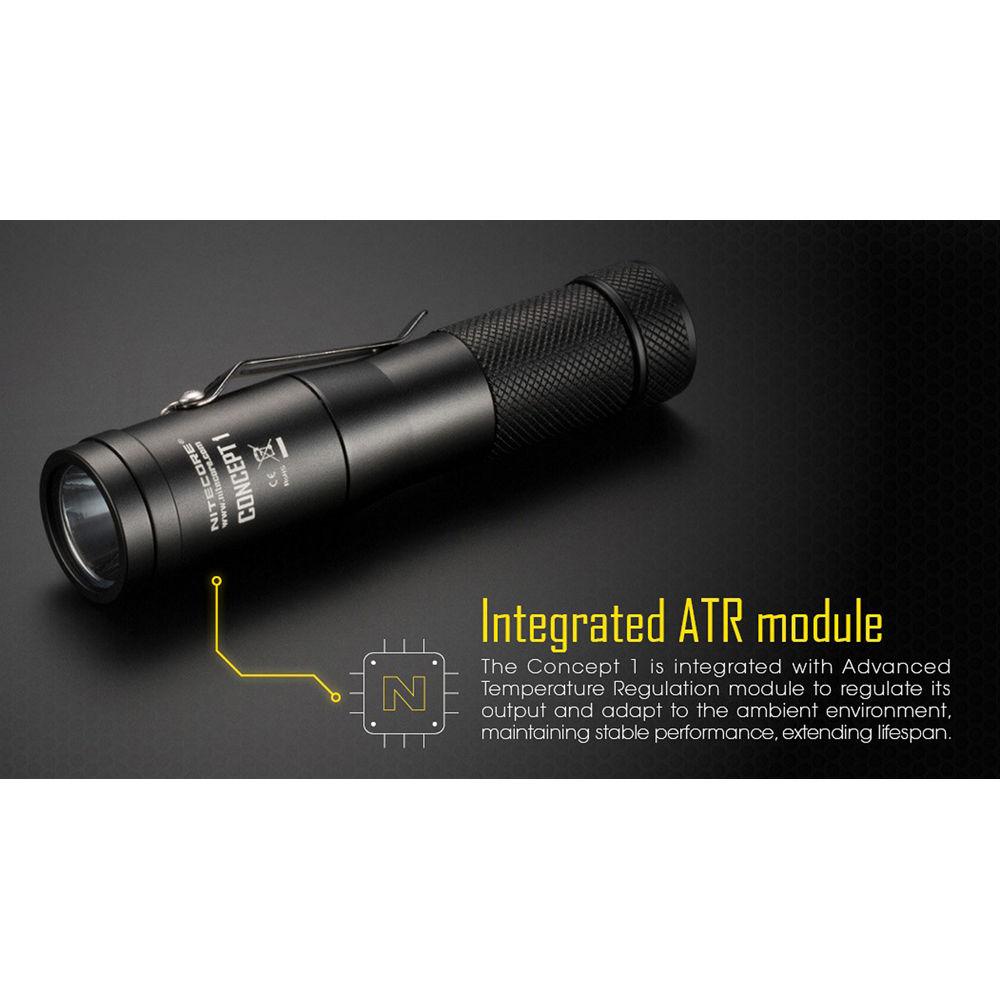

Product description Offering extraordinary output for its size, the Nitecore Concept 1 Flashlight performs like a full-size torch, yet takes up barely any space and weighs just over 2 ounces. Its top setting is a blazing 1800 lumens, and it will run on its lowest setting for 300 hours on one rechargeable 18650 battery. The single metal side switch provides access to five output levels plus disorientating strobe and a location beacon. In General mode, three taps of the switch takes you straight to turbo, while in tactical mode, the same three taps activates the strobe. The C1's beam is smooth and steady thanks to its constant current circuit technology, which avoids the flicker often experienced with lights using pulse width management (PWM). The LED serves as a battery power indicator, reporting voltage with a series of blinks each time a battery is inserted, so you won't be caught off-guard by a depleted cell. As you might expect with such a high-powered light, there is protection from overheating in the form of Nitecore's Advanced Temperature Regulation feature, which maintains stable performance and extends the light's lifespan. A magnetic tailcap allows the light to be attached to any metal surface for hands-free use, and the stainless steel clip assures is stays put in your pocket or pack. Rated IPX8, the C1 is submersible to 6.6' and impact-resistant to 4.9'. It can be powered by one 18650 or IMR18650 or two CR123 batteries. - Light Performance
-
- Turbo: 1800 lumens
- High: 810 lumens
- Mid: 300 lumens
- Low: 80 lumens
- Ultra-low: 1 lumen

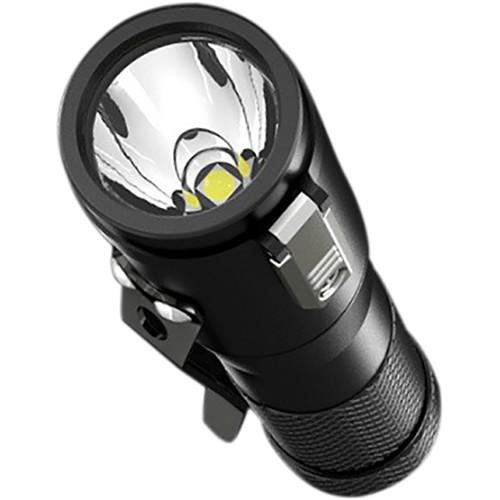

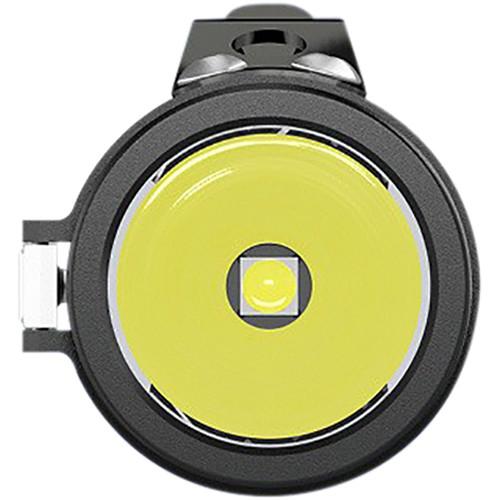

- White Cree XHP35 HD E2 LED
- Location beacon
- SOS
- Disorienting strobe
- Advanced Temperature Regulation avoids overheating
- Constant current circuit for smooth, no-flicker beam
- Remembers last output level
- LED serves as battery power indicator

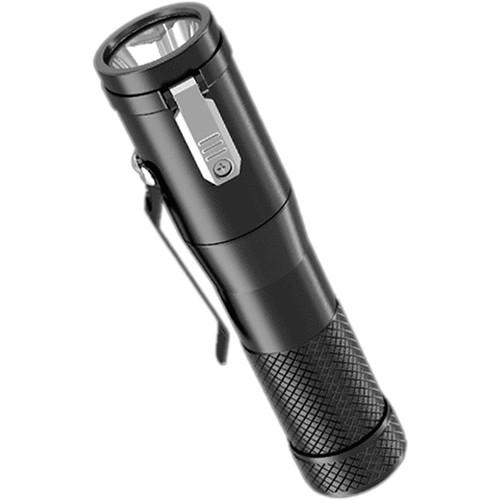

- Switching
-
- Location: Side
- Type: Push button
- Press and hold from Standby to cycle through output levels
- Three clicks from Standby activates Turbo (General mode) or Strobe (Tactical mode)
- Two clicks from Standby activates ultra-low power setting
- Construction Details
-

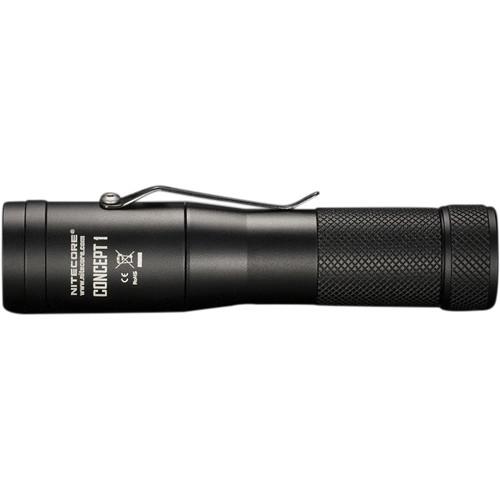

- Aluminum alloy housing
- Type III hard-anodized finish
- Knurled grip surface
- IPX8-rated: Waterproof to 6.6'
- Impact-resistant to 4.9'
- Toughened ultra-clear mineral glass with anti-reflective coating
- Reverse polarity protection

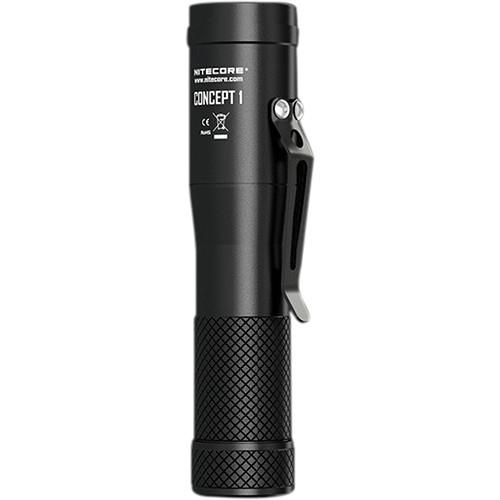

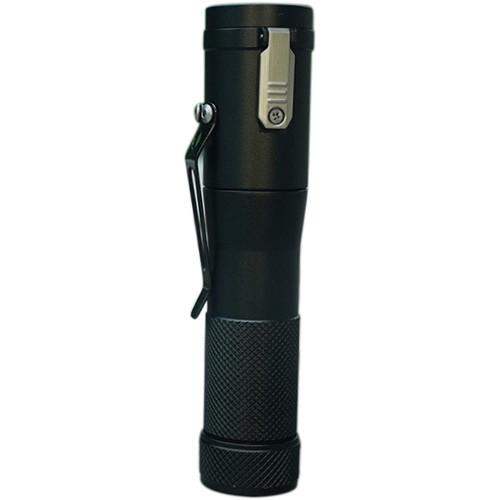

- Removable clip
- Magnetic tailcap for hands-free use
In the Box Nitecore C1 Concept 1 Series LED Flashlight O-Ring Removable Clip Lanyard Holster Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore C1 Concept 1 Series LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore C1 Specs | | | Lumen Output | High: 810 Lumens
Medium: 300 Lumens
Low: 80 Lumens
Turbo: 1800 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 1.5 Hours
Medium: 4 Hours
Low: 15 Hours
Turbo: 0.5 Hour | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Bezel Diameter | 1.0" / 25.4 mm | | Dimensions |
