User Manual for Nitecore CB6 Chameleon Tactical Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore CB6 Chameleon Tactical Flashlight
- Product category: Weapon & Tactical Lights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Weapon & Tactical Lights
 |
User manual for the Nitecore CB6 Chameleon Tactical Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

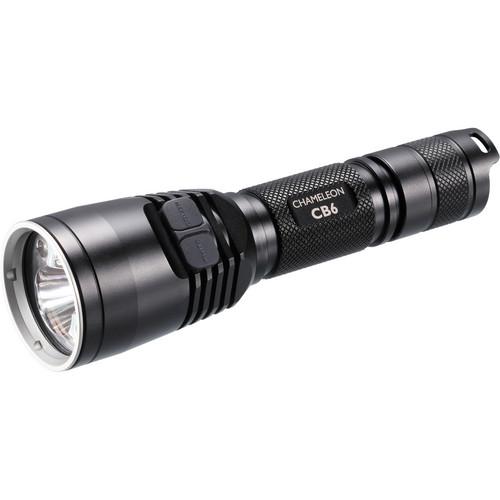

Product description Optimized for law enforcement and hunting, the CB6 Chameleon Multi-Spectrum LED Flashlight from Nitecore offers five brightness levels of white light – and much more. You can also select from three levels of blue light for specialized tasks like following a blood trail, along with low-output settings of blue, green and red light. Other output options include a strobe to cause temporary blindness and disorientation, an SOS distress signal, a flashing location beacon, and a high-visibility multi-color output warning strobe. Press or click the two-stage tailcap switch to select momentary or constant-on activation. Dual body switches control the white and blue outputs as well as the RGB LEDs and strobe functions.Built for daily use, the aluminum housing has a hard-anodized finish that resists scratching and corrosion. It is also submersible to 6.6', and impact-resistant to 5'. A stainless steel bezel protects the head from damage, and the lens window is tempered to protect the emitters. Heat-dissipating fins on the head provide a passive cooling system to help protect the light from overheating. The diamond-textured grip provides sure-handling in wet or cold conditions. - Light Performance
-
- White light outputs: ultra-low, 1 lumen; low, 25 lumens; medium, 160 lumens; high, 280 lumens; turbo, 440 lumens
- Blue light outputs: low, 3 lumens; medium, 15 lumens; high, 35 lumens
- Secondary red, blue & green outputs
- Strobe mode causes temporary blindness and disorientation
- SOS signal automatically cycles through Morse code sequence
- Alternating red and blue strobe warning mode
- Flashing location beacon
- Switching
-
- Tailcap and dual body switches
- Momentary and Constant-on activation
- Individual white and blue output switches on body
- Press tailcap for momentary activation, click for constant-on
- Intelligent output selector switch remembers last output used
- Construction Details
-
- Aluminum alloy housing
- Type III hard-anodized finish
- Corrosion- and scratch-resistant
- Anti-reflective coated and tempered lens
- Stainless steel bezel protects lens from hits and drops
- U-shaped tailcap shroud helps prevent accidental activation
- Submersible to 6.6', impact-resistant to 5'

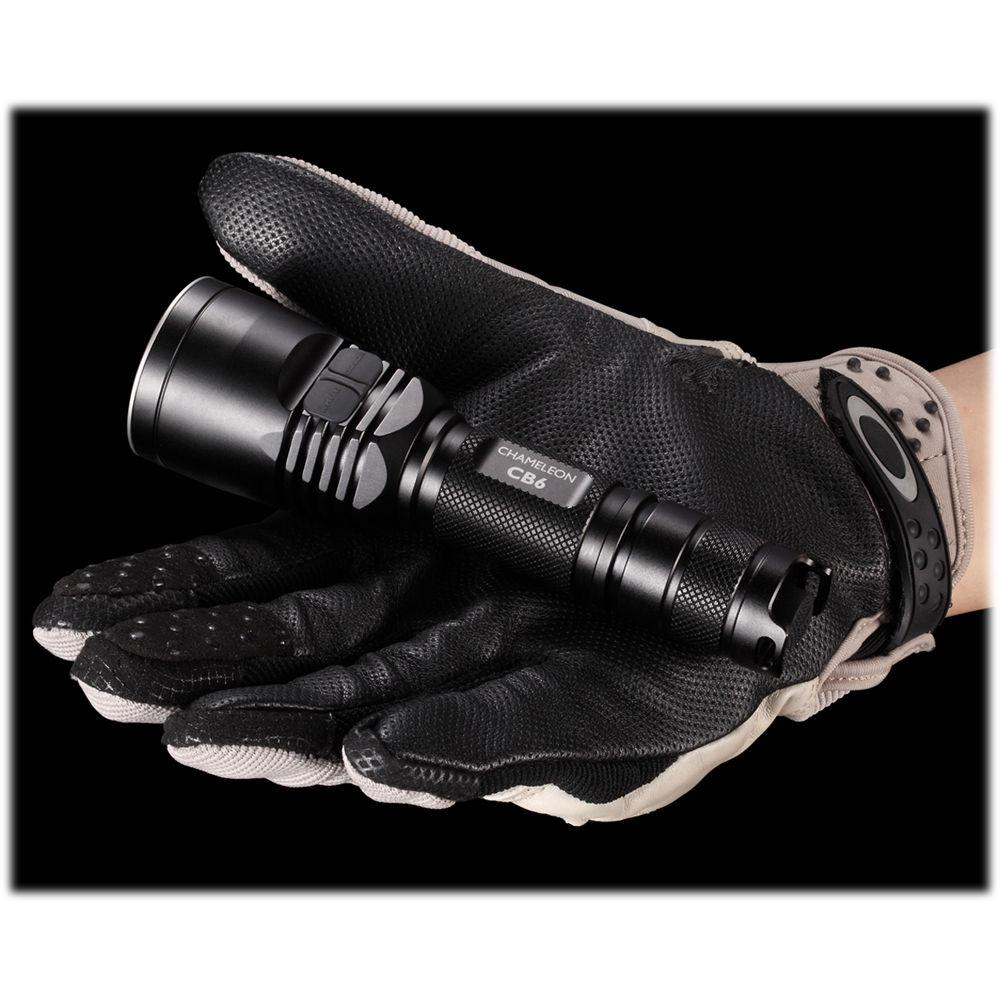

- Textured diamond grip for sure handling
- Titanium-plated stainless steel clip

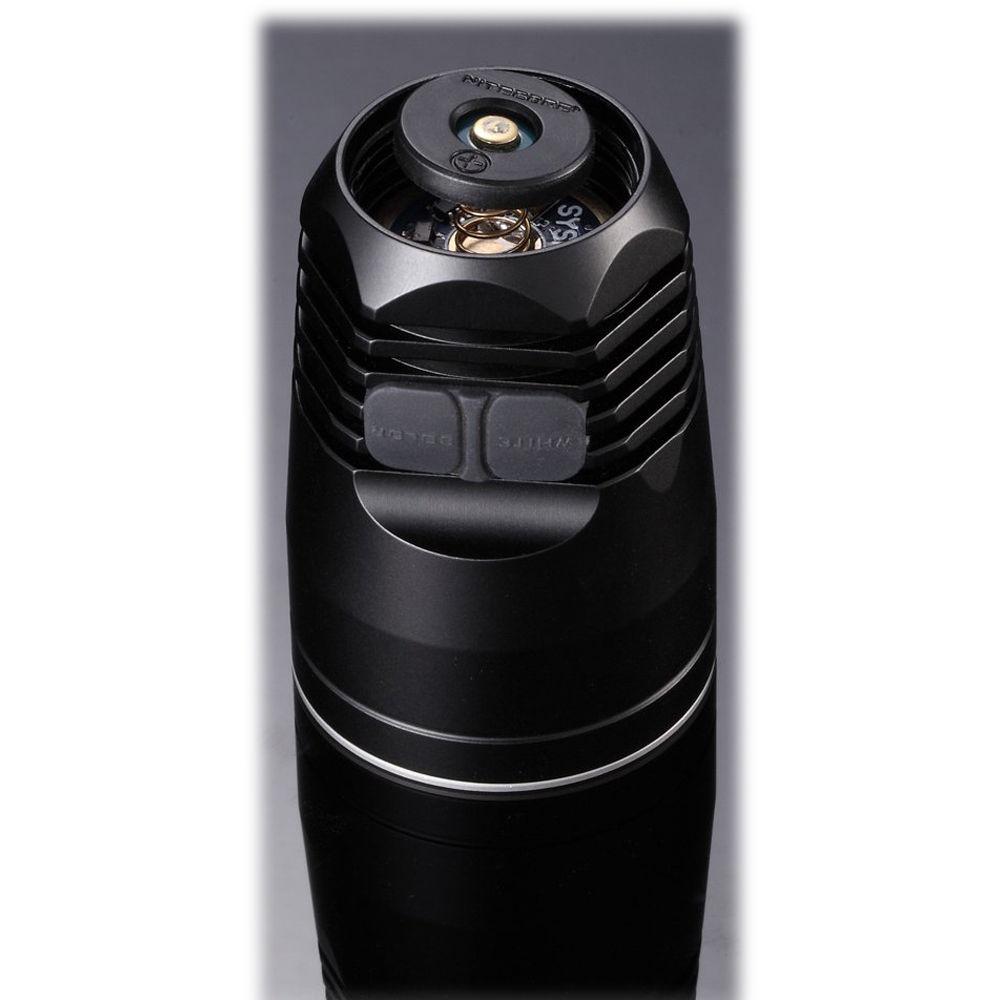

- Heat-dissipating fins on head
- Battery-status indicator
- Reverse-polarity protection
- Runs on li-ion rechargeable or lithium disposable batteries
- Removable tactical ring for 'cigar-style' tactical grip
In the Box Nitecore CB6 Chameleon Tactical Flashlight (White/Blue) Clip Lanyard Holster Spare O-Ring Spare Tailcap Boot Tactical Handle Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore CB6 Chameleon Tactical Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore CB6 Specs | Illumination Source | White: Cree XP-G2(R5) LED
Blue: Cree XP-E(D4) LED | | Output Range | White:
Min: 1 lumen
Low: 25 lumens
Med: 160 lumens
High: 280 lumens
Turbo: 440 lumens
Blue:
Low: 3 lumens
Med: 15 lumens
High: 35 lumens | | Battery / Runtime | 1 x 18650 Li-Ion rechargeable:
White:
Min: 400.0 h
Low: 43.0 h
Med: 7.0 h
High: 3.5 h
Turbo: 1.75 h
Blue:
Low: 45.0 h
Med: 11.0 h
High: 2.75 h
2 x CR123 Lithium Disposable:
White:
Min: 260.0 h
Low: 32.0 h
Med: 5.75 h
High: 2.75 h
Turbo: 1.75 h
Blue:
Low: 33 h
Med: 8 h
High: 2 h | | Construction | Aluminum | | Waterproofing | IPX8-rated, submersible to 6.6' (2 m) | | Dimensions | Head: 1.6" (4.0 cm)
Body: 5.6 x 1.0" (14.3 x 2.5 cm) | | Weight | 4.9 oz (138 g), without batteries | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 7.2 x 4.0 x 1.3" |
