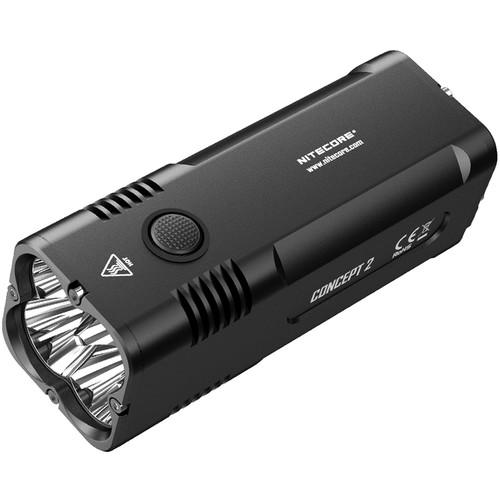

Product description An ultra-bright and ultra versatile palm-sized flashlight, the Nitecore Concept 2 Rechargeable LED Flashlight utilizes four LEDs and a built-in 12,400mAh lithium-ion battery to offer a maximum setting of 6500 lumens for 30 minutes, and a lowest setting of 1 lumen for 2000 hours.
The side button provides access to five output levels, plus strobe, beacon, and SOS modes. Incorporating full press, half press, and hold functions, the side button allows fast and intuitive switching between the Concept 2's various output levels and special modes. The Concept 2's beam is smooth and steady thanks to its constant current circuit technology, which avoids unwanted flicker.
The side button also serves as a power indicator, reporting voltage with a series of blinks when gently tapped while the Concept 2 is turned off, so you won't be caught unawares by a depleted battery. A Lockout mode further ensures that power is conserved by preventing accidental activation; and as you might expect with such a high-powered device, there is protection from overheating in the form of Nitecore's Advanced Temperature Regulation feature, which maintains stable performance while extending the light's lifespan.
A tail stand enables hands-free use, and a built-in clip ensures that the Concept 2 stays put in your pocket or pack. Rated IP68, this light is submersible to 6.6' and impact resistant to 3.3'.
A holster is provided, which can be also used for storage and during transport. A lanyard, charging adapter, and spare charging port cover are also included. - Light Performance
-
- Turbo: 6500 lumens
- High: 2500 lumens
- Mid: 1000 lumens
- Low: 285 lumens
- Ultra-low: 1 lumen
- 4x CREE XHP35 HD LEDs
- Beacon
- SOS
- Strobe
- Advanced Temperature Regulation avoids overheating
- Intelligent Memory Function remembers last output level
- Constant current circuit for smooth, no-flicker beam
- Power switch serves as battery power indicator
- Switching
-
- Location: Side
- Type: Push button with full and half press capacities with hold function
- Full press while off to turn on with previously used brightness level
- Full press while on to turn off
- Half press while on to cycle through output levels
- Full press and hold while off activates Turbo mode
- Half press and hold while on activates Turbo mode
- Full press and hold while on activates Strobe mode
- Half press while in Strobe mode to cycle through Beacon, SOS, and Strobe modes
- Half press while in Beacon mode to skip to Strobe mode
- Turn off to exit Beacon, SOS, and Strobe modes
- Half press while off for 2 seconds activates Lockout mode
- Full press while in Lockout mode for 2 seconds deactivates Lockout mode
- Construction Details
-
- Aluminum-alloy housing
- Type III hard-anodized finish
- Knurled grip surface
- IP68-rated: Waterproof to 6.6'
- Impact resistant to 3.3'
- Toughened ultra-clear mineral glass with anti-reflective coating
- Reverse polarity protection
- Belt clip
- Tail stand for hands-free use
In the Box Nitecore Concept 2 Rechargeable LED Flashlight Charging Adapter Spare Charging Port Cover Lanyard Holster Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore Concept 2 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore CONCEPT 2 Specs | | | Lumen Output | Turbo: 6500 Lumens
High: 2500 Lumens
Medium: 1000 Lumens
Low: 285 Lumens
Ultra-Low: 1 Lumen | | Illumination Source | 4 x LED | | | | Estimated Runtime | Proprietary
Turbo: 30 Minutes
High: 1.5 Hours
Medium: 6.5 Hours
Low: 16 Hours
Ultra-Low: 2000 Hours | | Battery Type | 1 x Rechargeable Pack | | Internal Battery Capacity | 12400 mAh | | Charging Time | 5 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.6" / 39.9 mm | | Dimensions | H: 1.6 x W: 1.6 x L: 4.4" / H: 40.6 x W: 40.6 x L: 111.8 mm | | Weight | 12.28 oz / 348.0 g | | | | Package Weight | 1.52 lb | | Box Dimensions (LxWxH) | 7.9 x 5.6 x 2.8" |
