User Manual for Nitecore CU6 Chameleon LED Flashlight with Ultraviolet Light Click to enlarge the picture
Contents of the user manual for the Nitecore CU6 Chameleon LED Flashlight with
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore CU6 Chameleon LED Flashlight with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

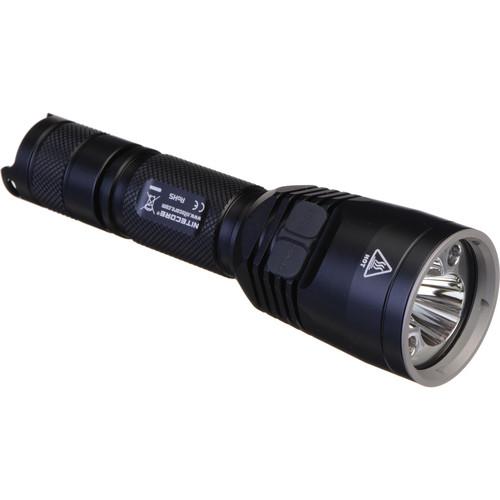

Product description The CU6 Chameleon LED Flashlight with Ultraviolet Light from Nitecore is a compact, durable LED flashlight with five output levels and color modes including white, red, green, blue and ultraviolet. Its CREE XP-G (R5) LED lamp provides a maximum output of 440 lumens in white light Turbo mode. Its maximum runtime in lowest mode is 400 hours and its maximum beam distance is 623 feet. It is equipped with a red, green and blue signaling mode.Dual side switches provide independent control of white and colored LEDs with a integrated power indicator light. A U-shaped tailcap button facilitates operation with gloves and also prevents accidental activation. An Instant-On function enables direct Turbo mode activation. Reverse polarity protection prevents malfunction due to improperly loaded batteries.The CU6 is made from anodized aluminum alloy and clear mineral glass with dual-side anti-reflective coating. It features a stainless steel retaining bezel ring and is impact resistant to 5' and waterproof to the IPX-8 standard. A knurled grip and pocket clip provide a sure grip and easy accessibility and it is compatible with 1" gun mounts. The CU6 is powered by one rechargeable Li-ion 18650 battery or two disposable CR123 batteries. - Five individual light sources: two main LEDs and secondary red, green and blue LEDs.
- Ultraviolet LED provides 3000mW at 365nm
- Dual side switch offers direct control of white light and color modes and tailcap button directly activates turbo and ultra-violet modes.
- Compatible with 1" gun mounts and Nitecore's RSW1 pressure remote switch.
- U-shaped tailcap facilitates operation with gloves and prevents accidental activation.
- Stainless steel retaining bezel ring protects head from impact damage.
- Toughened mineral glass with double-sided anti-reflective coating for efficient light transmittance
- Titanium plated stainless steel pocket clip and tactical ring
- Waterproof to the IPX-8 Standard (submersible to 6.6') and shock proof to a fall from 5'.
- Multi-colored signaling mode
- Integrated power indicator lights
- Reverse polarity protection
In the Box Nitecore CU6 Chameleon LED Flashlight with Ultraviolet Light Holster Clip Tactical Ring Lanyard Spare Tail Cap Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore CU6 Chameleon LED Flashlight with Ultraviolet Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore CU6 Specs | | | Lumen Output | Turbo: 440 Lumens
High: 280 Lumens
Medium: 160 Lumens
Low: 25 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 3.5 Hours
Medium: 7 Hours
Low: 43 Hours
Turbo: 1.75 Hours
Minimum: 400 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Dimensions |
