User Manual for Nitecore EA81 Flashlight With CREE XHP50 LED Click to enlarge the picture
Contents of the user manual for the Nitecore EA81 Flashlight With CREE XHP50
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore EA81 Flashlight With CREE XHP50 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

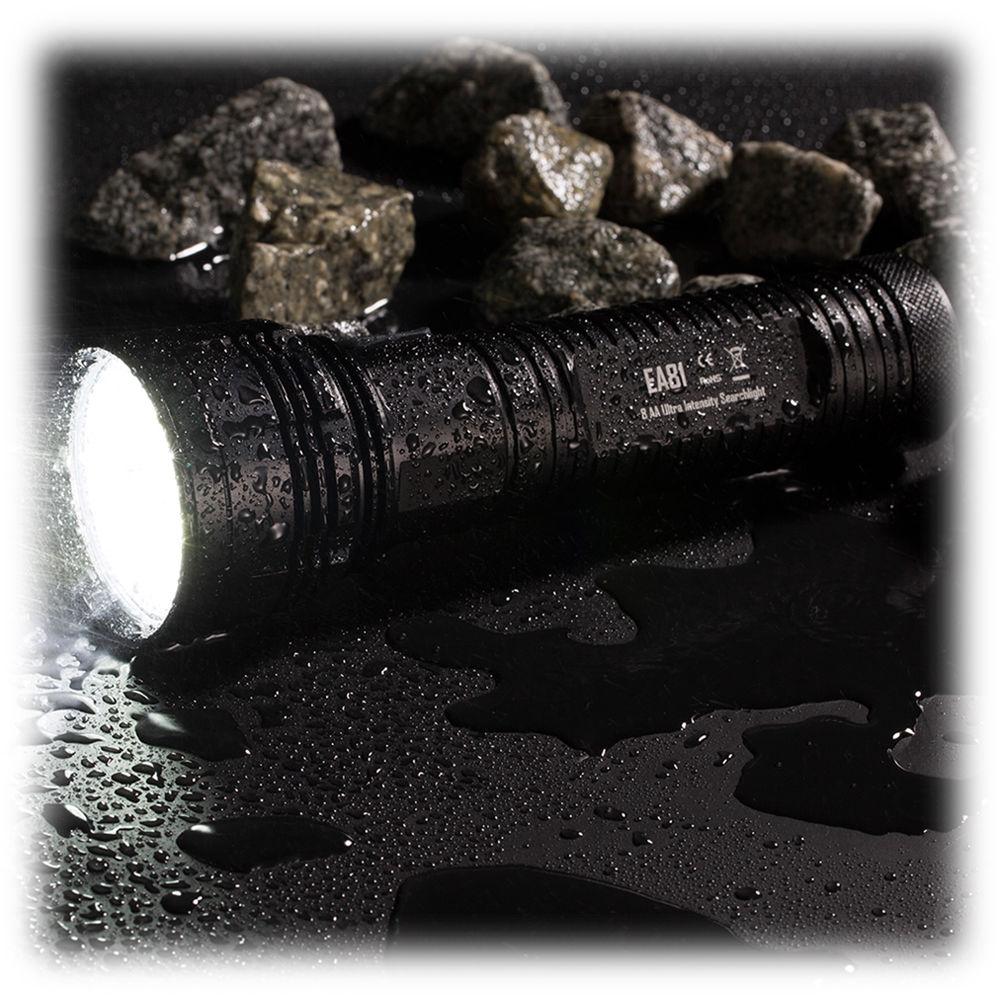

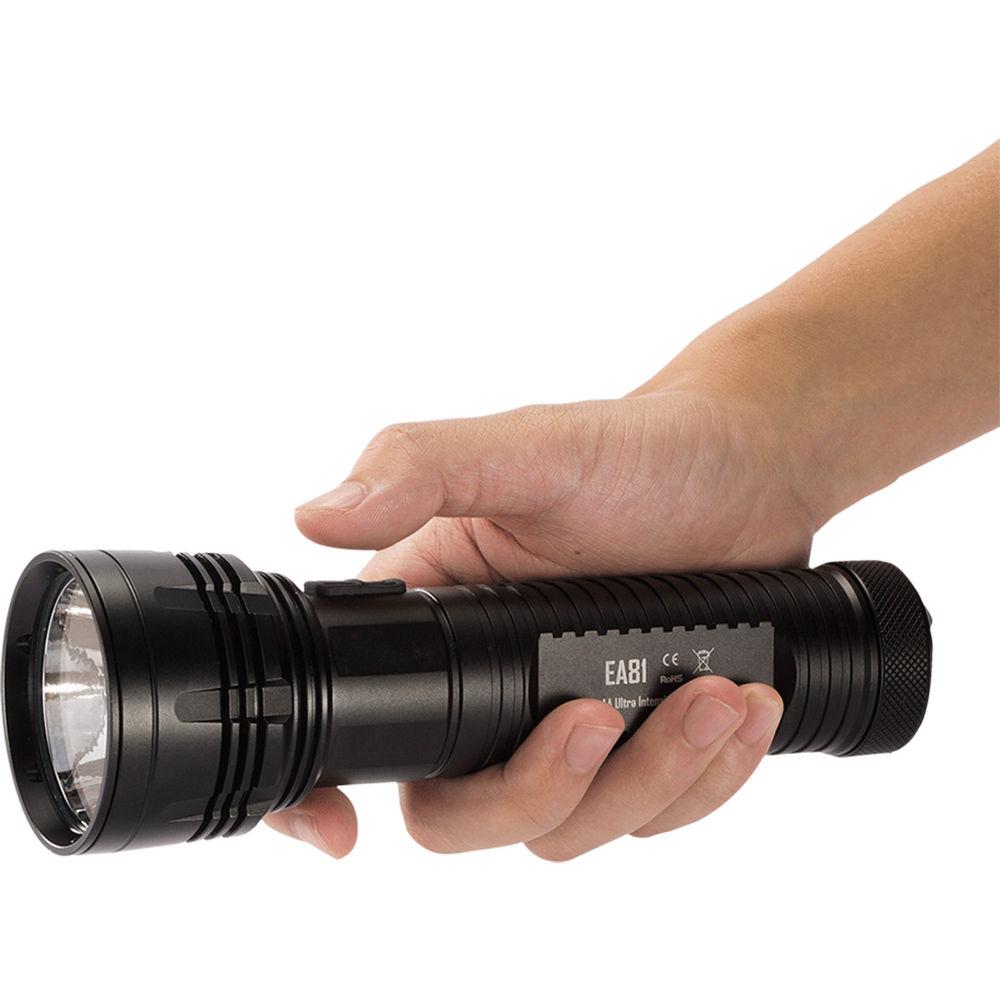

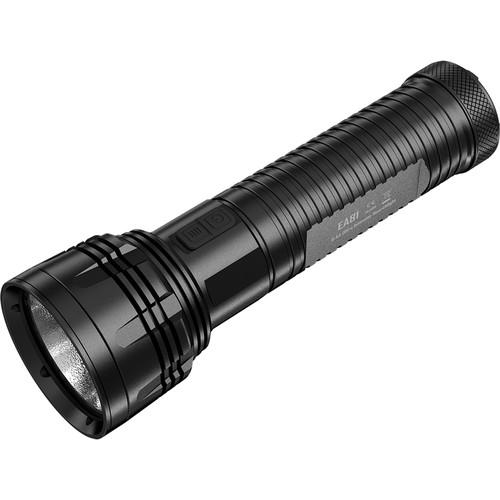

Product description With 2150 lumens of output, the NITECORE EA81 Flashlight With CREE XHP50 LED functions as a handheld searchlight. Powered by eight AA batteries, this light features five outputs starting at 1 lumen. There are also multiple strobe modes, including a preprogrammed SOS mode. Dual switches on the side permit easy toggling between modes.
The flashlight's aluminum body has a Mil Spec Type III hard-anodized finish with a stainless steel bezel. An orange peel reflector provides a smooth beam, and the body has a non-slip design. Waterproof to 6.5' and impact resistant to 4.9,' the EA81 is ideal for harsh conditions. - Light Performance
-
- Ultralow Mode: 1 lumen
- Low: 80 lumens
- Mid: 460 lumens
- High: 1200 lumens
- Turbo: 2150 lumens
- White CREE XHP50 LED
- SOS Mode
- Strobe Mode

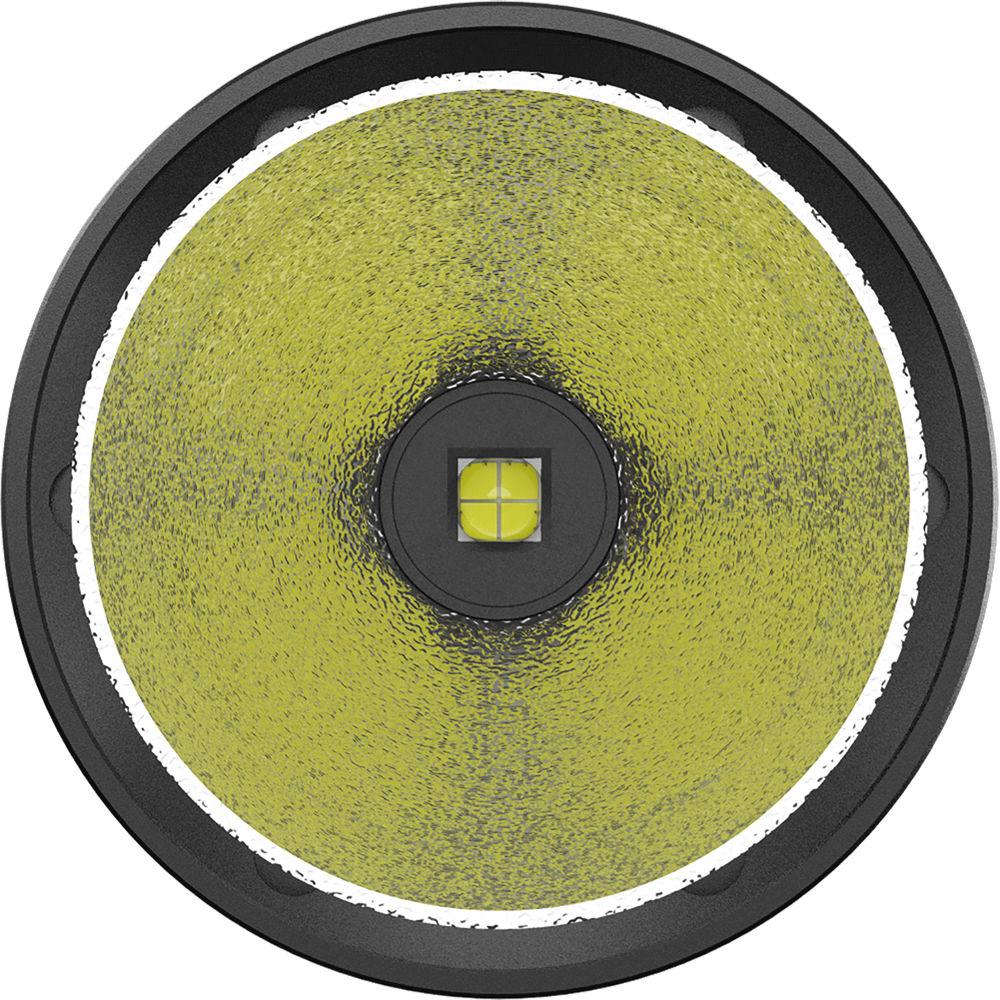

- Orange Peel Reflector
- Switching
-
- Location: Body
- Type: Dual side switch system
- Top Button: Cycles through output modes
- Bottom Button: On/Off
- Press and hold power button while off for Ultralow Mode
- Press and hold mode button while off for Turbo Mode
- Press and hold both buttons to lock and unlock the flashlight
- Switch blinks to indicate power level
- Switch blinks once every two seconds to help locate light in the dark
- Construction Details
-
- 2.4" diameter bezel
- Aluminum housing
- Mil Spec Type III hard-anodized finish
- Textured body for anti-slip grip
- Ventilation slots
- IPX8 rated: Waterproof to 6.5'
- Stainless steel bezel
- Impact resistant to 4.9'
- Scratch and impact resistant tempered glass lens
- Reverse polarity protection
- Tail stand
In the Box Nitecore EA81 Flashlight With CREE XHP50 LED Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore EA81 Flashlight With CREE XHP50 LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore EA81 Specs | | | Lumen Output | High: 1200 Lumens
Medium: 460 Lumens
Low: 80 Lumens
Turbo: 2150 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 2.5 Hours
Medium: 7 Hours
Low: 32 Hours
Turbo: 1.75 Hour
Minimum: 810 Hours | | Battery Type | 8 x AA | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Bezel Diameter | 2.4" / 6.1 cm | | Dimensions |
