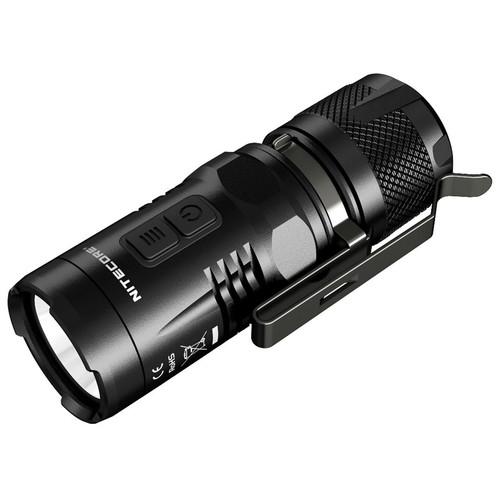

User Manual for Nitecore EC11 Explorer LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore EC11 Explorer LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore EC11 Explorer LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

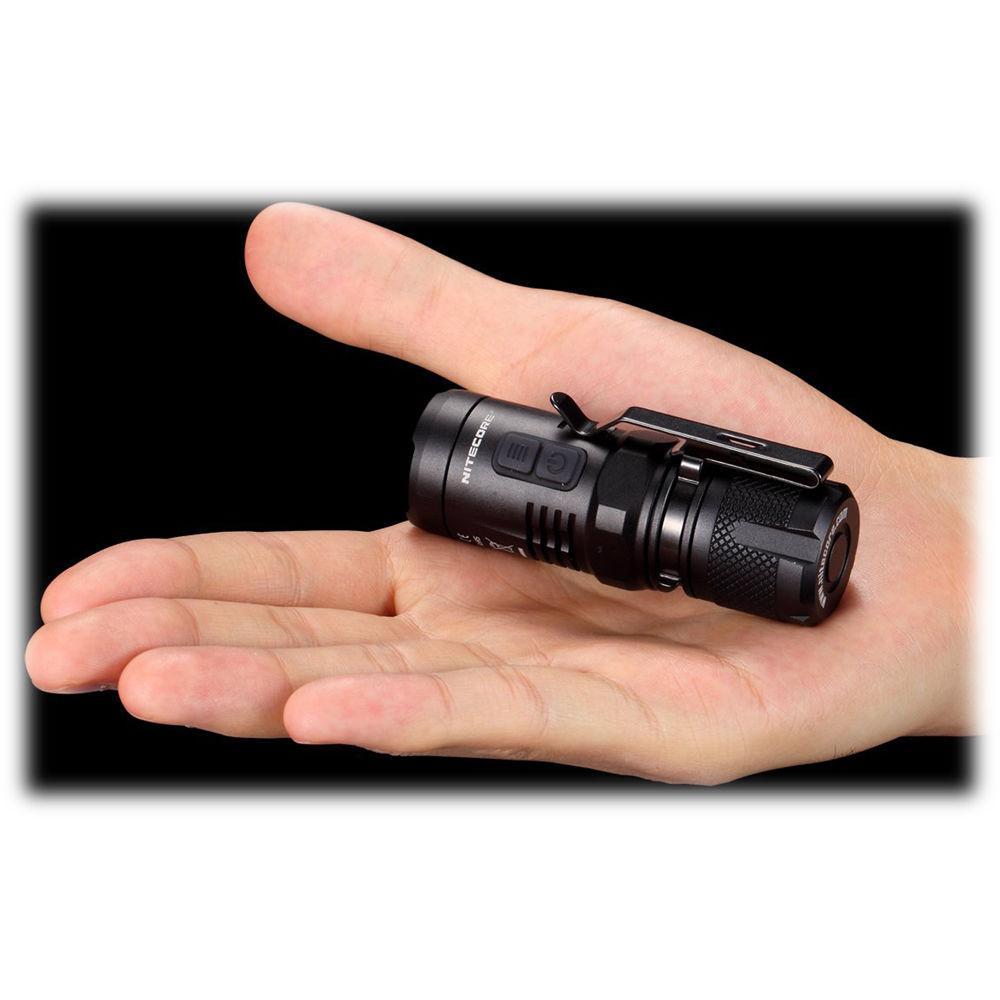

Product description Despite measuring less than 3", the EC11 Explorer LED Flashlight from Nitecore delivers up to 900 lumens. With a white CREE XM-L2 (UL) LED as the primary emitter, this light has five brightness settings ranging from 1 lumen up to 900 when an RCR123 battery is installed. Enhancing the versatility of this unit, there are 3 different emergency strobe patterns. A dual switch interface allows you to easily toggle between brightness settings, red light, and strobe modes. You can also directly select turbo and minimum modes from the off position so you don't have to cycle through modes to get the desired output.
Operation is also possible with CR123A batteries, which allow for lesser outputs and longer run times. Two lockout modes help prevent accidental activation and conserve battery power. When in standby, the red light flashes every 3 seconds so you can easily spot it. You will always know exactly how much battery power is left, compliments of the indicator LED.
Made of type 3 anodized aluminum alloy, this flashlight is scratch and corrosion resistant. It is impact resistant when dropped from heights up to 4.9', and is submersible to 6.6'. - Performance
-

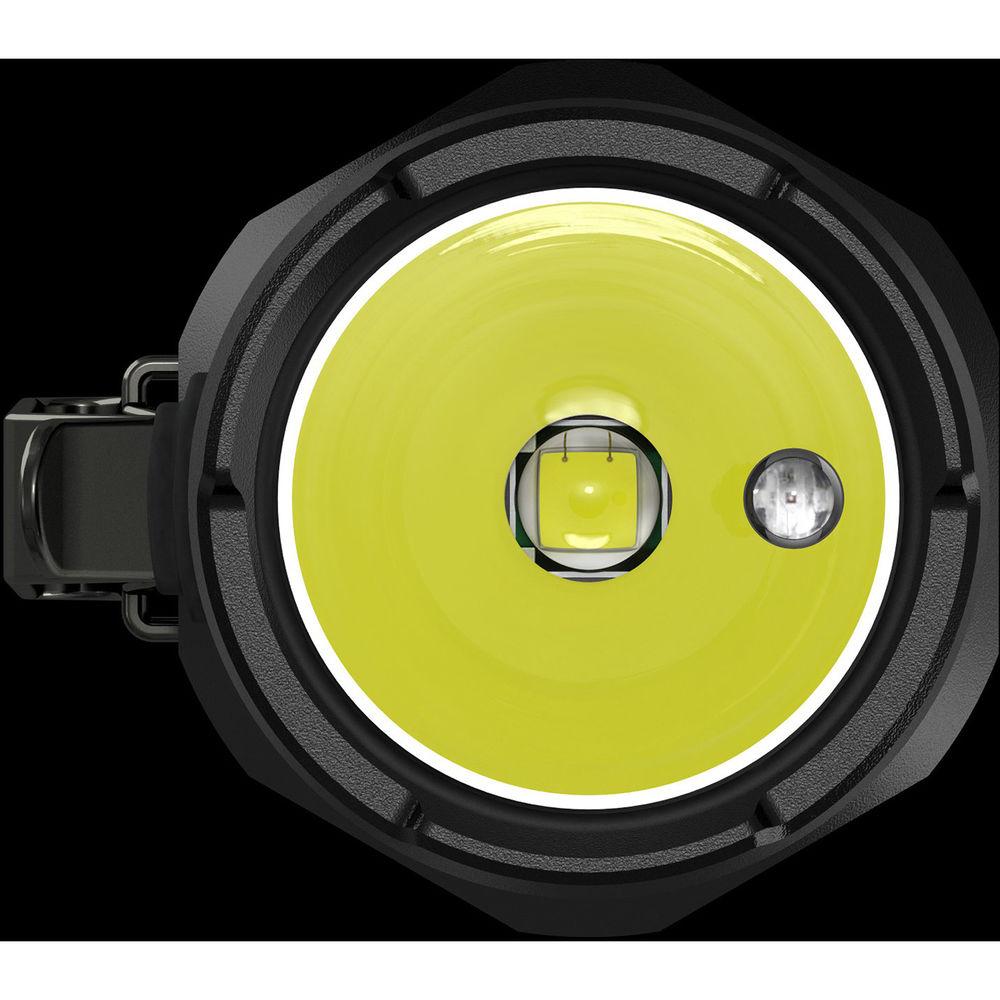

- One primary white CREE XM-L2 (U2) LED emitter
- Secondary red light used for reading and tasks without affecting night-adjusted vision
- White-light strobe modes:
- SOS distress mode: Automatically cycles through Morse-code sequence
- Signal beacon: Flashing mode to signal location
- Disorienting strobe
- Red light flashes every 3 seconds in standby mode to find it easily in the dark
- Outputs
-
- RCR123 battery:
- Min: 1 lumen
- Low: 70 lumen
- Mid: 160 lumen
- High: 300 lumen
- Turbo: 900 lumen
- CR123A battery:
- Min: 1 lumen
- Low: 40 lumen
- Mid: 100 lumen
- High: 230 lumen
- Turbo: 430 lumen
- Switching
-
- Location: Body
- Type: Dual pushbutton
- Constant-on activation only
- Last-mode memory automatically goes to last output selection when turned on
- Instant access to minimum and turbo outputs
- Lockout feature prevents accidental activation
- Construction
-
- Lightweight and durable Aluminum-alloy housing
- Scratch and corrosion-resistant type III hard anodized aluminum
- IPX8-rated waterproof and submersible to 6.6'
- Impact-resistant to 5'
- Heat dissipating fins on head
- Anti-roll collar behind head
- Removable steel clip
- Tail-stand capability
- Reverse-polarity protection prevents damage to light if batteries are installed incorrectly
- Runs on one CR123A battery
In the Box Nitecore EC11 Explorer LED Flashlight Holster CR123 Battery Magazine Clip Lanyard Spare O-Ring Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore EC11 Explorer LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore EC11 Specs | | | Lumen Output | RCR123A:
High: 300 Lumens
Medium: 160 Lumens
Low: 70 Lumens
Turbo: 900 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x White LED
1 x Red LED | | | | Estimated Runtime | CR123A
High: 1.5 Hours
Medium: 3.25 Hours
Low: 8.5 Hours
Minimum: 20 Hours
Turbo: 0.75 Hour | | Battery Type | 1 x RCR123A or
1 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Bezel Diameter | 1.0" / 25.4 mm | | Dimensions |
