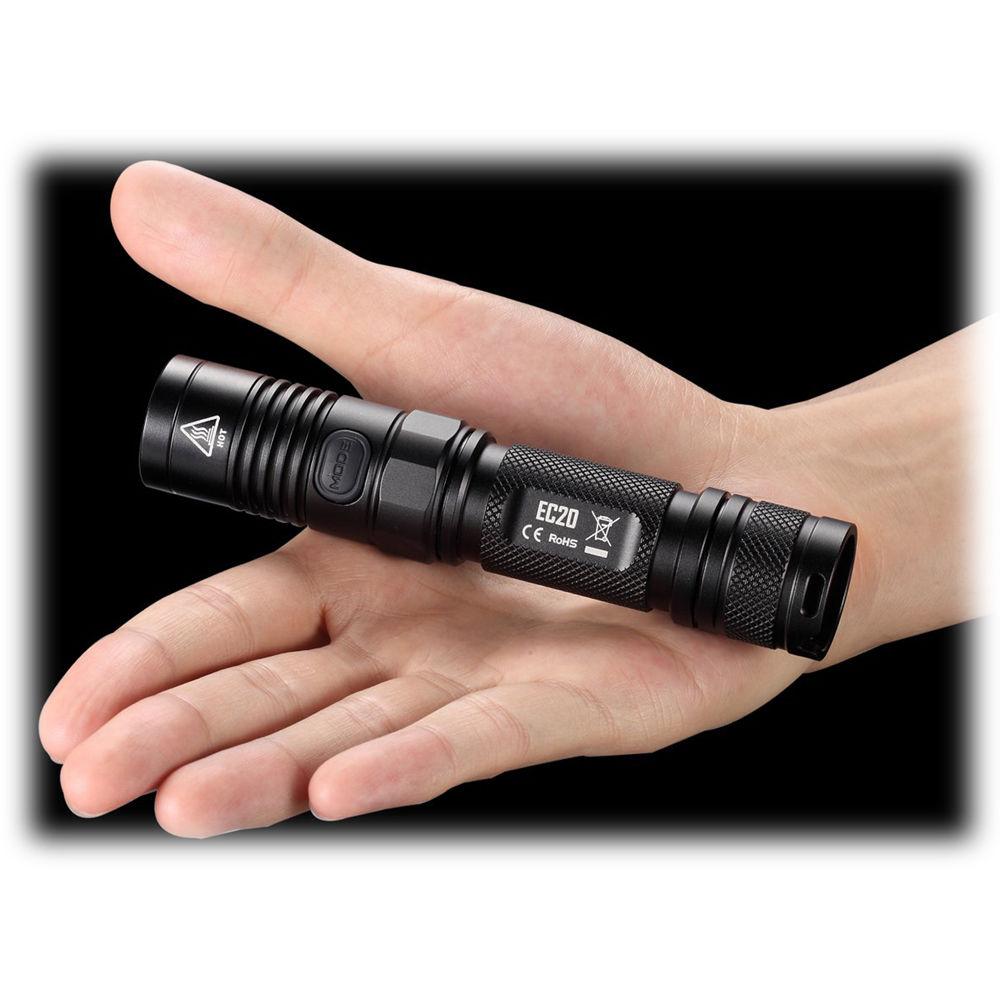

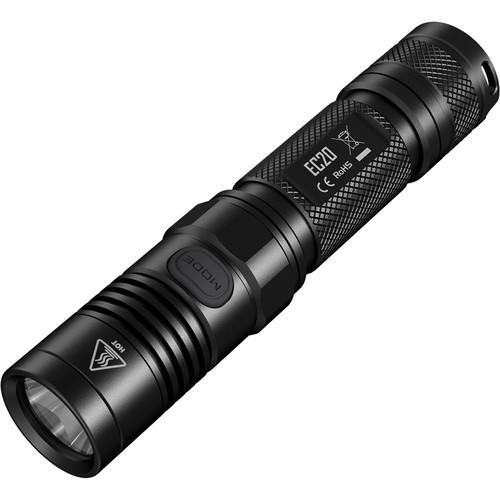

Product description The EC20 Flashlight from NITECORE feature bright white light CREE XM-L2 LED combined with "Precision Digital Optics Technology" to deliver improved reflector performance inside diamond knurled HA III anodized aluminum body. It also features high, medium, low and ultra-low brightness modes and international SOS, location beacon, and strobe flashing modes. Use the comfortable rubberized side button to switch between brightness and flushing modes. The button also has a battery status indicator glowing with a blue light around the perimeter. The flashlight also features a constant current output circuit which enables operation for a maximum of 520 hours.
To make it useful in a variety of situations like outdoors and professional activities, the NITECORE outfitted this flashlight with a waterproof, submersible to 6.6', impact resistant to 5', durable high grade aluminum housing with HA III anodized finish and comfortable and slip-free handle diamond knurling. To help you concentrate on your task, the flashlight has an anti-roll polygon ring located at the base of the head. To enable you to project light in a vertical direction for example, to illuminate ceiling, the tailcap has a smooth round shroud so it can stand stably on a rough surface. To help you switch between the brightness and flashing modes even while wearing gloves, the NITECORE EC20 is equipped with a rubberized power button. Also included with the light are lanyard and a spare o-ring. - Light Performance
-
- CREE XM-L2 LED
- White LED light
- Ultra-low: 1 lumen
- Low: 50 lumen
- Medium: 210 lumen
- High: 960 lumen

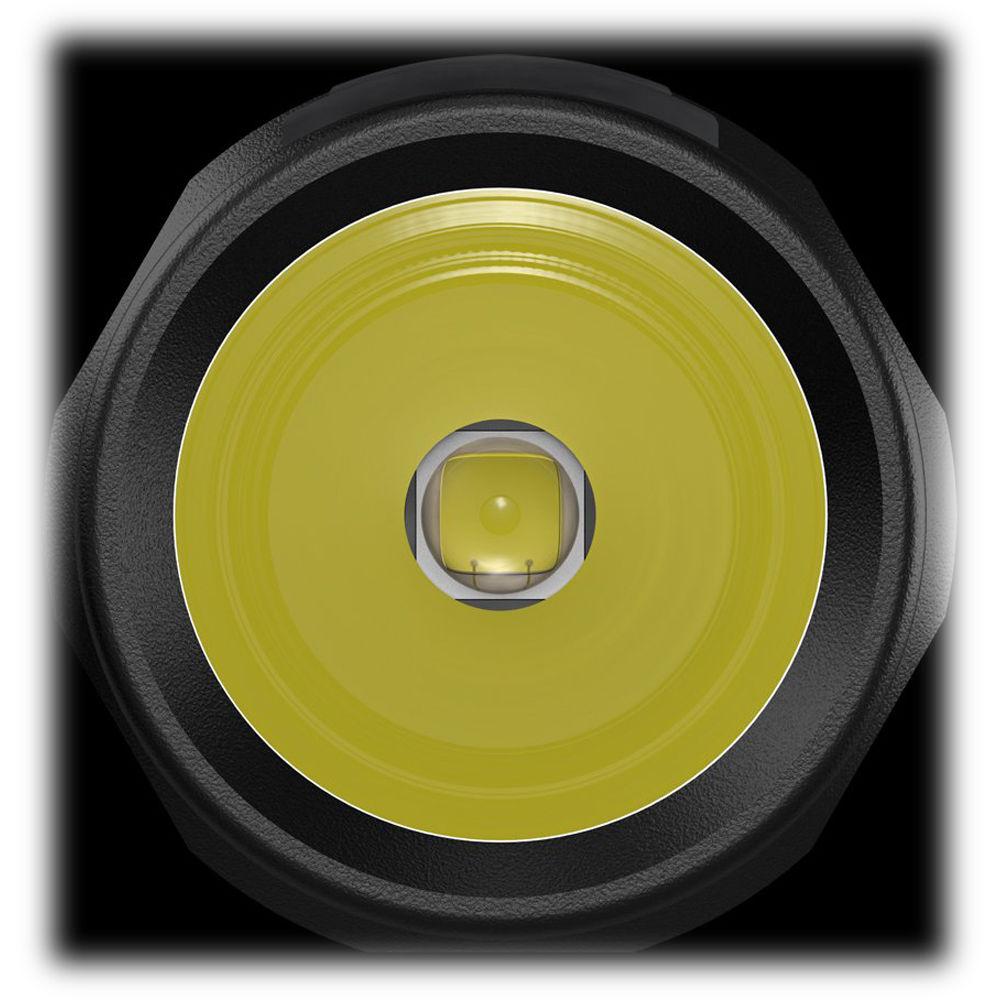

- "Precision Digital Optics Technology" improves reflector performance
- Advanced reflector system improves beam brightness and shape quality
- Location beacon, SOS, and strobe flashing modes
- Switching and Electronic Performance
-

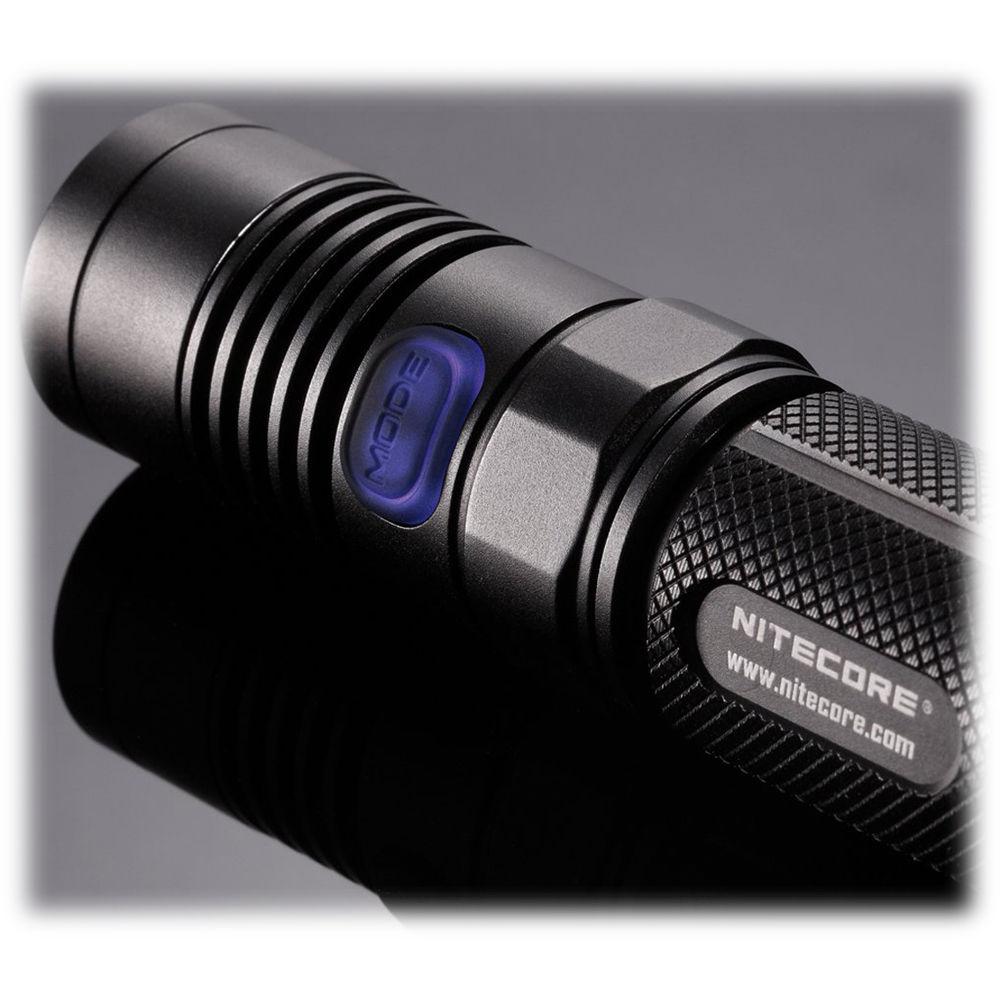

- Rubberized switch button has a blue battery status indicator around perimeter
- High efficiency constant current circuit provides max runtime of 520 hours
- Battery status indicator displays remaining battery level and voltage
- Reverse polarity protection prevents damage from incorrectly inserted batteries
- Instant access to ultra-low output
- Construction Details
-
- Diamond textured handle provides a good grip
- Stable when placed on the tail end
- Impact resistant to 5'
- IPX8 rated waterproof submersible to 6.6'
- Matte black HA III anodized finish on aluminum core
In the Box Nitecore EC20 Flashlight - Lanyard
- O-Ring
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore EC20 Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore EC20 Specs | | | Lumen Output | 960 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 1.25 Hours
Medium: 6 Hours
Low: 28 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Dimensions |
