User Manual for Nitecore EC4 Explorer LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore EC4 Explorer LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore EC4 Explorer LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

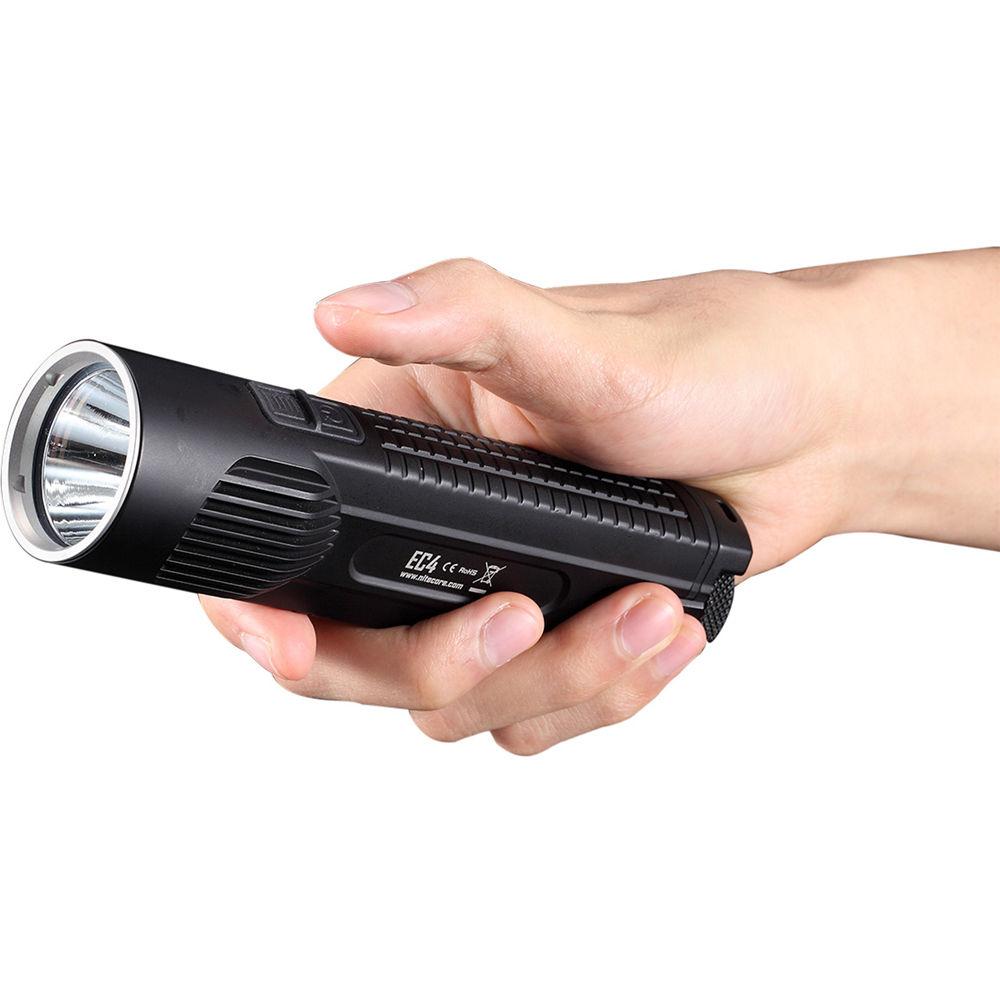

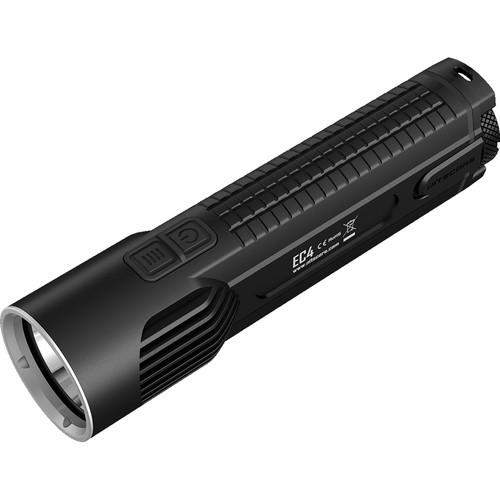

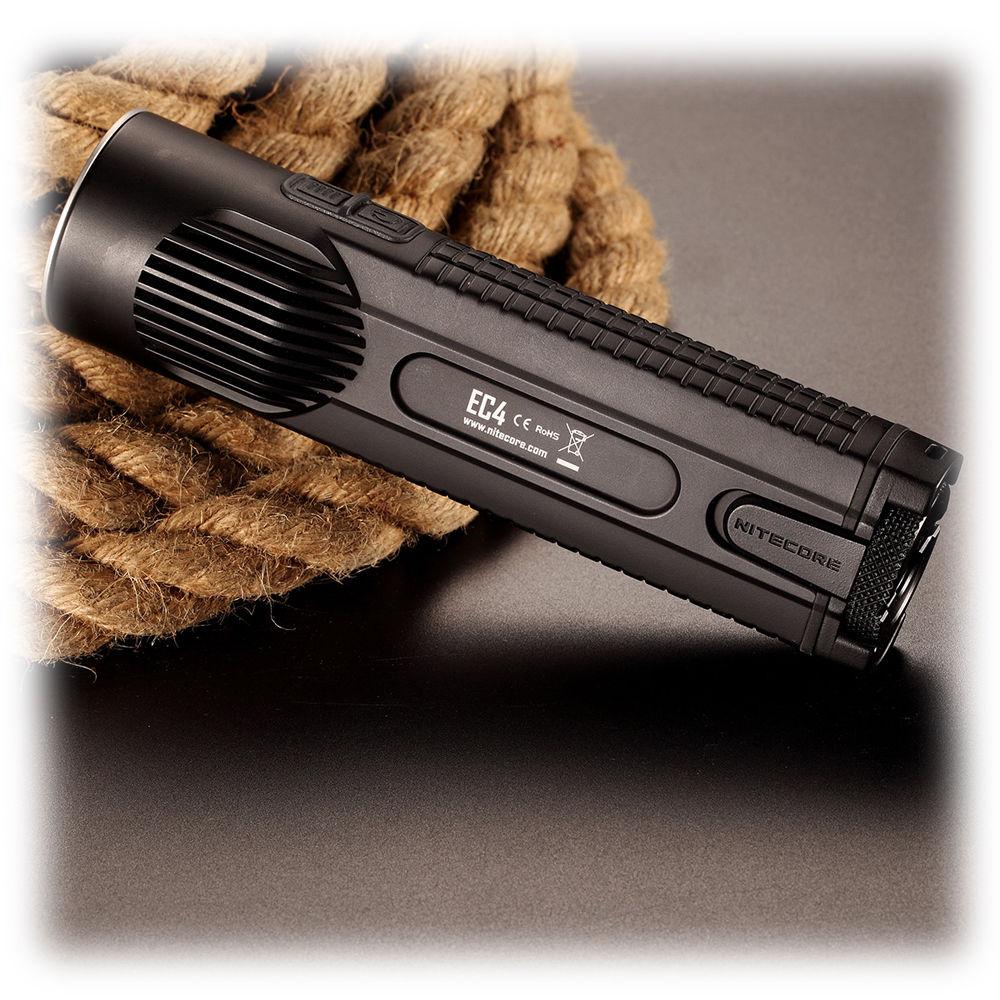

Product description Nitecore's black EC4 Explorer LED Flashlight is manufactured from die-cast 6061-T6 aluminum alloy in two parts: the body and tailcap. Using this method reduces overall weight and size. The uni-body design also makes the entire body a heat sink to help regulate the light's temperature - especially at high outputs.Its CREE XM-L2 U2 LED produces from a minimum of 1 lumen to 1000 lumens on turbo mode. In addition to the five output intensities, the EC4 has a disorientating strobe, SOS distress signal, and a signal beacon. The outputs and modes are controlled via two pushbutton switches on the body, with instant access to the minimum and turbo outputs, as well as a lockout function that prevents accidental activation, integrated battery status indicator, and last-mode memory.Complementing the light's performance is a lightweight and durable 6061-T6 aluminum housing with a type III hard anodized finish. On top of the anodizing is an additional layer of stoving varnish to offer further corrosion, scratch and chemical resistance. Its unibody design and O-ring sealed tailcap provide an IPX8 rating to be waterproof and submersible to 6.6' for up to 30 minutes. Rounding out the light's usability is a 1/4"-20 tripod. - Performance
-
- Min: 1 lumen
- Low: 80 lumen
- Med: 240 lumen
- High: 520 lumen
- Turbo: 1000 lumen
- CREE XM-L2 U2 LED
- Smooth deep reflector maximizes throw while producing a smooth beam without holes or hotspots
- Disorientating strobe mode
- SOS distress mode: Automatically cycles through Morse-code sequence
- Location beacon: Emits a pulse of light in regular intervals
- Switching
-
- Location: Body
- Type: Dual pushbutton
- Constant-on mode only
- Instant access to minimum and turbo outputs
- Standby mode: Switch blinks every 3 seconds to locate in the dark
- Intelligent last-mode memory switch
- Lockout function to prevent accidental activation
- Construction
-
- 1.6" (40mm) head
- Lightweight and durable die-cast 6061-T6 aluminum alloy housing
- Scratch, chemical, and corrosion-resistant type III hard anodized finish with varnish exterior treatment
- Stainless steel bezel ring protects head and window from drops and impacts
- Anti-reflection coated scratch-resistant tempered glass window
- IPX8-rated submersible, impact resistant to 5'
- Rectangular anti-roll ergonomic handle
- Machined textured grip for slip-resistant handling
- Heat dissipating fins on head
- Flat tailcap to stand flashlight
- 1/4"-20 tripod mount on tailcap
- Electronics Details
-
- Integrated battery power indicator on switches
- Digitally-regulated output maintains consistent beam intensity throughout battery charge
- Overheat protection circuitry automatically steps power output down to avoid damage to the light
- Reverse-polarity protection prevents damage to light if batteries are installed incorrectly

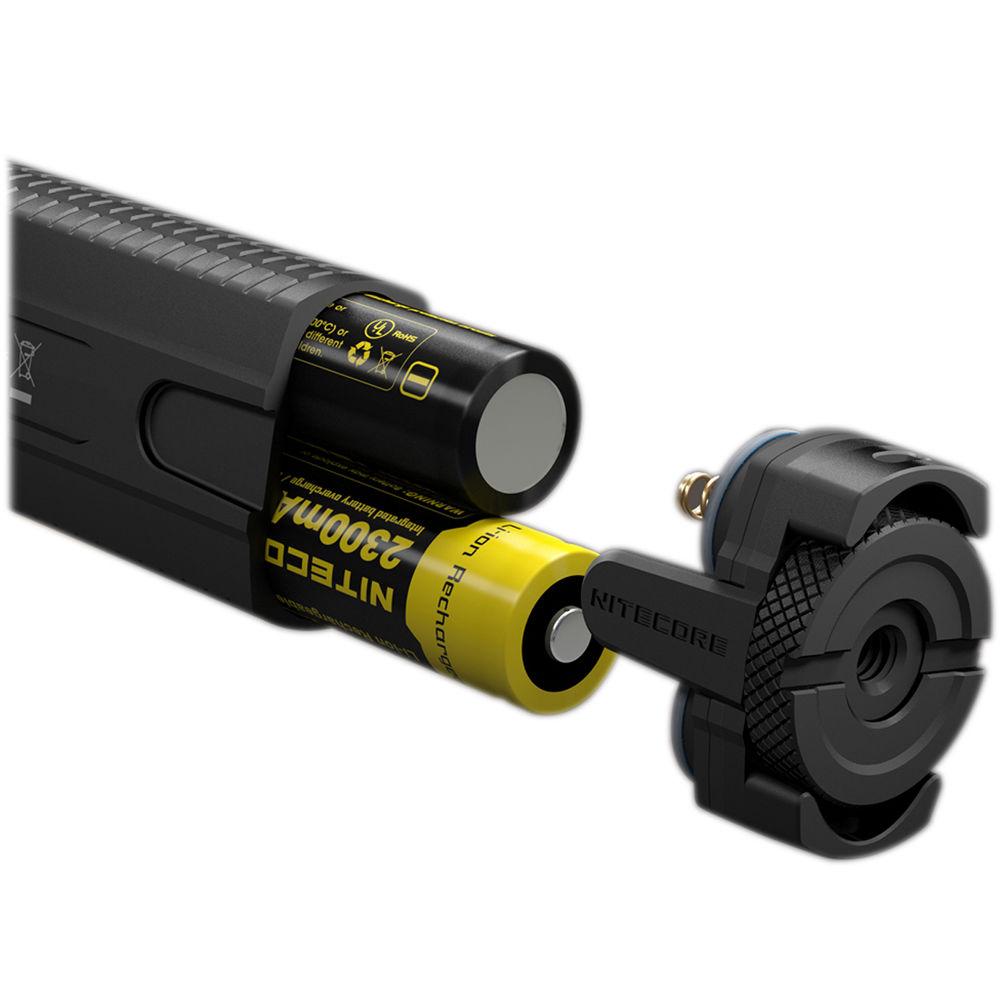

- Runs on two user-supplied 18650 li-ion rechargeable or four CR/RCR123 batteries
In the Box Nitecore EC4 Explorer LED Flashlight Lanyard Nylon Holster Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore EC4 Explorer LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore EC4 Specs | | | Lumen Output | High: 520 Lumens
Medium: 240 Lumens
Low: 80 Lumens
Turbo: 1000 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 3.75 Hours
Medium: 7.75 Hours
Low: 19.75 Hours
Minimum: 260 Hours
Turbo: 1.5 Hours | | Battery Type | 2 x 18650 Lithium-Ion or
4 x CR123A | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Bezel Diameter | 1.6" / 40.6 mm | | Dimensions | H: 1.5 x W: 1.1 x L: 5.9" / H: 3.7 x W: 2.8 x L: 15.0 cm | | Weight | 6.0 oz / 171 g (Without Batteries) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.1 x 3.0 x 2.2" |
