User Manual for Nitecore EC4GT LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore EC4GT LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore EC4GT LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

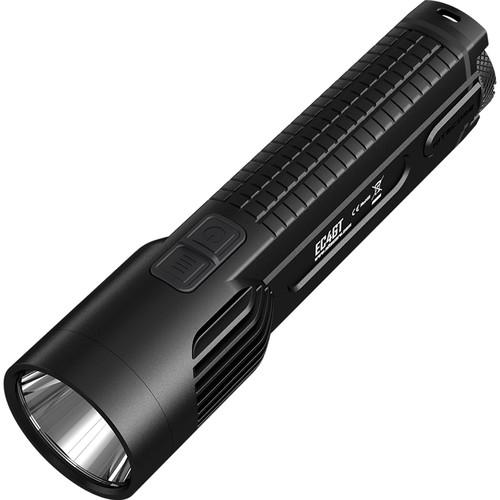

Product description Nitecore's black EC4GT LED Flashlight utilizes a new more energy-efficient Cree LED that maintains the maximum output of its predecessor while extending the runtimes at all outputs. It is die-cast from an aluminum alloy in two parts: the body and tailcap. Using this method reduces overall weight and size while also improving the overall structural strength and effectively making the entire body a heat sink, which helps to regulate the light's temperature - especially at high outputs.Its CREE XP-L HI V3 LED produces from a minimum of 1 lumen to 1000 lumens on turbo mode. In addition to the five output intensities, the EC4GT has a disorientating strobe, SOS distress signal, and a signal beacon. The outputs and modes are controlled via two push button switches on the body, with instant access to the minimum & turbo outputs and the strobe mode. A lockout function that prevents accidental activation, its integrated battery status indicator ensures you stay appraised of the available power, and last-mode memory automatically returns the light to the last output that was selected. - Performance
-
- Min: 1 lumen
- Low: 50 lumen
- Med: 200 lumen
- High: 420 lumen
- Turbo: 1000 lumen
- Energy-efficient CREE XP-L HI V3 LED

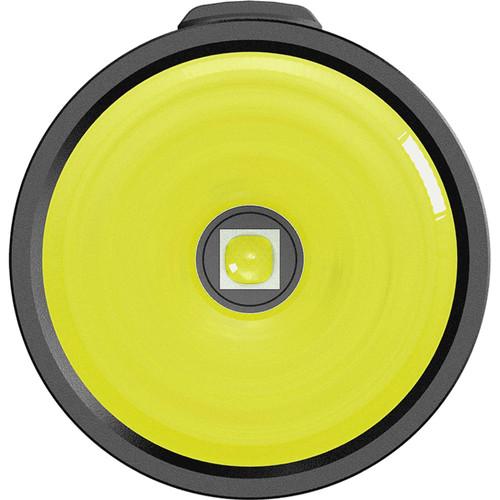

- Smooth wide "Big Eye" reflector maximizes throw while concentrating the light producing a smooth beam without holes or hotspots
- Specialty strobe modes:
- Disorientating strobe mode
- SOS distress mode: Automatically cycles through Morse code sequence
- Location beacon: Emits a pulse of light in regular intervals to maximize battery life
- Switching
-
- Location: Body
- Type: Dual push button
- Constant-on mode only
- Instant access to minimum/turbo outputs and strobe mode
- Intelligent last-mode memory switch
- Lockout function to prevent accidental activation
- Construction
-
- 1.6" (40mm) head
- Lightweight and durable die-cast aluminum alloy uni-body housing
- Scratch, chemical, and corrosion-resistant type III hard anodized black finish with varnish exterior treatment
- Stainless steel bezel ring protects head and window from drops and impacts
- Anti-reflection coated scratch-resistant tempered glass window

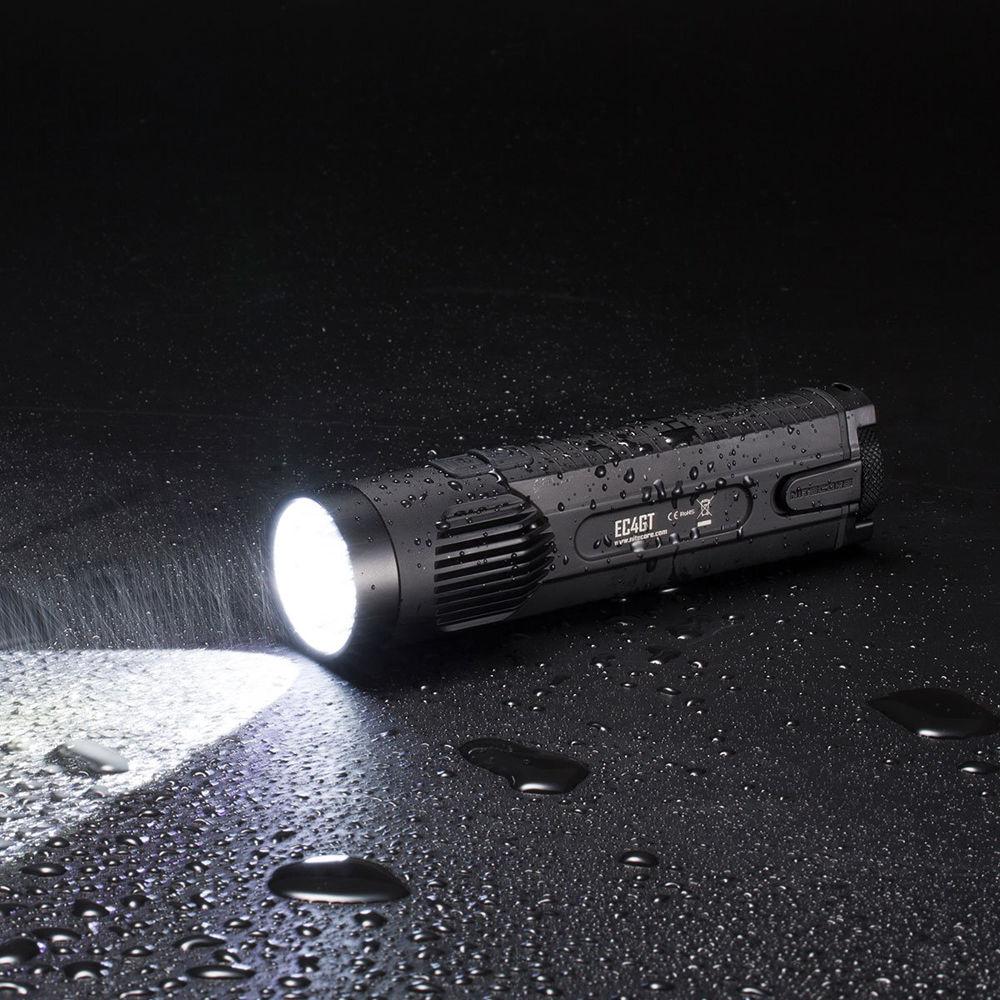

- IPX8-rated submersible to 6.6'
- Impact-resistant to 5'

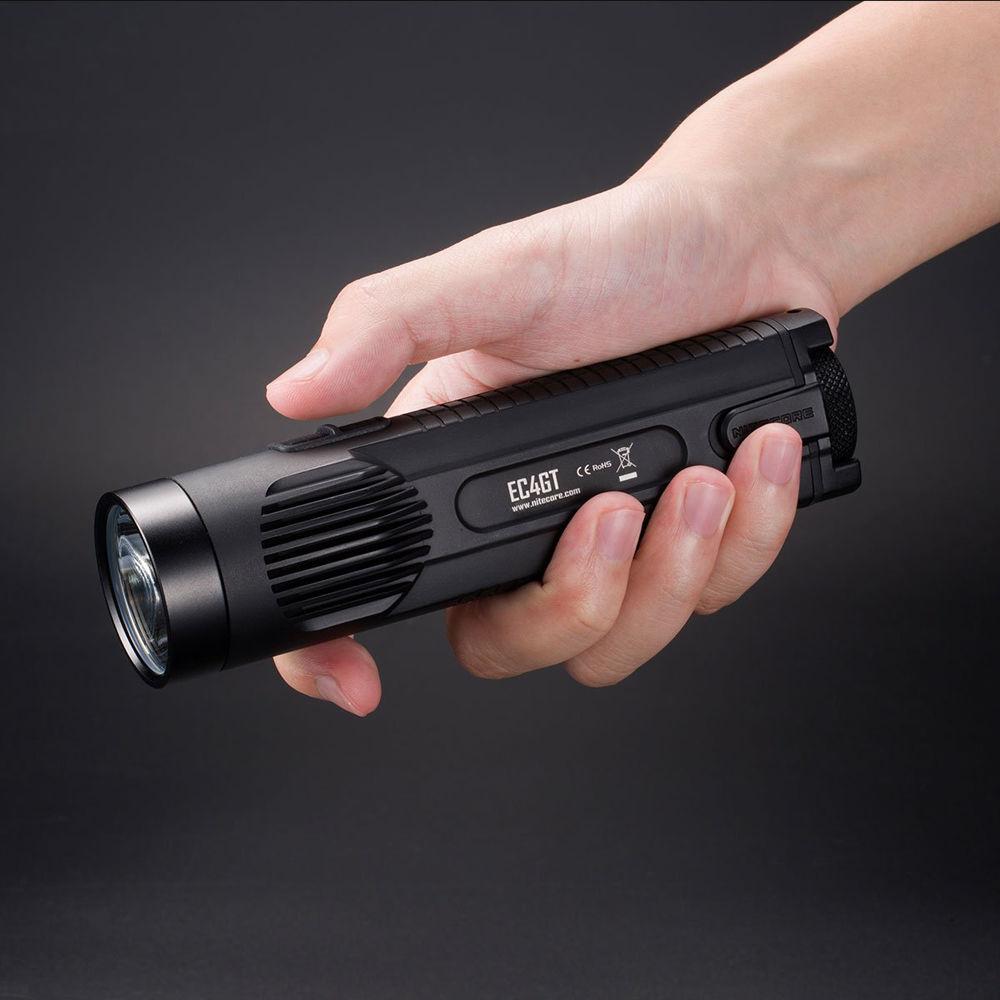

- Rectangular anti-roll ergonomic handle
- Machined textured grip for slip-resistant handling
- Heat dissipating fins on head
- Flat tailcap to stand flashlight
- Screw-down tailcap lock ensures IP-rating
- 1/4"-20 tripod mount on tailcap
- Electronics Details
-
- Runs on two user-supplied 18650 Li-ion rechargeable or four CR/RCR123 batteries (with reduced runtimes for all outputs)
- Integrated battery power indicator on switches
- Digitally-regulated output maintains consistent beam intensity throughout battery charge
- Advanced Temperature Regulation (ATR) system
- Monitors internal temperature
- Automatically steps-down power output to avoid damage to the light
- Standby mode: Switch blinks every 3 seconds to locate in the dark
- Reverse-polarity protection prevents damage to light if batteries are installed incorrectly
In the Box Nitecore EC4GT LED Flashlight (Black) Lanyard Nylon Holster Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore EC4GT LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore EC4GT Specs | | | Lumen Output | High: 420 Lumens
Medium: 200 Lumens
Low: 50 Lumens
Turbo: 1000 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 4.75 Hours
Medium: 10 Hours
Low: 25 Hours
Turbo: 2 Hours
Minimum: 380 Hours | | Battery Type | 2 x 18650 Lithium-Ion or
4 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Bezel Diameter | 1.6" / 40.6 mm | | Dimensions | H: 1.6 x W: 1.1 x L: 6.1" / H: 4.0 x W: 2.9 x L: 15.5 cm | | Weight | 6.0 oz / 171.0 g (Without Batteries) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.4 x 2.8 x 2.2" |
