User Manual for Nitecore EC4GTS High-Performance Blazing LED Searchlight Click to enlarge the picture
Contents of the user manual for the Nitecore EC4GTS High-Performance Blazing LED Searchlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore EC4GTS High-Performance Blazing LED Searchlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

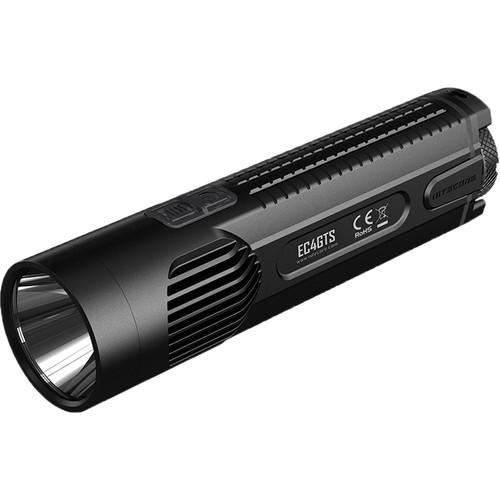

Product description Nitecore's black EC4GTS High-Performance Blazing LED Searchlight is manufactured from die-cast 6061-T6 aluminum alloy in two parts: the body and tailcap. Using this method reduces overall weight and size. The unibody design also makes the entire body a heat sink to help regulate the light's temperature—especially at high outputs.Its CREE XHP35 HD LED produces an output range of 1 to 1800 lumens on turbo mode. In addition to the five output intensities, the EC4GTS has a disorienting strobe, SOS distress signal, and signal beacon. The outputs and modes are controlled via two push-button switches on the body, with instant access to the minimum and turbo outputs as well as a lockout function that prevents accidental activation, integrated battery status indicator, and last-mode memory.The aluminum housing has a type III hard anodized finish. Its unibody design and O-ring sealed tailcap provide an IPX8 rating to be waterproof and submersible to 6.6' for up to 30 minutes. A standard 1/4"-20 tripod mount allows use of the EC4GTS as a stationary area light. The tripod mount is found on the light's tailcap, which serves the door to the battery compartment, which stays securely closed by means of a thumbscrew lock. - Performance
-
- Min: 1 lumen
- Low: 50 lumens
- Med: 240 lumens
- High: 800 lumens
- Turbo: 1800 lumens
- CREE XHP35 HD LED
- Precision Digital Optics Technology reflector
- Disorienting strobe mode
- SOS distress mode: Automatically cycles through Morse-code sequence
- Location beacon: Emits a pulse of light in regular intervals
- Switching
-
- Location: Body
- Type: Dual push button
- Constant-on mode only
- Instant access to minimum and turbo outputs
- Standby mode: Switch blinks every 2 seconds to locate in the dark
- Intelligent last-mode memory switch
- Lockout function to prevent accidental activation
- Construction
-
- 1.6" (40mm) head
- Lightweight and durable die-cast 6061-T6 aluminum alloy housing
- Scratch, chemical, and corrosion-resistant type III hard anodized finish with varnished exterior treatment
- Anti-reflection coated scratch-resistant tempered glass window
- IPX8-rated submersible, impact resistant to 6.6''
- Rectangular anti-roll ergonomic handle
- Machined textured grip for slip-resistant handling
- Heat-dissipating fins on head
- Thumbscrew battery lock on tailcap doubles as 1/4"-20 tripod connector
- Electronics Details
-
- Integrated battery power indicator on switches
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Overheat protection circuitry automatically steps power output down to avoid damage to the light
- Reverse-polarity protection prevents damage to light if batteries are installed incorrectly
- Runs on two user-supplied 18650 li-ion rechargeable or four CR/RCR123 batteries
In the Box Nitecore EC4GTS High-Performance Blazing LED Searchlight Lanyard Nylon Holster Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore EC4GTS High-Performance Blazing LED Searchlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

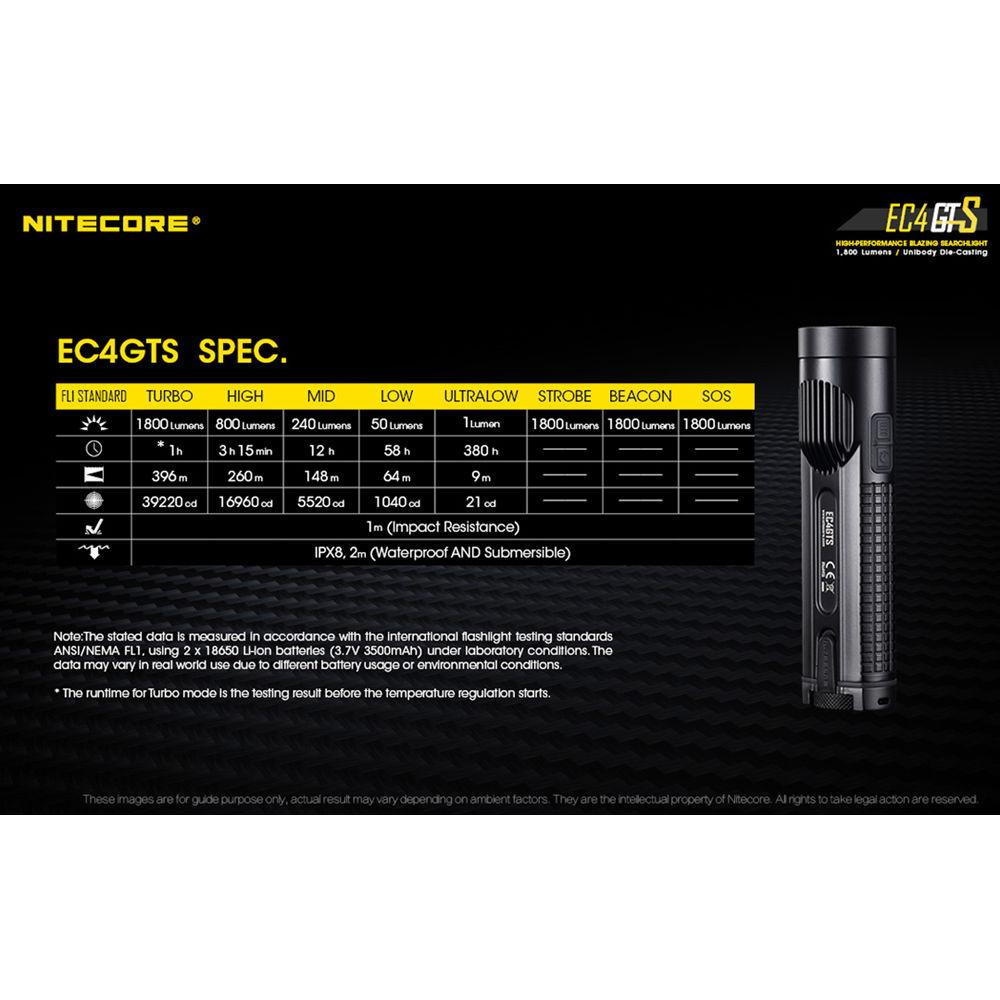

Technical parametersNitecore EC4GTS Specs | | | Lumen Output | Ultra-Low: 1 Lumen
Low: 50 Lumens
Medium: 240 Lumens
High: 800 Lumens
Turbo: 1800 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Ultra-Low: 380 Hours
Low: 58 Hours
Medium: 12 Hours
High: 3.3 Hours
Turbo: 1 Hour | | Battery Type | 2 x 18650 Lithium-Ion | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 1.6" / 40.0 mm | | Dimensions | L: 6.1" / L: 154.9 mm | | Weight | 6 oz / 170 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 7.0 x 3.0 x 3.0" |
