User Manual for Nitecore EH1 LED Headlight Click to enlarge the picture
Contents of the user manual for the Nitecore EH1 LED Headlight
- Product category: Headlamps Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Headlamps
 |
User manual for the Nitecore EH1 LED Headlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

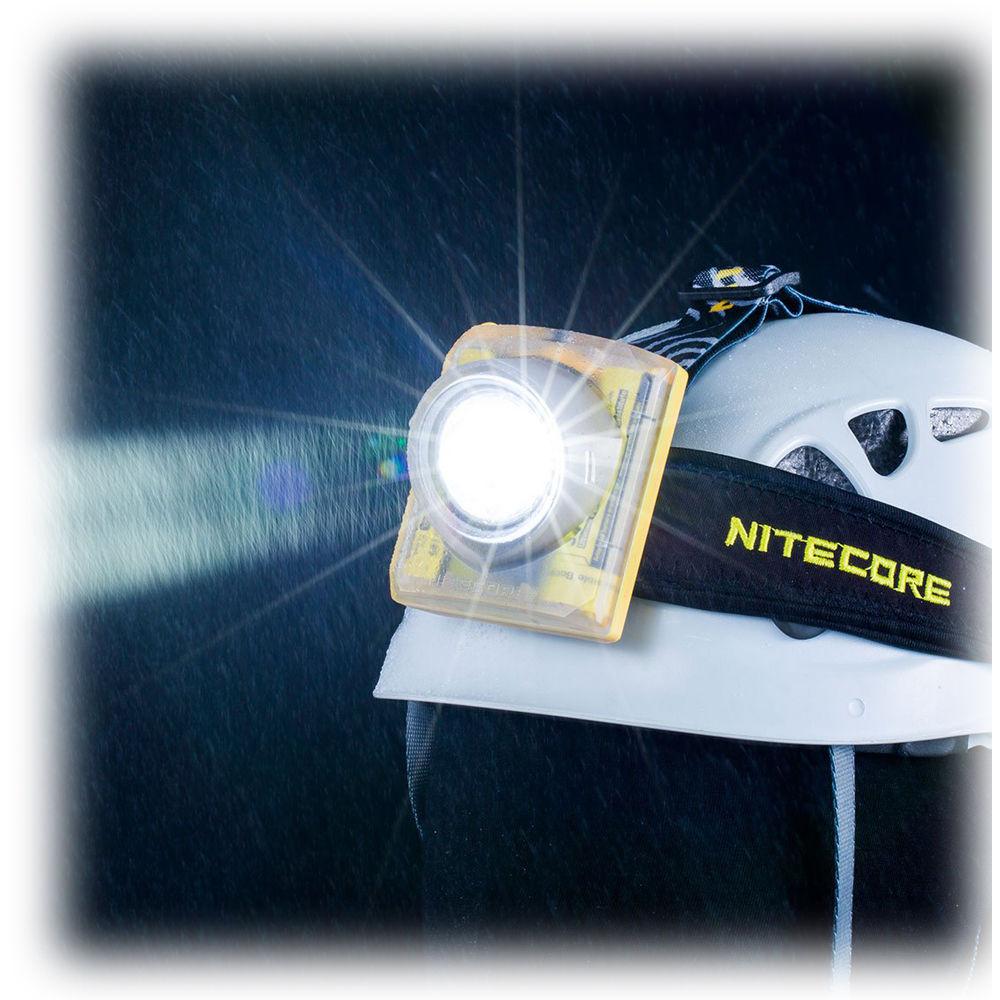

Product description Engineered and purpose-built for high risk industries such as mining, off-shore and underground oil exploration, and the petrochemical and chemical industries, Nitecore's EH1 LED Headlight runs on two factory-installed 18650 batteries that power the primary CREE XP-G2 S3 LED to produce three white-light outputs from a low of 22 lumens up to a max of 260 lumens. Four secondary red LEDs can be used to perform tasks while protecting night or dark-adjusted vision. The red LEDs also have two special strobe modes for increased safety. In the event the user is incapacitated, an SOS distress signal can be activated to automatically cycle through the Morse code sequence, or a location beacon can be used to signal where they are. An intuitive single pushbutton interface makes it easy to use.Since the housing is sealed at the factory, the EH1 is able to maintain an IP68 rating to be dust and waterproof as well as submersible to 10 feet. To charge the batteries, Nitecore employs a magnetic charging system that eliminates the need for an open charging port to keep water, dust, and chemicals out. Their Advanced Temperature Regulation (ATR) technology monitors the internal temperature and automatically steps down the output to prevent damage due to excessive heat. - Light Performance
-
- Low: 22 lumens
- Med: 65 lumens
- High: 260 lumens

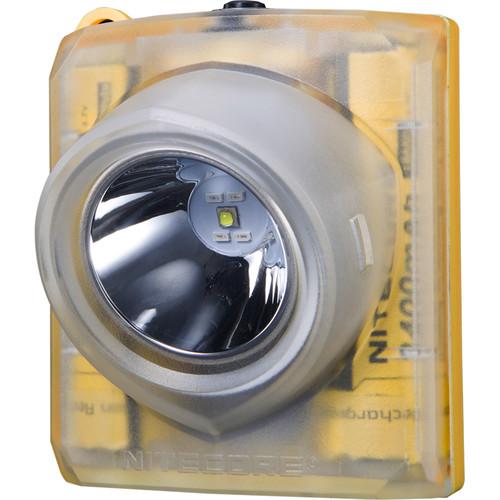

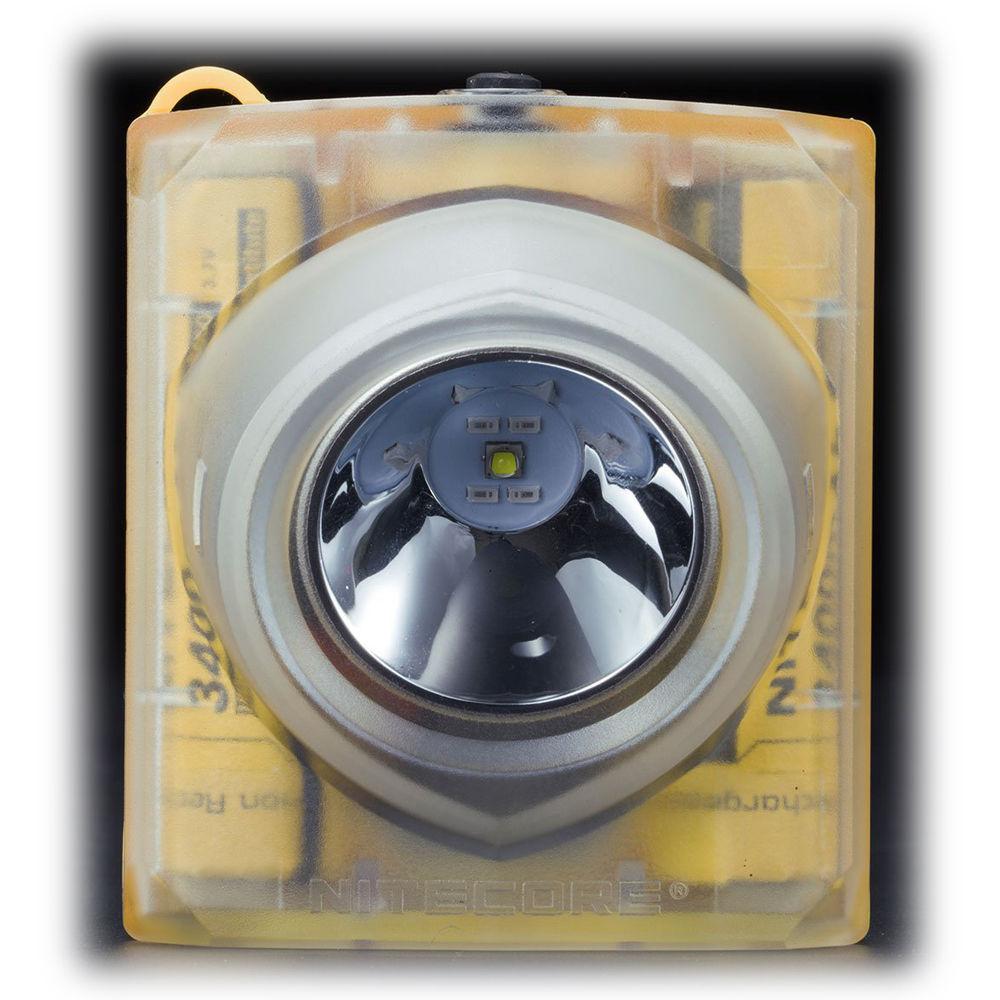

- One primary CREE XP-G2 S3 LED
- Four secondary red LEDs
- Specialty strobe modes:

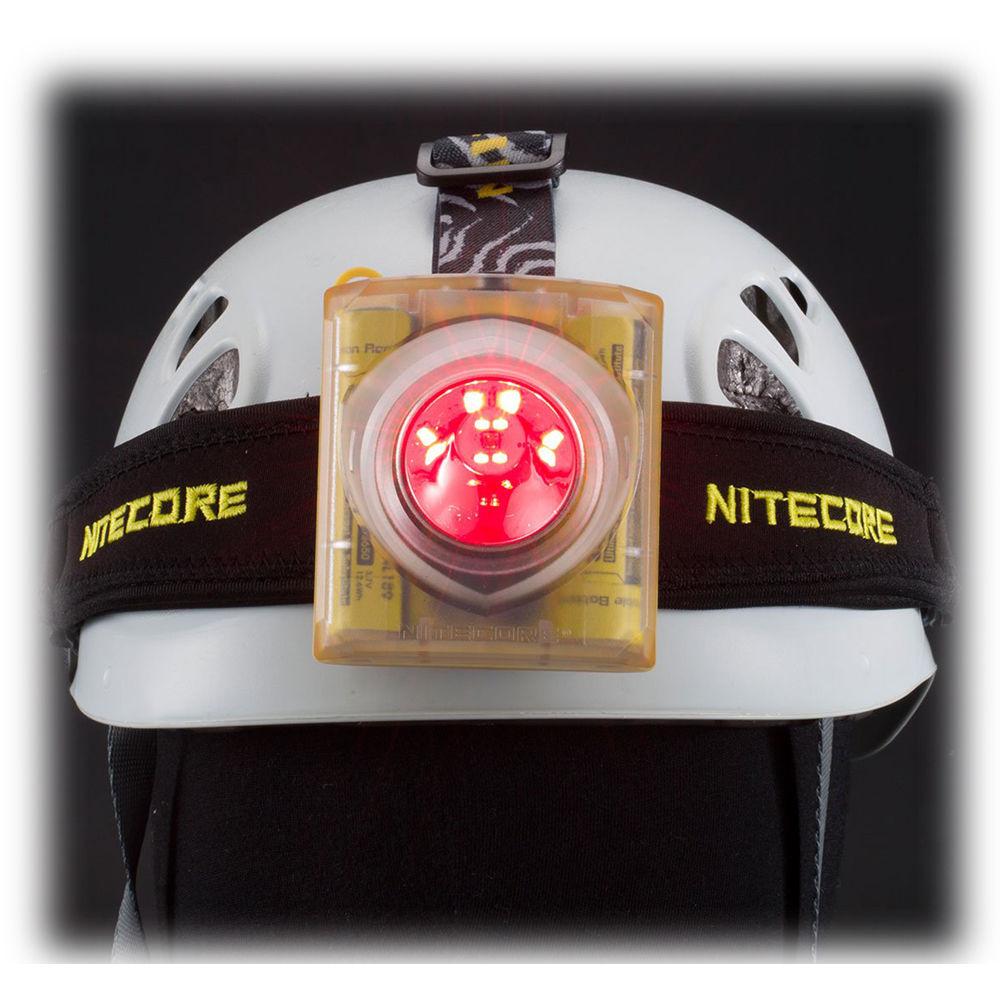

- Utilizes secondary red LEDs for use in low-light conditions
- Red light won't affect night/dark-adjusted vision
- SOS beacon: Automatically repeats Morse code sequence
- Location beacon: Emits a flash at regular intervals to show location while maximizing battery life
- Switching
-
- Type: Push button
- Location: Top of housing
- Constant-on activation only
- Single button used to access all intensity levels and strobe modes
- Construction Details
-
- Rated for high-risk occupations:
- Mining
- Underground and off-shore petroleum exploration
- Petrochemical and chemical industries
- Rated for temperatures up to 212°F (100°C)
- Temperature, impact, and chemical-resistant polycarbonate housing
- IP68-rated
- Dust and waterproof
- Submersible to 10 feet
- Factory-sealed to maintain IP rating
- Impact resistant to 6 feet
- Adhesive mount and helmet mount included
- Weight: 6.7 ounces
- Electronics
-
- Runs on two factory-installed 18650 batteries

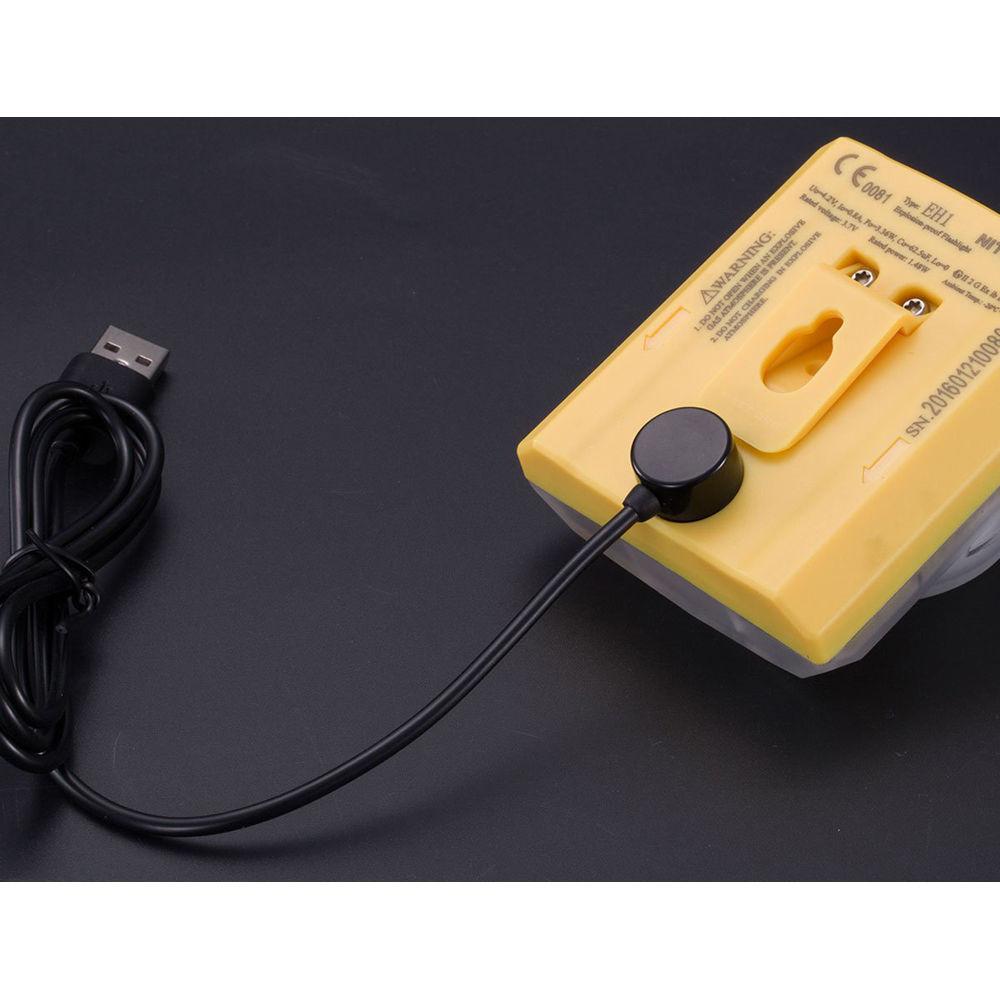

- Magnetic charging system:
- Charges battery in the housing
- Eliminates the need for an open charging port for increased dust and waterproofing
- Integrated power indicator: The number of red lights illuminated show available battery power
- Advanced Temperature Regulation (ATR) technology:
- Monitors internal temperature and steps down output to prevent damage due excessive heat
In the Box Nitecore EH1 LED Headlight Adhesive Mount Helmet Band Adapter USB Magnetic Charging Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore EH1 LED Headlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore EH1 Specs | | | Lumen Output | Low: 22 Lumens
Medium: 65 Lumens
High: 260 Lumens | | Illumination Source | 1 x White LED
4 x Red LED | | Estimated Runtime | High: 10 Hours
Medium: 40 Hours
Low: 120 Hours | | Battery Type | 2 x 18650 | | Charging Time | 8 Hours | | | | Water Resistance | Waterproof to 9.8' / 3 m, IP68 | | Impact Resistance | Yes, 6.0' / 1.8 m | | Dimensions | W: 3.3 x H: 2.8 x D: 2.0" / W: 8.3 x H: 7.0 x D: 5.2 cm | | Weight | 6.7 oz / 191.0 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.3 x 4.4 x 3.7" |
