User Manual for Nitecore Explorer EA42 Compact LED Searchlight Click to enlarge the picture
Contents of the user manual for the Nitecore Explorer EA42 Compact LED Searchlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore Explorer EA42 Compact LED Searchlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

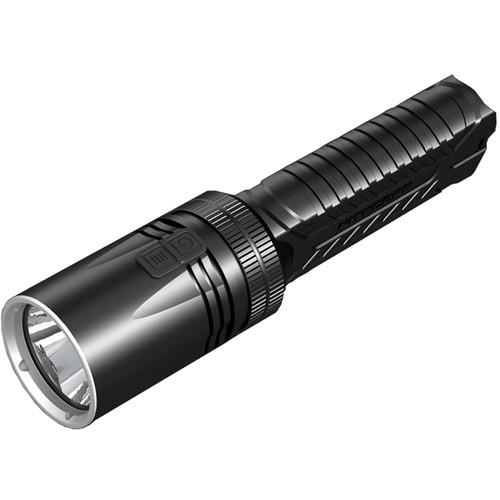

Product description Powered by widely available AA batteries and small enough to fit comfortably in a glove box, the Nitecore Explorer EA42 Compact LED Searchlight offers the output and operating features normally found on bigger lights with premium cells. Five brightness levels with a maximum of 1800 lumens and a runtime as long as 280 hours make the EA42 a good choice for a wide range of professional, recreational and home uses. There's also a flashing beacon, an SOS signal, and a disorienting self-defense strobe. Complementing the compact form factor and multiple output modes, the Explorer flashlight is equipped with a range of construction features that make it both durable and easy to handle, including a hard anodized aluminum head and a flat-sided, anti-roll polycarbonate handle with fat knurling for a secure and comfortable grip. The light's dual side-mounted push-button switches make it easy to control brightness levels, flashing modes and the lockout function, which prevents accidental activation. The light is rated IPX8 water resistant, is submersible to 6.6', and impact resistant to 3.3'. - Light Performance
-
- Ultralow: 1 lumen (280-hour runtime)
- Low: 55 lumens (20-hour runtime)
- Medium: 300 lumens (4-hour 45-minute runtime)
- High: 850 lumens (1-hour 45-minute runtime)
- Turbo: 1800 lumens (30-minute runtime)
- Turbo mode may be inaccessible when using alkaline batteries
- Strobe, SOS Signal, Flashing Beacon modes
- Precision Digital Optics Technology reflector
- Switching
-
- Dual switch design for activation and mode selection
- On/Off switch for power, Mode switch for output and flash
- Press and hold On/Off for direct access to Ultralow
- Press and hold Mode switch for instant access to Turbo
- Integrated power indicator light displays remaining battery power
- Memory circuit returns the light to previously used output
- Construction Details
-
- Runs on 4 AA batteries
- Aluminum head with type III hard anodized finish
- Polycarbonate handle with thick knurling
- Mineral glass lens with anti-reflective coating
- IPX8 waterproof compliant
- Impact resistant to 3.3'
- Advanced Temperature Regulation circuitry
- Weight: 4.5 oz
In the Box Nitecore Explorer EA42 Compact LED Searchlight Holster Lanyard Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore Explorer EA42 Compact LED Searchlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore EA42 Specs | | | Lumen Output | High: 850 Lumens
Medium: 300 Lumens
Low: 55 Lumens
Turbo: 1800 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1.8 Hours
Medium: 4.8 Hours
Low: 20 Hours
Turbo: 0.5 Hour
Minimum: 280 Hours | | Battery Type | 4 x AA | | | | Lens Material | Polycarbonate | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.6" / 4.0 cm | | Dimensions | L: 6.6" / L: 16.8 cm | | Weight | 4.5 oz / 128 g (Without Batteries) | | | | Package Weight | 0.505 lb | | Box Dimensions (LxWxH) | 8.75 x 4.1 x 2.1" |
