User Manual for Nitecore HA20 Unibody Die-Cast Headlamp Click to enlarge the picture
Contents of the user manual for the Nitecore HA20 Unibody Die-Cast Headlamp
- Product category: Headlamps Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Headlamps
 |
User manual for the Nitecore HA20 Unibody Die-Cast Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

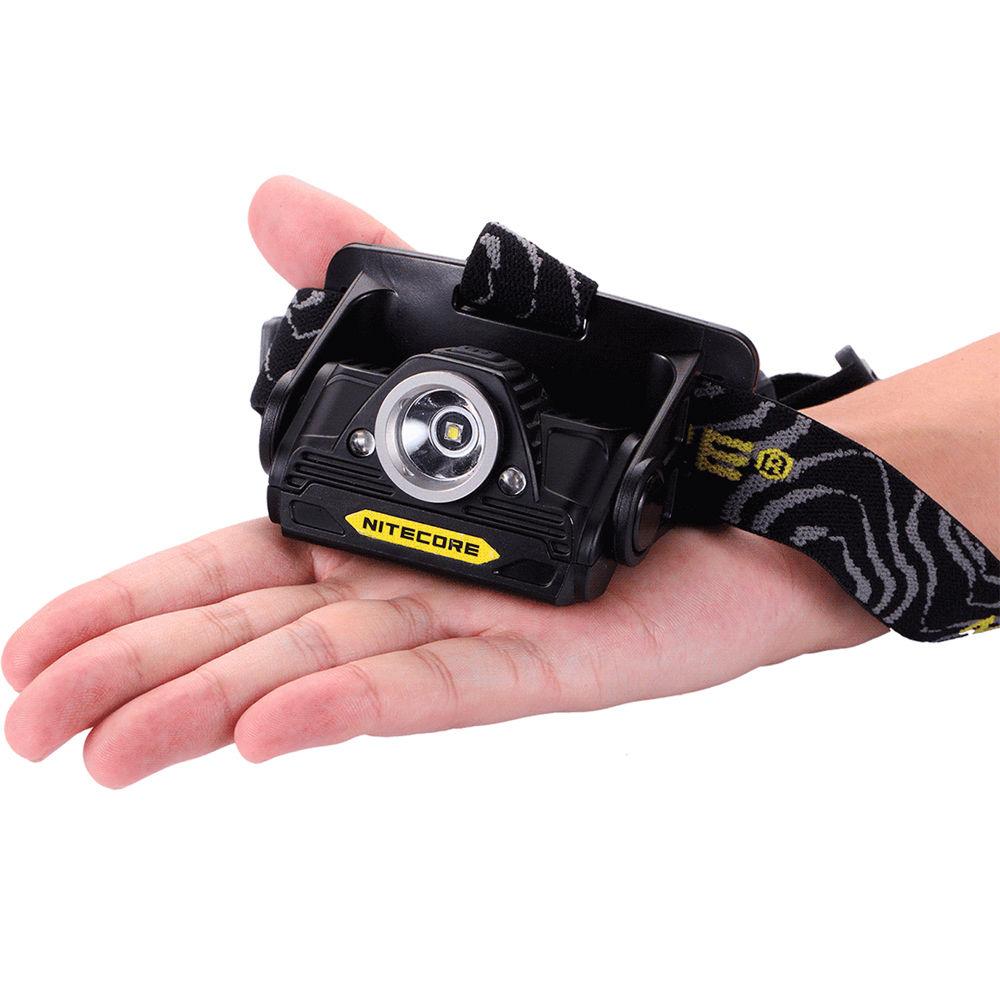

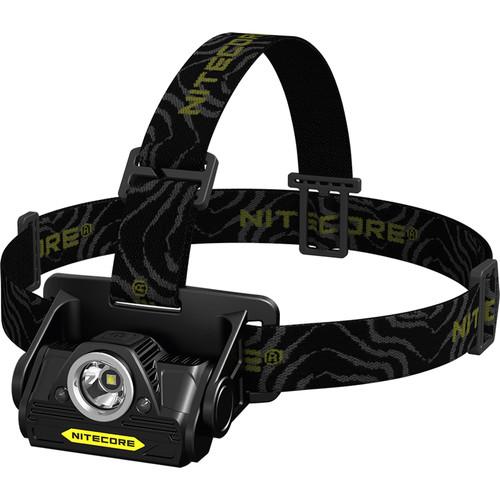

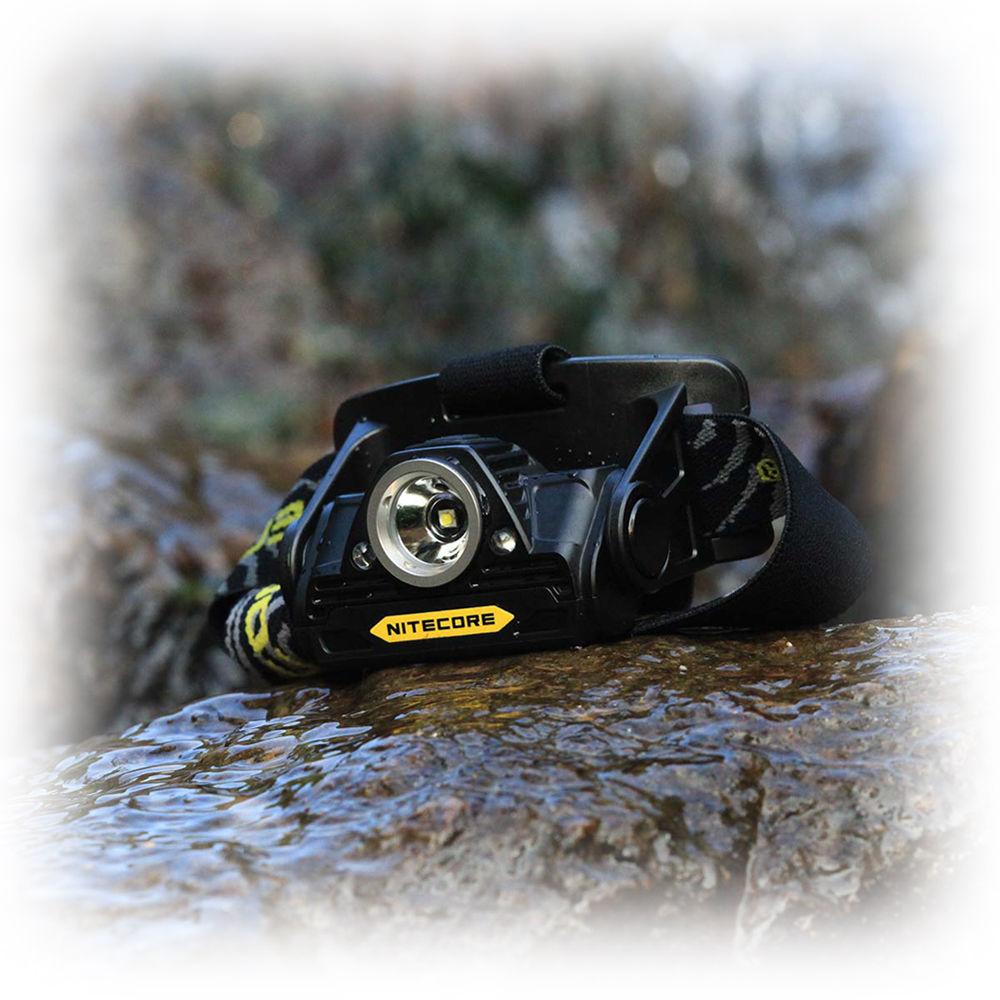

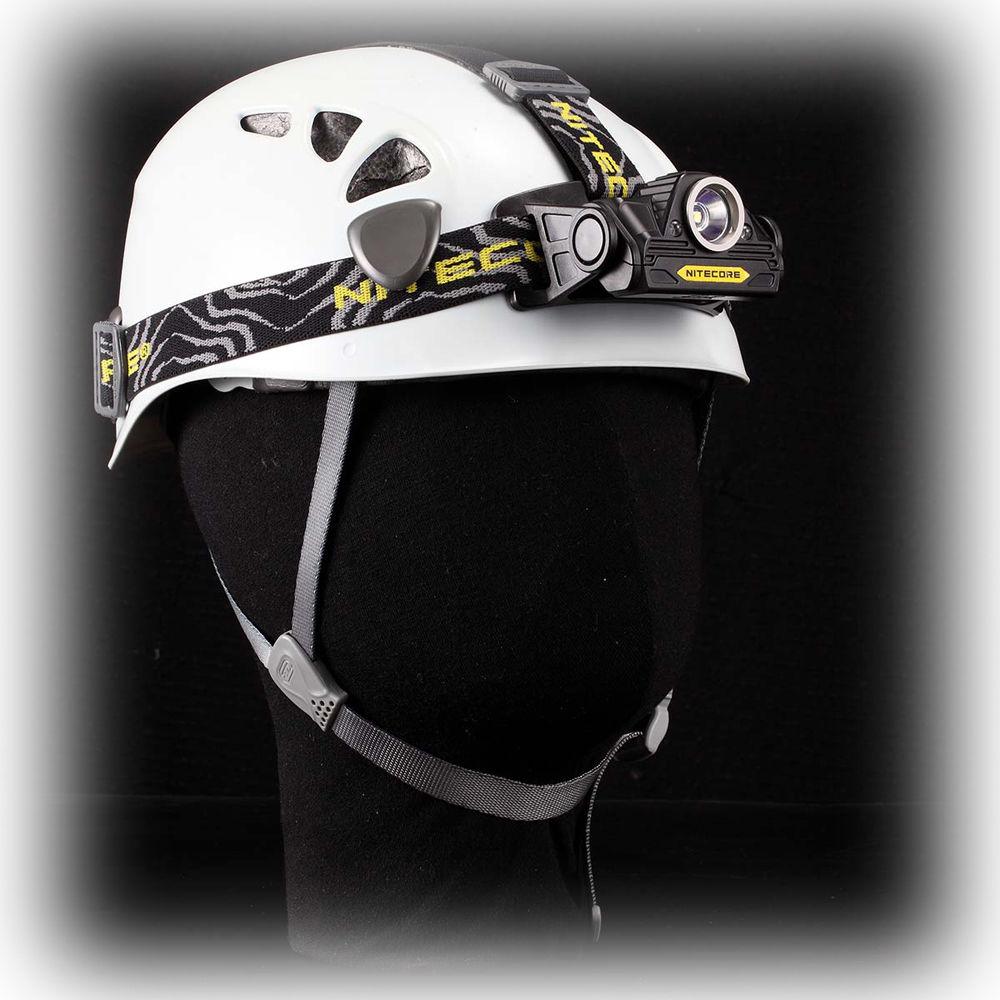

Product description When darkness falls don't be caught without the hands-free Unibody Die-Cast HA20 Headlamp from Nitecore. Equipped with a white Cree XP-G2 LED, it ranges from 1 lumen to 300 lumens. Press the single button once to turn the lamp on, and then, pressing halfway, you can cycle through five different brightness levels.The headlamp has integrated Precision Digital Optics technology, which improves the reflector's performance by offering more curved point-to-point accuracy. The reflector then is more uniform and illuminates objects better at longer distances. The reflector provides a 100° wide beam angle, and the head tilts vertically 90°. In case you are caught in a situation where you need help, you can activate the two F5 red LEDs by pressing the button halfway down for more than a second to enter three emergency modes: Police Warning, Location Beacon and SOS.Made from aluminum alloy, the housing is impact-resistant, and its IP67 rating means it is dust and weatherproof. The metal housing has Advanced Temperature Regulation (ATR) technology, which adjusts the headlamp's output to keep it from overheating, while fins located on top help dissipate heat as well. The front of the headlamp is made of a toughened ultra-clear glass with anti-reflective coating.The headlamp will run on two AA or NiMH batteries, and has reverse-polarity protection circuitry to prevent damage if the battery is installed incorrectly. With HA20 turned off, red LED's indicate the battery power level if you press the button partway down. When you install the battery, the red LED's will blink according to the battery voltage. For example, if the voltage is 2.4V the LED's will blink twice and then, after a pause, blink four times. - Modes
-
- Ultralow: 1 lumen
- Low: 30 lumens
- Med: 90 lumens
- High: 160 lumens
- Turbo: 300 lumens
- Emergency modes: Police Warning, Location Beacon, SOS
- Switching
-
- Press button halfway down to cycle through five white light output levels
- Press button halfway down for over one second to enter emergency modes
- Intelligent last-mode memory automatically enters the last brightness level used when turned on
- The headlamp rotates 90° upward to hide switch inside bracket to avoid accidental activation during storage
- Construction
-
- Aluminum alloy
- One Cree XP-G2 LED
- Two F5 red LEDs
- Tilting mechanism provides 90° vertical movement
- Clear mineral glass with anti-reflective coating
- Impact-resistant
- IP67-rated dust and weatherproof
- Gold plated circuits prevent oxidation and improve efficiency
In the Box Nitecore HA20 Unibody Die-Cast Headlamp Adjustable Headband Spare O-Ring Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore HA20 Unibody Die-Cast Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore HA20 Specs | | | Lumen Output | High: 160 Lumens
Medium: 90 Lumens
Low: 30 Lumens
Minimum: 1 Lumen
Turbo: 300 Lumens
Red: 16 Lumens | | Illumination Source | 1 x White LED
2 x Red LED | | Estimated Runtime | High: 2.5 Hours
Medium: 5.7 Hours
Low: 17 Hours
Turbo: 1.7 Hours
Minimum: 160 Hours | | Battery Type | 2 x AA Alkaline, NiMH | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 3.3' / 1 m, IP67 | | Dimensions | W: 3.5 x H: 2.1 x D: 2.0" / W: 9.0 x H: 5.5 x D: 5.0 cm | | Weight | 2.2 oz / 61.5 g (Without Batteries) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 4.9 x 4.0 x 2.3" |
