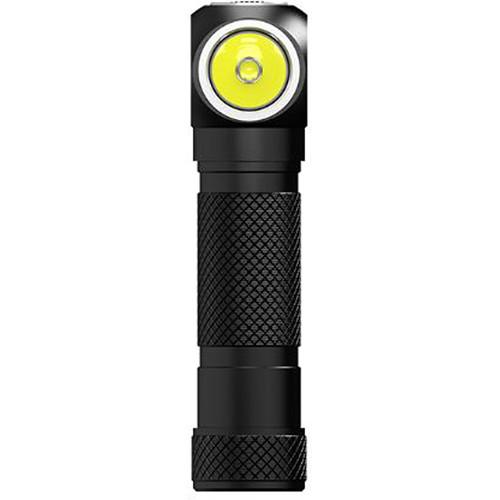

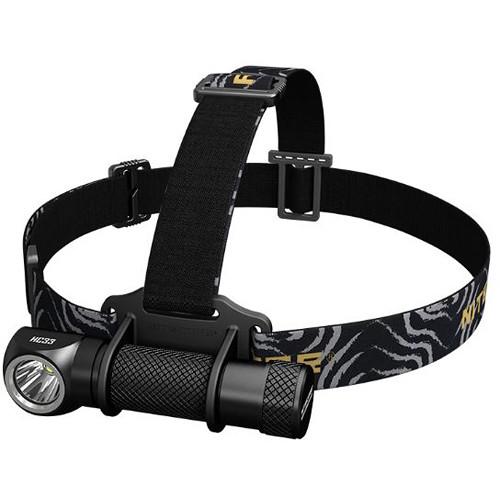

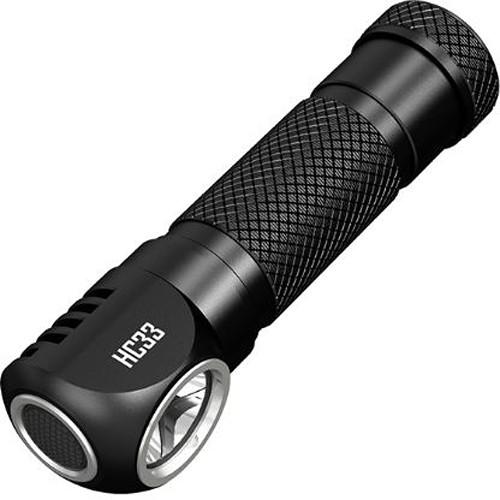

Nitecore HC33 Headlamp

Search your instruction manual in PDF to download

User Manual for Nitecore HC33 Headlamp

Click to enlarge the picture
Nitecore HC33 Headlamp Contents of the user manual for the Nitecore HC33 Headlamp
  • Product category: Headlamps Nitecore
  • Brand: Nitecore
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nitecore Headlamps

Nitecore HC33 Headlamp Nitecore HC33 Headlamp Nitecore HC33 Headlamp
User manual for the Nitecore HC33 Headlamp contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nitecore product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!



Product description

The HC33 Headlamp from Nitecore provides up to 1800 lumens of light, hands-free—except when you want your light handheld. Equipped with one Cree XHP35 HD LED, the light can be used with the elastic nylon headband or removed and used as a compact right-angle flashlight—one with a magnetic tailcap that sticks to such surfaces as the inside of a car hood or the side of a boiler. Press the push-button power switch button once and the light is on; press it again, and the button will cycle through the brightness levels. Hold the button down for 1.5 seconds and you are instantly in Turbo mode. Emergency modes (strobe, SOS, and location beacon) can be accessed by double-clicking the button.

The headlamp features Precision Digital Optics Technology, which improves the reflector's performance by offering more curved point-to-point accuracy. The reflector then is more uniform and illuminates objects better at longer distances. The reflector provides a 100° wide beam angle, and it is angled at 90° vertically. Constructed from anodized aluminum alloy, the headlamp has an IP68 rating, which means it's dustproof and submersible down to 6.6'. Advanced Temperature Regulation (ATR) technology adjusts the headlamp's output to keep it from overheating, while fins on the bottom help dissipate heat as well. The HC33 is powered by one 18650 Li-ion battery or two CR123 batteries.
    Modes
    • Ultra-low: 1 lumen
    • Low: 70 lumens
    • Med: 240 lumens
    • High: 780 lumens
    • Turbo: 1800 lumens
    • Emergency modes: location beacon, SOS, strobe
    Switching
    • Push-button switch
    • Press for on/off, brightness levels, emergency modes
    Construction
    • Anodized aluminum alloy light housing
    • Elastic nylon headband
    • Light can be detached for handheld use
    • Magnetic tailcap
    • Impact resistant to 3.3'
    • IP68-rated water resistant, submersible to 6.6'
    • Weight: 1.8 oz
In the Box Nitecore HC33 Headlamp
  • Adjustable Headband
  • Spare O-Ring
  • Clip
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Nitecore HC33 Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Nitecore HC33 Specs

    Illumination Source Cree XHP35 HD LED
    Output Ultra-low: 1 lumen
    Low: 70 lumens
    Medium: 240 lumens
    High: 780 lumens
    Turbo: 1800 lumens
    Battery 1 x 18650 Li-ion or 2 x CR123
    Runtime Ultra-low: 300 h
    Low: 15 h
    Medium: 5.2
    High: 1.5
    Turbo: 0.5
    Construction Aluminum-alloy light housing
    Elastic nylon headband
    Weatherproofing IP68-rated, submersible to 6.6' / 2 m
    Dimensions 4.1 x 1.0" / 10.5 x 2.6 cm
    Weight 1.8 oz / 51 g
    Package Weight 0.35 lb
    Box Dimensions (LxWxH) 6.0 x 4.5 x 2.0"
